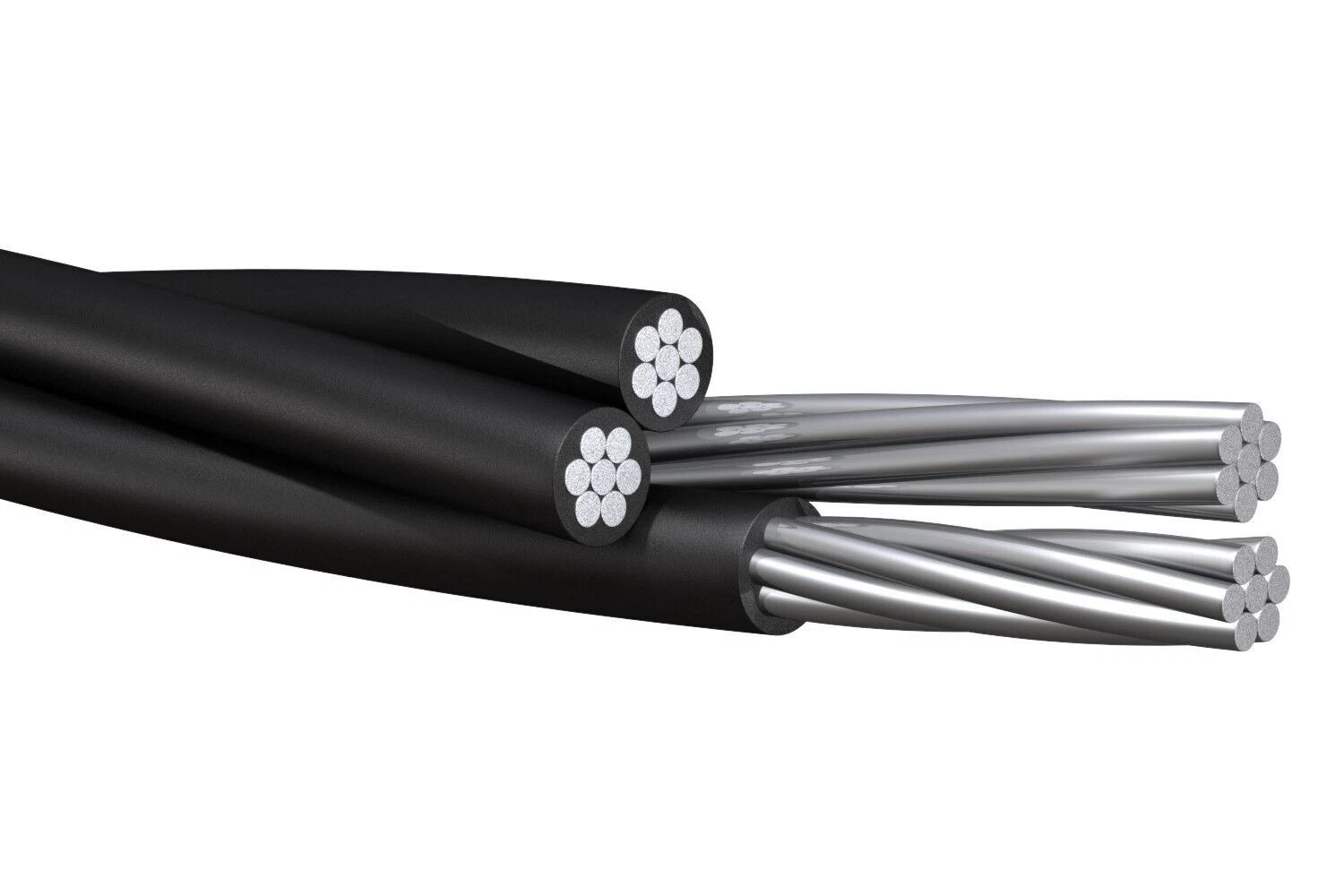

Chola 6-6-6-6 Aluminum Overhead Service Drop Cable 600V
Click Thumbnails to Enlarge
APPLICATION
- Chola 6-6-6-6 Aluminum Overhead cable is designed for use to supply 3 phase power, usually from a pole mounted transformer, to the consumer weather head, where the connection to the service entrance cable is made. For service at 600 volts or lower (phase to phase) at a conductor temperature of 90°C maximum.
CONDUCTOR
- Concentric strand or compressed 1350-H19 series aluminum conductor.
MESSENGER
- Overhead cable has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.
INSULATION
- Black cross linked polyethylene (XLP) insulation.
STANDARDS
- ASTM B-230
- ASTM B-231
- ASTM B-232
- ASTM B-399
- ICEA S-76-4
- RUS accepted
PRODUCT SPECIFICATIONS
| Size AWG | 6 |
|---|---|
| Number of Strand | 7 |
| Bare Neutral Messenger Size AWG | 6 |
| Insulation Thickness (inches) | 0.045 |
| Overall Diameter (inches) | 0.620 |
| Ampacity | 75 Amps |
| Weight (Lbs/1000ft) | 160 |
