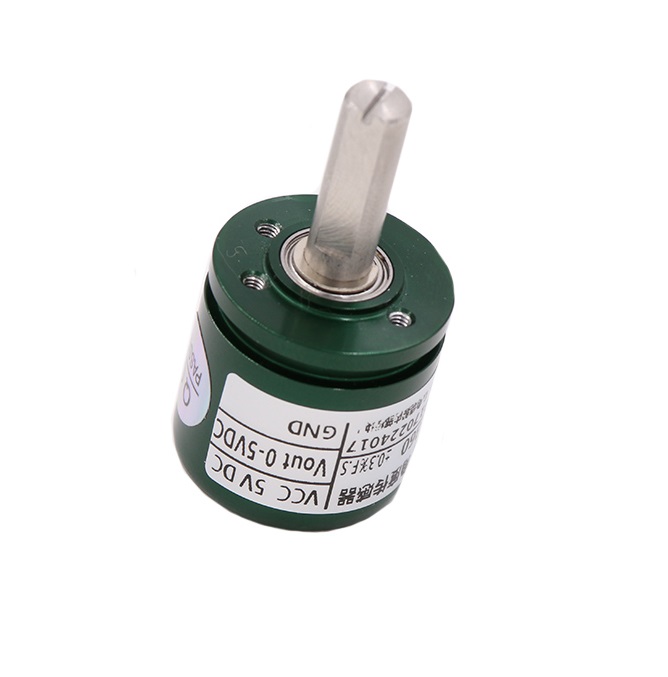

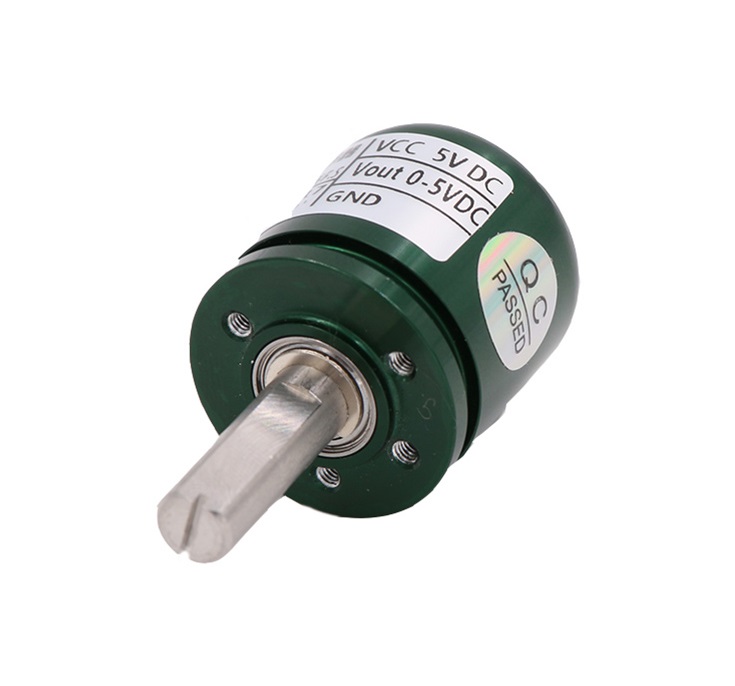

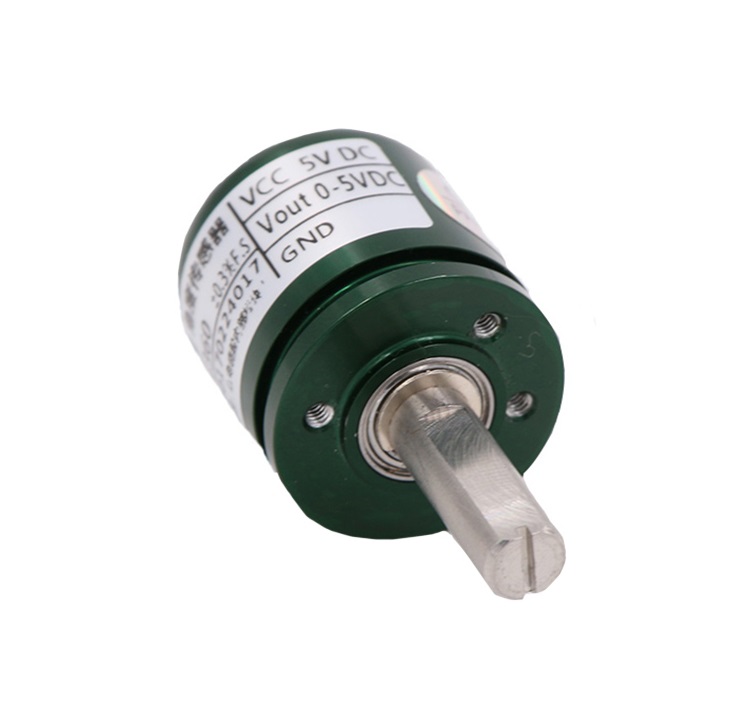

1X Rotary Hall Angle Sensor 0-360 Degree Full Circle Magnetism P3022-V1-CW360
Feature:

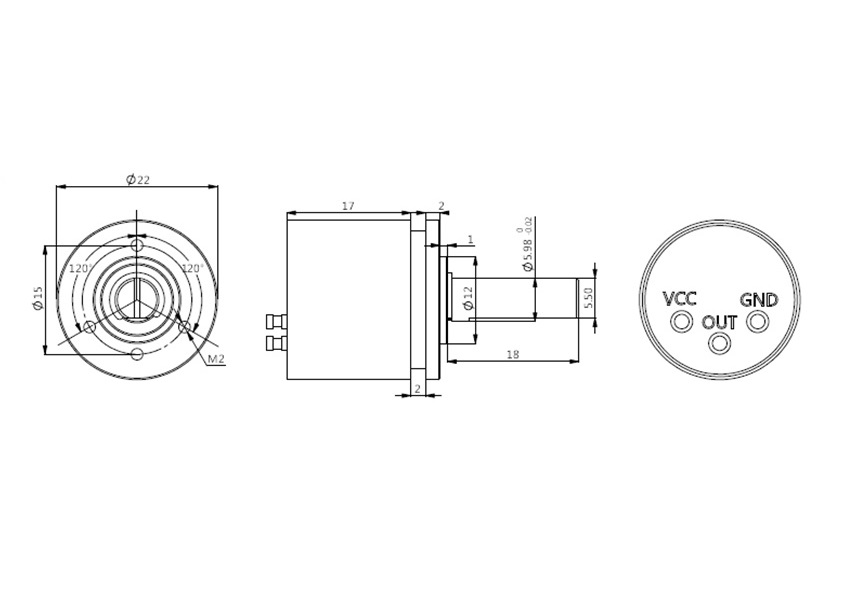

  •  Small size, the maximum outer diameter of 22mm

  •  Full 360 ° no dead angle measurement

  •  Linearity is ±0.3% F.S.

  •  Output signal 0-5V DC

  • Supply voltage 5V DC

  • Angle Direction: Clockwise rotation of the rotary shaft

  • Long product life.

  • Small rotational torque

  • Aluminum shell

  • Easy to install

​

Description:

  • Non-contact hall angle sensor works through the principle of electromagnetic

  • induction, the angle is converted to an electrical signal. When the rotation angle of the object passed to the axis of rotation sensors, P3022 angle sensor outputs an electrical signal that is proportional to the rotational angle.

  • This series of products using hard aluminum alloy material shell; Hall-type non-contact technology, P3022 series angle sensor has the advantages of non-contact angle sensor, and the use of high-quality imported high quality stainless steel high speed bearing member, so that it reduced frictional resistance when measuring the minimum, not because of the wear surface measurement component caused decrease measurement accuracy, long service life theoretically unlimited; the product compact structure, small size, optional strong, high resolution, smooth rotation dynamic noise in addition to the excellent performance suitable for electromagnetic interference outside the water,oil,vibration, shock and other harsh industrial environment, is a cost-effective non-contact angle sensor.

​

Application:

  • Manipulators

  • Textile Machinery

  • Construction machinery

  • Hydraulic cylinders Systems  Testing Machine

  • Automotive Test

  • Medical instrument

  • Technical Information

​

Electrical parameters:

  • Effective electrical angle 360º

  • Resolution 360°/4096（12 bit）≈0.088°

  • Linearity Standard：0.3%；customizable precision：0.2%；

  • Super precision：0.15%

  • Update Speed 0.6ms / 0.2ms（high-speed）

  • Operating voltage 5V±10%

  • Output signal 0～5V（ratio）

  • Operating Current <16mA

  • Maximum and minimum output deviation

  • Load resistance >10KΩ

  • Mechanical parameters

  • Mechanical angle 360º（No stop）

  • Protection class IP40

  • Working temperature -30℃～+80℃

  • Storage temperature -30℃～+80℃

  • The rotational torque <5mN·m

  • Mechanical life >10 million transfer

  • Weight About 25g

  • Housing Anodized aluminum surface Shaft Stainless steel

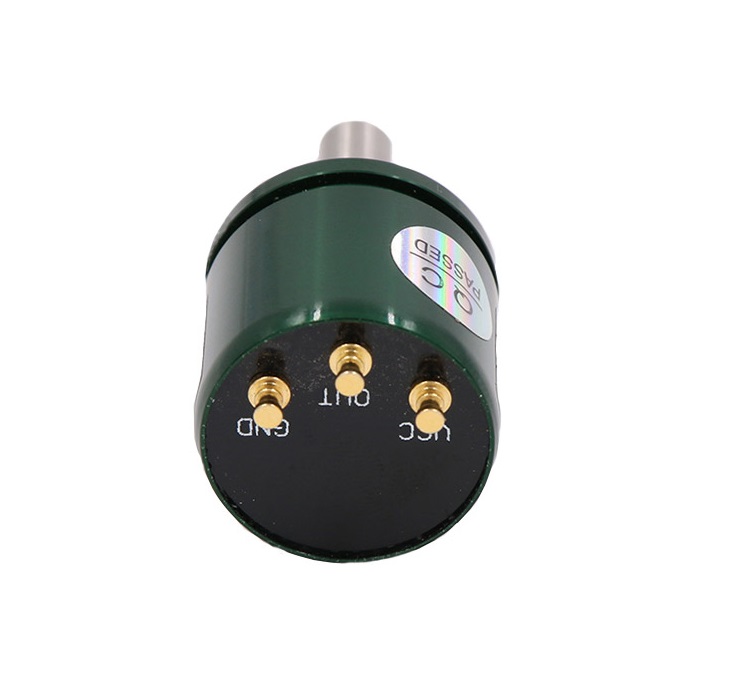

  • Electrical terminals Thick gold plated brass terminals
