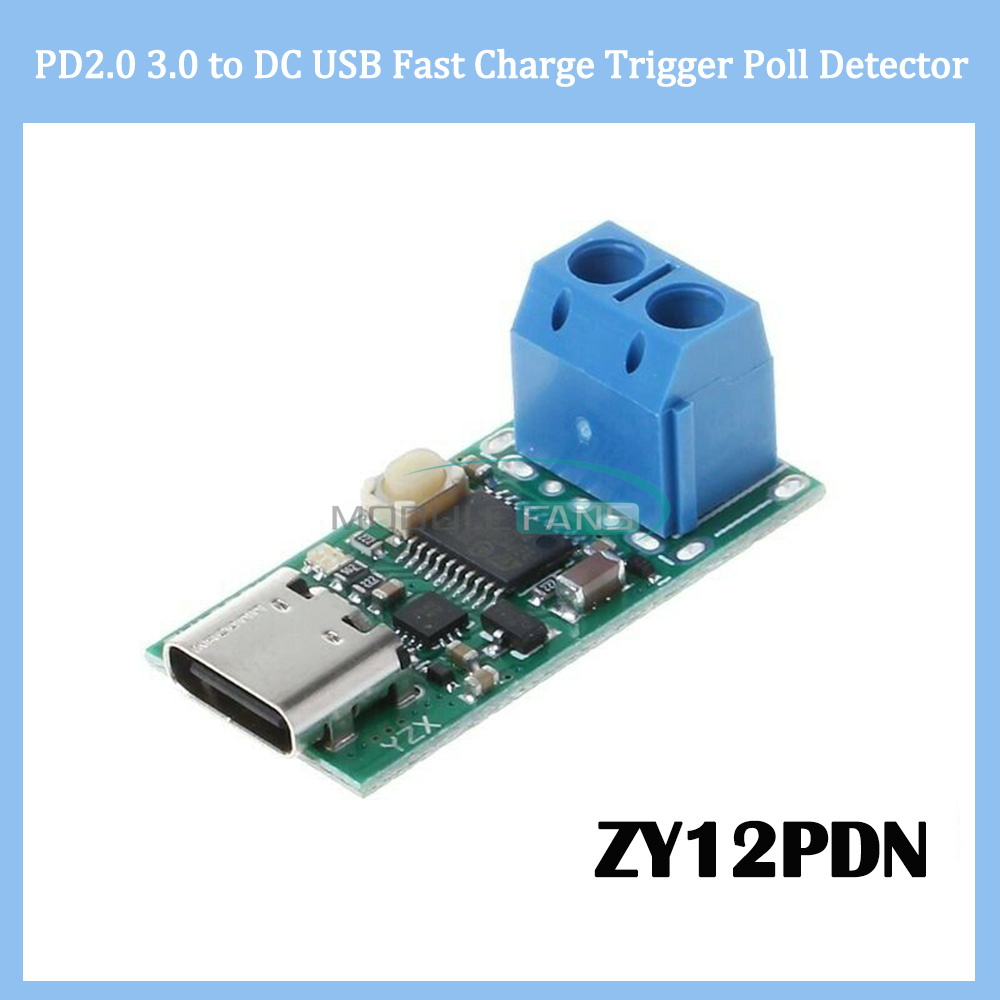

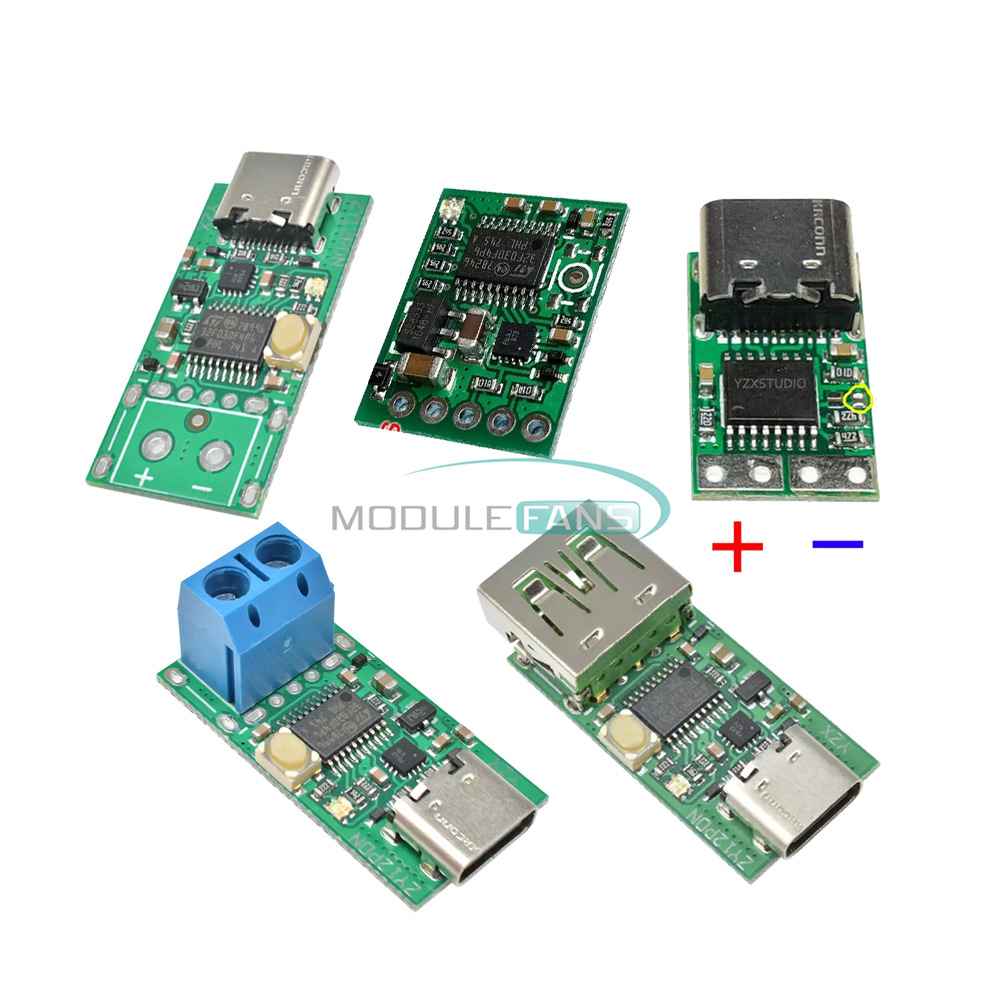

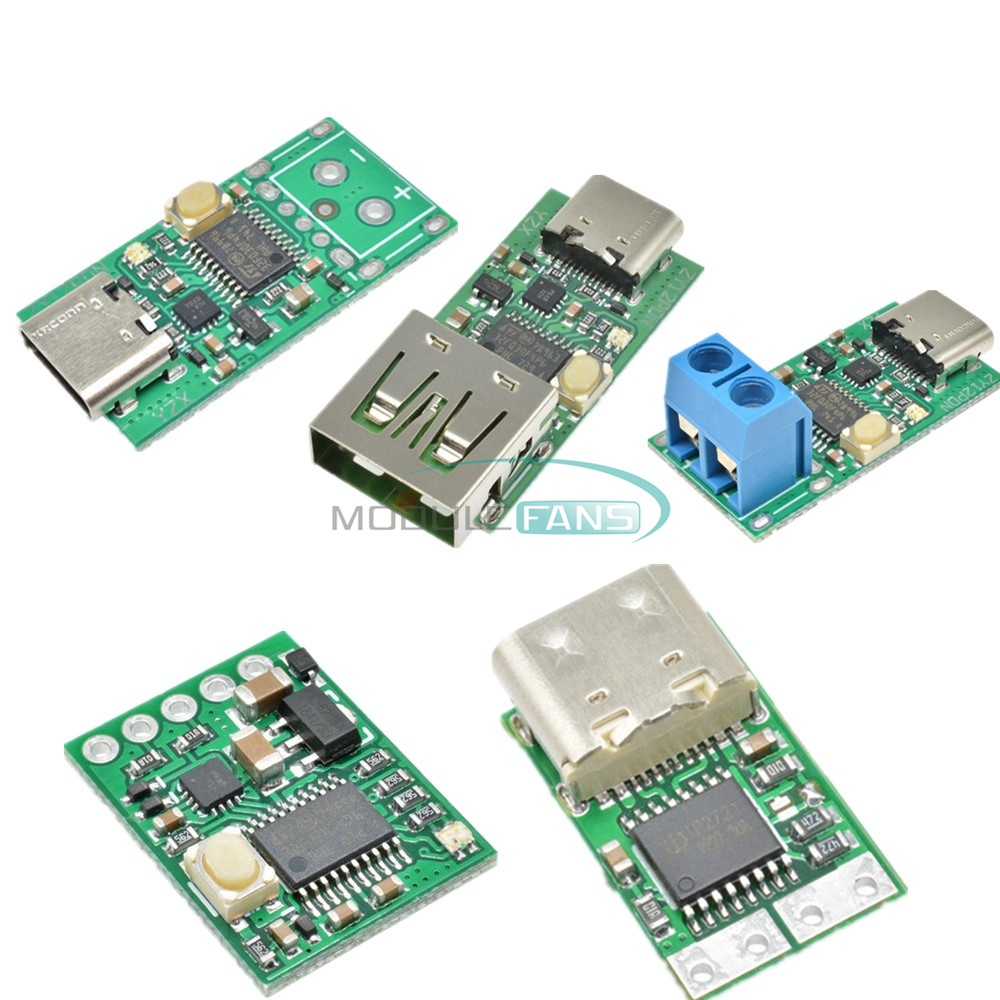

USB-C Type-C PD2.0 3.0 to DC USB Fast Charge Trigger Poll Detector ZYPDS ZY12PDN


Specification:

Product Name: Decoy fast charge trigger detector
Color: As picture shwon
Power: 100W
Voltage: 3-20V
Current: 0-5A

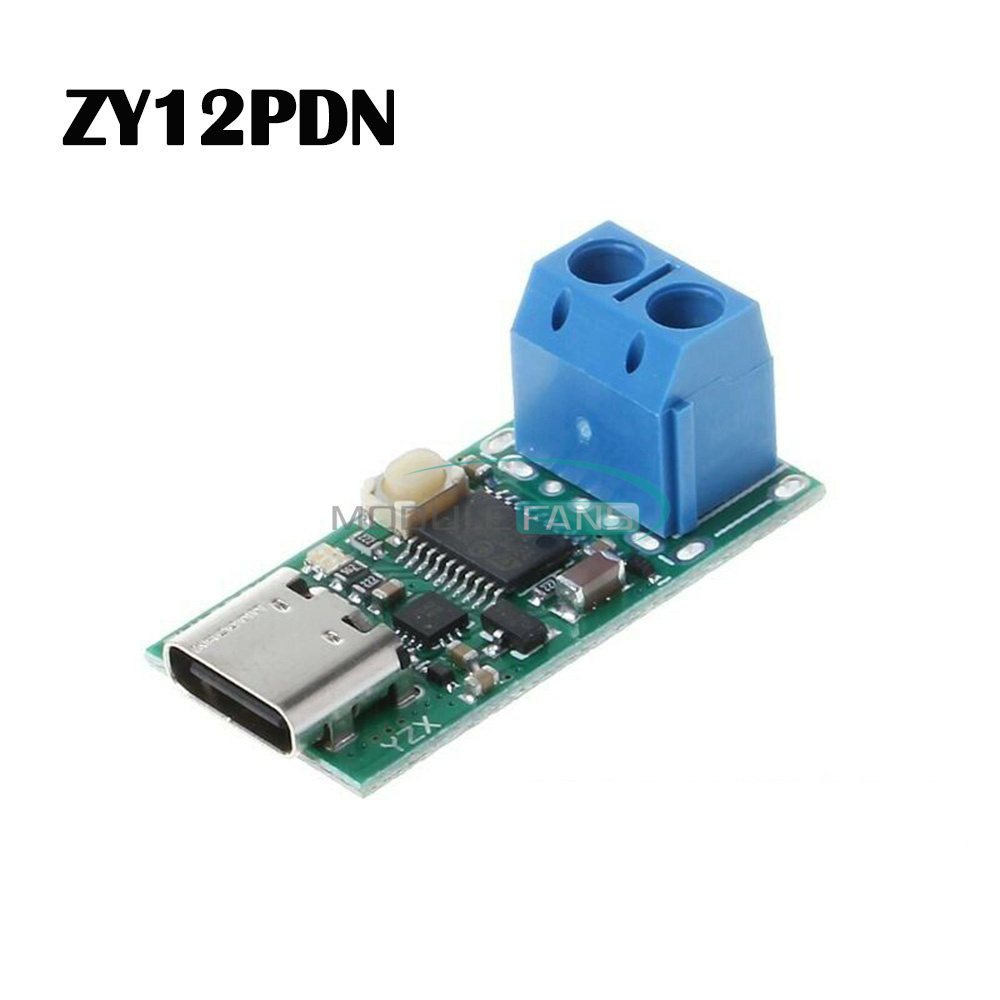

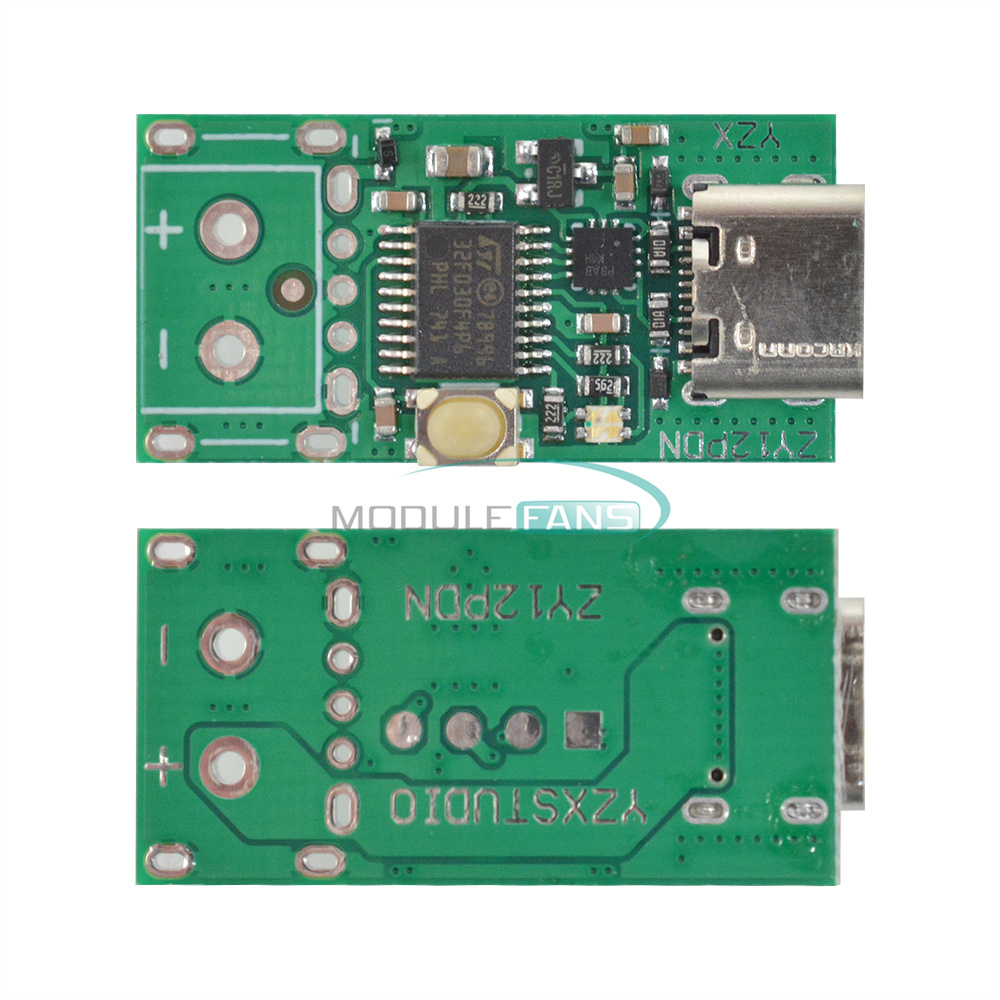

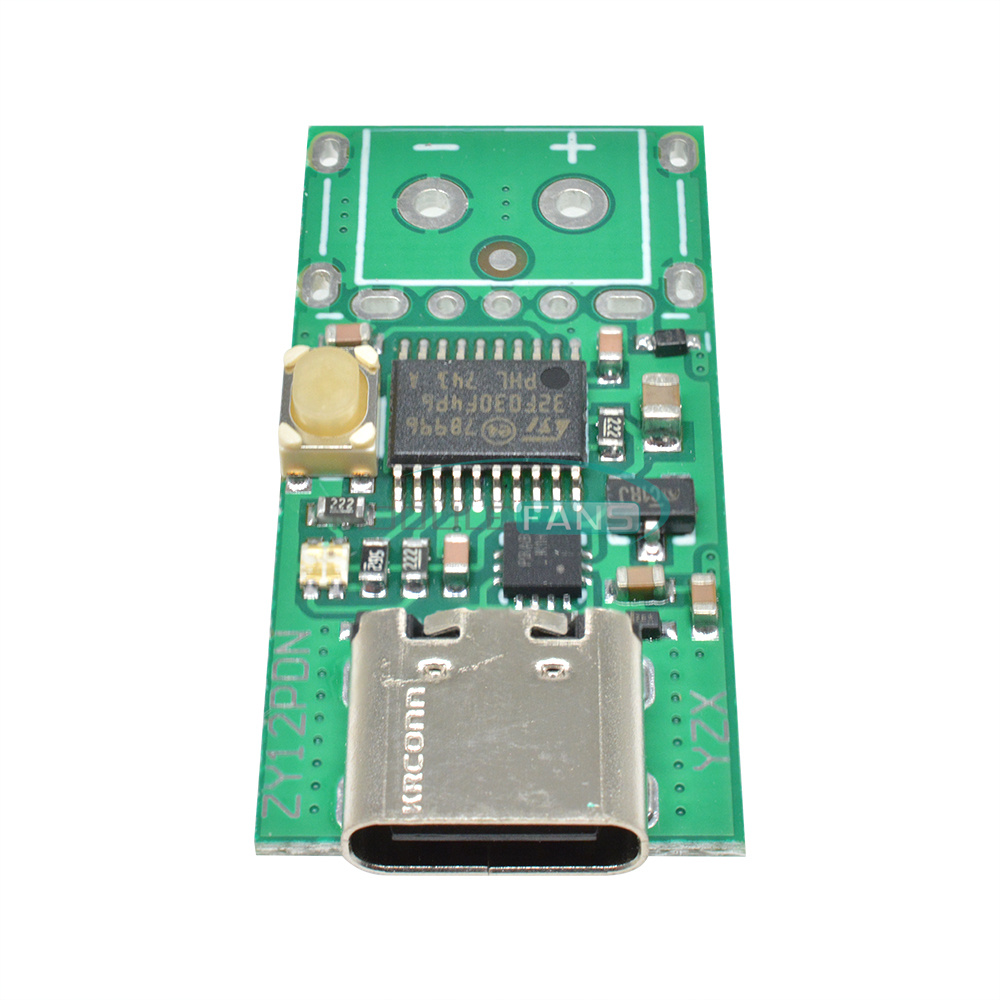

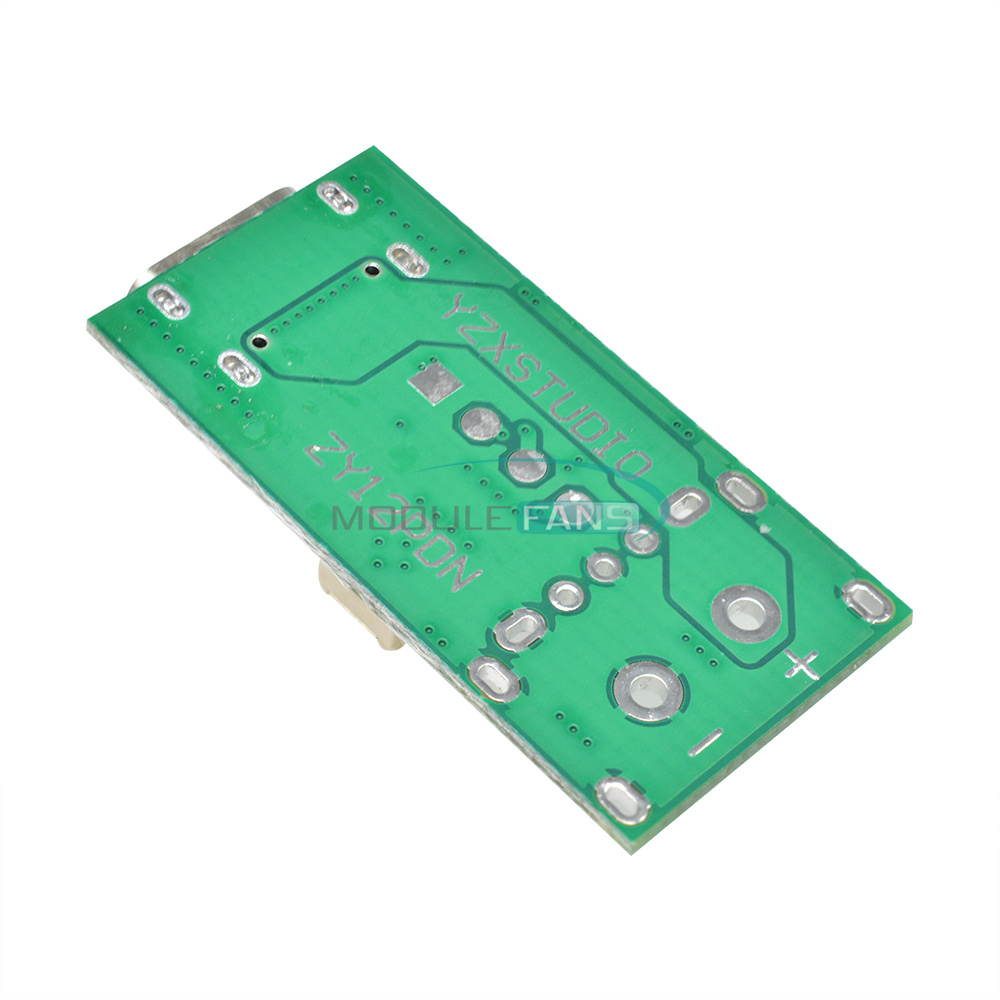

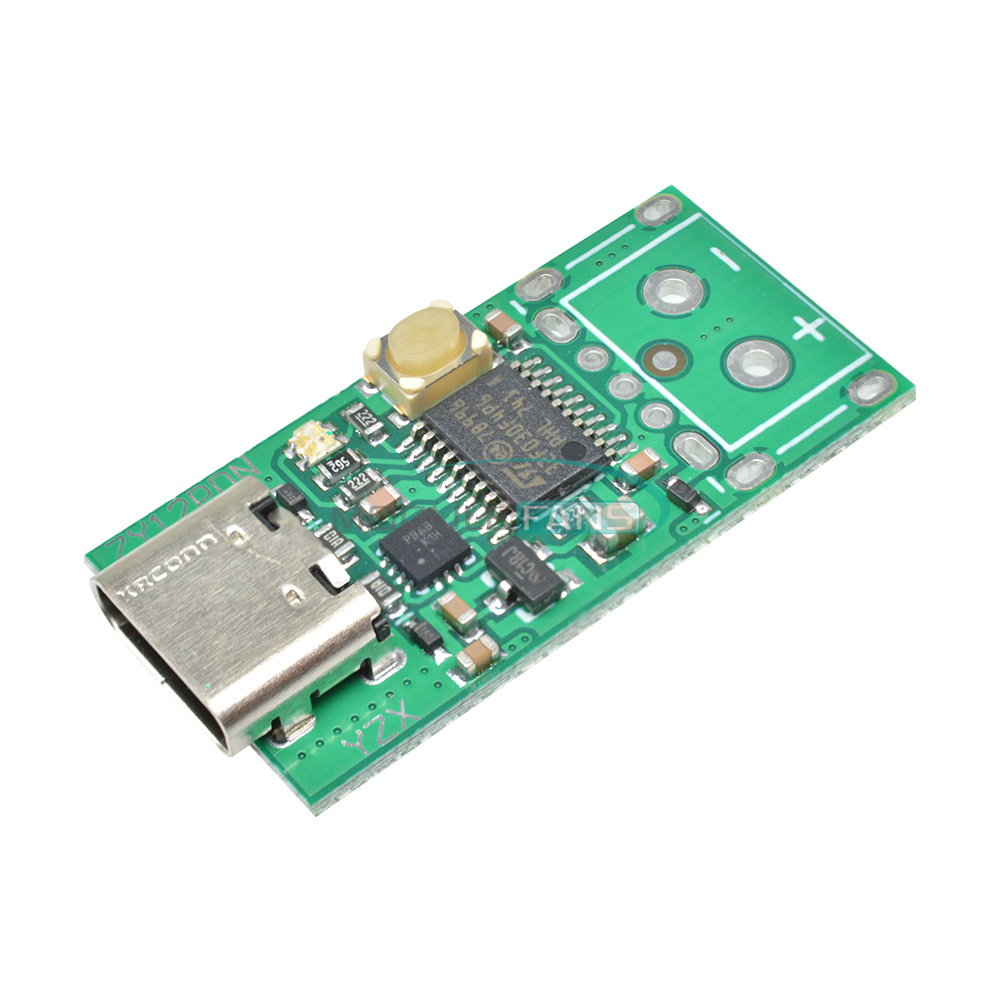

ZY12PDN:

1.Can set button cut voltage or 9v 12v 15v 20V or automatic test
2.Provide Z cheap, cost-effective Z high PD spoof power detection program, Z violates the advertising method of their own brain.
3.Breaking the strange circle of the previous PD detector price, do your part for PD popularization!
4.The PD trigger uses the hardware protocol IC, and the compatibility is not comparable to the soft solution.
5.The version with USB adopts ARINTECH pure copper female seat imported from South Korea. The non-domestic iron shell can be compared and the internal resistance is small.
6.Large-volume three-terminal regulator, large-capacity ceramic capacitor filter, Japan ALPS tact switch, focusing on stability.
7.With USB soldering position and 5.08 screw terminal soldering position, it is convenient to make Type-C to DC adapter cable.
8.Small size 15mm wide * 30mm long, soldered DC line heat shrinkable tube can be used to charge your notebook with PD mobile power.

ZY12PDG industrial grade specification:

1.Withstand voltage between positive and negative 20V between any two terminals of industrial grade. Input voltage anti-reverse connection.
2.Effectively prevent problems such as VBUS short circuit to CC burning during the test.
3.It is very suitable for testing fixtures to directly measure the bare power module. It does not need to be assembled to measure.
Or DIY fast charging lure with plug. No hardware switch is not easy to accidentally touch the voltage.
4.When using the 5A-EMARK line DIY, the maximum power is supported to 100W. The compatibility is excellent.
5.The hole pitch is 2.54mm. It is convenient to insert the soldering pin into other motherboards.
6.Turning the TRIG foot to ground is equivalent to pressing the button. It can be triggered by optocoupler or relay isolation.
7.If CC1 or CC2 is connected to the male, you only need to pick one of them.

ZYPDS ultra-mini single function：
1.ONOY CAN Trigger 15 and 20v

2.Type-C female input is super compatible and fully supports traditional female or direct wired PD adapters.

3.The volume is 10mm*18mm*4mm.
4.TC maternal life seconds a few streets, TC shrapnel in the male, loose loose contact is a male pot.
5.Original IP magic version of the pure hardware trigger PD, stable and reliable program-free, very small size.
6.The maximum power is supported to 100W, the compatibility is good, the self-consumption is small, and the deception speed is fast.
7.Very suitable for PD to DC line output charging notebooks and other things. After the output line is welded, the heat shrinkable tube can be retracted.
8.You can set the maximum trigger 15V or 20V logic, use a drop of solder to connect the yellow circle and the halves of the pad to set 20V, not 15V.
9.Trigger Logic: Trigger the voltage supported by the PD Adapter that is less than or equal to the set value.
For example, if 15v is set and the adapter supports 5 9 20V, it will trigger 9V.
A 7mm heat-shrinkable tube with glue is given. After welding the wire sleeve, it is heated by a wind gun or the like to prevent moisture and short-circuit and breakage.
10.Support millet 65W and other cost-effective high-line PD power supply!

Note:

Please allow slight deviation of measurement due to manual measurement.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Included:

1 x Decoy fast charge trigger detector
