Brand: Godspeed
Manufacturer Part Number: MMX2580-A
DESCRIPTION:
For 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001 Honda Prelude(BB)
Full Length Adjustable, Independent Ride Height And Spring Tension Adjustment; Mono-Tube Shock With 40 Precise Levels of Damping Force Adjustment; Corresponds to Every Driving Scene From the Street To The Track
Large Capacity 52mm Steel Shock Body With Anti-Corrosion Coating; Aluminum And Steel Hardware Accessories; SAE9252 Steel Performance Springs;
Italian IP F.A. Made Shock Oil Provides High Viscosity Index To Withstand Intense Track Usage And Great For Everyday Driving.
Shock Absober Can Be Replaced When Worn Out, Replacement Parts Are Avaialble.; Full 1 Year Limited Warranty From Date Of Purchase, Parts Only
Reasonable priced coilover damper kit features precise 40 levels of damping adjustment, 44mm Internal Piston, full length adjustable, and aluminum parts.
For 1992-01 Honda Prelude (BB1/BB2) Godspeed Project MAXX Coilover Suspension Kit
Applications:
For 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001 Honda Prelude (BB1/BB2)

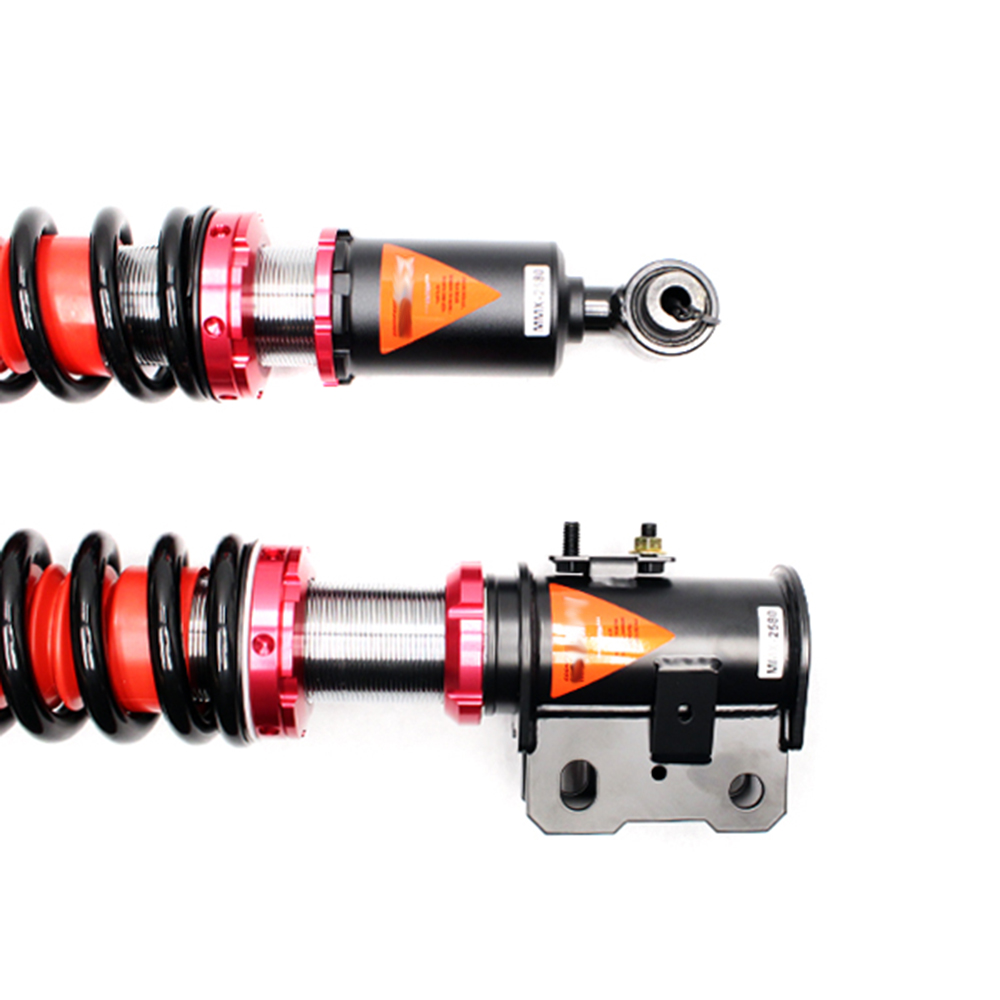

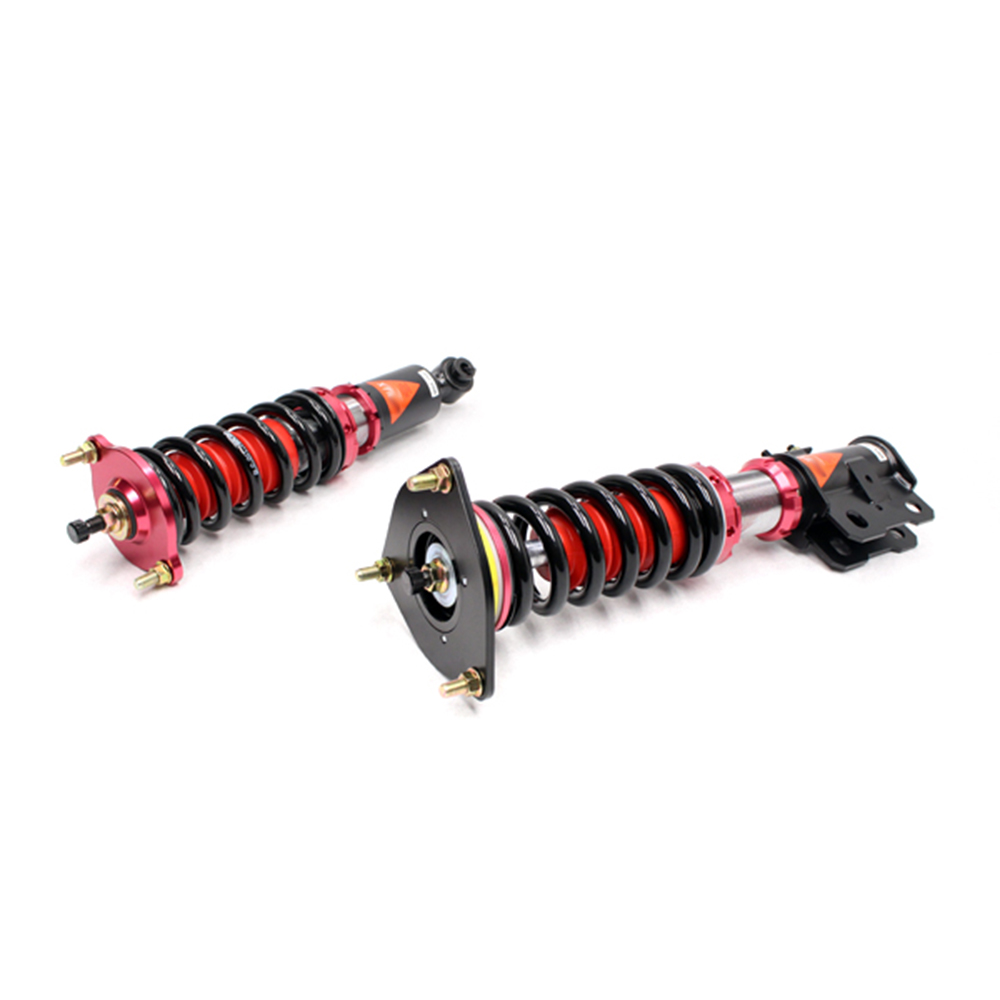

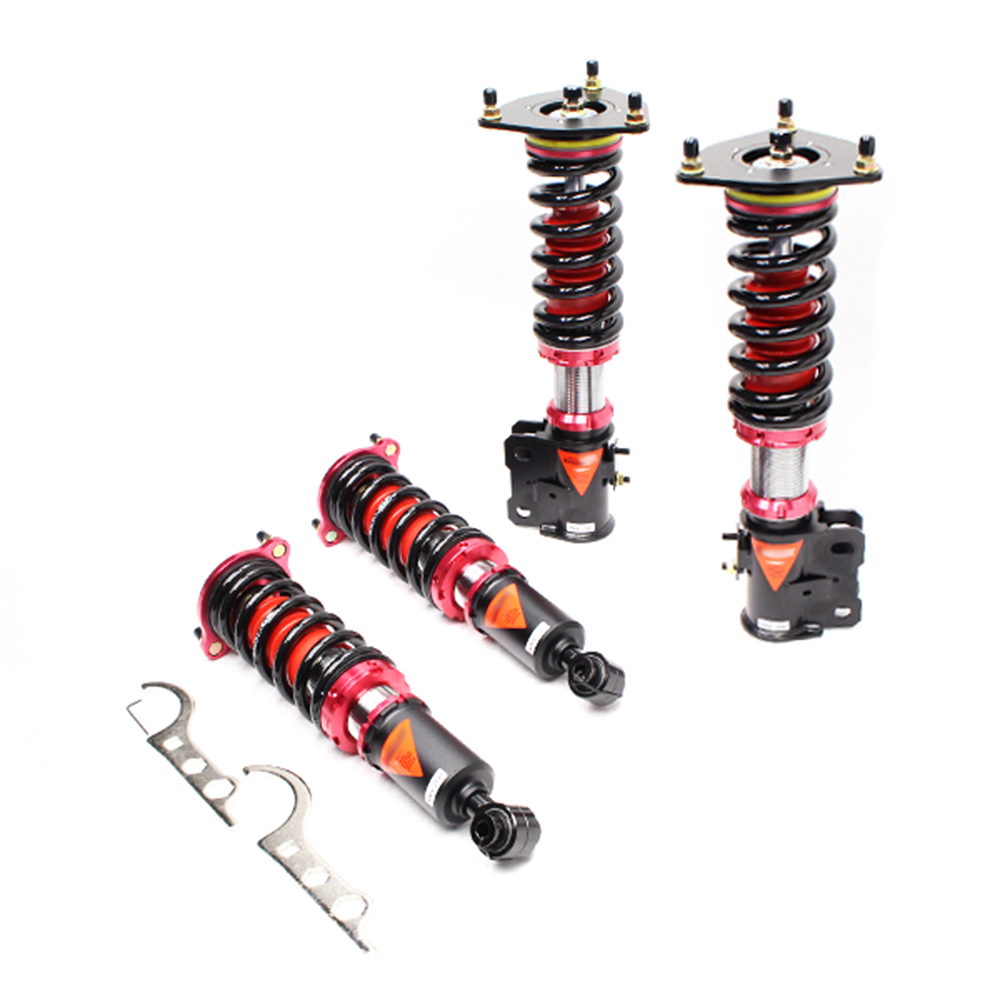

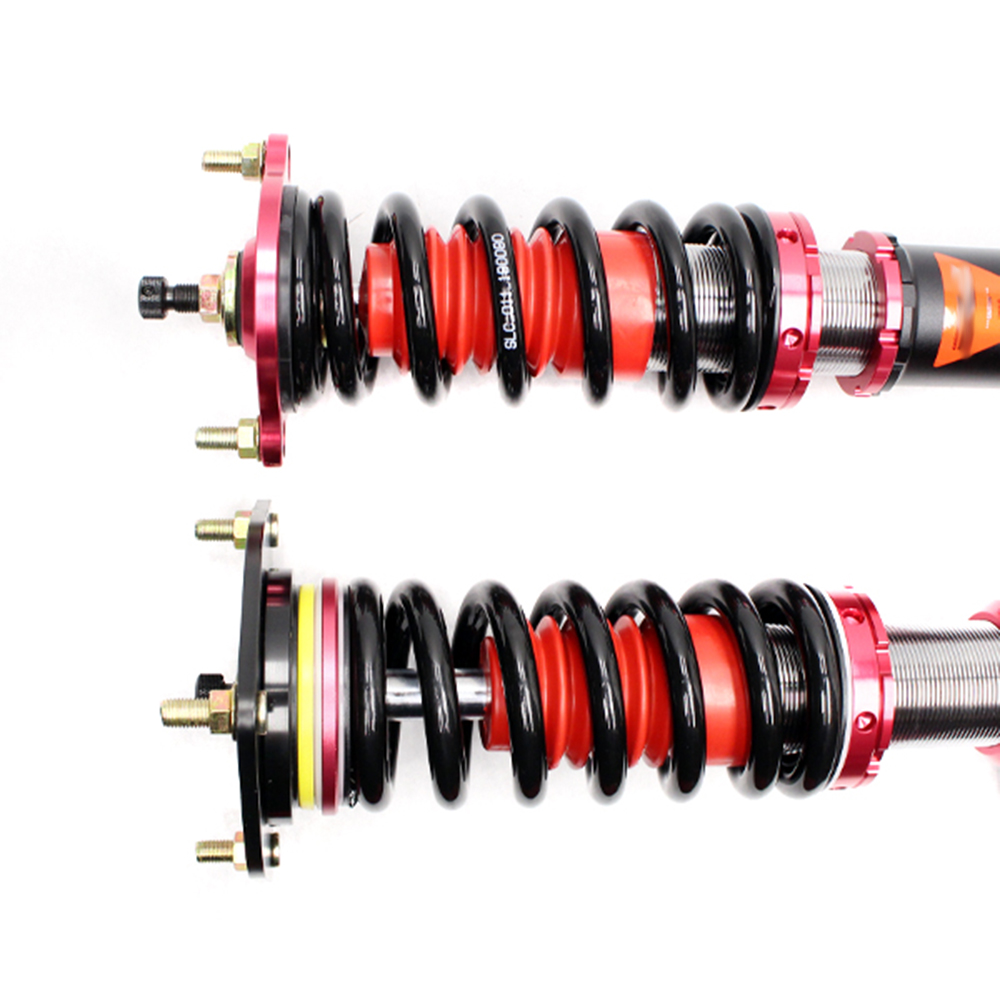

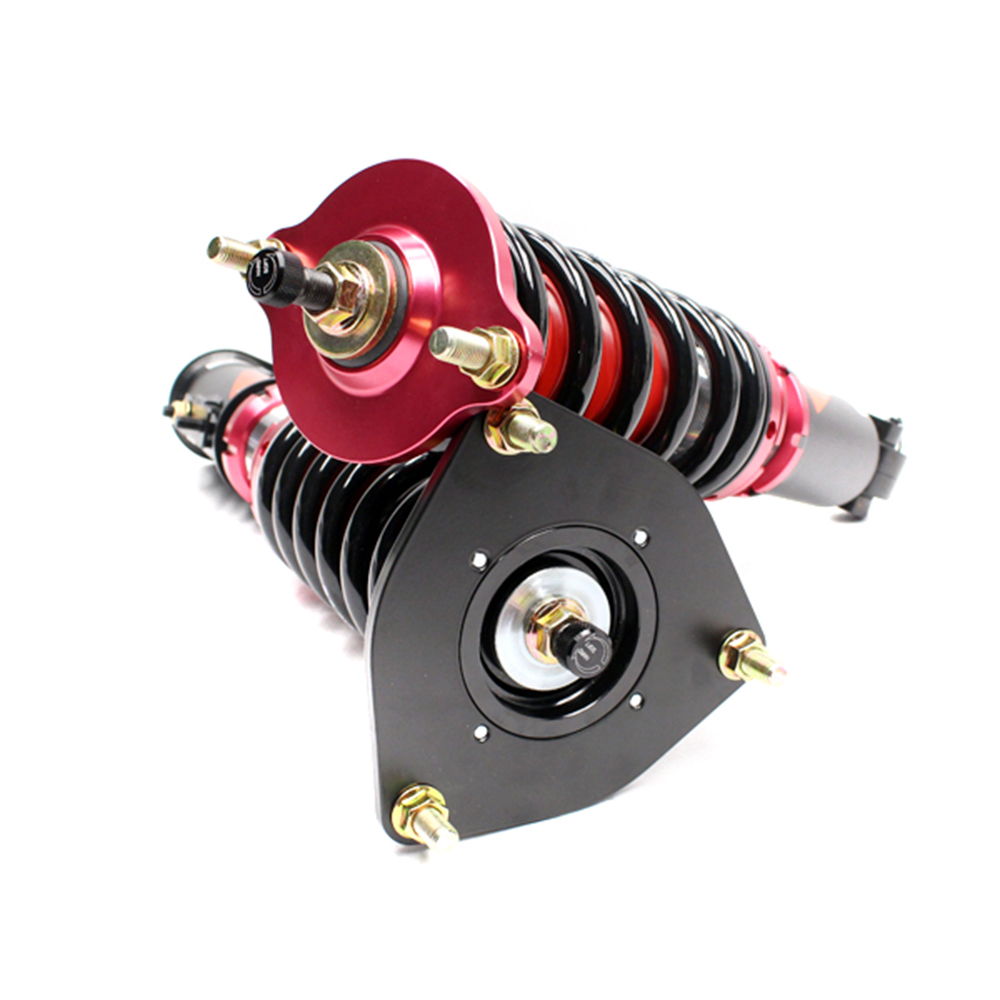

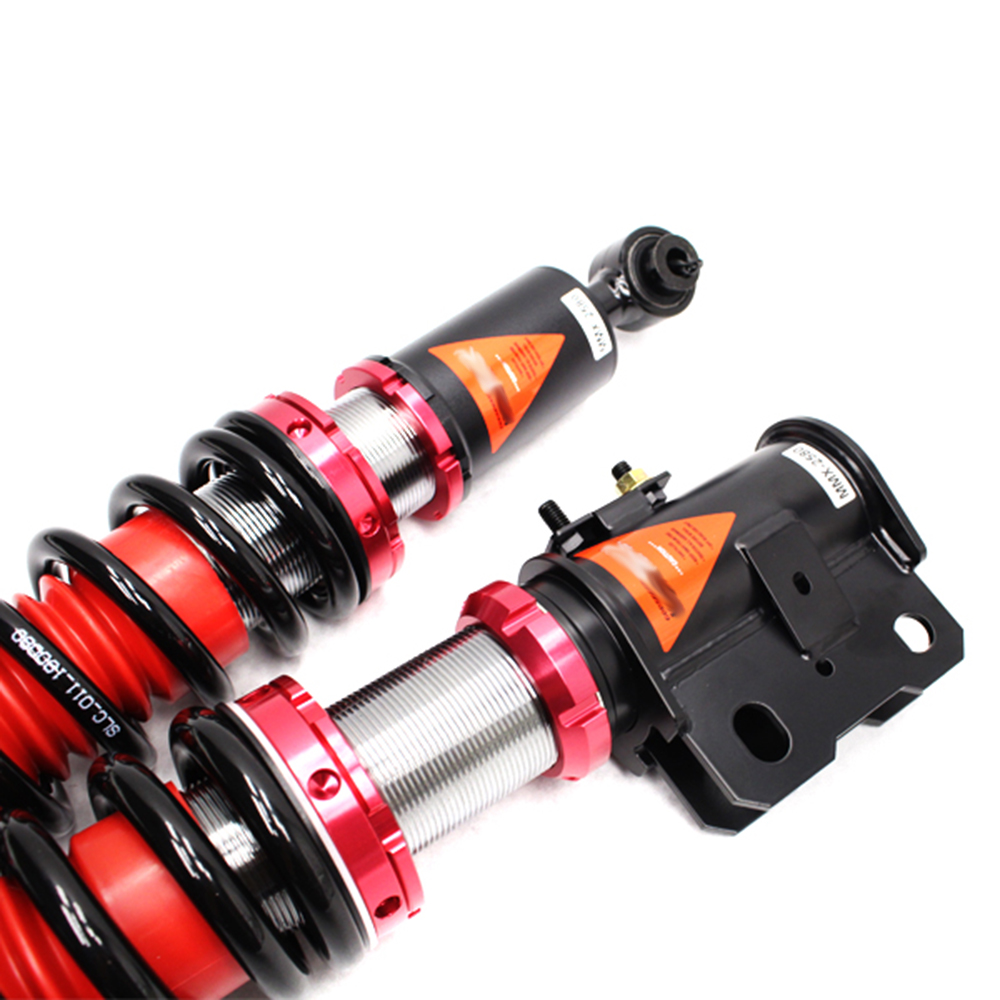

Godspeed Project's MAXX is our premier single-adjustable coilover suspension kit. These coilovers are designed to be a streetable race built coilover at an affordable price. It features a monotube damper that is made out of a carbon seamless steel 52mm tube with a 44mm internal piston providing maximum damper response. The cold-bent springs are made from high strength SAE9252 steel to optimize the balance between performance and comfort. Using high quality shock oil made in Italy, Godspeed Project can guarantee exceptional damper performance at any temperature on and off the track. The top of the shock is attached to the car using a high quality top hat that features a high performance bearing pillow ball mount (when applicable). The bottom shock brackets are made out of a T7075 forged aluminum or carbon steel brackets for lighter weight without sacrificing durability which also includes brake line brackets (when applicable). The MAXX offers 40 level of damper adjustability which can be set to your preference.
Features:
Spring rates: Front: 12 kg/mm / Rear: 6 kg/mm
40 precise levels of damper adjustment
Monotube shock design
Anodized shock body
Lightweight aluminum shock components and T7075 forged aluminum / carbon steel brackets
52mm carbon steel shock body with a 44mm internal piston
Independent ride height and spring preload adjustments
Italian IP F.A made shock oil with a high viscosity index
1 Year Warranty from Date of Purchase
Spring Front Rear
Rate (kg/mm) 12 6
Length (mm) 180 200
I.D. (mm) 62 62
Camber Plate No No
Prior to installation, verify all hardware and properly preload suspension to 10mm. Our technical department is available to answer any other questions.
ADDITIONAL INFORMATION
SPECIAL NOTES Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
DAMPING LEVELS 40 Levels
HEIGHT ADJUSTMENT Yes
SPRING RATE(FRONT) 12 kg/mm (672 lbs/inch)
SPRING RATE(REAR) 6 kg/mm (336 lbs/inch)
SPRING LENGTH(FRONT) 180 mm
SPRING LENGTH(REAR) 200 mm
CAMBER PLATE(FRONT) No
CAMBER PLATE(REAR) No
SPRING INNER DIAMETER(FRONT) 62 mm (2.44 inch)
SPRING INNER DIAMETER(REAR) 62 mm (2.44 inch)
doesn't come with installation instructions
ALL ITEMS ARE BRAND NEW
