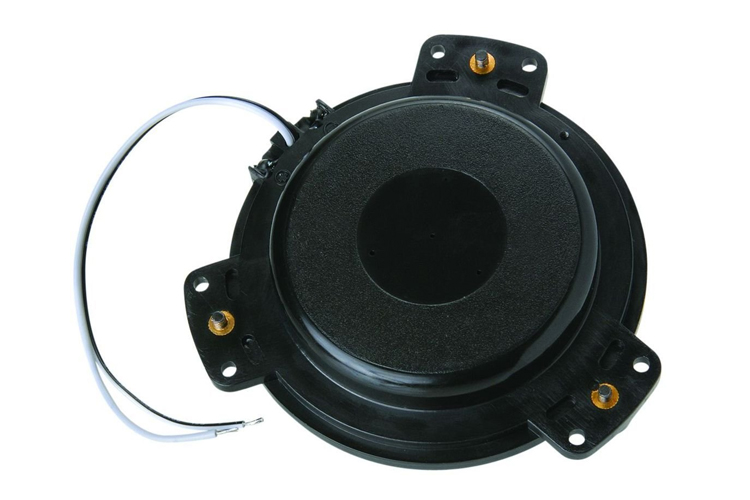

Puck Style Tactile 30W Transducer Mini Bass Shaker

The Dayton tactile puck bass shaker has the unique ability to transfer low-frequency sound waves directly to the listener by simply  mounting the puck to surface areas that a listeners body will come into contact with such as chairs and couches. Since the listener "feels" the low-frequencies, the volume of the overall sound can be kept to a minimum without having to sacrifice the audio quality.

Best suited for home theatre, auto sound or gaming applications, the puck-sized bass shaker can be mounted in tight spaces. Adding a bass shaker to your setup will immerse you even deeper into the virtual world, and allow the listener to experience something that's almost unearthly.

• Adds tactile feedback to chairs & couches alike
• For the ultimate gaming & movie experiences
• Small puck design makes it easy to install
• Transfers low-frequency sound waves for immersion
• Compact design sizing in similar to an ice hockey puck

Main Specs

• Power handling: 15 watts RMS/30 watts max
• Impedance: 8 ohms
• Re: 7.7 ohms
• Le: 1.30 mH @ 1k Hz
• Fs: 40 Hz
• Usable frequency response: 20 to 80 Hz
• Force peak: 30 lbs. per ft. total when used in 4 PUCK configuration
• Dimensions: 3-1/2" dia. x 1" H
• Cutout: 70 mm with 25 mm slot for wire pass through
• Does not include any mounting accessories or screws
• Note: Requires 6 x #6 wood or sheet metal screws for surface mounting
• Power Handling (RMS): 15 watts
• Power Handling (max): 30 watts
