ITEM DESCRIPTION
Package Included:

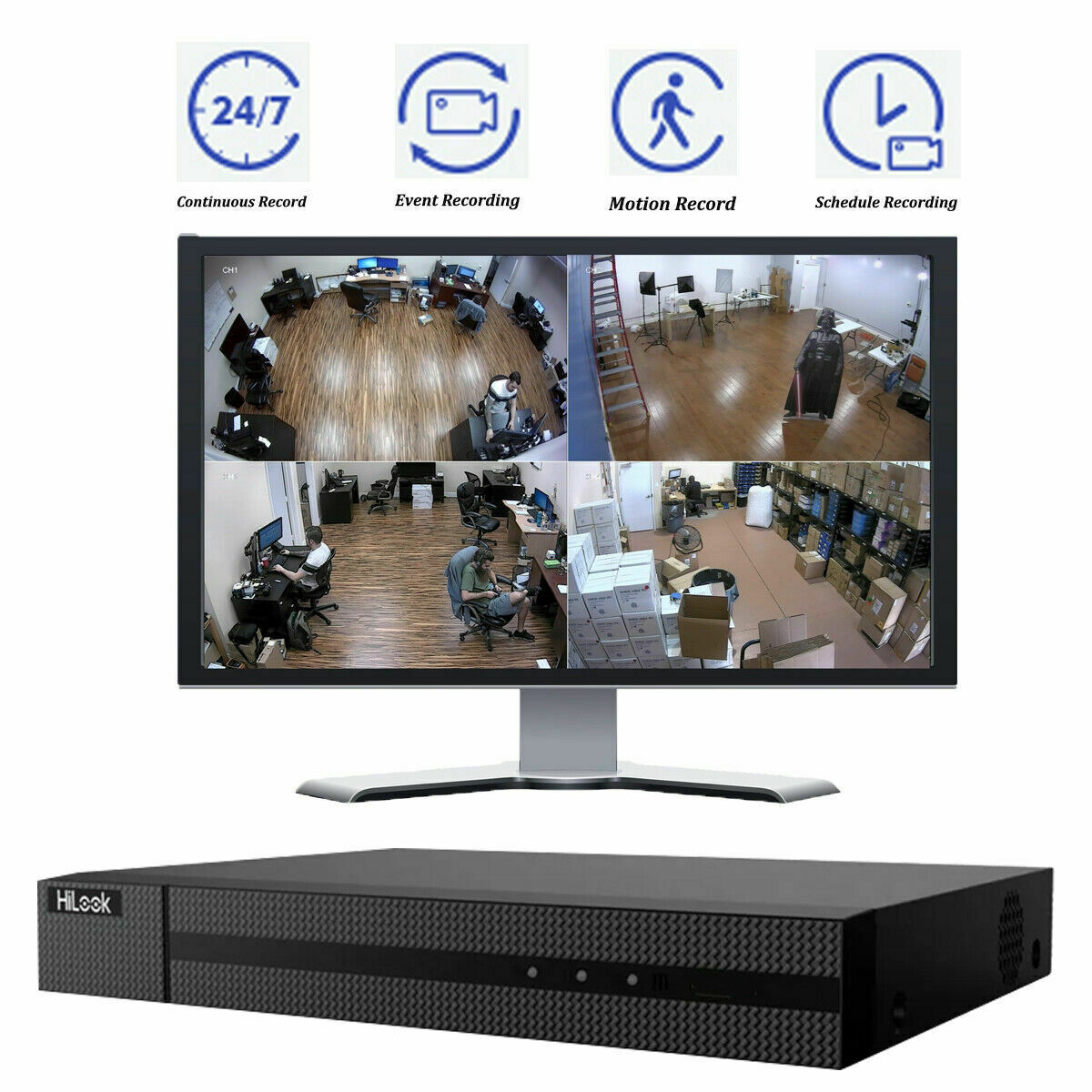

1X Hikvision Hilook 1080P DVR 4/8/16/32-CH (DVR-204G-F1 / DVR-208G-F1 / DVR-216G-F1 / DVR-224G-F1)
Optional HDD UP TO 4TB (pre installed if selected)
1X Mouse
1X User Manual
- All Recording devices (DVRs) are covered by 2 years back-to-base manufacturer warranty.
S300 Toshiba Surveillance Hard Drive
EMEA Region, Toshiba Storage Solutions – With surveillance systems, nothing but the best is good enough. The Toshiba 3.5-inch S300 is built to meet the highest demands. With support for up to 64 high-resolution surveillance video cameras simultaneously and up to 4 TB capacity, it brings everything into clear view. Each S300 is built with the highest-quality components and has passed rigorous tests to ensure 24x 7 reliability and performance. That’s Toshiba quality you can trust under the harshest working conditions.
Use for:
• Surveillance Digital Video Recorders (DVRs)
• Surveillance Network Video Recorders (NVRs)
• Hybrid DVRs (analog and IP)
Network & Ethernet Access
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management. Max. 8/16/32 Mbps incoming bandwidth, 72/96/128 Mbps total bandwidth.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-ch DVR-208G-F1 | |
|---|---|
| Video compression | H.264+/H.264 |
| Analog and HD-TVI Video Input | 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HD-TVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| IP Video Input | 2-ch (up to 10-ch) Up to 5 MP resolution Support H.264+/H.264 IP cameras |
| Audio compression | G.711u |
| Audio input / Two-way audio in | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Video / Audio Output | |
| HDMI / VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Encoding resolution | When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF |
| Frame rate | Main stream: When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) |
| Video bit rate | 32 Kbps to 4 Mbps |
| Audio output | 1-ch, RCA (Linear, 1KΩ) |
| Audio bit rate | 64 Kbps |
| Dual-stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 8CH |
| Network Management | |
| Remote Connections | 64 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| External Interface | |
| Network interface | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
| USB interface | Rear panel: 2× USB 2.0 |
| General | |
| Power supply | 12 VDC, 1.33 A |
| Consumption | ≤ 12 W (without HDD) |
| Working temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W x D x H) | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
| Weight | Approx. 2Kg |
| 16-ch DVR-216G-F1 | |
|---|---|
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog and HD-TVI Video Input | 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HD-TVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| IP Video Input | 2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Audio compression | G.711u |
| Audio input / Two-way audio in | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Video / Audio Output | |
| HDMI / VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Encoding resolution | 1080p lite/720p/VGA/WD1/4CIF/CIF |
| Frame rate | Main stream: For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15fps For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N) |
| Video bit rate | 32 Kbps to 6 Mbps |
| Audio output | 1-ch, RCA (Linear, 1KΩ) |
| Audio bit rate | 64 Kbps |
| Dual-stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 16CH |
| Network Management | |
| Remote Connections | 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard Disk | |
| SATA | 2 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| External Interface | |
| Network interface | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
| USB interface | 2× USB 2.0 |
| General | |
| Power supply | 12 VDC, 1.9 A |
| Consumption | Max 25W |
| Working temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W x D x H) | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
| Weight | ≤ 1.2 kg (2.6 lb) |
