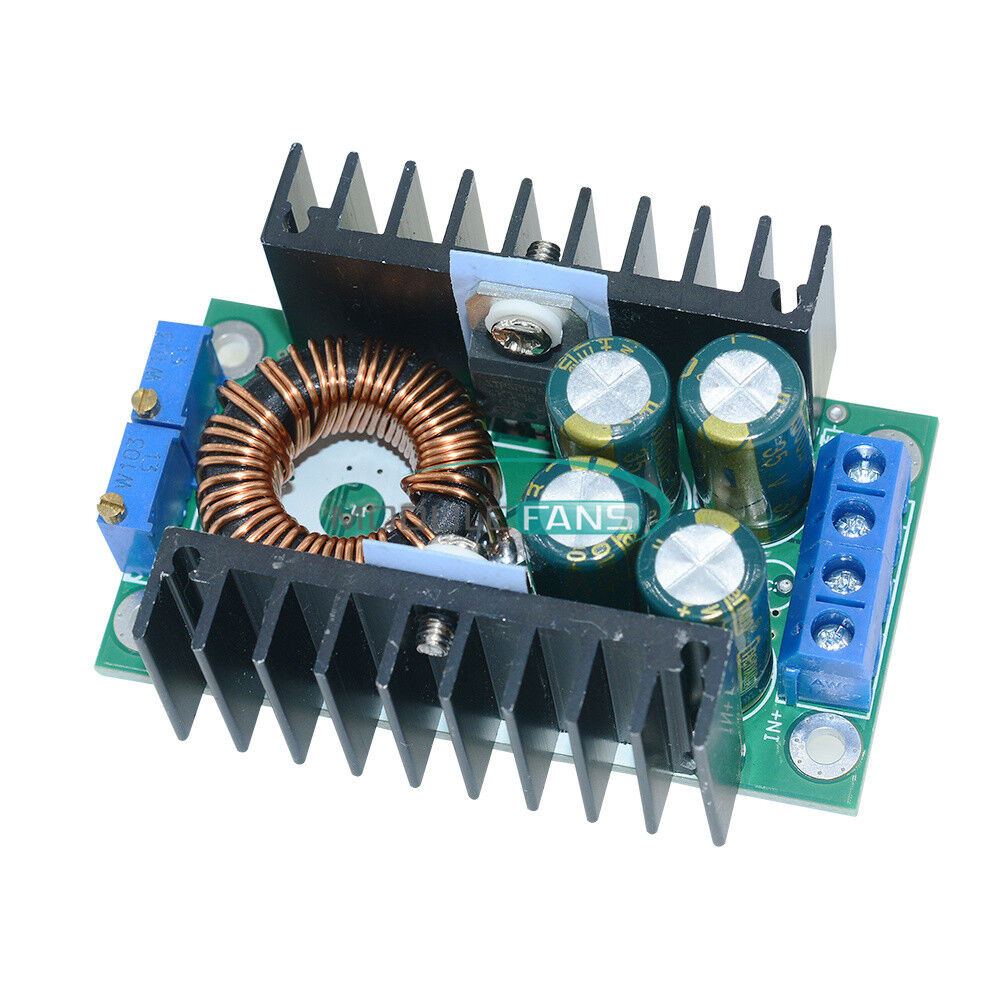

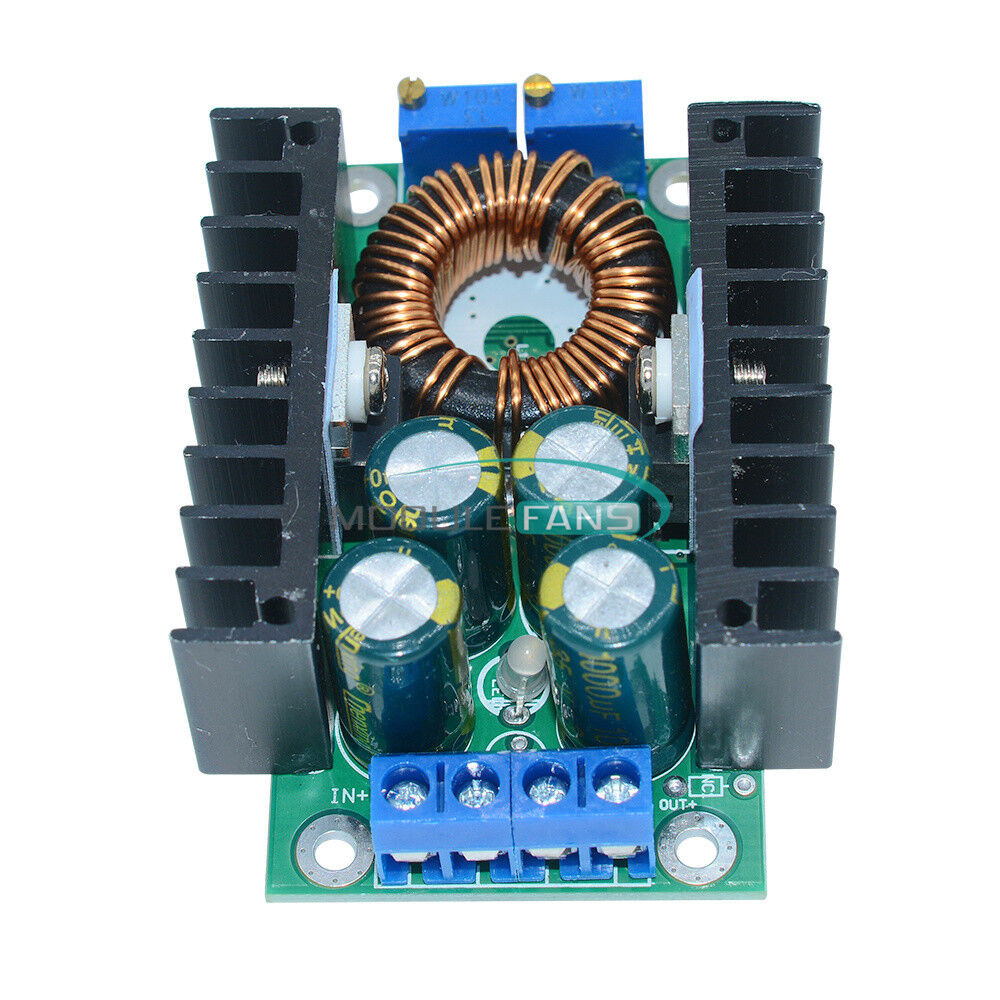

1. option 1
Features:
Use a dedicated benchmark IC, and high-precision current sensing resistor, can make more stable constant current
High output current, the max output current can reach 9 A.
Low output ripple , high frequency capacitor reduces output ripple.
Suitable for LED driver.
Specification:
Color: as the pic shows
Input voltage 7-40V (with constant 5-40V)
The output voltage (1.2-35V)
Maximum output current 9A
Maximum power 280W
Frequency 180KHZ
Size: Approx. 2.55*1.88*0.94inch / 6.5*4.8*2.4cm(Length*width*thickness)
Package Included:
1 x DC CC 9A 280W Step Down Buck Converter 7-40V To 1.2-35V Power module2. option 2

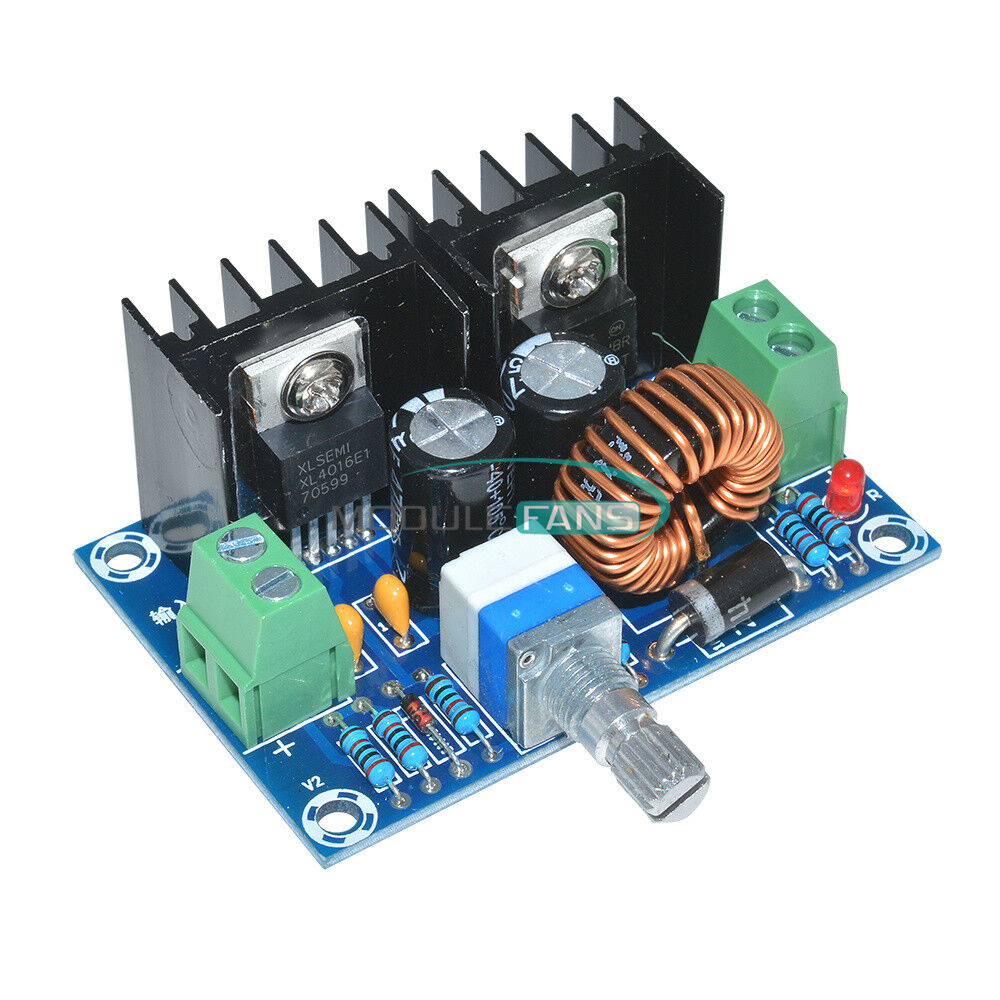

Specification:

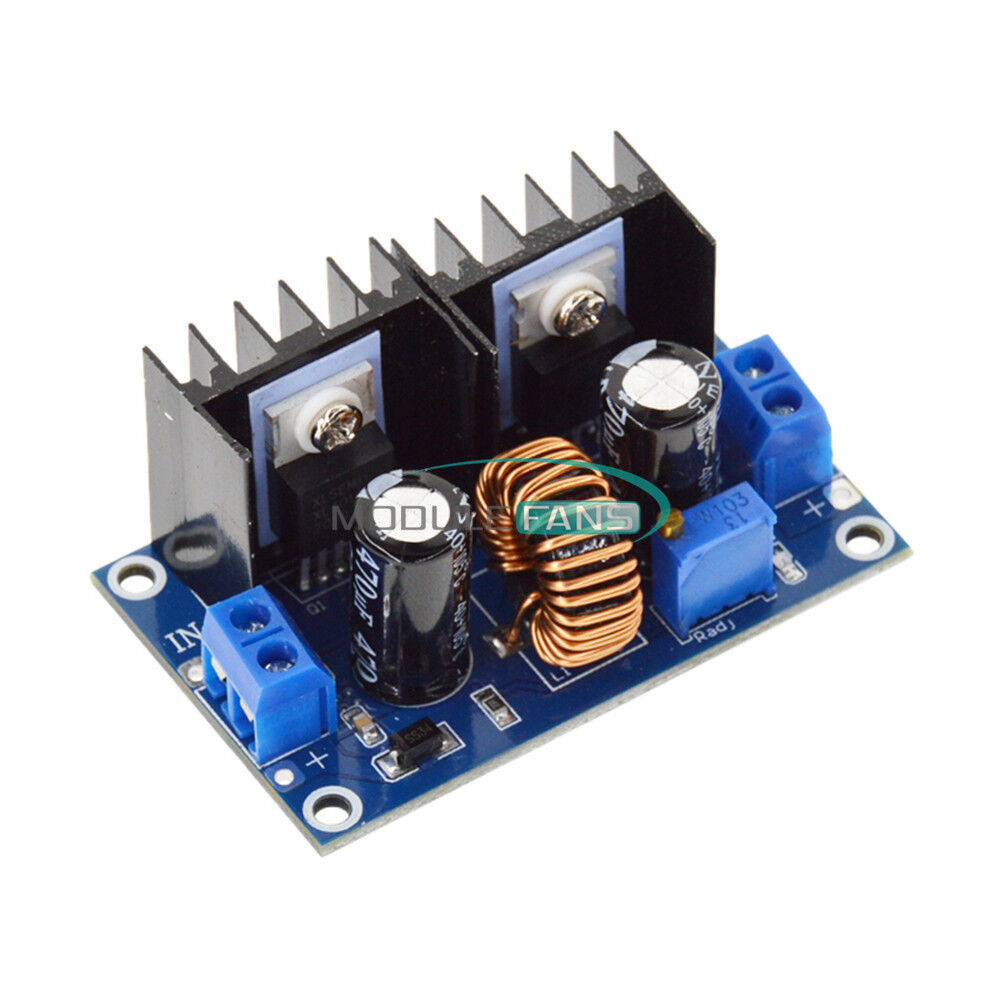

Product name: DC step-down module Converter
Voltage regulating mode: PWM modulation
Input voltage: DC4-40V
Output voltage: DC1.25-36V
Max output current: 8A (more than 5A for long time use,need Fan if over 5A)
Max power: 200W
Conversion efficiency: 94%
Switching frequency: 180KHZ
Dimensions: 61*41*27mm
Chip: switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection,Short circuit protection
When reach maximum output current 8A, need to add fan. Long term work recommended about 5A
Panel Mounting:
1. Drill holes in the Panel 7mm
2. Extended potentiometer handle
3. Lock screw sleeve upper knob
Package Included:
Package included:
Product name: DC step-down module Converter
Voltage regulating mode: PWM modulation
Input voltage: DC4-40V
Output voltage: DC1.25-36V
Max output current: 8A (more than 5A for long time use,need Fan if over 5A)
Max power: 200W
Conversion efficiency: 94%
Switching frequency: 180KHZ
Dimensions: 61*41*27mm
Chip: switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection,Short circuit protection
When reach maximum output current 8A, need to add fan. Long term work recommended about 5A
Panel Mounting:
1. Drill holes in the Panel 7mm
2. Extended potentiometer handle
3. Lock screw sleeve upper knob
Package Included:
1 x DC step down voltage power module
3. Option 3

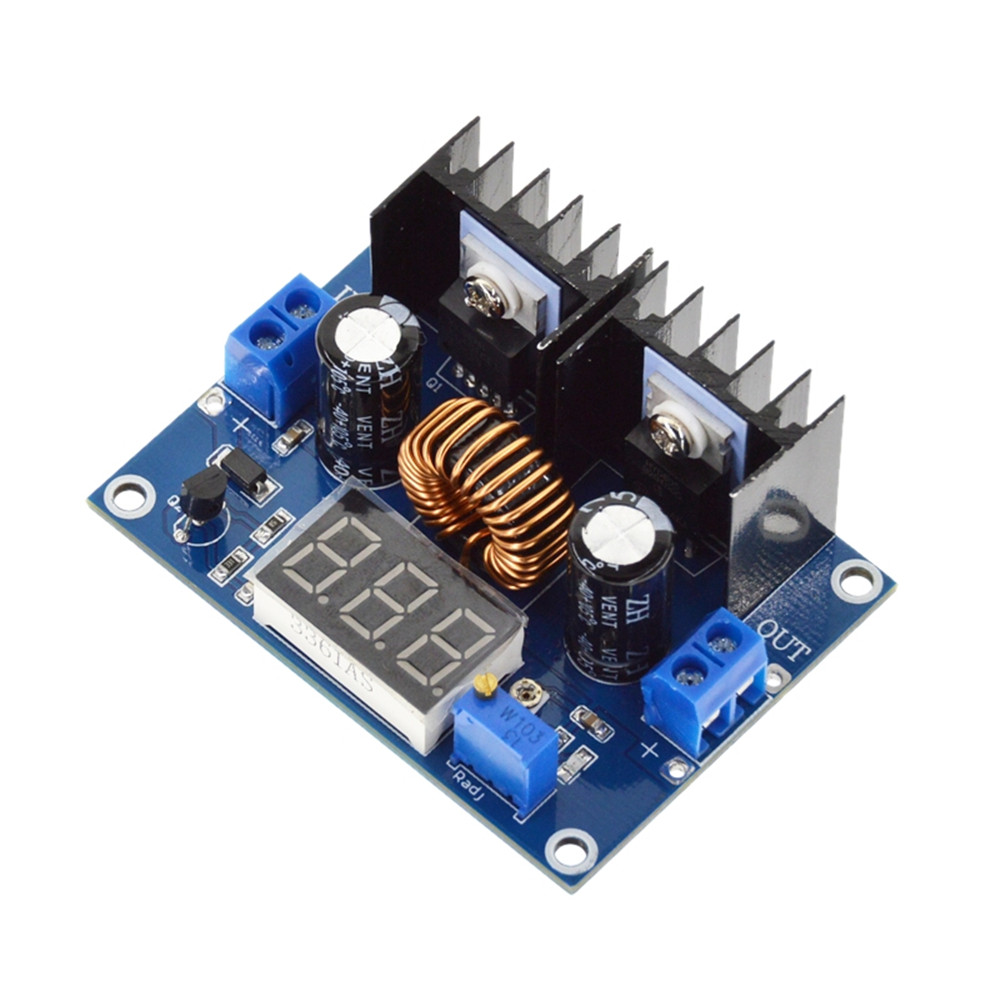

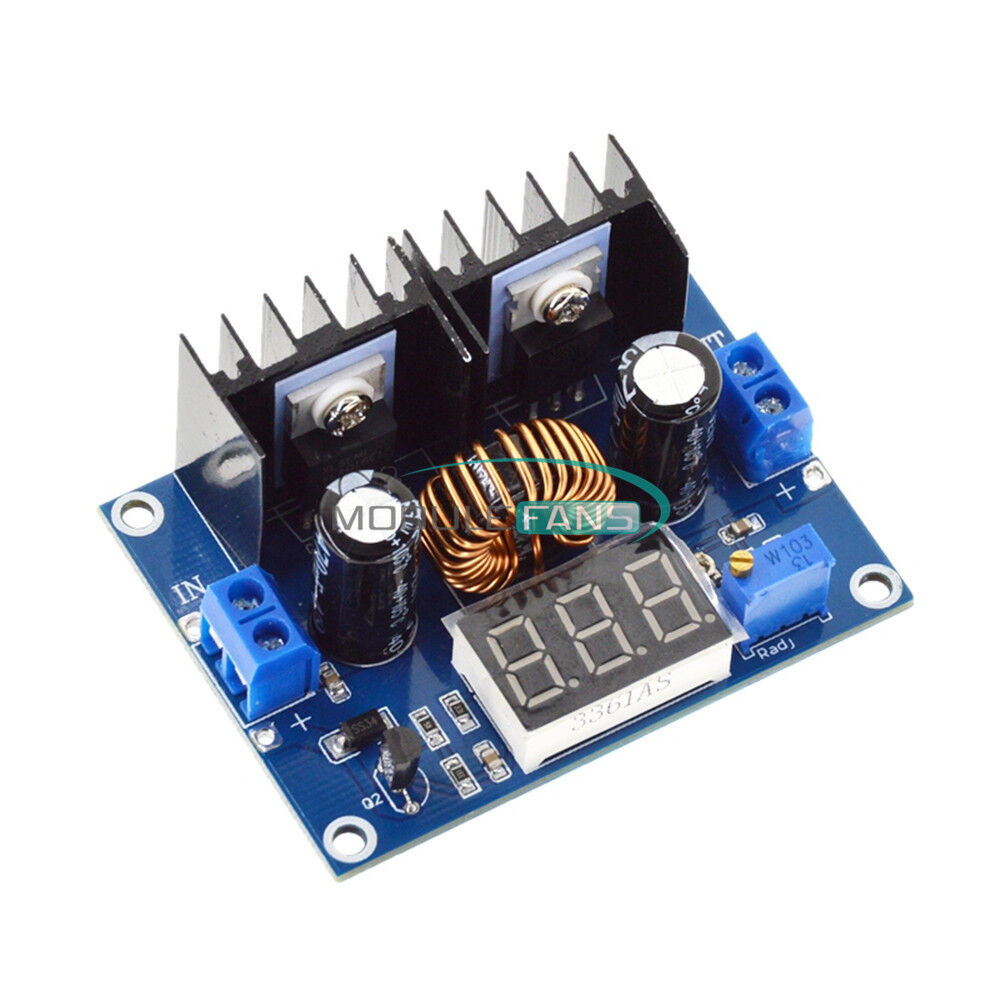

Description:
Protection: short circuit protection, input reverse polarity protection, over-temperature protection (over temperature auto cut off the output)
Precautions:
1. The input voltage range of 4-40V, the output voltage range of 1.25-36V.
2. The digital display is the output voltage.
3. Adjust the potentiometer knob: clockwise to adjust the output voltage is increased; counter-clockwise, the output voltage is reduced; after re-regulate the voltage connected load and prevent damage to the load.
4. more than 5A current, please enhance heat dissipation.
5. The low voltage display precision 0.01V, high-voltage display accuracy 0.1V.
Specifications:

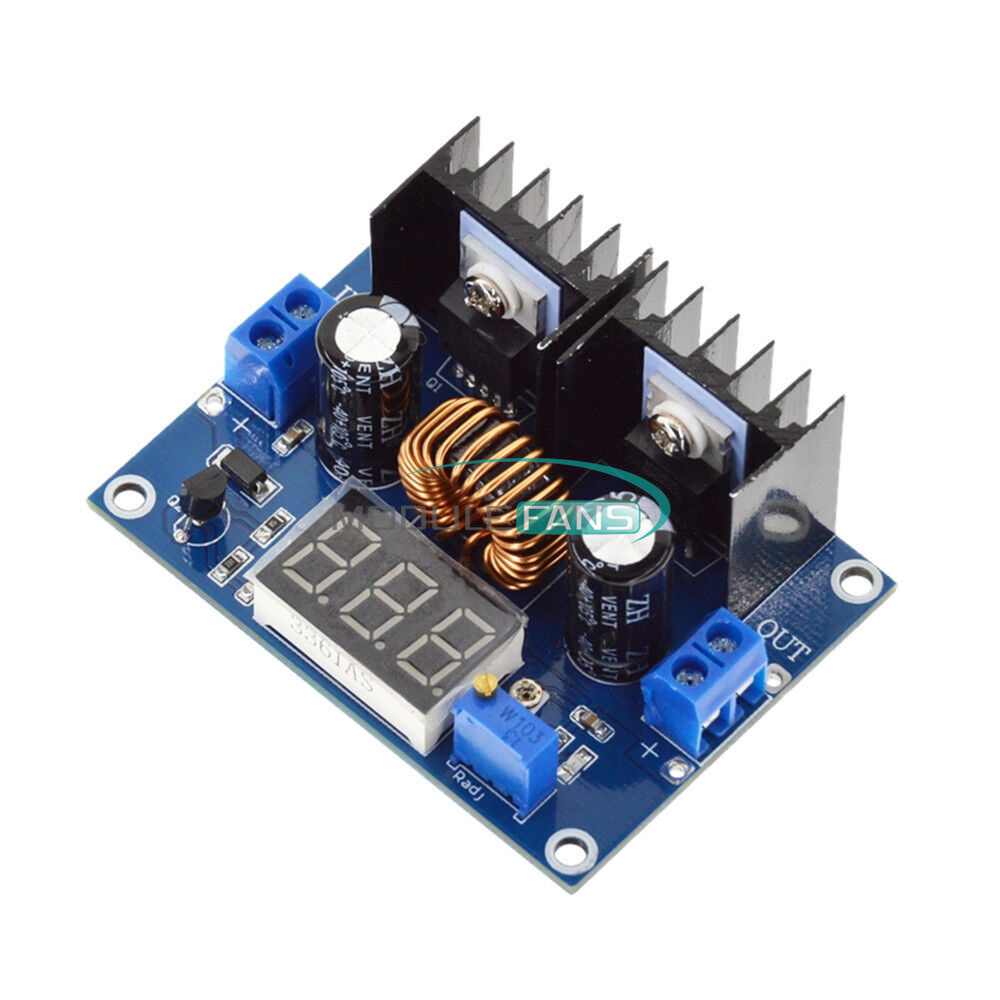

Product Name: DC voltage regulator module
Product Type: XH-M404
Voltage mode: PWM modulation
Input voltage: DC 4-40V
Output voltage: DC 1.25-36V
Maximum current: 8A (long work proposals 5A)
Maximum power: 200W
Conversion efficiency: 94%
Switching Frequency: 180KHz
Size: 70x47x 29mm (LxWxH)
Quantity: 1 Pc
1. The input voltage range of 4-40V, the output voltage range of 1.25-36V.
2. The digital display is the output voltage.
3. Adjust the potentiometer knob: clockwise to adjust the output voltage is increased; counter-clockwise, the output voltage is reduced; after re-regulate the voltage connected load and prevent damage to the load.
4. more than 5A current, please enhance heat dissipation.
5. The low voltage display precision 0.01V, high-voltage display accuracy 0.1V.
Specifications:
Product Name: DC voltage regulator module
Product Type: XH-M404
Voltage mode: PWM modulation
Input voltage: DC 4-40V
Output voltage: DC 1.25-36V
Maximum current: 8A (long work proposals 5A)
Maximum power: 200W
Conversion efficiency: 94%
Switching Frequency: 180KHz
Size: 70x47x 29mm (LxWxH)
Quantity: 1 Pc
Package included:
1xDC voltage regulator module
4. option 4
Description:
- 100% brand new and high quality.
- Features:
The voltage regulator has excellent linearity regulation and load regulation
With multiple protection: over-current protection, over-temperature protection and short circuit protection, etc
Wide Application:
Car audio, radio, navigator, monitor, LED car display, air conditioner, interphone, motors etc
Note:
Please make sure there is a 2V voltage difference between input voltage and output voltage
The maximum output current can reach 8A; For long time working please make sure the current is less than 5A.
This is not a step up module, but a step down module
Product name: DC voltage regulator
Voltage regulating mode: PWM modulation
Input voltage: DC 4-38V
Output voltage: DC 1.25-36V
Maximum current: 8A(please add fan and make current less than 5A for a long term use)
Maximum power: 200W
Conversion efficiency: 95%
Switching frequency: 180KHz
Working Temperature: -45~+85℃
Size: 6x3.7cm/2.36x1.46inch - Note:
- 1.Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid.
- 2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
- 1 Pc x Step-Down Board
5. option 5
100% Brand New and High Quality.
Shape: Same as the picture show

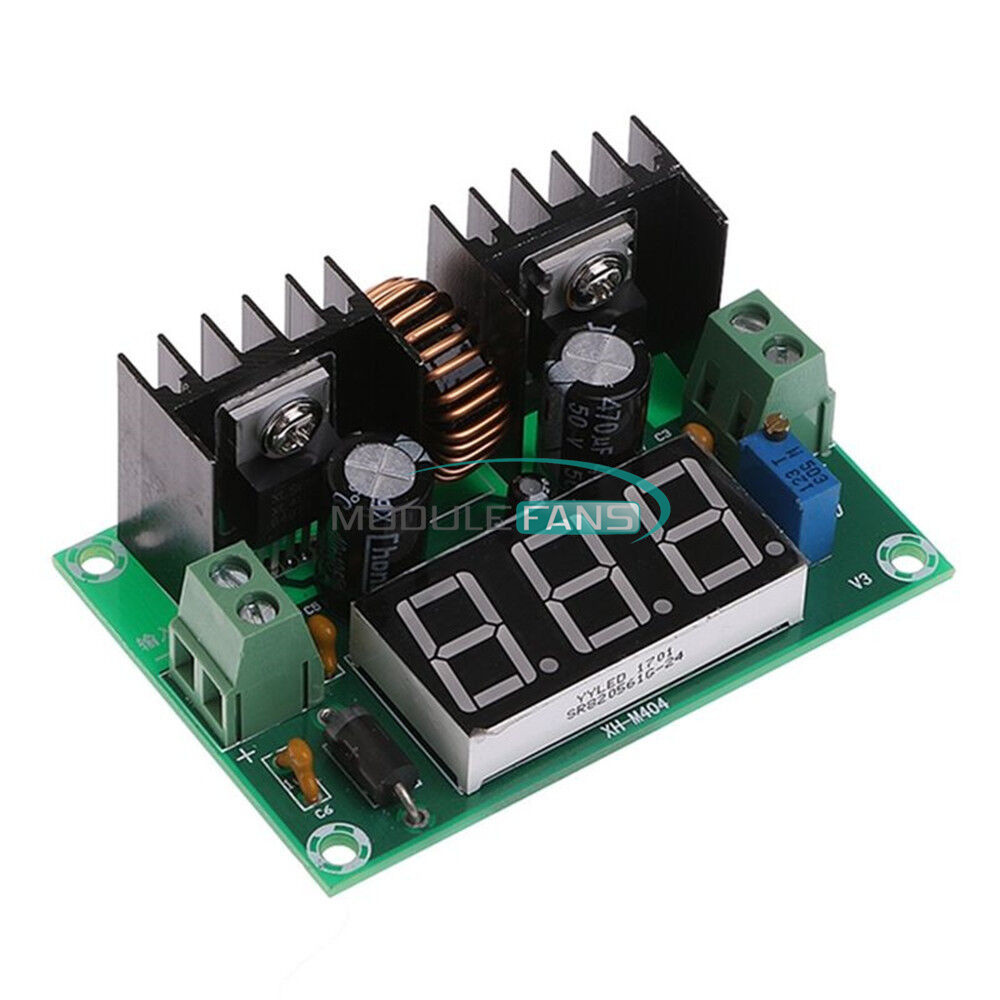

1. Type: XH-M404 Regulator
2. Size: 64mm x 47mm (LxW)
3. Regulator mode: PWM modulation
4. Input voltage: DC4-38V
5. Output voltage: DC1.25-36V
6. Maximum current: 8A (long time recommended 5A)
7. Maximum power: 200W
8. Conversion efficiency: 95%
9. Switching frequency: 180KHz
10. Other functions: short circuit protection, input reverse protection, over-temperature protection (over-temperature cut off automatically)
Shape: Same as the picture show
1. Type: XH-M404 Regulator
2. Size: 64mm x 47mm (LxW)
3. Regulator mode: PWM modulation
4. Input voltage: DC4-38V
5. Output voltage: DC1.25-36V
6. Maximum current: 8A (long time recommended 5A)
7. Maximum power: 200W
8. Conversion efficiency: 95%
9. Switching frequency: 180KHz
10. Other functions: short circuit protection, input reverse protection, over-temperature protection (over-temperature cut off automatically)
11.Display method: 0.36 inch 3 red digital tube
Package included:
1PC X XL4016 Voltmeter PWM Power Module
1PC X XL4016 Voltmeter PWM Power Module
