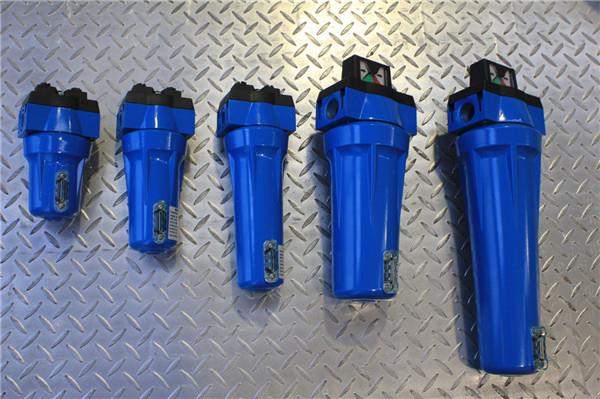

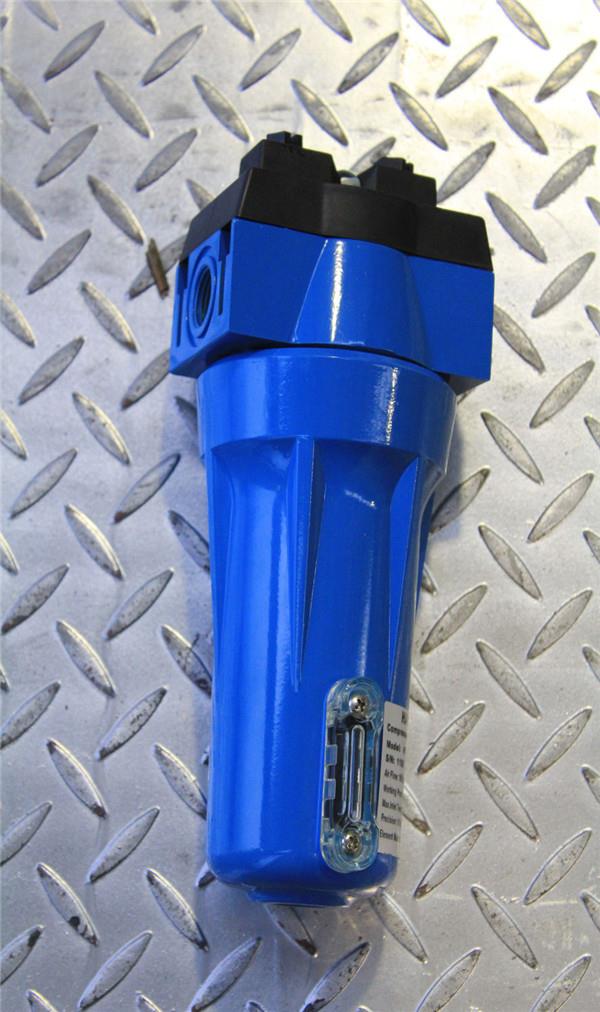

The filter shows in the pic for sell is HF-16, 35CFM . We have full range up to 400CFM filters available along with all spare filter elements at very low prices.We sell all grades of 9, 7, 5, 3 with same model at same price. Grade 1 is for special requirement which need customer to contact us at Mob: 0401634280 for detail information. please see below table for the larger models available. The Semi-auto drain selling separately.
Compressed Air filtration
No dryer system is complete without filtration — and the correct level of filtration is important to deliver the correct quality of air for any application, which of course varies depending on the industry and equipment being used.
For example; air that will feed sensitive pneumatic equipment, sterile environments or air that will inhaled by humans, requires a much higher rate of filtration than a mechanics workshop or general assembly line.
Additionally, the configuration of the compressed air system, as well as the application will determine how many, and which filters are best suitable. Please contact us for further assistance.

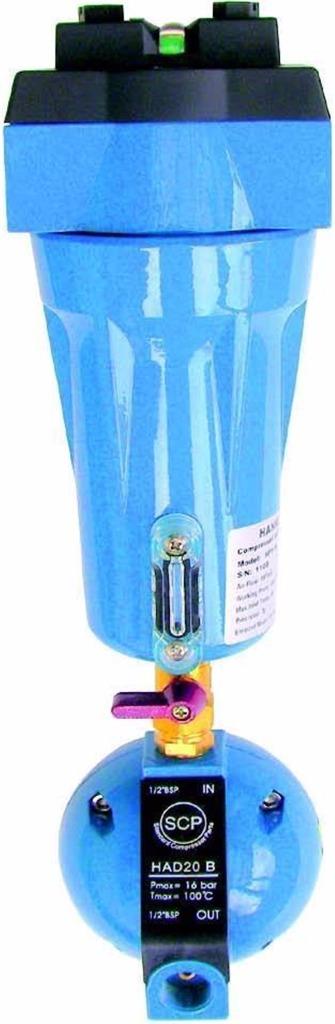

Our filters consist of durable alloy housings, and long service life elements, providing high filtration with low pressure drop. We sell with an external auto drain on each filter (excluding Grade 1 where an auto drain is not required), which means that the drain can be isolated and serviced whilst the filter is still in use.
Grade 9 = 99% bulk water removal.
3 micron particulate.
Commonly used as a main line filter prior to dryer entry point.*
Grade 7 = 1 micron particulate
Grade 5 = 0.008 ppm (0.01 mg/m3) oil removal
Grade 3 = 0.0008 ppm (0.001 mg/m3) oil removal
Grade 1 = 0.003 ppm (0.004 mg/m3) oil removal, active carbon.
For use in conjunction with all grade filters listed above, for the purpose of odor removal for breathable air.**
* Dependent on system set up and application, please contact us for advice.
** Air treated using this equipment may not be suitable for breathing without further purification – refer OSHA standard 1910.134 for further detail.
HF SERIES TECHNICAL PARAMETER TABLE
Model | Port Size | Approx. Air Flow | Replacement Element |
HF9-16 | 1/2 inch BSP | 35cfm | E9-16 |
HF7-16 | 1/2 inch BSP | 35cfm | E7-16 |
HF5-16 | 1/2 inch BSP | 35cfm | E5-16 |
HF3-16 | 1/2 inch BSP | 35cfm | E3-16 |
HF1-16 | 1/2 inch BSP | 35cfm | E1-16 (Activated Carbon) |
HF9-20 | 1/2 inch BSP | 65cfm | E9-20 |
HF7-20 | 1/2 inch BSP | 65cfm | E7-20 |
HF5-20 | 1/2 inch BSP | 65cfm | E5-20 |
HF3-20 | 1/2 inch BSP | 65cfm | E3-20 |
HF1-20 | 1/2 inch BSP | 65cfm | E1-20 (Activated Carbon) |
HF9-24 | 1 1/2 inch BSP | 127cfm | E9-24 |
HF7-24 | 1 1/2 inch BSP | 127cfm | E7-24 |
HF5-24 | 1 1/2 inch BSP | 127cfm | E5-24 |
HF3-24 | 1 1/2 inch BSP | 127cfm | E3-24 |
HF1-24 | 1 1/2 inch BSP | 127cfm | E1-24 (Activated Carbon) |
HF9-28 | 1 1/2 inch BSP | 180cfm | E9-28 |
HF7-28 | 1 1/2 inch BSP | 180cfm | E7-28 |
HF5-28 | 1 1/2 inch BSP | 180cfm | E5-28 |
HF3-28 | 1 1/2 inch BSP | 180cfm | E3-28 |
HF1-28 | 1 1/2 inch BSP | 180cfm | E1-28 (Activated Carbon) |
