| You are bidding on a brand new professional reprint of the CASE 1150B Crawler Service Manual. This is the same exact literature that your local Case dealer uses to repair equipment. It was originally printed in 1978. It is complete with 892 pages and several Color Diagrams and Foldout Diagrams. This reprint is actual better easier to use than the original due to the new D-Slant binder which makes the pages lay flat as opposed to the binder that the original comes in. You will not find a better reprint of this manual ANYWHERE! Table of Contents: GENERAL
General Engine Specifications
Detailed Engine Specifications
Detailed Fuel Specifications
Maintenance and Lubrication
Torque Chart
ENGINE
Engine Diagnosis
Engine Tune-Up
Cylinder Head, Valve Train and Camshaft

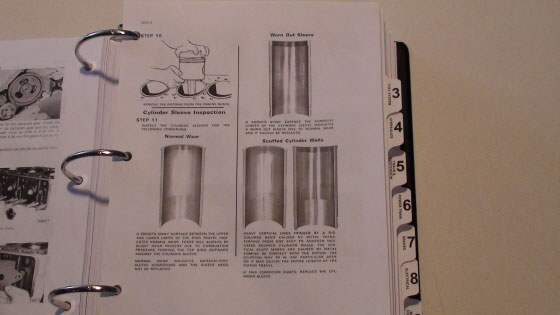

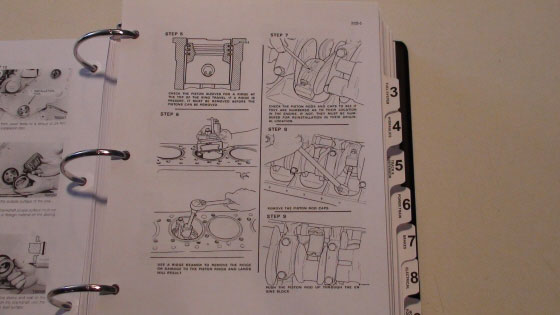

Cylinder Block, Sleeves, Pistons and Rods
Crankshaft, Main Bearing, Flywheel and Oil Seal Replacement
Lubrication System
Stall Checks, Engine Removal and Installation
Air Cleaner
Ether Injector Starting Aid
Cooling System
FUEL SYSTEM
Fuel System and Filter
Fuel Injection Pumps
Fuel Injectors
Fuel Tank, Lines and Throttle Adjustment
HYDRAULICS
Diagrams, Troubleshooting, Maintenance, Adjustments
Flowmeter Tests
Exploded Views of Hydraulic System
Diversion Valve R24819
Equipment Pump R25852
Equipment Control Valves
Loader, Ripper and Dozer Cylinders
TRACK AND SUSPENSION
Track System
Track System - Idlers (Without Lubricant Fill Plug in Hub)
Track System - Track Frame Removal and Installation
Suspension System
Guide Levers
Intertrac Rollers
POWER TRAIN
Transmission Oil Flow - Diagrams and Operations
Troubleshooting - Transmission/Torque Converter and
Hydraulic System
Diagram, Service, Transmission Removal, Controls

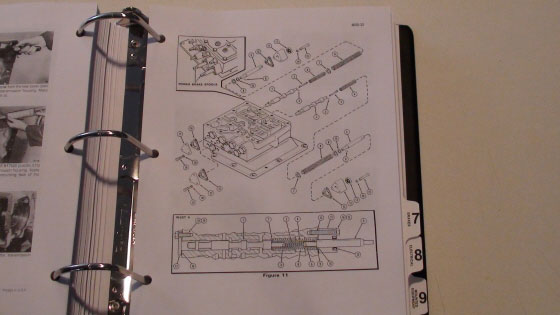

Transmission Control Valve
Torque Converter
Charging Pump R25586
Drive Shafts

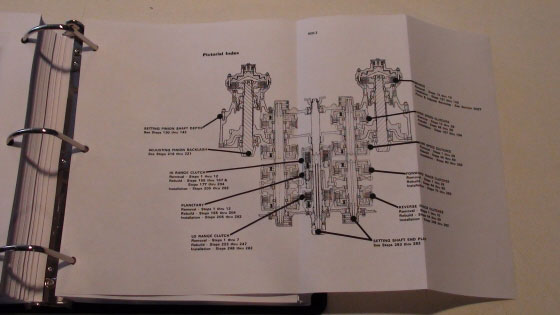

Crawler Transmission
Transmission, Final Drives
Transmission Brakes
BRAKES
Brakes - See Section 6027
Brake Pedals and Linkage, Parking Brake
ELECTRICAL
Wiring Diagram
Troubleshooting
Battery
Starter and Starter Solenoid
Alternator
MOUNTED EQUIPMENT
Loader
Power Tilt Dozer, Power Angle-Tilt-Pitch (ATP) Dozer
Field Removal/Installation of ATP Dozer
Blade for Transport - Supplement 1
W5A Hyster Winch
Ripper
ROPS High bidder must reply within 3 days of auctions end. Payment must be received within 10 days of the end of the auction. I ship worldwide, so if you live outside of the USA please request a shipping quote before bidding. I am also happy to combine shipping on multiple items. Acceptable payment forms are: Paypal and credit cards via Paypal. Need a different manual or disc? Click below for our current auctions. CURRENT AUCTIONS  |
