Features:
U-EC6 emulator is based on USB Debug Adapotor emulator design and production from
Silabs company ,UDA debugger from Silabs company and compatible with EC3/EC5 debugger
in domestic .
Support for procedure download and emulation on line.
The programmer has USB2.0 interface , free installation driver, hardware strengthen protection
( To reduce hardware damage caused by improper use )
Size: (L)70*(W)45*(H)18 mm , good looking and PVC waterproof surface sticker
All production is using machine to finish placement ,bulk production .
Support for WIN XP ,WIN7
Supported software:
It can be connected with Keil software and all kinds of software official launched by silabs ,such as
Silicon Laboratories IDE,FLASH Utility Programmer ,Product Programmer seamless debug.
Supported devices:
Support a full rang of C8051F singlechip
JTAG interface: C8051F00x C8051F01x C8051F02x C8051F04x C8051F06x c8051F12x C8051F2xx
C2 interface: C8051F3xx C8051F41x C8051F5xx C8051F7xx C8051F8xx C8051F9xx
This production has firmware automatically update feature ,so that emulator can realize a full range of
C8051F chip emulation ,and subsequent production of C8051F MCU series.
Functions:
Multicircuit protection .It has a self repair fuse which can effectively protect your computer USB power
supply module , to prevent mainboard chip burned .
Double buffer chip : It has double buffer chip to prevent damage to main chip directly .
Double power output function : Emulator supports double power output , it can output 5V/500mA and
3.3V/500mA . It can be power supply for target board directly ,and providing great convenient for
development.
Good quality USB cable.

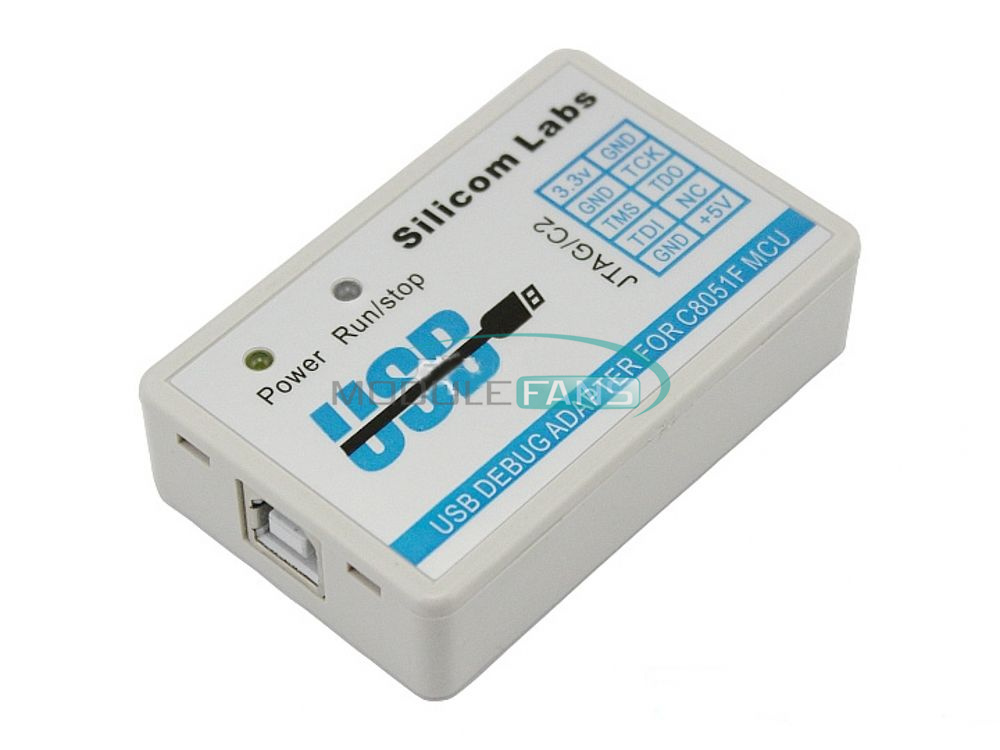

Emulator interface definition
Has C8051F JTAG /C2 interface
Supports JTAG and C2 mode. Support can be up to 4 breakpoints when debugging.
You just need to connect with 2 line ( C2CK, C2D) when the chip is interface with C2
Each emulator is debugging strictly before delivery . Connecting ,download and emulation with interface
target board of C2 and JTAG separately .

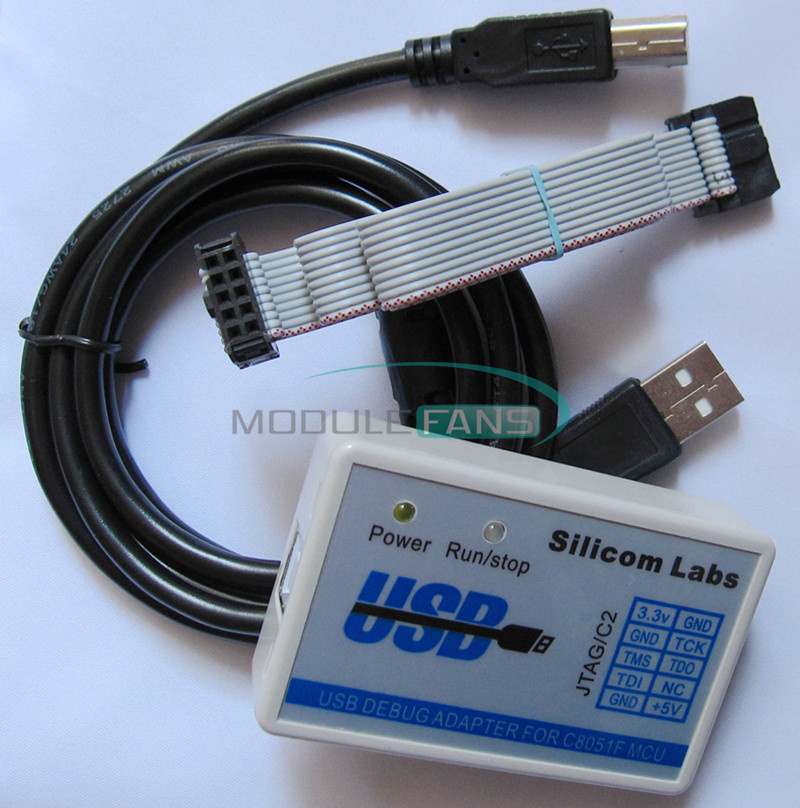

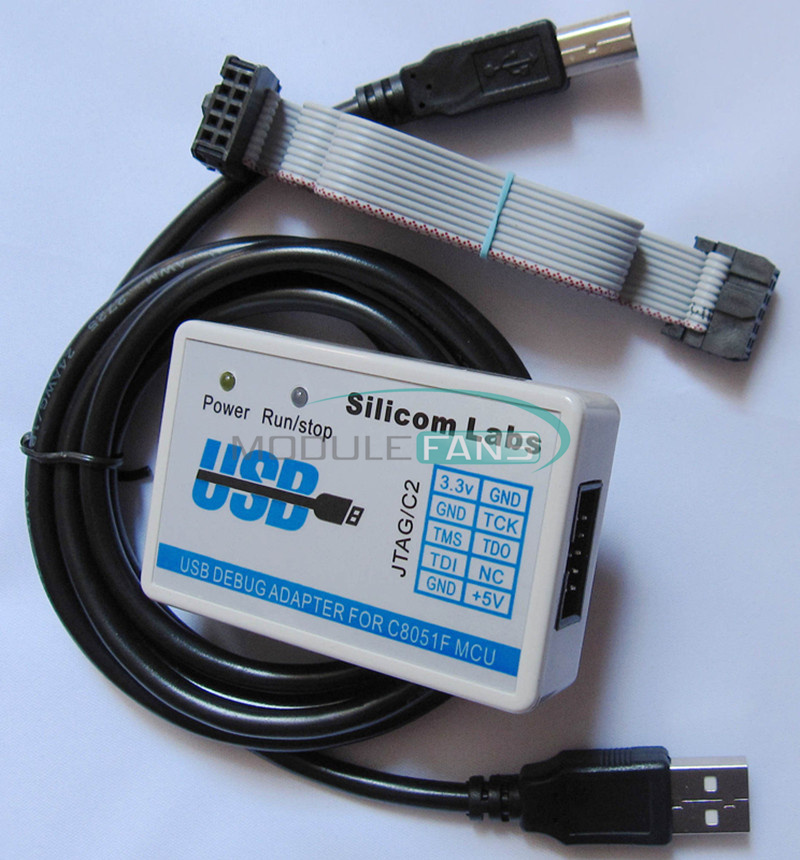

Package Contents
100% Brand New (High Quality)
1 x C8051F emulator
1 x USB cable
1 x 10P ribbon cable
