Case 1190, 1290, 1390 Tractor Service Repair Shop Manual

Case 1190, 1290, 1390 Tractor Service Manual

Rac 8-24590



       You are bidding on a brand new professional reprint of the Case 1190, 1290, 1390 Tractor Service Manual This is the same exact literature that your local Case dealer uses to repair equipment. This manual was originally printed in 1983. It is complete with 1,412 pages. The book also comes with large fold out diagrams. This reprint is actual better easier to use than the original  due to the new D-Slant binder which makes the pages lay flat as opposed to the binder that the original comes in. You will not find a better reprint of this manual ANYWHERE!

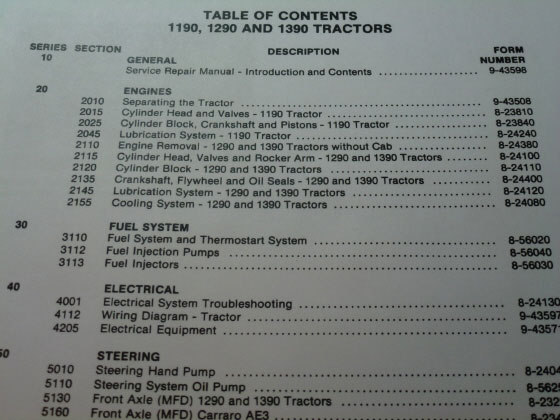

Service Manual Table of Contents:

GENERAL
Service Repair Manual - Introduction and Contents

ENGINES
Separating the Tractor

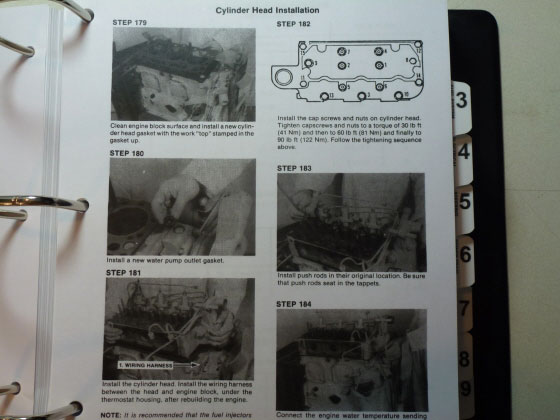

Cylinder Head and Valves - 1190 Tractor
Cylinder Block, Crankshaft and Pistons - 1190 Tractor
Lubrication System - 1190 Tractor
Engine Removal - 1290 and 1390 Tractors without Cab
Cylinder Head, Valves and Rocker Arm -1290 and 1390 Tractors
Cylinder Block - 1290 and 1390 Tractors
Crankshaft, Flywheel and Oil Seals - 1290 and 1390 Tractors
Lubrication System - 1290 and 1390 Tractors
Cooling System - 1290 and 1390 Tractors

FUEL SYSTEM
Fuel System and Thermostart System
Fuel Injection Pumps
Fuel Injectors

ELECTRICAL
Electrical System Troubleshooting
Wiring Diagram - Tractor
Electrical Equipment

STEERING
Steering Hand Pump
Steering System Oil Pump
Front Axle (MFD) 1290 and 1390 Tractors
Front Axle (MFD) Carraro AE3
Front Axle (MFD) Carraro 709/19

POWER TRAIN
Continuous Clutch (Borg and Beck) 1190 Tractor
Synchromesh Transmission
Transfer Gearbox (MFD) 1290 and 1390 Tractors
Single Speed PTO - 1190 and 1290 Tractors
Reversible Shaft PTO - 1390 Tractor
Differential
Final Drive - Snychromesh Transmission

BRAKES
Brakes - Drum, Shoes and Adjustments

HYDRAULIC
Remote Valve and Couplers
Hydraulic Adjustments
Hydraulic System - Specification, How It Works, Fault Finding
Selectamatic Valve

CHASSIS
Rear Platform and Fenders
