This kits is for cars/vehicles that has NO Central locking and wants to convert to Remote and manual C/L.



fitting instructions!

+

Random Coded (anti scan/grabber)  remote controls



100% Copy proof -
no one can copy your alarm codes !



Convert your manual locking to full REMOTE  central locking with this  4 door kit. Features include total closure, car  finder and an auxiliary output operated from the remote controls - ideal for use  with boot releases and remote starters etc.


This quality central door locking system is easy to install and can be fitted to any car which runs off a  12V  battery. The system enables all doors to lock and unlock simultaneously from both the drivers door and passenger front door by way of the existing key or Remotes provided.  4 Motors are  included with this kit (to fit a complete Remote central locking system to your vehicle!). There are also two wires that you can connect up to your alarm  system giving you the ability to activate/deactivate your alarm and lock/unlock your doors at the push of a button using your alarm remote control!



 Main Features:
  • Converts your manual door locking into full REMOTE CENTRAL LOCKING!
  • 4-Channel learning remote controls - You can add or replace up to 4 remotes with this intelligent learning code system.
    We only guarantee our remotes transmitters to work with this system
  • Suitable for 2/3/4/5 door vehicles. If you have a 3 or 2 door vehicle; you can simply fit only two motors and tape off the other wiring.
  • Driver has full control over the locking / unlocking of all doors.
  • Boot (trunk) release Trigger outputs - Remote control boot release
  • Siren Output
  • LED status indicator
  • power window output
  • Car Finder
  • Opening and closing the central lock are indicated by the turn signals lights (indicators lights)
  • Locking operates from both driver or passenger door key or kit can be connected to any alarm with central locking control.
  • More than 50 meters (100 feet) of range
  • Full 16page manual for Easy Installation.
  • Silent operation - Rotatable actuator head
  • All fittings included.
  • Latest New Design - added extra features and security!
    • Smaller size module 8x7x2.5cm
    • Alarming with light and sound
    • Immobiliser Relay Output - Engine cut off
    • Foot Brake - Locking doors while driving
    • Emergency disarming
    • Random Coded (anti scan/grabber)  remote controls
    • Plus all the main features: SEE above
  • Quality Products at fantastic prices!  - No other Central Lock does all this for the price!

 Package Contents:
  • 2x High QUALITY remote controls (fobs)
  • Control unit (Main processor unit)
  • 2 masters door solenoids/motors (5 wires) (These will control all other doors)
  • 2 slaves door solenoids/motors (2 wires)
  • LED status indicator
  • All necessary wires and fixtures
  • Easy Fit instructions, wiring diagrams and user manuals.

4 Door Central Locking Kit Remote Keyless Immobilizer / Upg alarm 4D-CLR698-3BTN



4 Door Central Locking Kit Remote Keyless Immobilizer / Upg alarm 4D-CLR698-3BTN WIRING

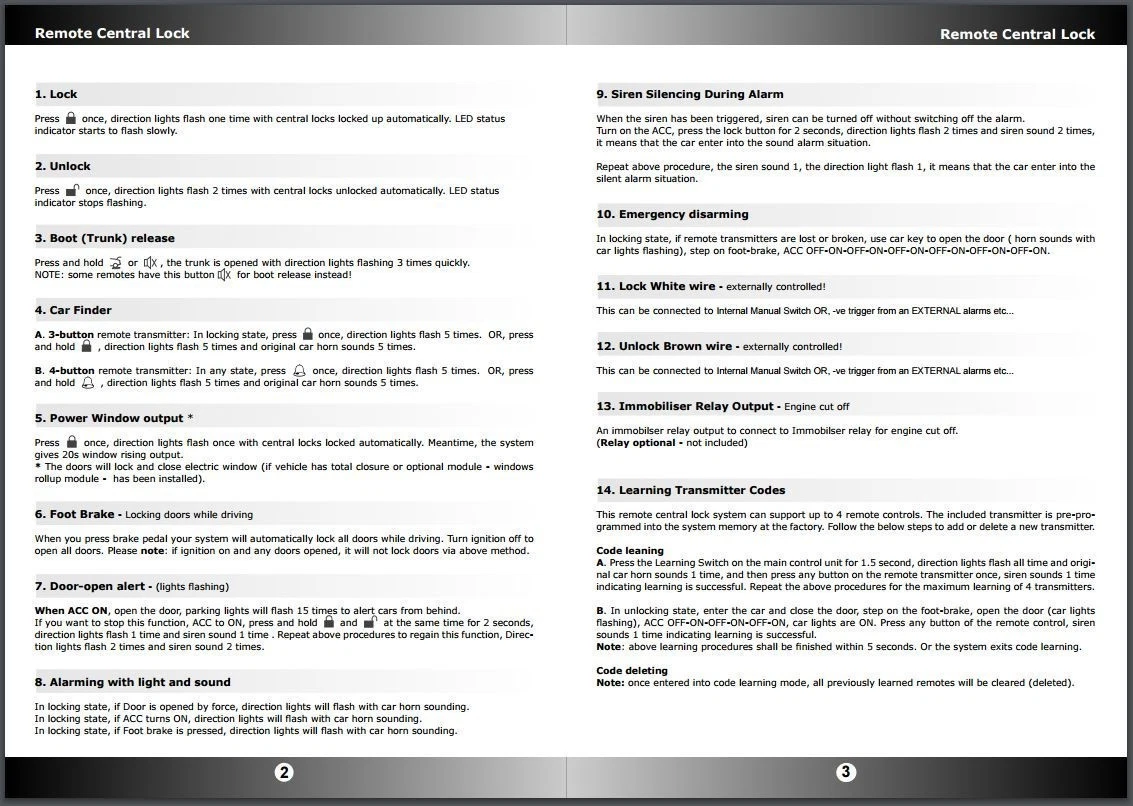

4 Door Central Locking Kit Remote Keyless Immobilizer / Upg alarm 4D-CLR698-3BTN INSTRUCTIONS




Notes *
Note 1. Central Locking
If your central locking system only operates from the drivers door key (not the passengers);
then you will need a   2 wire motor for your drivers door.

Note 2. Total Closure / Window Closure
If your vehicle has total closure this kit will close the windows without any additional interfaces.
You can tell if your vehicle has total closure if the windows close when you hold the drivers door key in the locked position.
If you don’t have total closure and want to close the windows when the alarm is armed;
then you will need a  window closure module.

Note 3. Boot Release Wire: Trunk  Release Output
Some cars have an electric boot release or one can be added. This can be  interfaced with this kit.
For cars with a built in boot release the wire is  found at the keyless entry module under the dash
or behind a kick panel. If  you want to Convert your manual boot release to electric release;
then you  will need a  Electric Boot Release Kit



Note 4. Cable operated door locks
For vehicles with cable operated door locks, such as Ford, Mercedes  Sprinter/Vito, and some newer cars, You need this additional item:  Allows aftermarket actuators to work with cable door lock systems

  Cable door lock adaptor
