Breadboard Starter Kit, Resistors, LEDs, Wires, Potentiometers, Buttons


Package Contents
  • 1 x Breadboard (830 pin)
  • 1 x YwRobot Breadboard Power supply Module
  • 40 x Pin Headers
  • 1 x Breadboard Pre-cut Wire Box

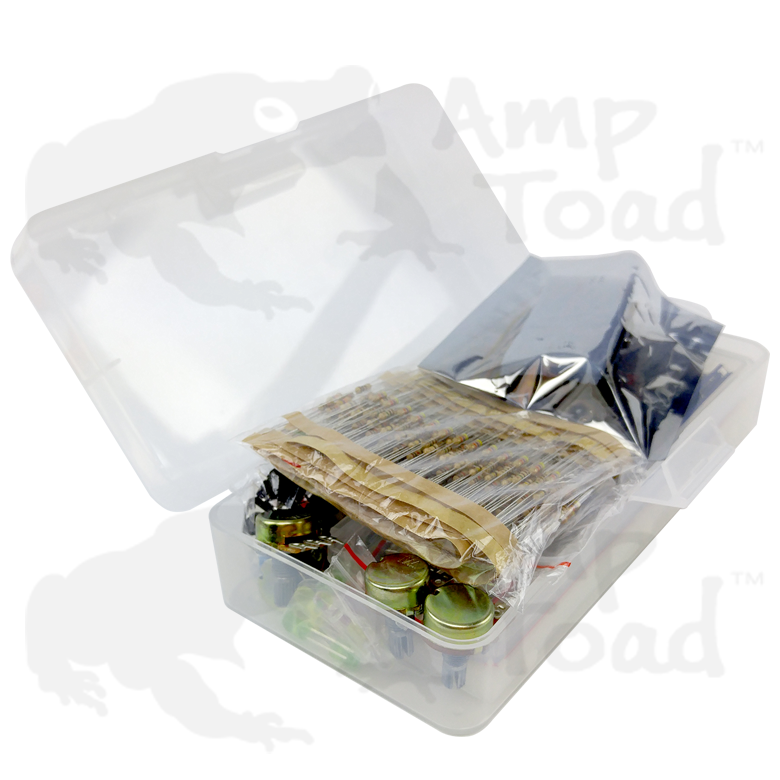

  • 1 x Kit Box (contains all parts)

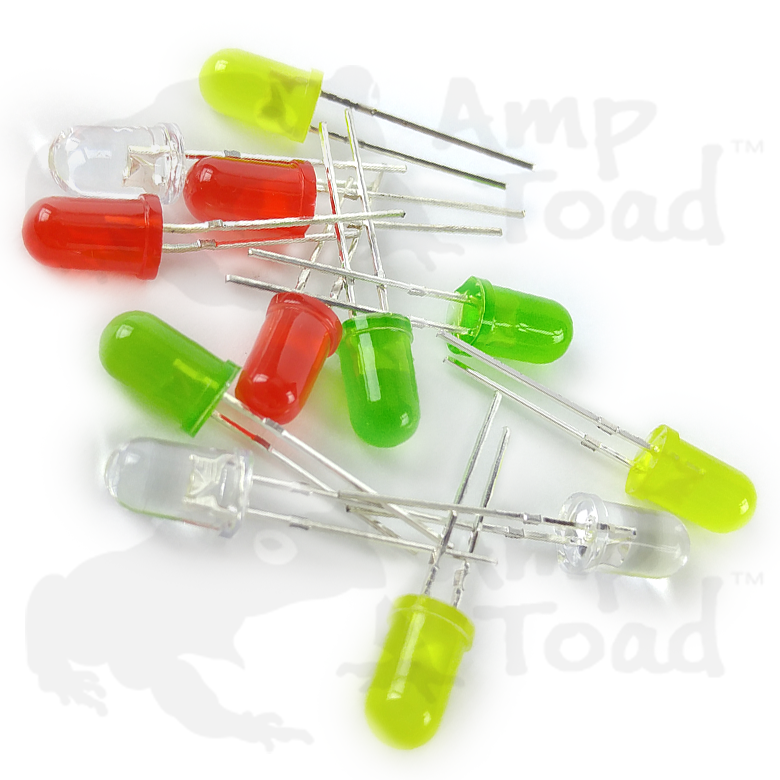

  • 3 x Red LEDs
  • 3 x Green LEDs
  • 3 x Yellow LEDs
  • 3 x White LEDs
  • 6 x Switch Buttons (large)

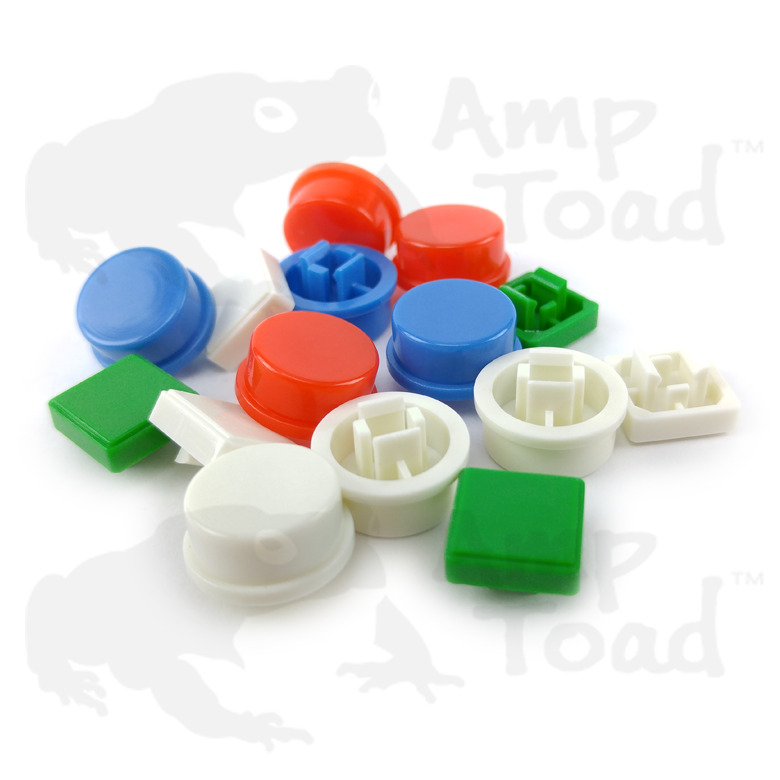

  • 15 x Switch Button Caps (multi color/shape)

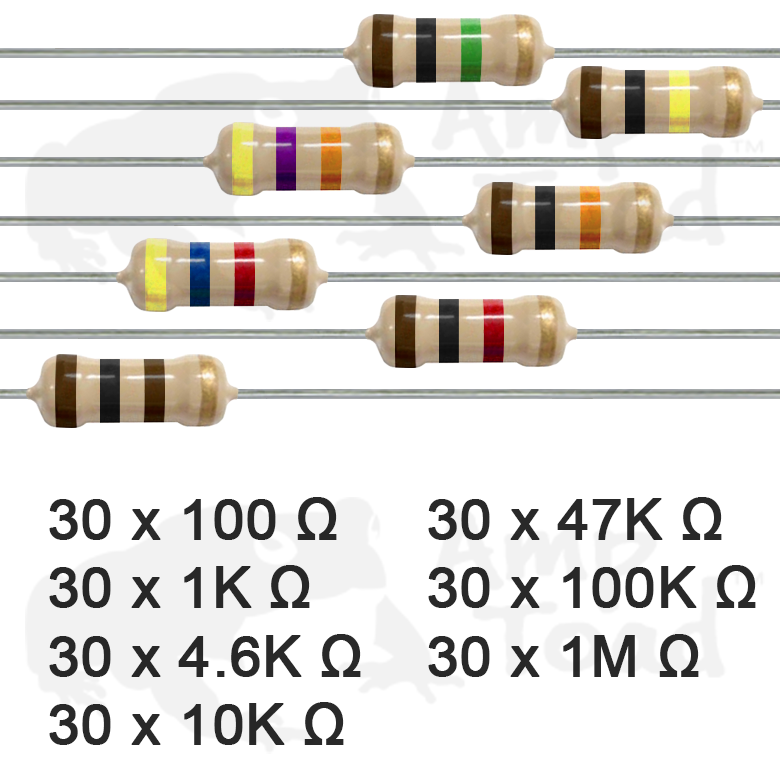

  • 30 x 100Ω Resistor
  • 30 x 100 Ω Resistor
  • 30 x 1,000 Ω Resistor
  • 30 x 4,600 Ω Resistor
  • 30 x 10,000 Ω Resistor
  • 30 x 47,000 Ω Resistor
  • 30 x 100,000 Ω Resistor
  • 30 x 1,000,000 Ω Resistor
  • 2 x 10,000 Ω Potentiometer
  • 2 x 100,000 Ω Potentiometer
  • 60 x Male to Male DuPont Jumper Wires

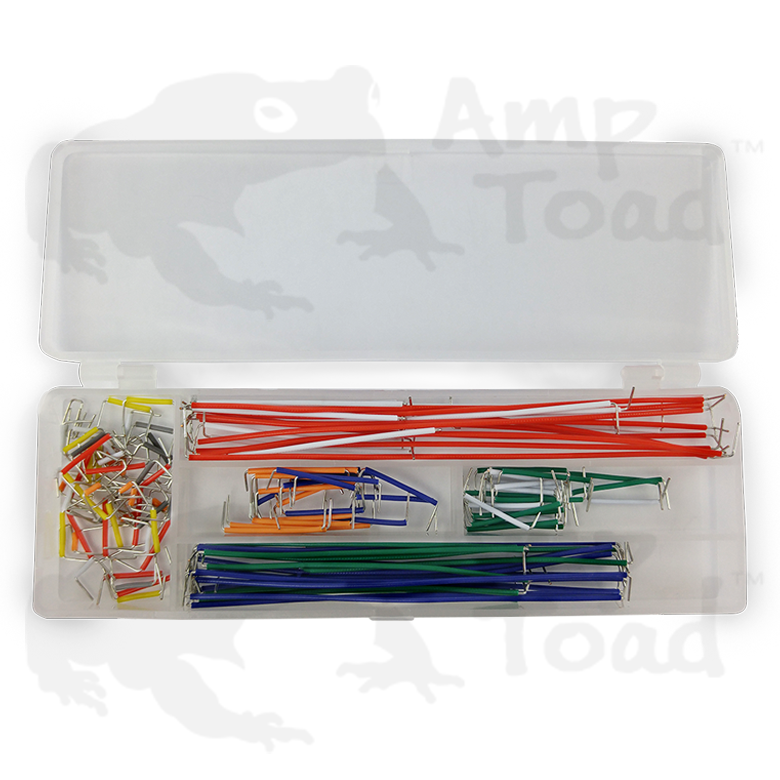

  • 140 x Pre-cut Breadboard Wires (variable lengths)
Product Features
  • SUPER FAST SHIPPING: SHIPS FROM COLORADO, NOT CHINA
  • Genuine YwRobot Power Supply Module
  • Excellent build quality, no cold solder joints
  • Adjustable voltage
  • Multiple power input types
  • Good quality breadboard, not the cheap kind that bends leads
  • Quality kit box, will not crack if dropped or bent
  • Plenty of jumper cables and breadboard wires with variable lengths and colors
Product Info

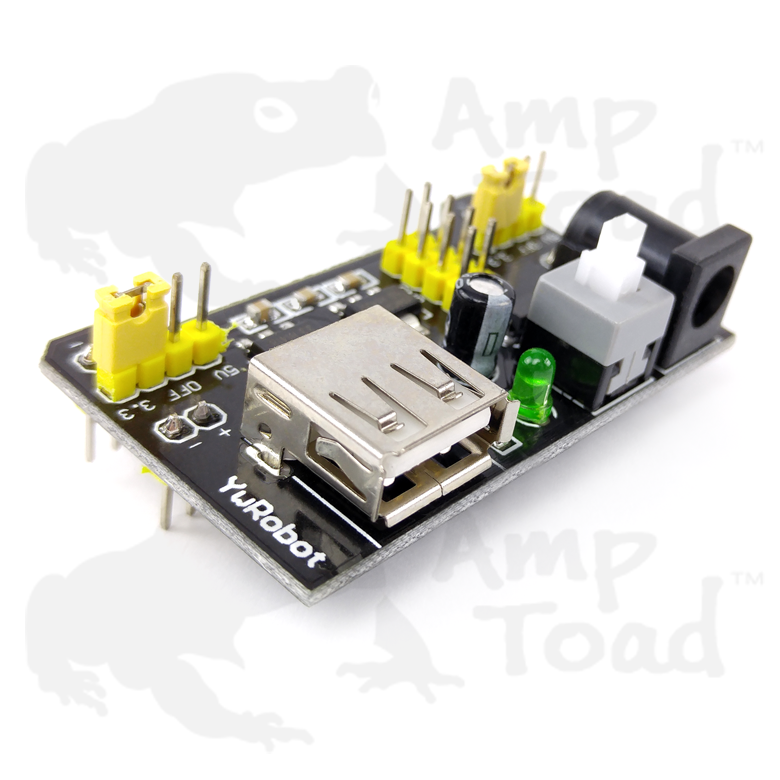

YwRobot Power Supply Module

Model
MB-V2
Power Switch
Locking On/Off push button switch
Barrel Connector Input Voltage
6.5 ~ 12v (DC)
USB Input Voltage
5v
Output Voltage
3.3v / 5v
Max Output Current
700mA
Rail Output
Independent controls, 0v / 3.3v / 5v
Output Header Pins
2 x 3.3v / 2 x 5v / 4 x ground
Size
2.1 x 1.4 in (53 x 35 mm)
Color
Black / Yellow
Bread Board Type
MB102

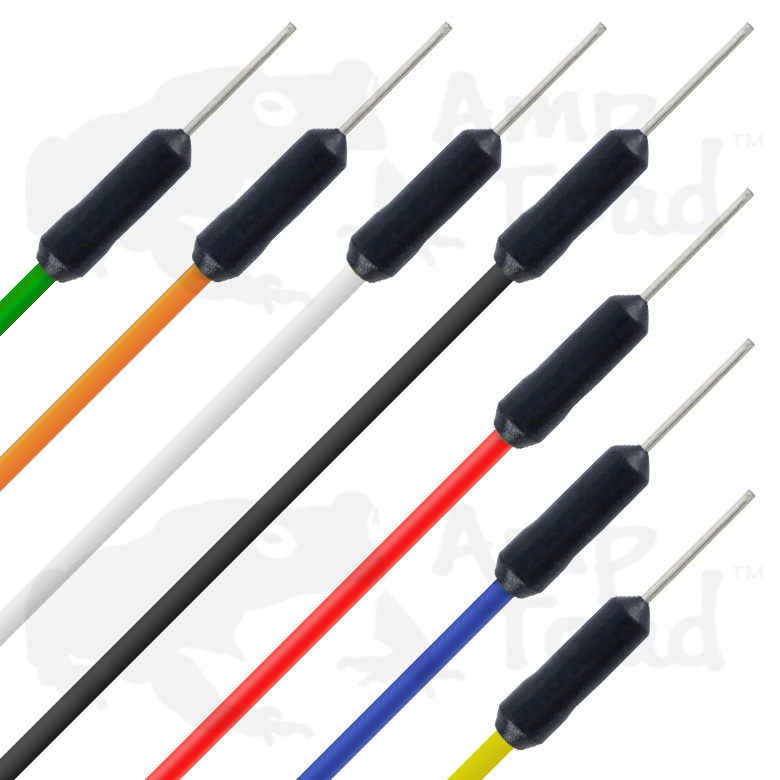

Jumper Wires

Types
Male to Male
Colors
Black, Blue, Green, Orange, Red, White, Yellow
Length
5 in (12 mm) ~ 10 in (25 mm)
Insulator
Rubber

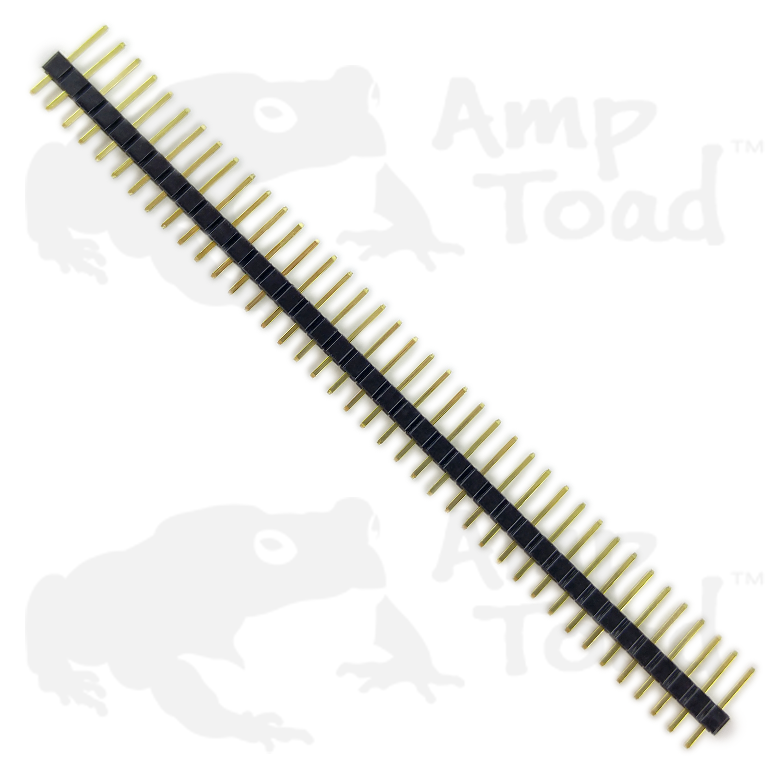

Header Pins

Pins in Row
40
Color
Black
Contact Rating
2.5 A
Insulation Resistance
> 5 x 10^9 Ω at 500V (DC)

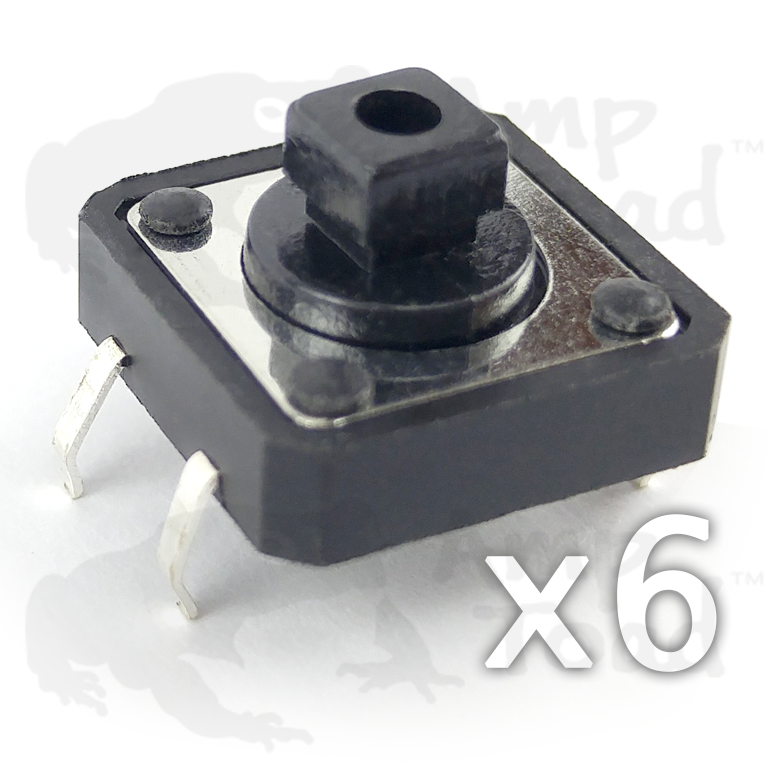

Push Button Switch

Mounting Type
PMS
Max Switching Voltage
30v AC/ 42v DC
Max Switching Current
50mA
Rated Breaking Capacity
12v/10mA
Lifetime
50,000
Button Mounting
Square Header

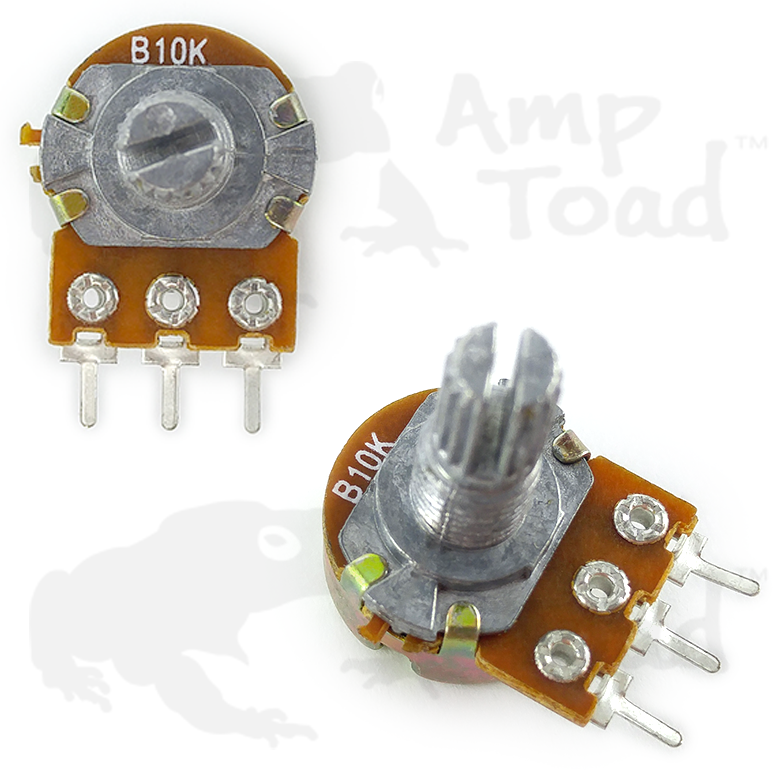

Potentiometer

Total Resistance
2 x 10k Ω / 2 x 100k Ω
Adjustment Style
Rotary
Adjustment Type
Linear
Total Rotational Angle
300° ± 10°
Rotational Torque
2 ~ 20mN.m
Rated Power
B:0.08W
Max Operating Voltage
150V AC

Solderless Plug-in Bread Board

Standard
MB102
Tie-Point Type
Plug-in Solderless
Tie-Point Count
830
IC/Circuit Area Tie-Point Count
630
Distribution Strip Tie-Point Count
200
Body Material
White ABS plastic
Distribution Strip Count
2
Size
6.5 x 2.2 x 0.3 in (165 x 55 x 8.5 mm)
Hole Style
Square Wire Holes
Hole Pitch
0.1" (2.54mm)
ABS Heat Distortion Temp
183° F (84° C)
Spring Clip Contact
Phospor Bronze with Nickel Finish
Contact Life
50,000 inserts
Rating
36v / 2 Amps
Insertion Wire Size
21 ~ 26 AWG
Backing
Metal Plate / Foam Padding / Adhesive Tape
Metal Plate Thickness
0.03" (0.8mm)
