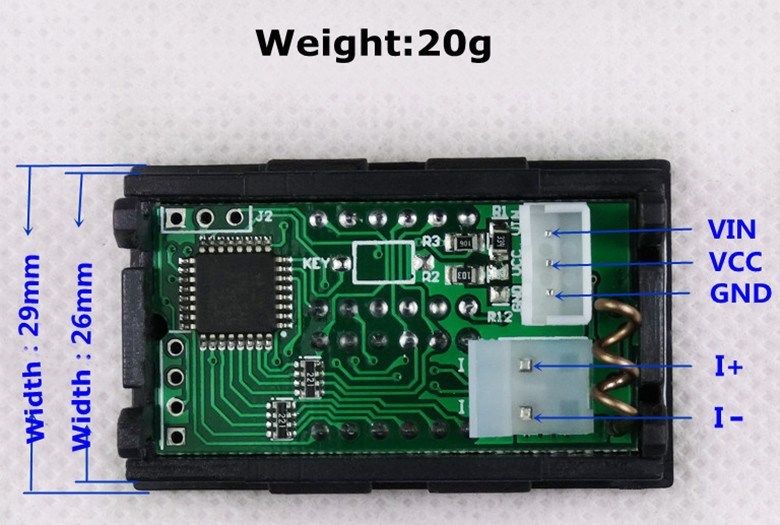

Product Overview & Instruction of wiring

  • Red thin wire (VCC): Power input+ 3.5-28V.

  • Black thin wire (GND): Power input- Measurement  signal - 3.5-28V.

  • Yellow thin wire (VIN): Measurement signal+  (0-99.9V).

  • Red thick wire (I+): Current input+ (In series in  power supply positive).

  • Black thin wire(I-): Current input- (In  series in power supply negative)

  1. Figure 1:  Power the meter by isolated power.

  2. Figure 2: Power the meter by dc-dc converter.

  3. Figure 3: Power the meter by the same source being measured.

Key Feature

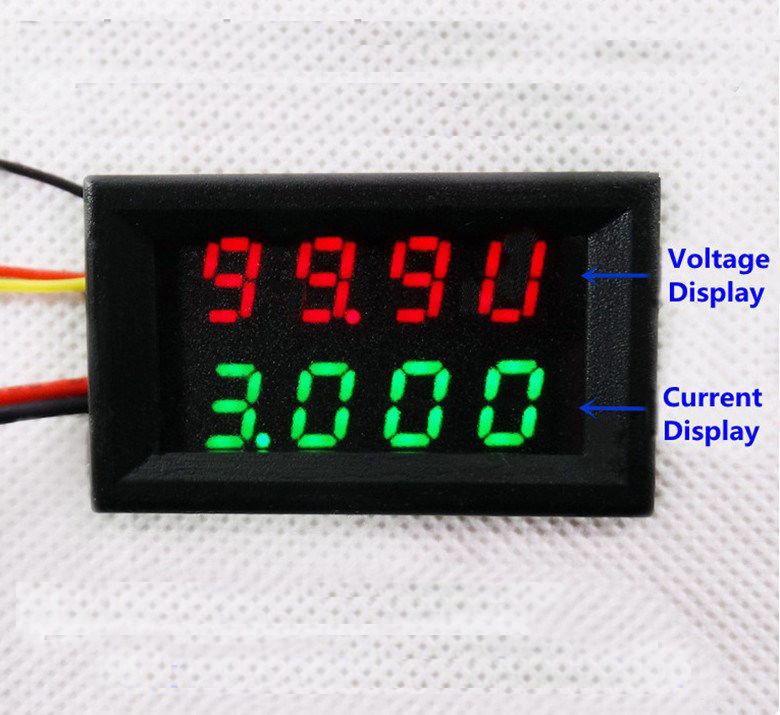

  • Top line display voltage, there are three fixed display  precision with voltage unit. The measuring range is 0.0-99.9V, the minimum resolution is 10mV.

  • Bottom line display current, there are four fixed  display precision, the measuring range is 0-999.9mA-3.000A, when the measuring  current <1A, it display ***.* mA, the resolution is 0.1mA, when the measuring  current >1A, it display *.***A, the resolution is 1mA.

  • Auto Range.

  • Lowe power consumption.

  • It  doesn't require external power if measure 3.5-28V (self-powred).

Product Description


Power Supply 3.5-28Vdc
Measuring range Voltage 0-99.9V
Current 0-999.9mA-3.000A
Display Type 7 segment 4 digits Red & Blue LED
Sampling rate 5 readings per second
Accuracy Volt ± (0.5% + 2 byte) / Amp ± (0.3% +  2 byte)
Resolution 0.01V, 0.1mA/0.001A

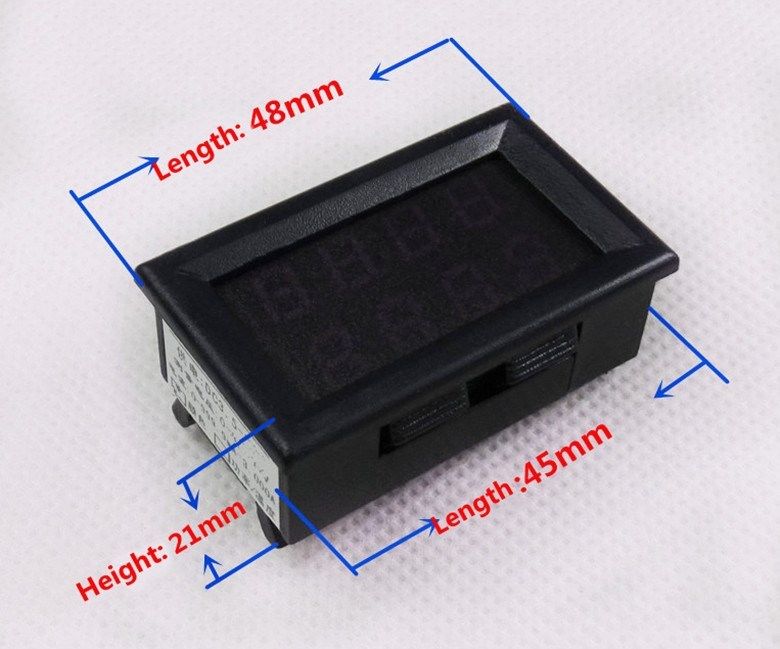

Dimensions 48mm×29mm×26mm  (L*W*H)
Size of mounting hole 45mm×26mm  (L*W)
Operation temperature -10~65℃

Ideal for use with

  • Use in cars, boats,  motorcycle and Testing Devices for measuring the voltage and current  of battery & electrical system.
  • Solar, Wind, HHO  System

The auction includes

  • 1 × Digital panel meter

  • 1  × 2 pin cable

  • 1  × 3 pin cable
