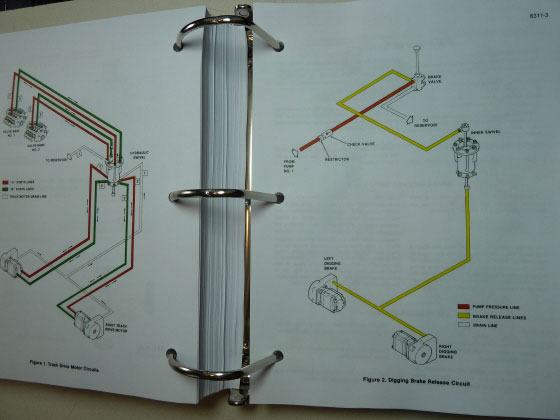

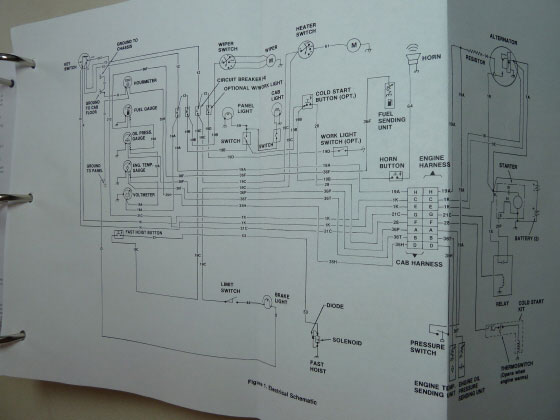

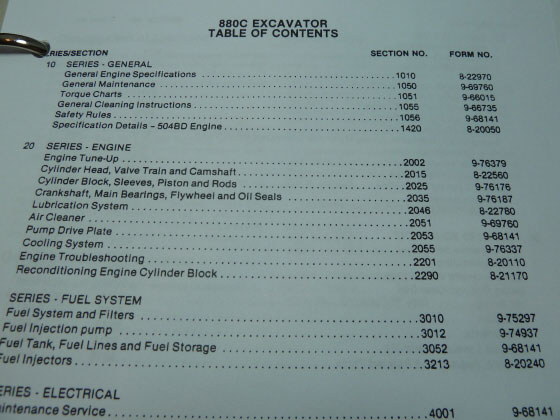

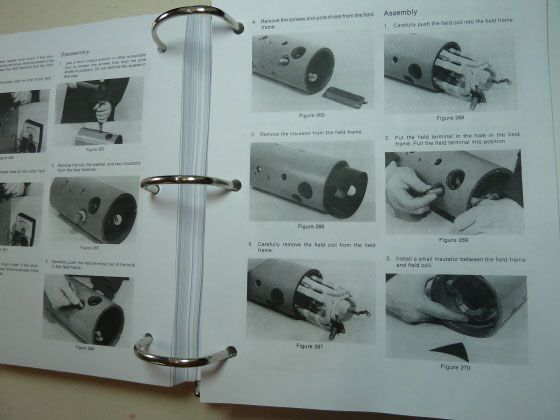

| You are bidding on a brand new professional reprint of the Case 880C Excavator Service Manual. This is the same exact literature that your local Case dealer uses to repair equipment. It was originally printed in 1980. It is complete with 778 pages. The book also comes with several color diagrams and large foldouts. This reprint is actual better easier to use than the original due to the new D-Slant binder which makes the pages lay flat as opposed to the binder that the original comes in. You will not find a better reprint of this manual ANYWHERE! SERVICE MANUAL SECTIONS: GENERAL
General Engine Specifications
General Maintenance
Torque Charts
General Cleaning Instructions
Safety Rules
Specification Details - 504BD Engine
ENGINE
Engine Tune-Up
Cylinder Head, Valve Train and Camshaft
Cylinder Block, Sleeves, Piston and Rods
Crankshaft, Main Bearings, Flywheel and Oil Seals
Lubrication System
Air Cleaner
Pump Drive Plate
Cooling System
Engine Troubleshooting
Reconditioning Engine Cylinder Block
FUEL SYSTEM
Fuel System and Filters
Fuel injection pump
Fuel Tank, Fuel Lines and Fuel Storage
Fuel Injectors
ELECTRICAL
Maintenance Service
Diagnosis, Tests and Checks
Wiring Harness
Starter and Starter Solenoid
Alternator
TRACK AND SUSPENSION
Maintenance Service
Troubleshooting
Track Chain and Shoes
Track Rollers, Carrier Rollers, Idlers and Sprockets
POWER TRAIN
Maintenance Service
Troubleshooting
Drive Motor Circuit and Lines
Drive Motor
Final Drive Transmission (Drive)
BRAKE SYSTEM
Maintenance Service
House Brake
Track Digging Brake
EQUIPMENT HYDRAULICS
Maintenance Service
Diagnostic Tests and Checks
Equipment Hydraulic Pump
Excavator Control Valves
Swing Motor Hydraulics, Swing Motor and Cross-Over Relief Valve
Hoist Cylinder Hydraulics
Crowd Cylinder Hydraulics
Tool Cylinder Hydraulics
Leveler Cylinder Hydraulics
Hydraulic Swivel
Hydraulic Cylinders
MOUNTED EQUIPMENT
Maintenance Service
Troubleshooting
Control Levers and Linkage
Swing Reducer Gear Box
"E" Boom
"Y" Boom
Attachments
Turntable Leveler Assembly
Turntable, Bearing and Related Parts Terms of bidding: High bidder must reply within 3 days of auctions end. Payment must be received within 10 days of the end of the auction. I ship worldwide, so if you live outside of the USA please request a shipping quote before bidding. I am also happy to combine shipping on multiple items. Acceptable payment forms are: Paypal and credit cards via Paypal. Need a different manual or disc? Click below for our current auctions. CURRENT AUCTIONS  |
