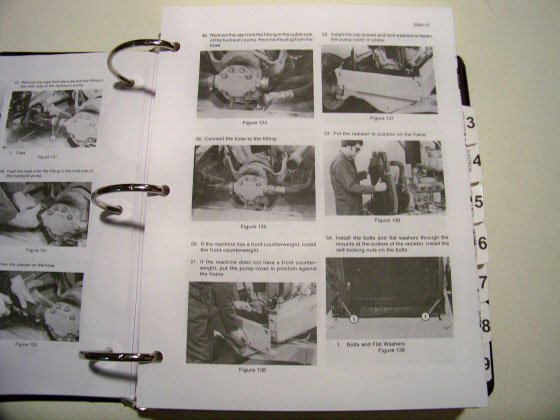

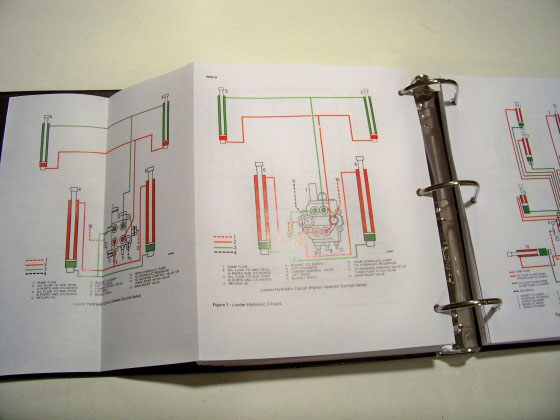

| You are bidding on a brand new professional reprint of the Case 480D Loader Backhoe, 480LL Loader Landscaper Service Manual. This is the same exact literature that your local Case dealer uses to repair equipment. It was originally printed in 1981. It is complete with 1,208 pages. The manual also comes with several large color fold out's. This reprint is actual better easier to use than the original due to the new D-Slant binder which makes the pages lay flat as opposed to the binder that the original comes in. You will not find a better reprint of this manual ANYWHERE! Service Manual Table of Contents: GENERAL
Safety Rules, Service Manual Introduction, and Torque Specifications
Maintenance and Lubrication
General Engine Specifications
Detailed Engine Specifications
ENGINES
Engine Diagnosis
Engine Tune-Up
Engine Stall Tests
Engine Removal and Installation
Engine Accessories
Cylinder Head, Valve Train and Camshaft
Cylinder Block, Sleeves, Pistons and Rods
Crankshaft, Bearings, Flywheel and Oil Seals
Oil Pump
Cooling System
Engine Lubrication
FUEL SYSTEM
Fuel Filters
Fuel Injection Pump
Fuel Injectors
Fuel Lines, Fuel Tank, and Engine Controls
ELECTRICAL
Electrical System Troubleshooting
Wiring Diagrams
Batteries
Starter
Alternator
Instrument Cluster and Instrument Panel
STEERING
Steering System Troubleshooting
Steering Pump
Steering Control Valve and Steering Column
Steering Cylinders
Front Axle
POWER TRAIN
Power Shuttle Troubleshooting
Power Shuttle and Torque Converter
Power Shuttle Controls
Transaxle Removal and Installation
Transaxle and Differential Lock
Driveshaft,
Wheels and Tires
BRAKES
Brake Pedals and Linkage, Master Cylinder
and Parking Brake
Self Adjusting Differential Brakes
HYDRAULIC SYSTEM
Hydraulic System Troubleshooting
Removing Contamination With The Case Portable Filter
Hydraulic Pump
Loader Control Valves
Remote Relief Valve Couplings
Three Point Hitch Control Valves
Cylinders
Backhoe Control Valve
Stabilizer Control Valve
Boom Lock System
MOUNTED EQUIPMENT/CHASSIS
Loader
Three Point Hitch
Cab and Canopy
Operators Seats, Seat Belts and Supports
26 Backhoe
Decals and Painting
Noise ControlTerms of bidding: High bidder must reply within 3 days of auctions end. Payment must be received within 10 days of the end of the auction. I ship worldwide, so if you live outside of the USA please request a shipping quote before bidding. I am also happy to combine shipping on multiple items. Need a different manual? Click below for our current auctions. CURRENT AUCTIONS  |
