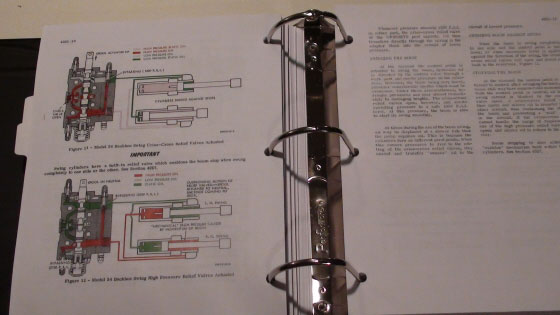

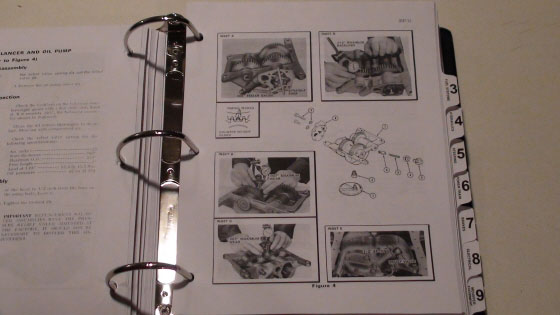

| You are bidding on a brand new professional reprint of the Case 850 Crawler Service Manual. This is the same exact literature that your local Case dealer uses to repair equipment. It was originally printed in 1979. It is complete with Foldout Diagrams & Color Diagrams and has 1,028 pages in total. This reprint is actual better easier to use than the original due to the new D-Slant binder which makes the pages lay flat as opposed to the binder that the original comes in. You will not find a better reprint of this manual ANYWHERE! Table of Contents: GENERAL
Maintenance and Lubrication
Torque Chart
Crawlers Before S/N 7073469
Specifications for Case A301 Diesel Engine
Crawlers with S/N 7073469 and After
General Engine Specifications
Detailed Engine Specifications
301BD Engine
ENGINES
Engine Removal/Installation, Adjusting Throttle
Linkage, Stall Checks
Air Cleaner
Cooling System Trouble Shooting, Radiator
Removal/Installation, Backhoe Oil Cooler
Crawlers Before S/N 7073469
Cylinder Head and Valve System
Engine Block
Engine Counter Balancer
Water Pump
Crawlers with S/N 7073469 and After
Engine Diagnosis
Engine Tune-Up
Cylinder Head, Valve Train and
Camshaft
Cylinder Block, Sleeves, Pistons and Rods
Crankshaft, Main Bearings, Flywheel and
Gil Seal Replacement
Lubrication System
Cooling System
FUEL SYSTEM
Crawlers Before S/N 7073469
Fuel Injectors
Crawlers with S/N 7073469 and After
Fuel System and Filters
Robert Bosch Fuel Injection Pumps
Roosa Master Fuel Injectors All Models
Fuel Lines, Bleeding the Fuel System
HYDRAULICS
Trouble Shooting, Hydraulic Diagrams, Pressure Checks
Equipment Pumps R42531 and R30316
Loader, Dozer, Backhoe Control Valves
(Commercial-Shearing A-35 Series)
Hydraulic Cylinders
TRACK AND SUSPENSION
Track System
Suspension System
Intertrac Rollers
POWER TRAIN
Trouble Shooting the Transmission/Torque Converter Hydraulic System with a Flowmeter
Transmission and Final Drives (Prior to Tractor S/N 7074053 and Transmission S/N 2697154), Transmission Removal/ Installation (All Models), Transmission Controls (All Models)
Transmission, Final Drives and Brakes -
Starting with Transmission S/N 2697154.
Torque Converter
Charging Pump
Clutch Cutout Control (Declutch Lockout)
Drive Shaft
BRAKES
Adjusting and Bleeding Brakes, Master
Cylinders
NOTE: Also See Section 6014
SERIES - ELECTRICAL
Wiring Diagrams
Trouble Shooting and Adjustments
Batteries
Starter and Starter Solenoid
Alternator
MOUNTED EQUIPMENT
Counterweights, Drawbars, Engine Frame and
Undercarriage Guards, Seat and Tank
Weldment
Loader
Power Tilt Dozer, Power Angling Dozer
Power Angle Tilt Dozer
Power Angle Tilt Pitch Dozer Before Tractor
S/N 7074906, R24819 Diversion Valve
Angle Tilt Pitch Dozer, S/N 7074906 and After
Model 19 Gearmatic Winch
Model 19 Gearmatic Winch Ring Gear, Pinion
Shaft and Drum Shaft Assembly and
Adjustments, Winch S/N 19-9000 and After
Ripper
Roll-Over Protection Structure
Model 34 Backhoe
Model 36 Backhoe Terms of bidding: High bidder must reply within 3 days of auctions end. Payment must be received within 10 days of the end of the auction. I ship worldwide, so if you live outside of the USA please request a shipping quote before bidding. I am also happy to combine shipping on multiple items. Acceptable payment forms are: Paypal and credit cards via Paypal. Need a different manual or disc? Click below for our current auctions. CURRENT AUCTIONS  |
