Description

Plans for a walk behind garden tractor - similar to a Gravely. Built from salvaged auto parts. With a 4 clyinder engine, and a dual transmission, this will handle 10 - 12" turning plow, 5 - 6' disk harrow, large cultivators, mowing machines, etc, with power to spare. The tractor in the plan was built using the parts listed below - could be adapted to use others.

  • Harley Davidson Motorcycle transmission and a Ford Model A transmission
  • Model T rear axle
  • A Willys Jeep engine

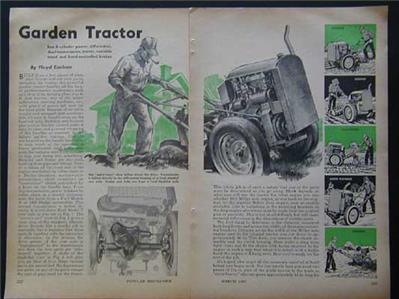

This is an original 5 page magazine article from 1947.
Pages measure 6 1/2” x 9”
We do not photocopy these.
Article Includes

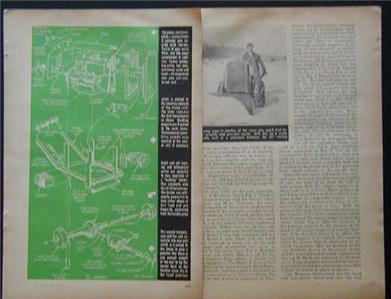

  • Measured Drawings and Diagrams
  • Complete Instructions
Pages are not all shown in Photos
