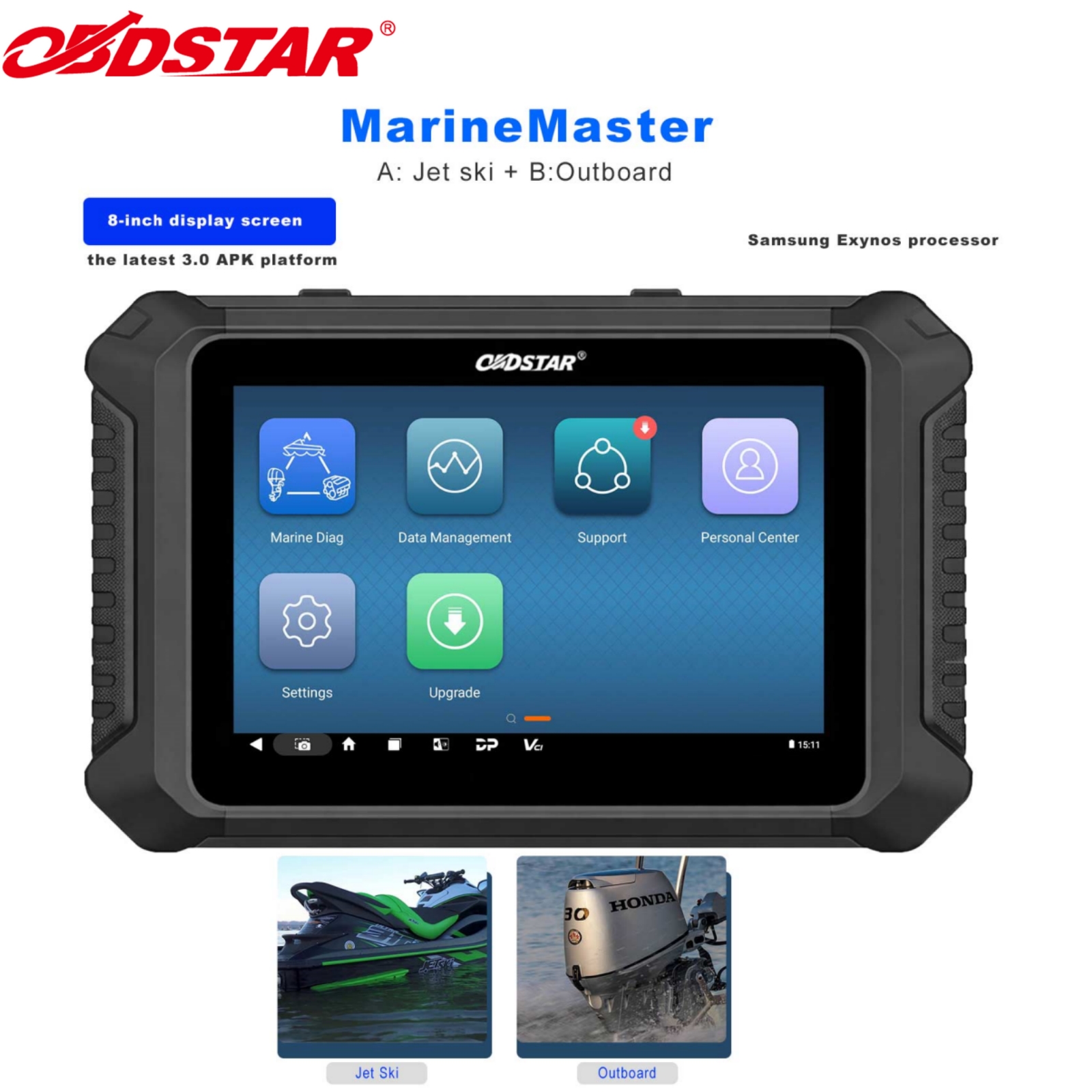

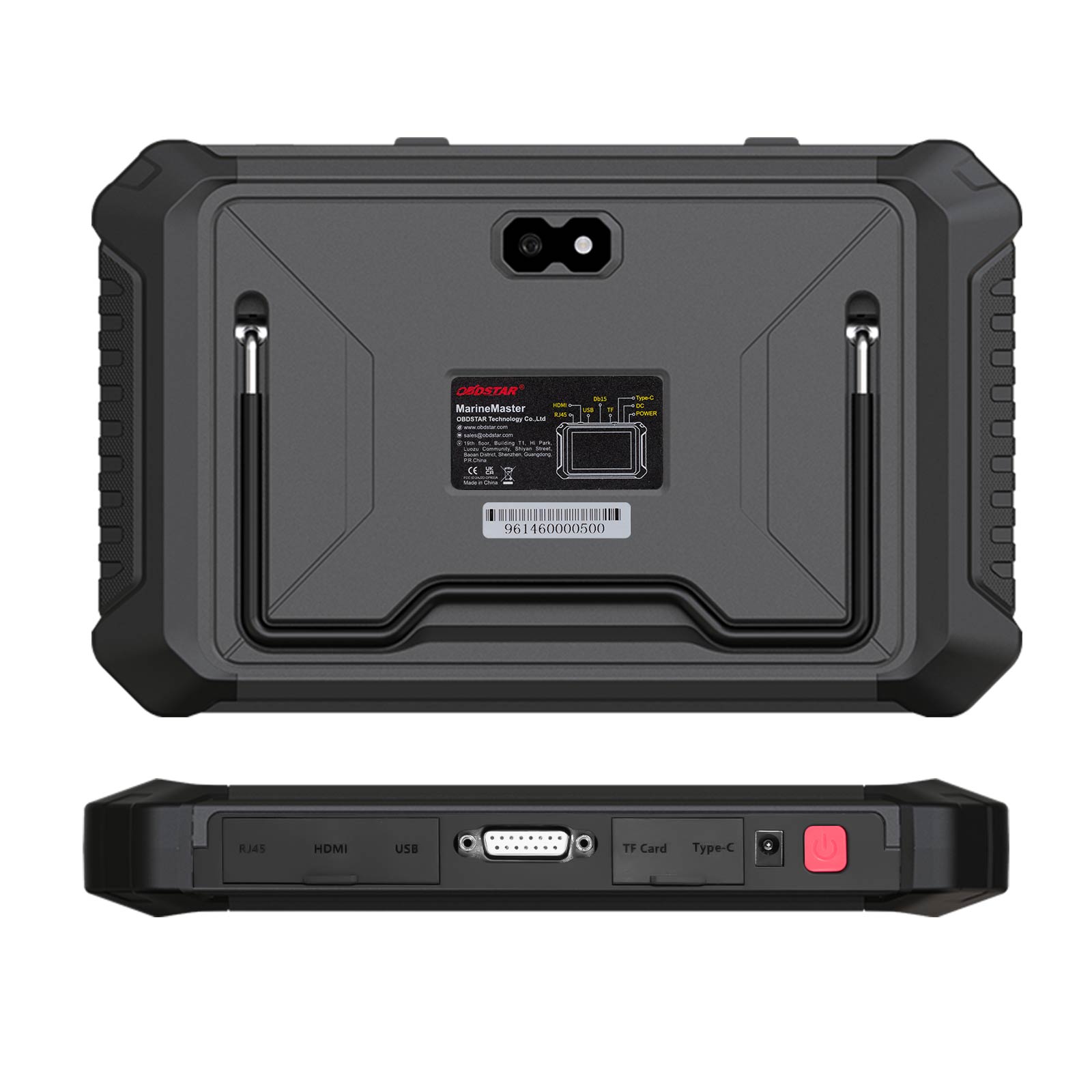

OBDSTAR MarineMaster A+B Marine Diagnostic Tool for Jet ski, Outboard

MarineMaster is OBDSTAR's new generation device for marine (Jet ski/Outboard) intelligent diagnosis.

Based on Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth.

MarineMaster adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The MarineMaster marine scanner, with its fast upgrade performance and built-in help materials, is a good helper for marine maintenance engineers!

Functions:
1. Android 11 operating system with one-click OTA (Over-The-Air) updates ;
2. Provide complete diagnostic functions including E-C-U information, code reading, code clearing, data flow, freeze frames, action test, setting, coding, read working hours, Helm Setup, etc;
3. Record and play back real-time flow, quickly and accurately locate sensor and component faults;
4. Wi-Fi connection to the internet, one-click software upgrade;
5. One-click remote function, OBDSTAR technical staff remote assistance;
6. Built-in screen recording and wireless screen mirroring capabilities.
7. Free upgrade for 2 year.
8. Support English only, can't change to other languages.

Advanced Functions:
1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with MarineMaster to make marine diagnosis more accurately and efficiently (some functions are only available for MarineMaster users to check for free);
2. The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free;
3. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyze faults;
4. Supports Auto Scan, BCM Simulator, Instance Setting, Maintenance Setting, Remote Control Reset, System Calibration, Torque Adjustment and other functions...

It has below three configurations

A: Jet ski    B: Outboard    C: Inboard    D: Generator

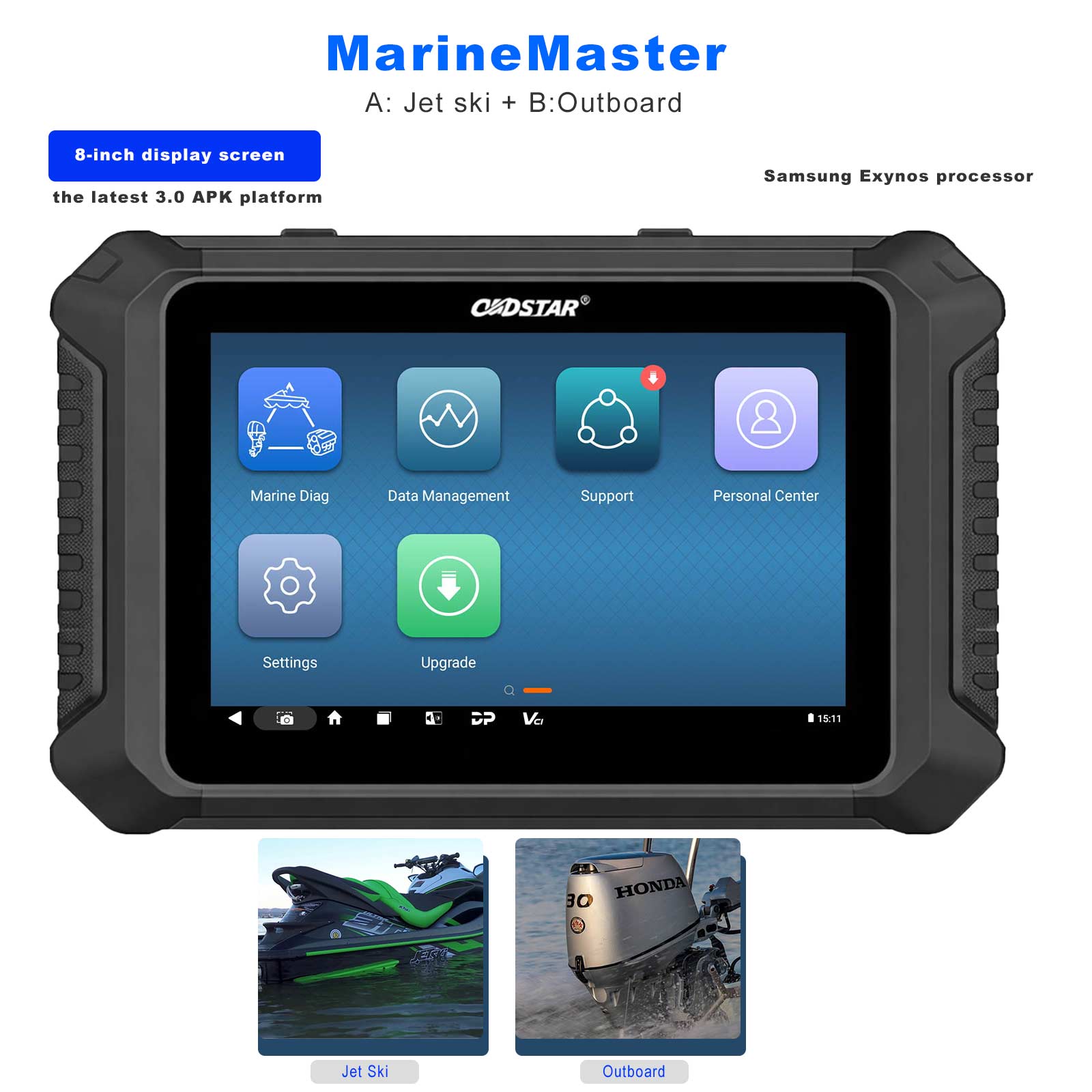

MarineMaster A+B: Jet ski, Outboard

MarineMaster C+D: Inboard, Generator

MarineMaster A+B+C+D: Jet ski, Outboard, Inboard, Generator

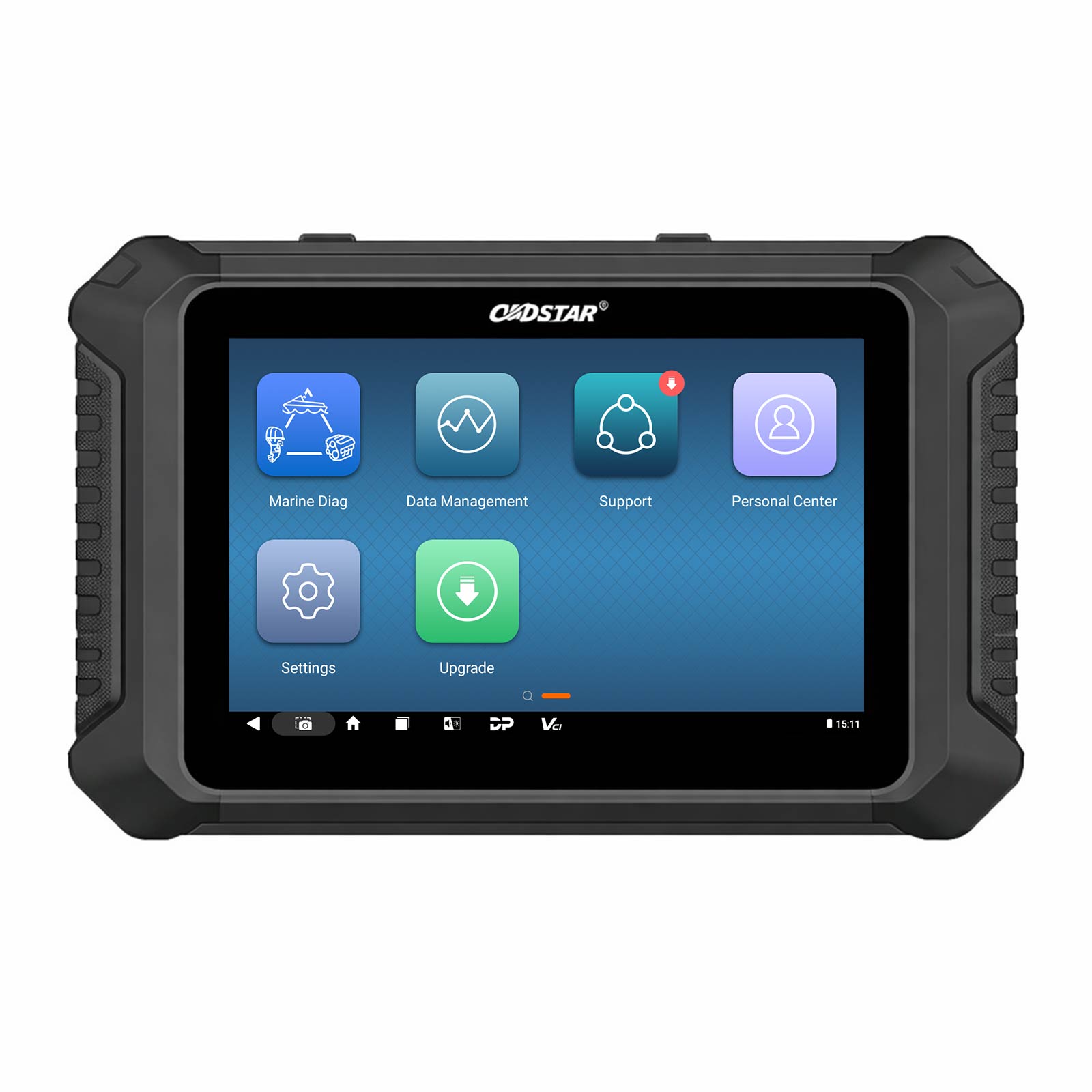

1) Main Page

2) Diag Socket/Diag Connector Location

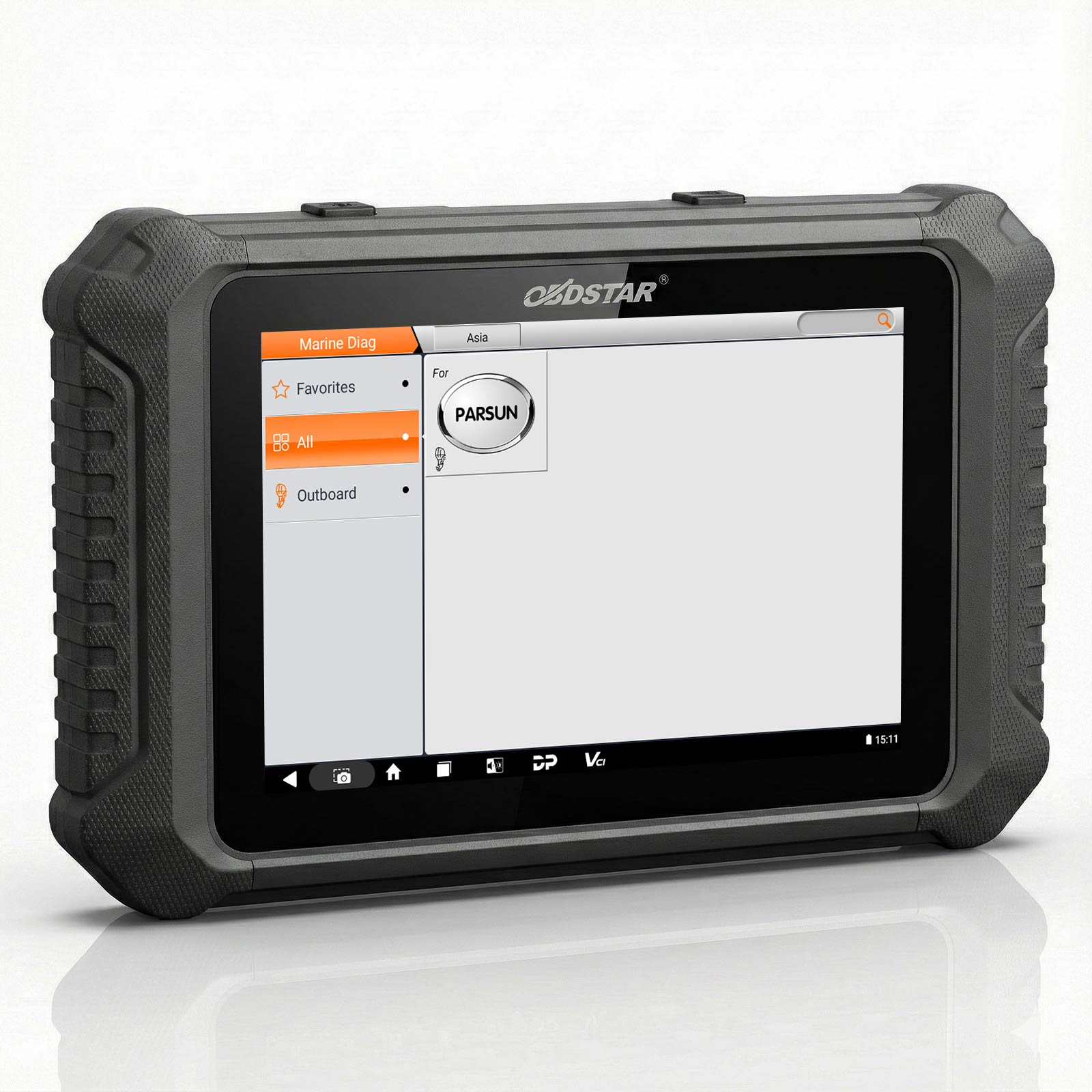

2) Menu Selection

3) Function Menu

6) Special Function-for BRP
