394ft M22759/16-8-0 8 AWG 133 Strands ETFE 150°C Tefzel Wire Black 600V
Click Thumbnails to Enlarge
APPLICATION
• M22759/16-8-0 8 AWG Mil-Spec Lead Wire is suitable for Aerospace applications where light weight, abrasion resistance and mechanical durability are required
CONDUCTOR
• Stranded Tin-Plated Copper Conductor
INSULATION
• Extruded Ethylene Tetrafluoroethylene (Tefzel)
TEMPERATURE RATING
• 150°C
STANDARDS
• M27500 Component: TE
PRODUCT SPECIFICATIONS
| Size AWG | 8 |
|---|---|
| Number of Strands | 133 |
| Minimum Diameter of Conductor (inch) | 0.158 |
| Maximum Diameter of Conductor (inch) | 0.169 |
| Minimum Diameter of Finished Wire (inch) | 0.196 |
| Maximum Diameter of Finished Wire (inch) | 0.202 |
| Weight (Lbs/1000ft) | 64 |
HAVE A LARGE ORDER OVER $5000? ASK US IF WE CAN DO BETTER ON THE PRICE.
Shipping
***Free shipping on most orders.
Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note eBay's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.***
Payment & Returns
***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping***
About Nassau National Cable

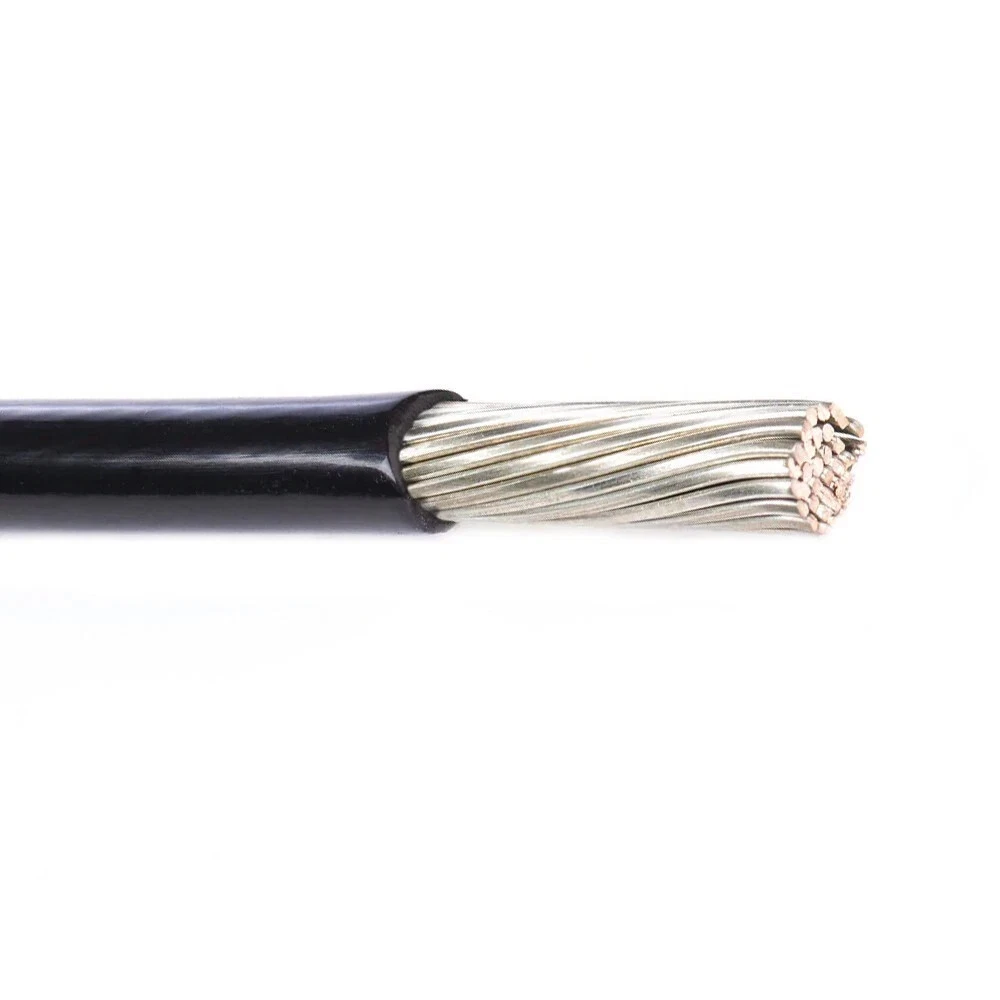

(disclaimer: these images of wire in no way reflect the product being sold and are for aesthetic purposes only)
