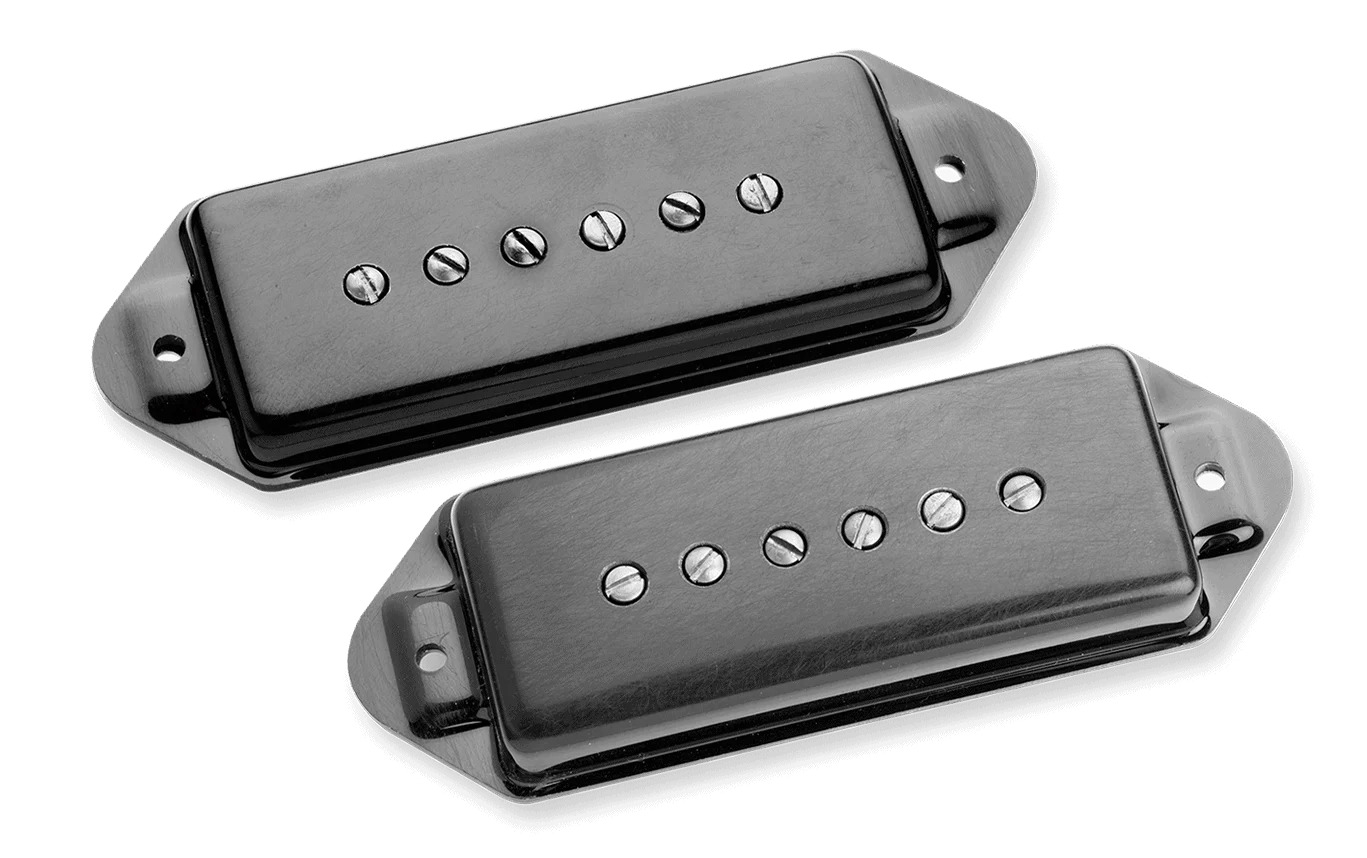

Seymour Duncan Antiquity P90 Dog Ear Black Pickup Set

These Seymour Duncan Antiquity P90 Dog Ear pickups deliver the thick, woody character of vintage P90s with carefully aged components that prioritize authenticity and warmth. Hand-crafted with period-correct materials and construction methods, this set captures the articulate midrange and natural breakup that defined classic P90 tones across decades of electric guitar history. The dog ear configuration and black aged covers provide both visual period accuracy and sonic characteristics that respond organically to playing dynamics.

Tone & Construction

Built with specially calibrated Dun-Aged Alnico II magnets mounted to precision metal spacers with six fillister head pole pieces, these pickups generate the smooth, singing response characteristic of vintage instruments. The hand-fabricated bobbins wrapped in plain enamel magnet wire and flatback tape construction eliminate modern manufacturing artifacts, allowing the natural resonance of the magnetic field to dominate the signal. Bridge pickup DC resistance of 7.9k ohms and neck pickup resistance of 8.52k ohms provide balanced output across positions while maintaining clarity and definition.

Specifications & Compatibility

Both pickups measure 3.158" long × 1.205" wide at the coil, with 3.30" × 1.295" bottom plates and .640" total height. The aged black dog ear covers measure 4.645" × 1.60" × .315" on the neck and 4.645" × 1.60" × .450" on the bridge. Neck pickup features North magnet polarity with 7.41 henries inductance, while the bridge operates at South polarity with 6.85 henries inductance, both with 3.825" center-to-center spacing and Q factor of 2.84.

Key Features

• Neck pickup: 8.52k DC ohms, 7.41 henries inductance, North polarity
• Bridge pickup: 7.9k DC ohms, 6.85 henries inductance, South polarity
• Hand-fabricated bobbins with plain enamel magnet wire and flatback tape
• Specially calibrated Dun-Aged Alnico II magnets mounted to precision metal spacers
• Six fillister head pole pieces per pickup for precise magnetic field control
• Aged thermoformed black dog ear covers
• Neck pickup coil: 3.158" L × 1.205" W, bottom plate 3.30" L × 1.295" W
• Bridge pickup coil: 3.158" L × 1.205" W, bottom plate 3.30" L × 1.295" W
• Total pickup height .640" with .125" magnet height on both positions
• 3.825" center-to-center magnet spacing for standard P90 guitar routing
• Q factor of 2.84 on both pickups for balanced harmonic response
• Height-adjustable magnet pattern mounted in cavity for user-customizable output balance

The Antiquity P90 set combines measurable vintage specifications with the hand-crafted construction methods that shaped classic P90 tone, making these pickups a direct architectural descendant of instruments that defined the sound.
