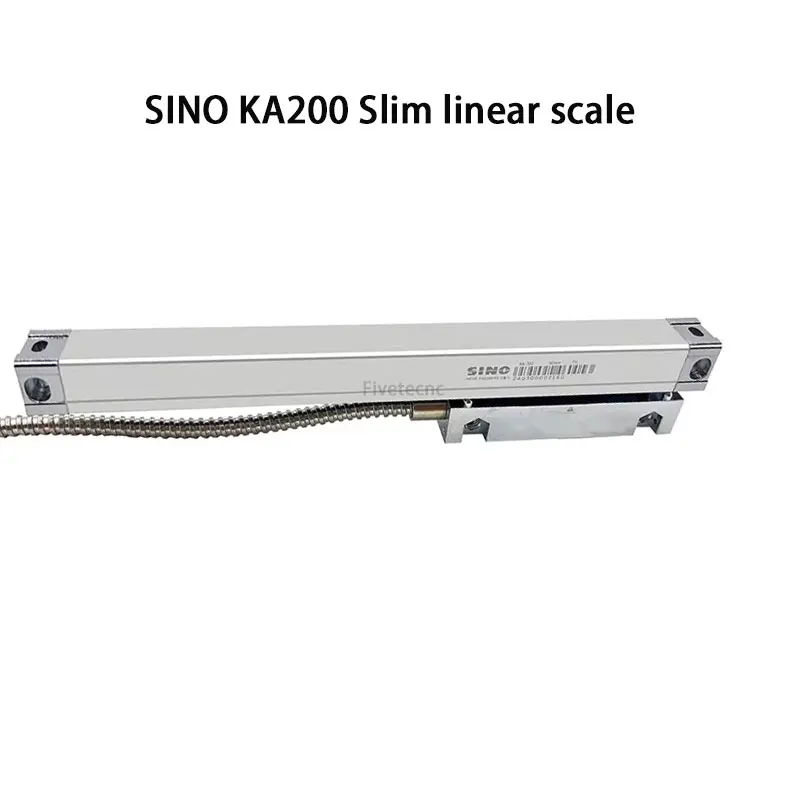

Sino KA-200 16*16mm Super Slim DRO Linear Scale KA200 30-360mm 0.005mm 0.001mm TTL Thin Optical Encoder

KA-200 is a super-miniature thin ruler,it facilitates the use in somenarrow placesand the installation of special purpose measuring instrument.For the KA Series of linear encoder,every ruler has passed through the strict quality measure technology dynamic laser control is used to ensure that the precision of every ruler has met the required standard before being deliveried from the factory.

KA-200 Parameter
Available Measrus Length: 30mm-360mm
Cross Section: 16mm X 16mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Reference Point:  1 poine at the scale
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 5um(0.005mm)

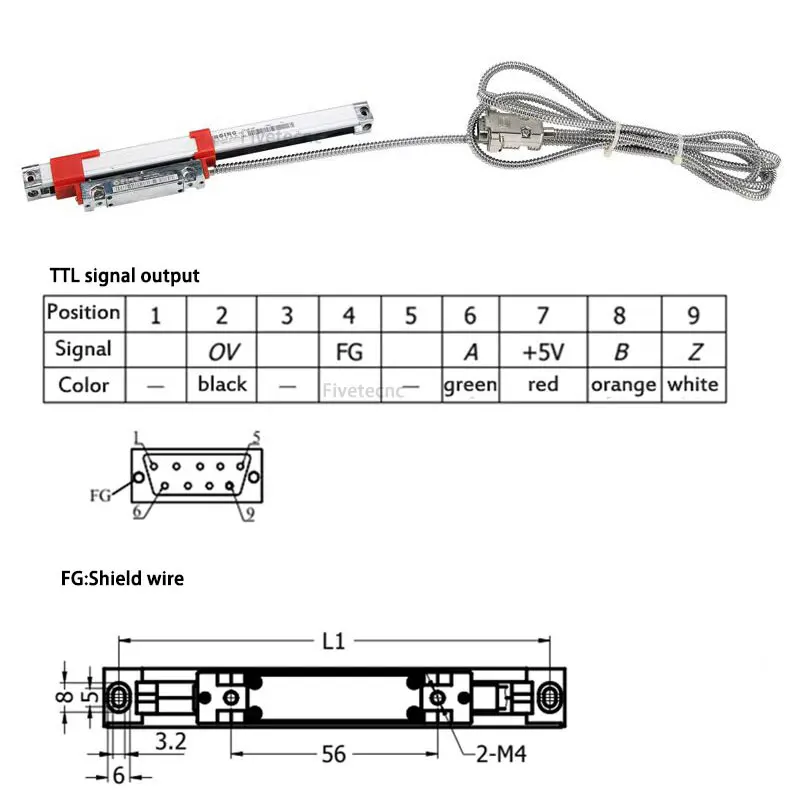

Output signal: TTL ABZ signal with mark
Cable standard: 2 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45  egree centigrade
Connetor: 9 Pins

Package include:

Linear scale x 1 pc,

Dust cover x 1pc,

Screw x 1 bag

About shipping

This is super slim scale and need 3-6 working days for production, and it will ship by Aliexpress standard shiping, UPS , Fedex or DHL etc and takes 3-10 working days to your office.

About taxes

Our price is not include your import taxes, buyer need to pay the taxes online when order it, or pay it when the parcel arrival your custom, but some countries are free taxes, it depends on your custom.

Please write a note to us if you need other model of the scale, buy may choose any model above by the same price.

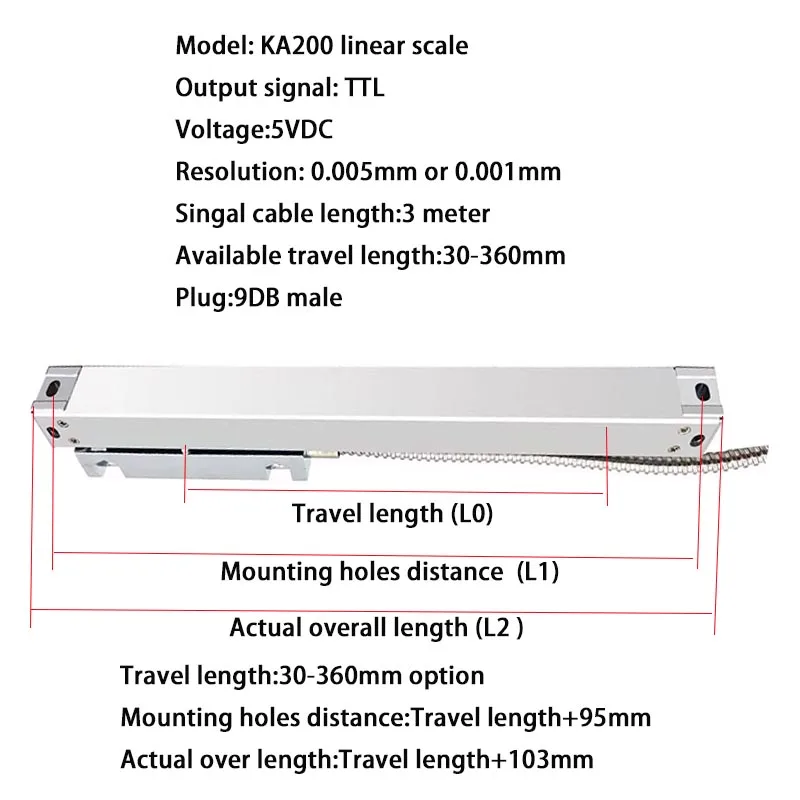

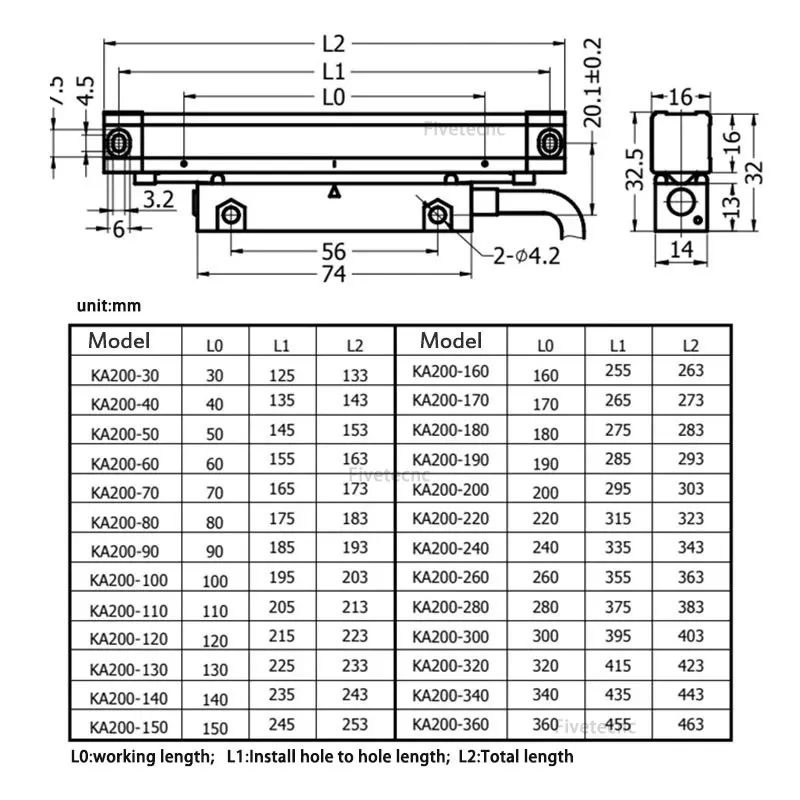

How to choose a scale ? Please see the photo below:
