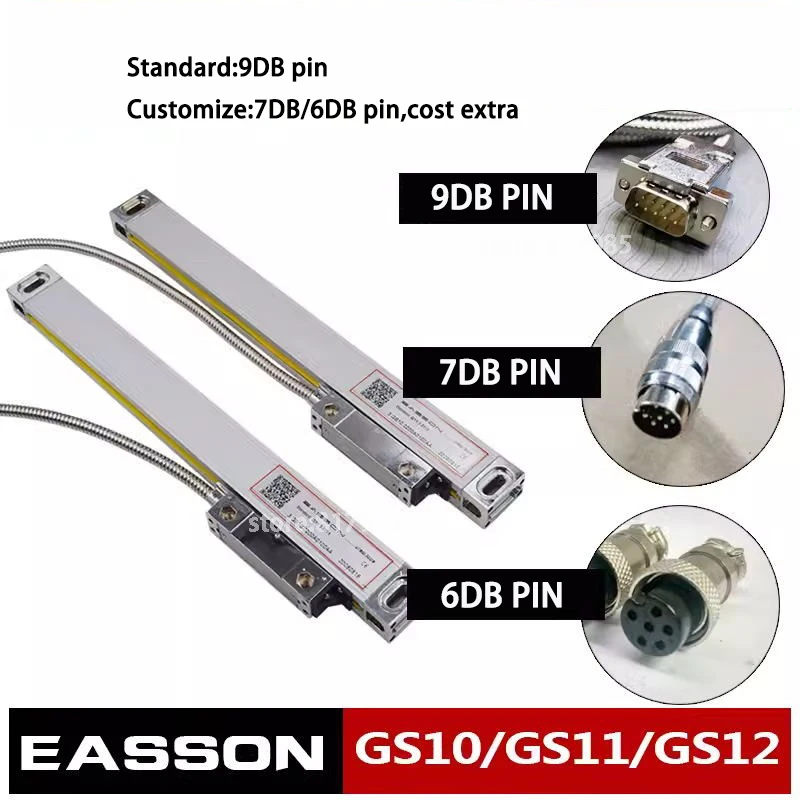

EASSON GS10 50 100 150 200 250 300 350 400mm Travel 0.005mm optical linear scale for CNC lathe digital linear scale

Package includes
1 PCS X linear scale

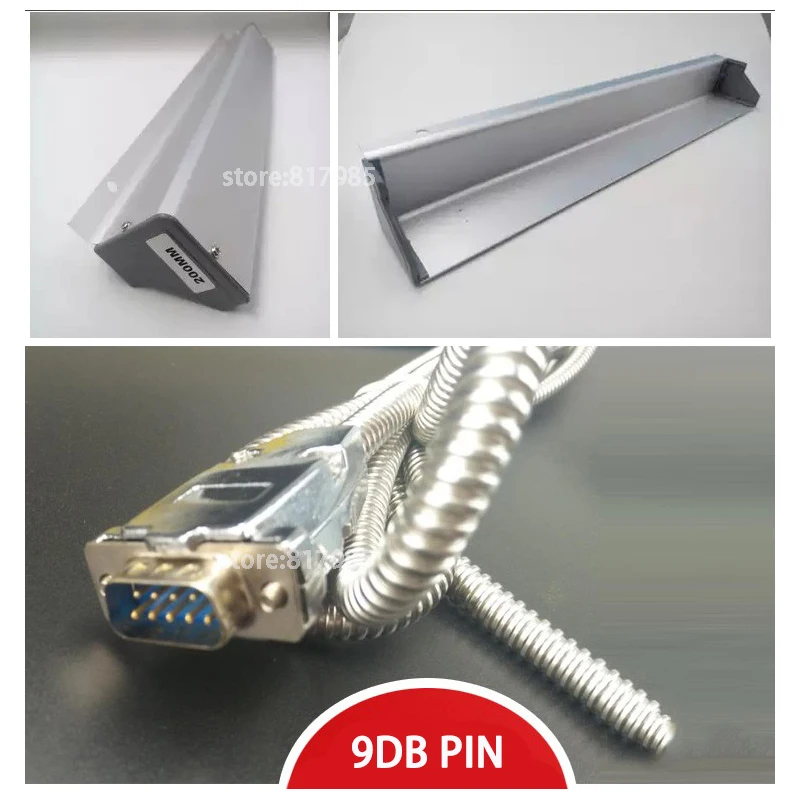

1 PC X dust cover

Tips: This is travel length and its total length will add 142 linear scale, please note it.

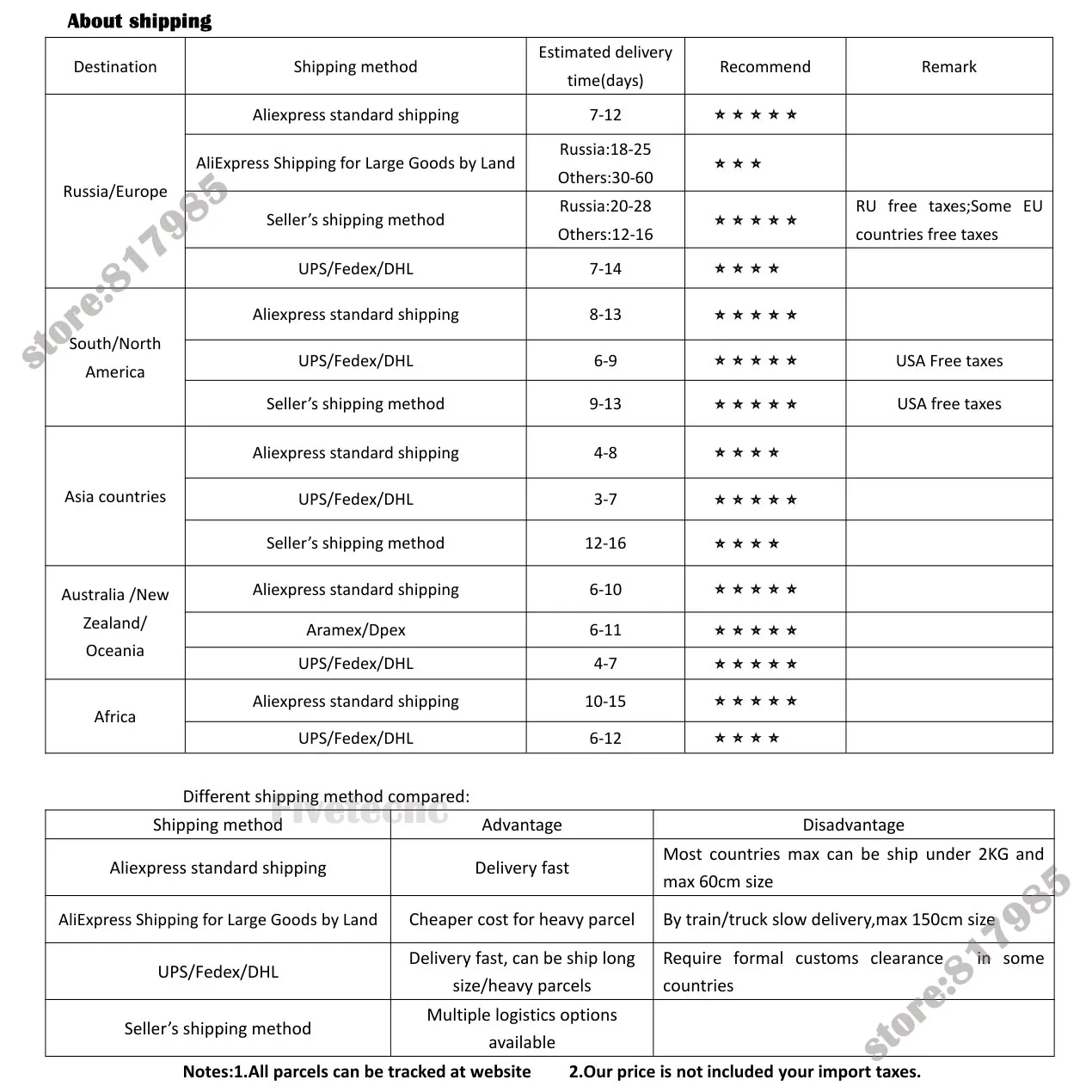

The goods are in stock and ship out within 1-2 days after payment, and it takes 1-2 weeks delivery to most of the countries in the world.

Manual Glass Scales
Specification
Model: GS10
High Precision Etched glass
Resolution : 5um (0.005mm).0002 inch
Signal : TTL SQUARE WAVE
Grating pitch: 0.02mm (50LP/min)
Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
Response Speed: 60m/min or 40ins/sec
Cable length: 3 Meter / 118"
