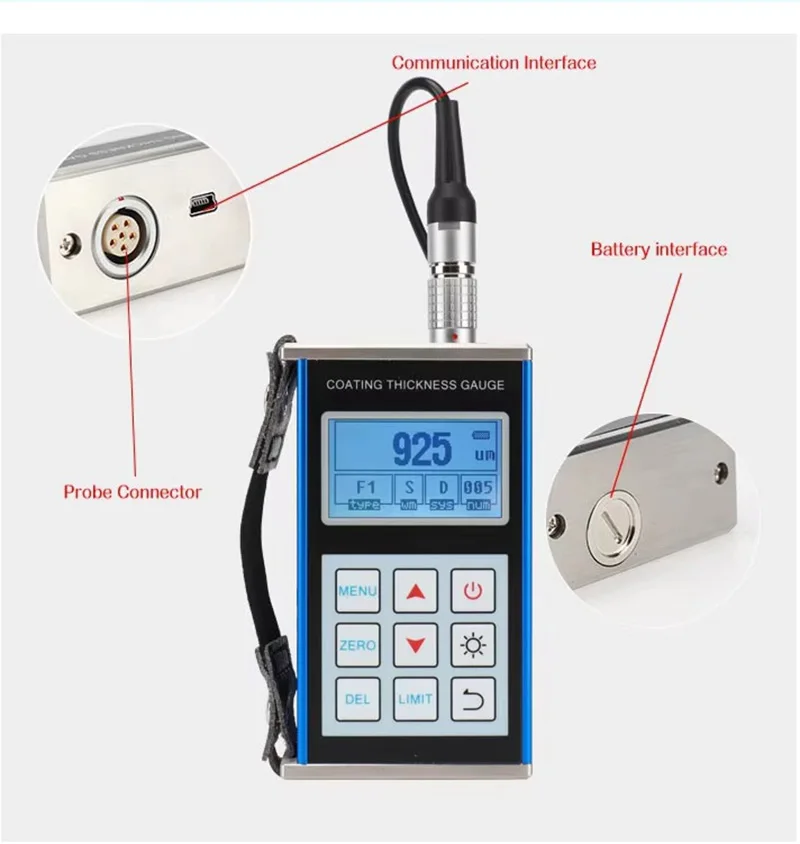

Efficient Digital Car Paint Dry Film Coating Thickness Gauge High Accuracy 0-1250m Magnetic Eddy Current 0.1um


JTC800 can measure the thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, rubber, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel) It also can measure the thickness of non-conductive coatings layers covered on conductive substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel).

Model
JCT800
Measuring Range
0-1250um, depends on probes, MAX 10mm for the probe F10.
Working Principle
Magnetic & Eddy
Substrate
FE / NFE Base
Resolution
0.1 um
Display
128x64 LCD with Backlight
Accuracy
=2%H+1um Note: His thickness reading
Memory
5 files x 100 values
Unit Switch
Metric (um) Imperial (mil)
Working Temperature
Operation Temp.: -10-50°C Storage Temp. : -30~70°C
Power
AA battery 2pcs
Weight
340g
Size
115*67*31mm
