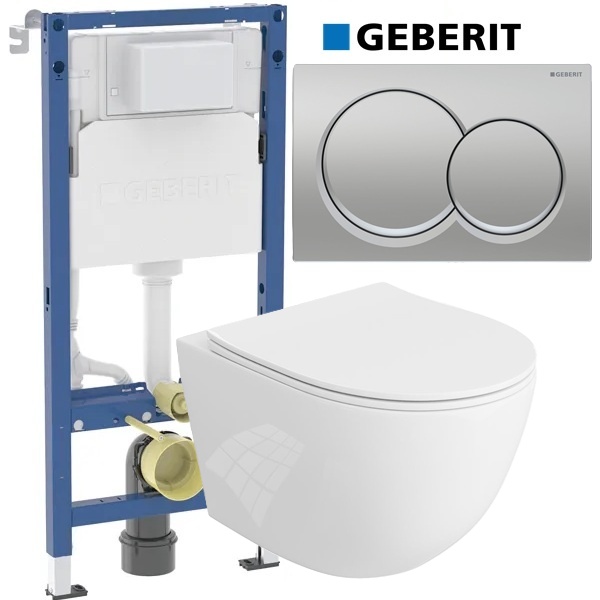

Geberit Alpha Wc Frame Concealed Cistern with Brackets and Rimless Vortex Tornado Toilet (Pan Not Geberit )

Technical data

· Flow pressure: 0.1-10 bar

· Operating temperature, water max: 25 °C

· Flush volume, factory setting: 5.8 / 3 l

· Flush volume small, adjustment range: 3–4 l

Application purposes

· For metal and woods frame walls

· For installation in part or room height prewalls

· For installation in room height partition walls

· For floor construction 0-20cm

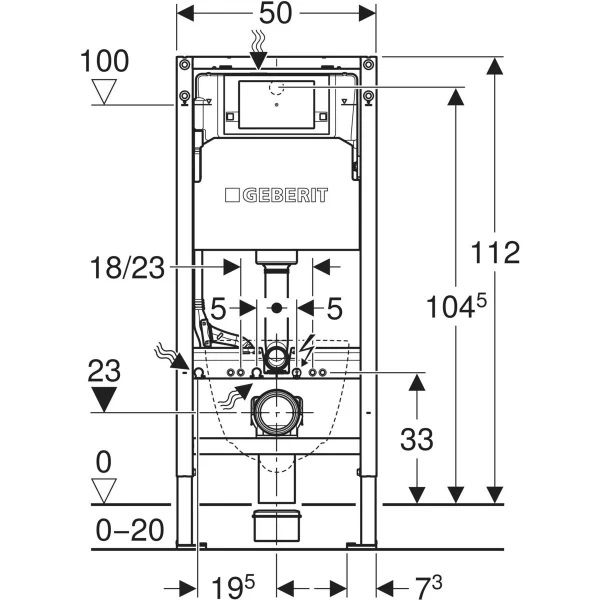

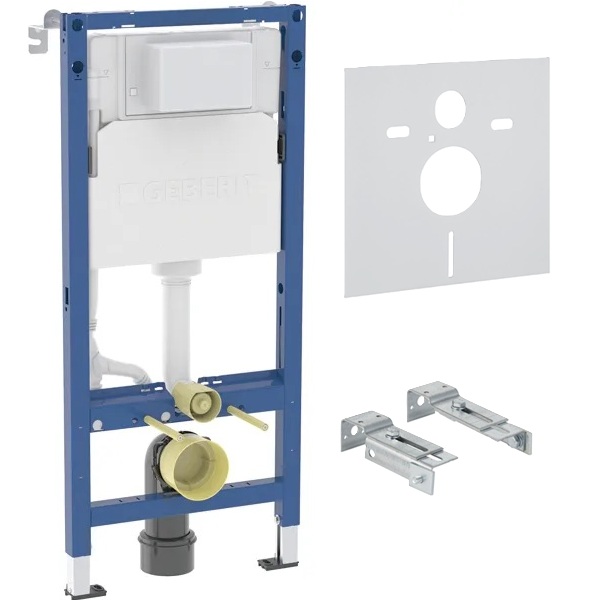

Characteristics

· Statically self-supporting frame, protected against corrosion with powder coating

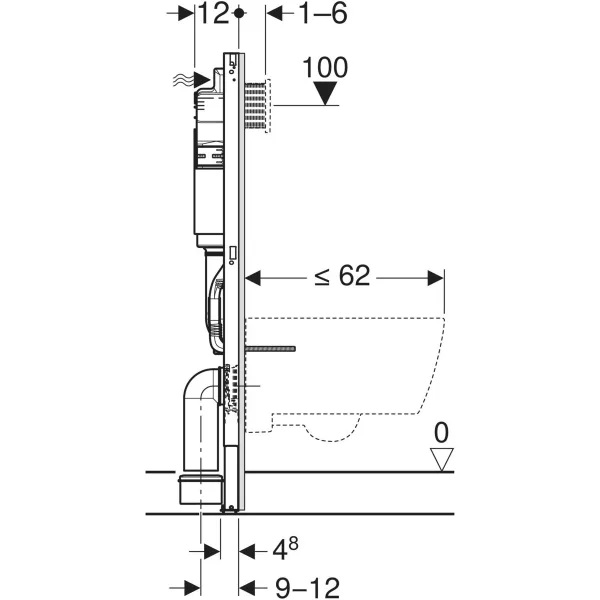

· Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cm

· Alternative fastening point for wall anchors

· Foot plates made of plastic

· Foot plate depth suitable for installation in U-profiles UW 50

· Galvanised leg supports protected against corrosion

· Connection bend can be mounted without tools

· Geberit Alpha concealed cistern 12 cm fully insulated against condensation

· Cistern fulfils standard requirements in accordance with EN 14055, Class II

· For front actuation, suitable for dual flush

· Immediate post flush possible with factory setting

· Water supply connection on the rear or top centre

· Protection box for service opening, can be cut to length, protects against moisture and dirt

· With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable

· Fastening option for electrical connection

Scope of delivery

· Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring

· Protection box for service opening

· 2 wall anchors

· 2 fixing brackets

· Connection set for WC, ø 90 mm

· Connection bend 90° made of PE-HD, ø 90 mm

· Adaptor socket made of PE-HD, ø 90 / 110 mm

· Fastening and protection material

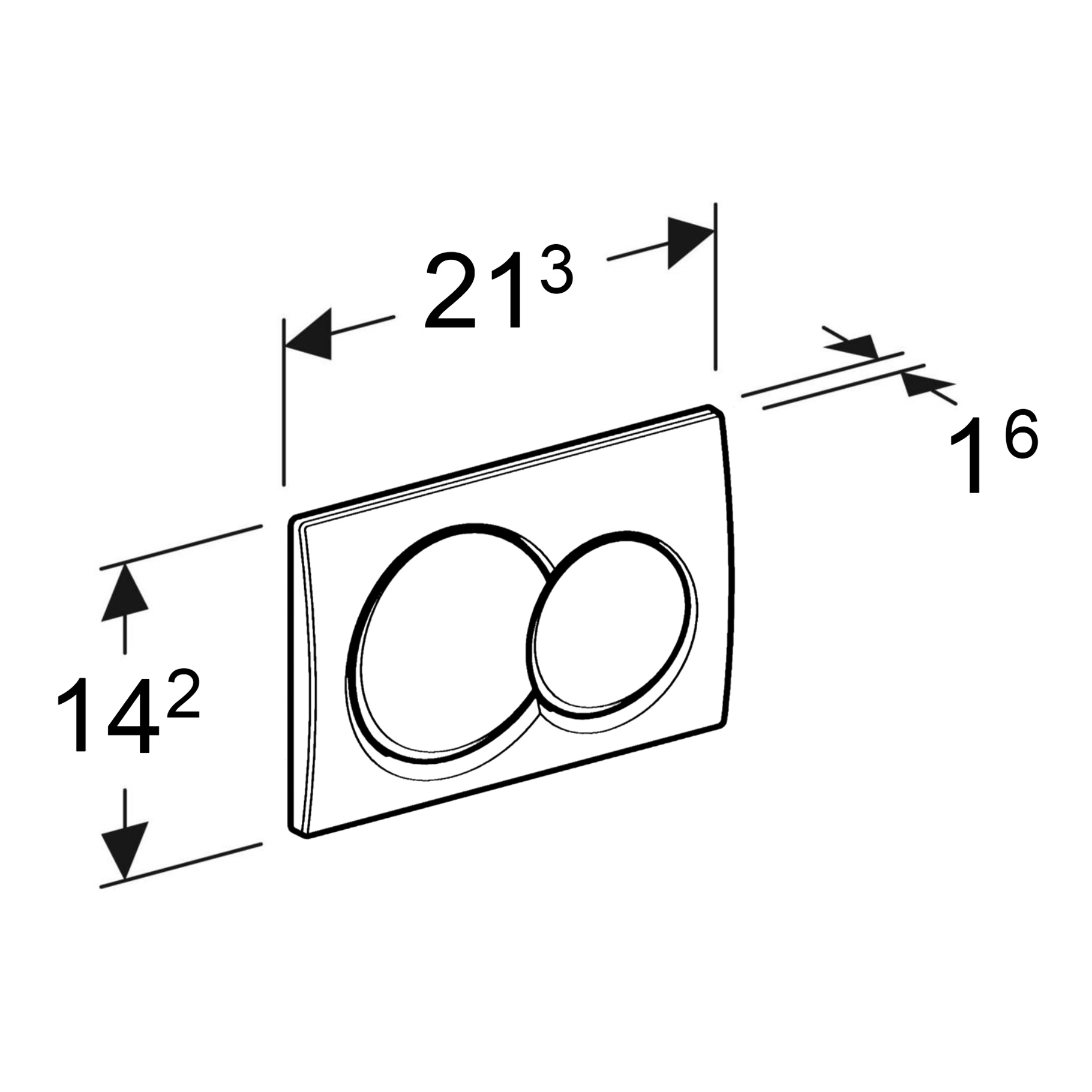

Geberit Alpha flush plate

· Actuation force max – 20 N

· Button shape – round

· For flush actuation with Alpha concealed cisterns only

· Top/front actuation

· 2 actuator rods

· Fastening material

· Acoustic mat

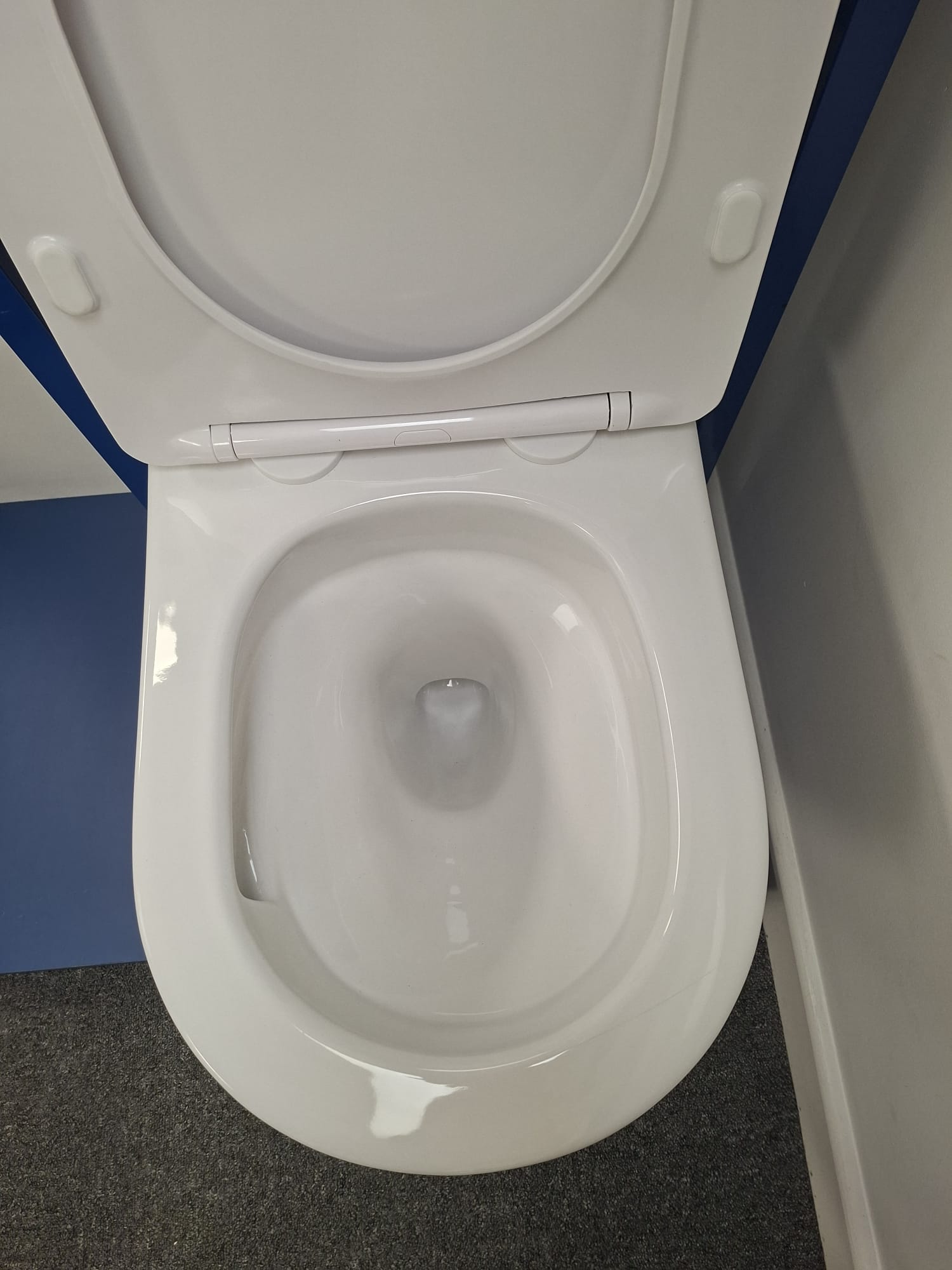

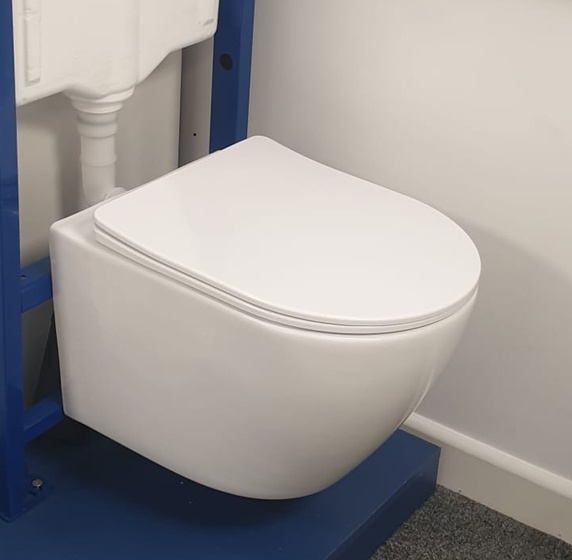

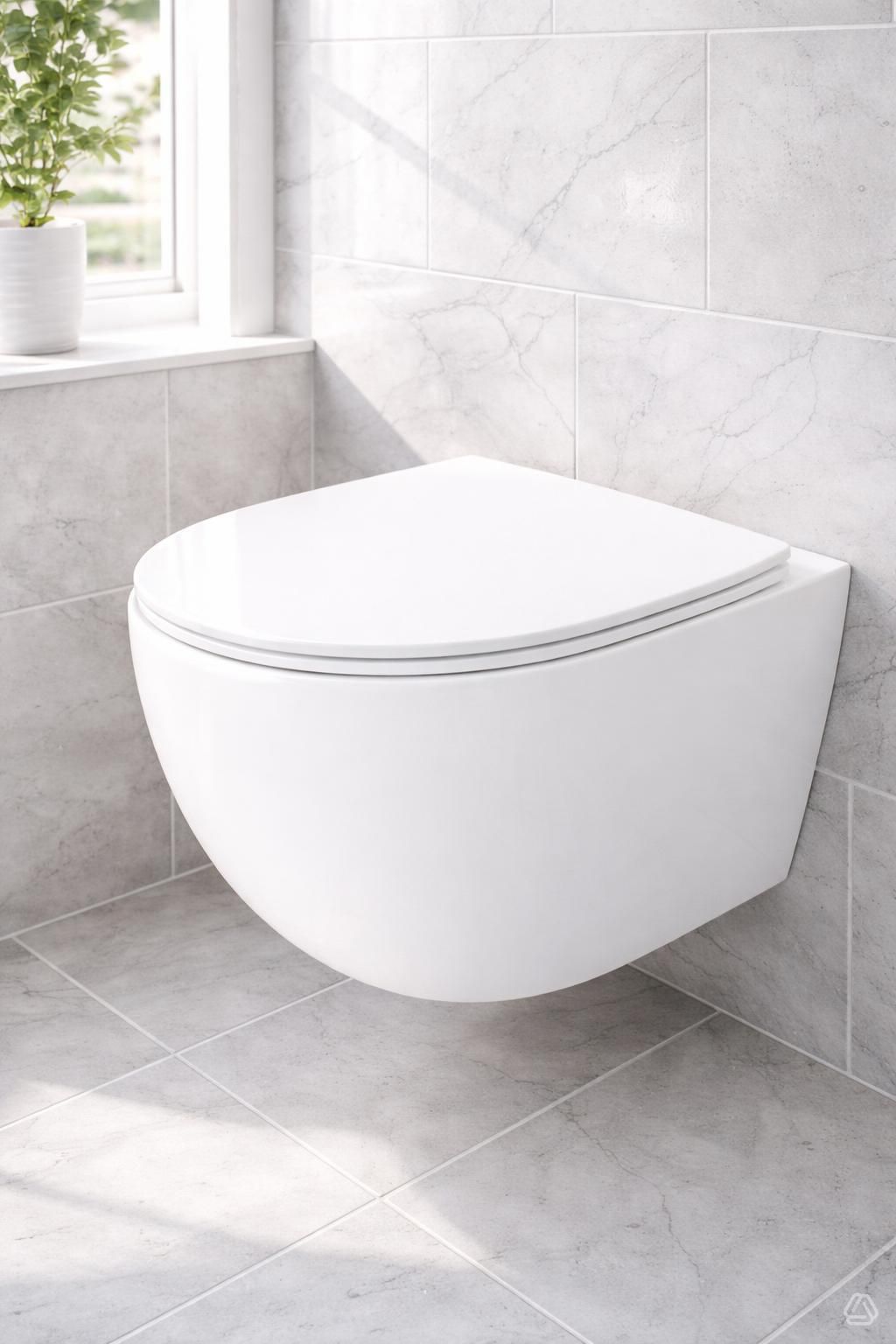

Anas Magna Rimless Vortex, Tornado Wall-hung Toilet Pan & Soft Close Seat ( NOT GEBERIT ):

· The toilet Pan Includes Quick release soft close seat

· Beautifully designed and produced to the highest standards

· Manufactured from high-grade ceramic

· Wall-hung toilet pan designed to maximize available space

· It comes in an attractive white finish for universal appeal

· Extremely easy to install and use

· Toilet seat supplied with two years of guarantees from the manufacturer

· Short projection 490mm
