GODIAG GT107 with GT105 II DSG Plus Gearbox Data Adapter For DQ250, DQ200, VL381, VL300, DQ500, DL501, for Benz, for BMW

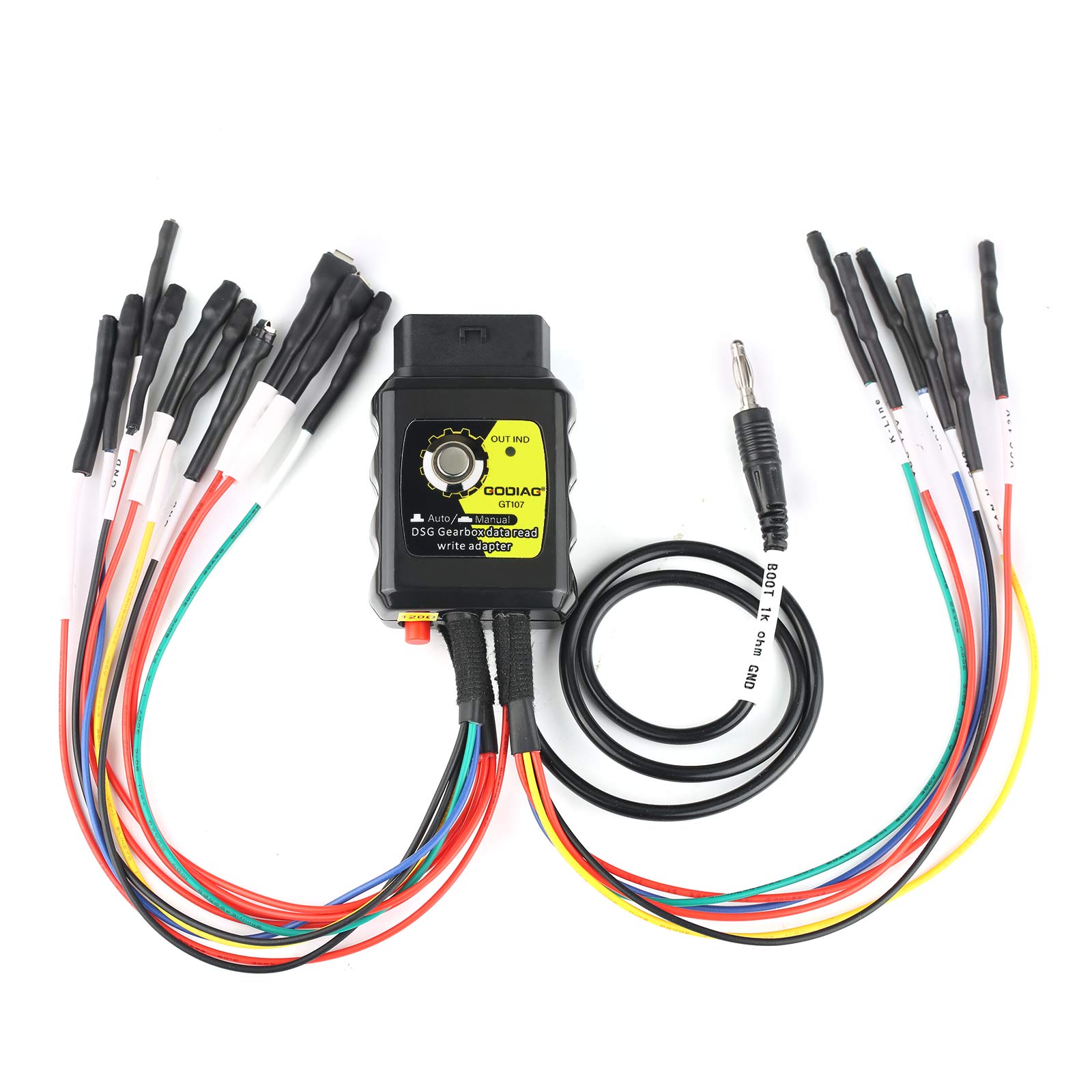

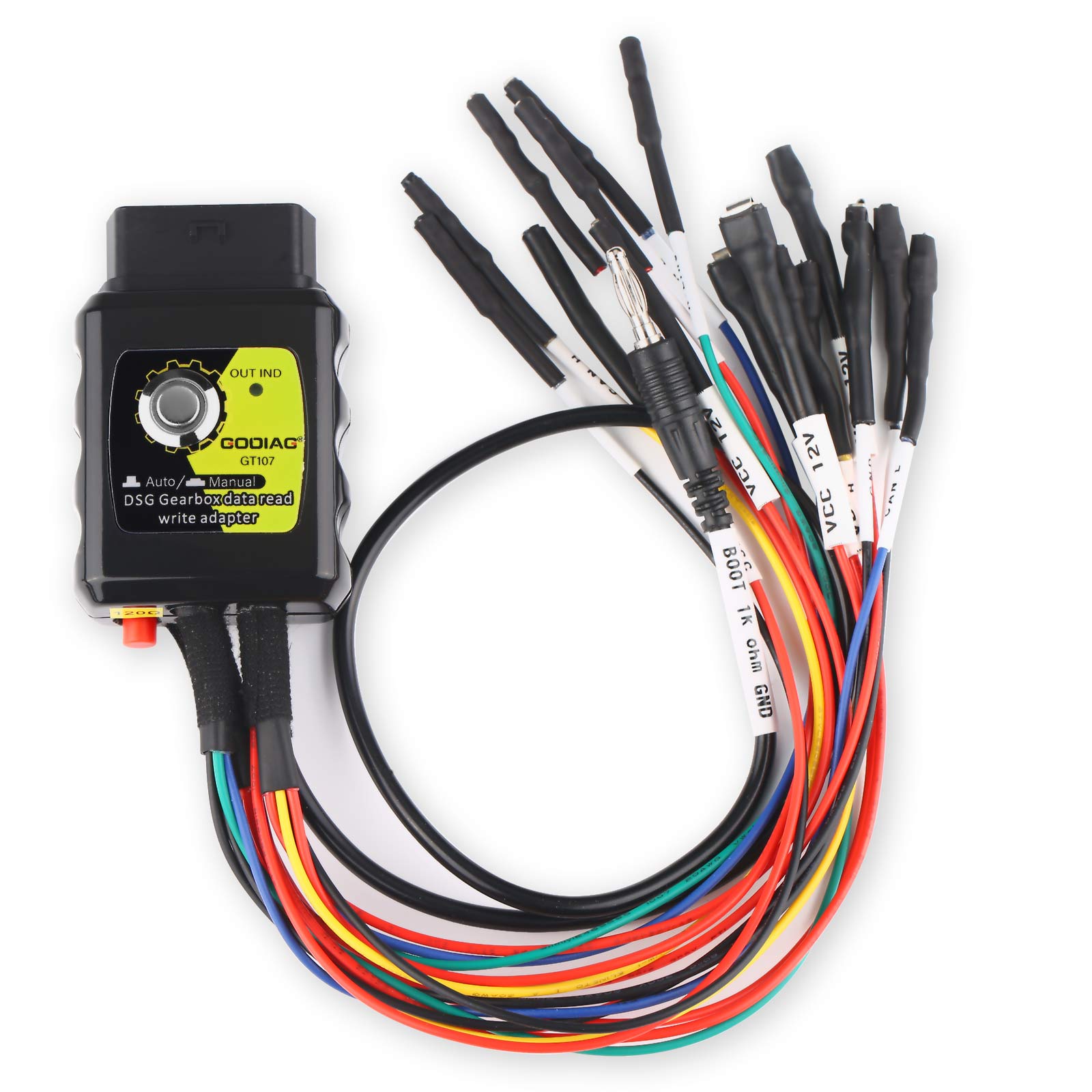

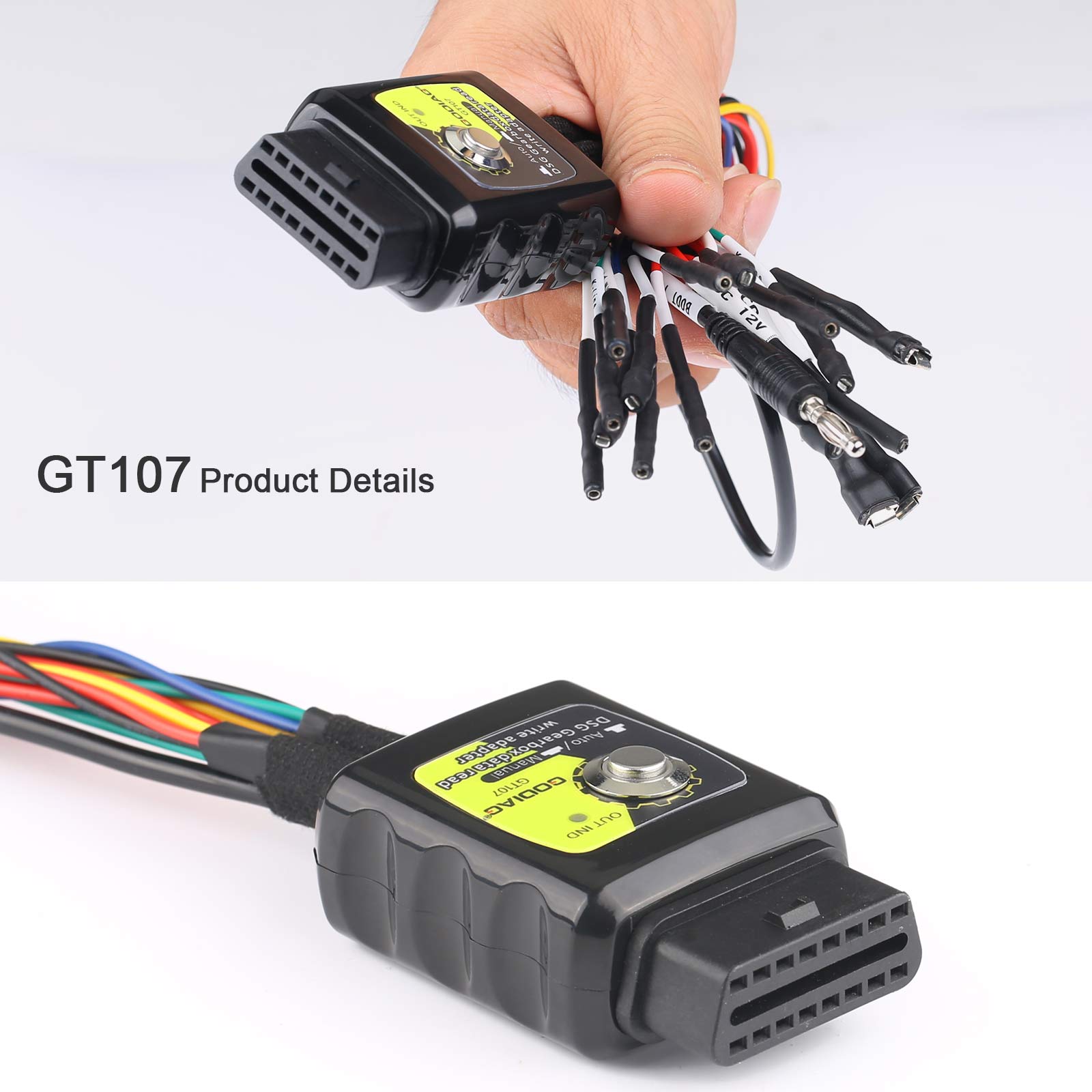

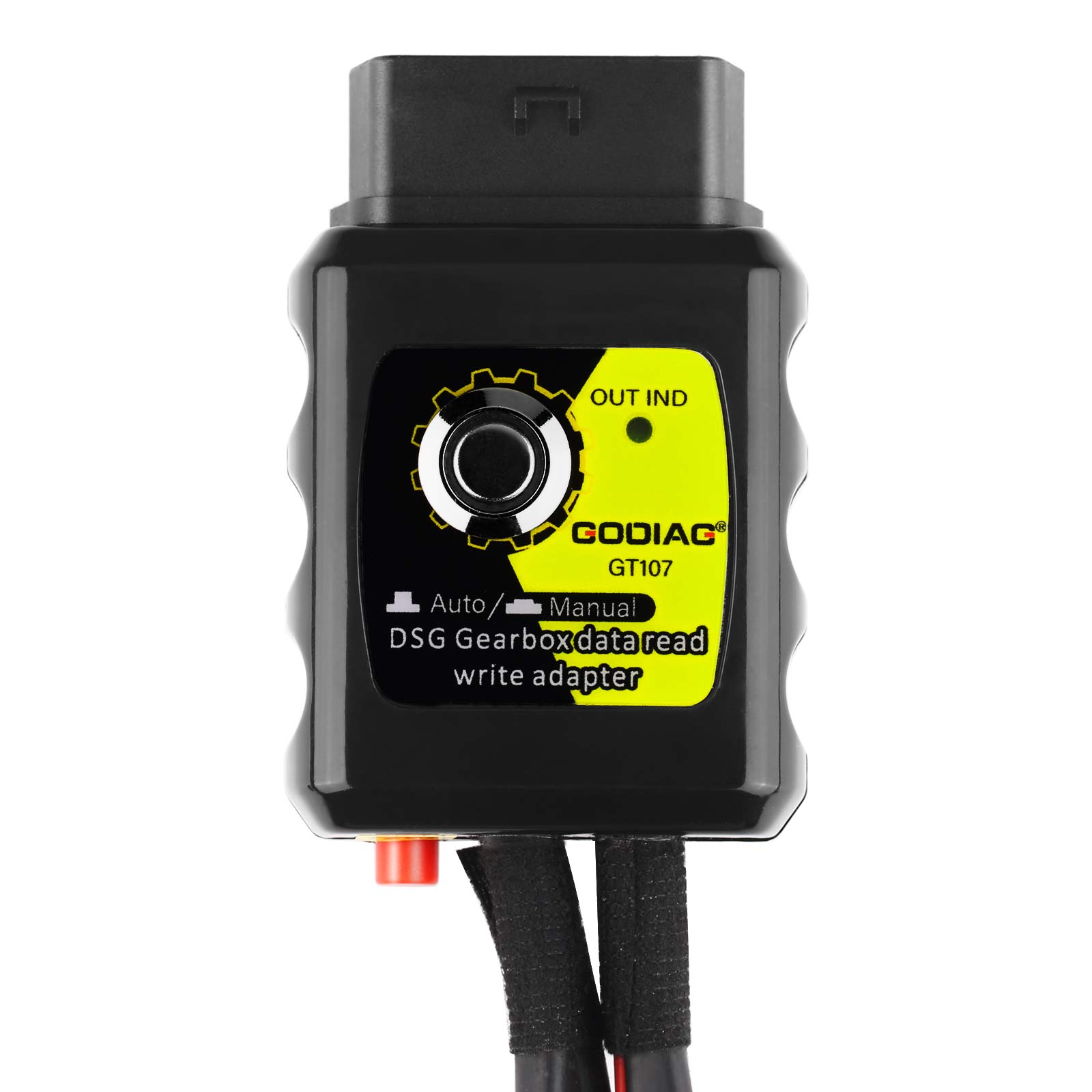

GODIAG GT107 E-CU IMMO Kit is a DSG gearbox connection adapter. DSG Gearbox maintenance engineers can clone, diagnose and repair DSG Gearbox E-CU and can also read, write and adjust data for DSG Gearbox E-CU via P-C-M-F-lash, P-C-MT-uner etc.
This adapter has automatic and manual selection for PCMFlash software. For data reading and writing, you can choose “Auto”, and for diagnosis you can choose ”Manual”. For other software k-e-s-s-v2, DQ200, DQ250, DQ500 you can also choose “Manual”.
Connection Diagram & Operation:
Used with P-CMt-u-n-er：
Easy Operation:
1. Connect GODIAG GT107 to the gearbox E-CU DQ250, DQ200, VL381, VL300, DQ500, DL501.
2. Connect GODIAG E-CU IMMO Prog AD and connect 12V 2A DC power supply.

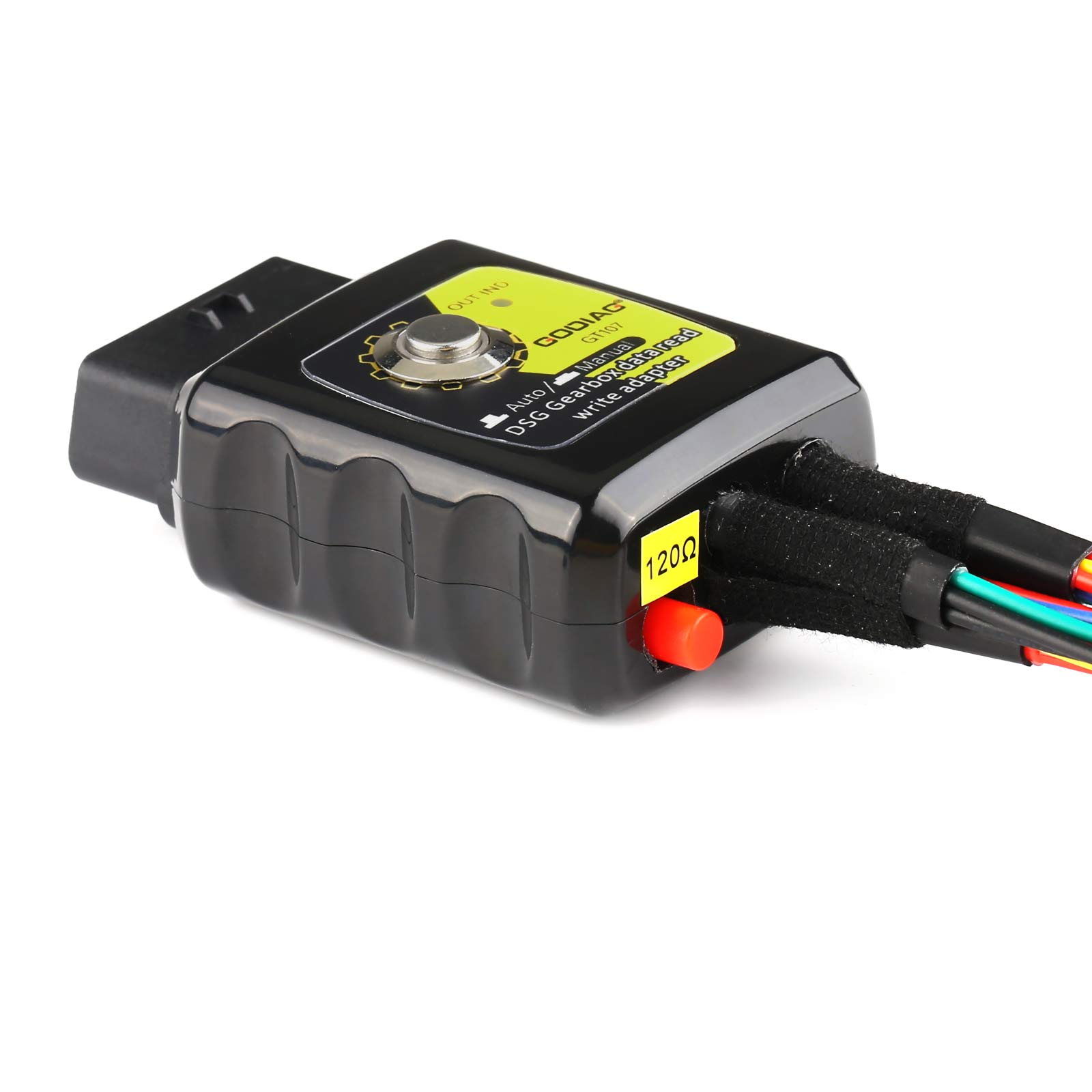

3. The GODIAG GT107 analog ignition switch is in “Auto” mode if it is not pressed, and it is in “Manual” mode if it is pressed down(Note: Please select the corresponding mode in the software for data reading)
4. Connect P-C-M-Fl-a-sh, P-C-MT-u-ner J2534passthru.
5. Connect the computer to open the software and select “Auto”.
Used on the Car:
Easy Operation:
1. Connect GODIAG GT107 to the gearbox E-CU DQ250, DQ200, VL381, VL300, DQ500, DL501.
2. Connect the GODIAG E-CU IMMO Prog AD and connect the vehicle battery.
3. The GODIAG GT107 analog ignition switch is in “Auto” mode if it is not pressed, and it is in “Manual” mode if it is pressed down(Note: Please select the corresponding mode in the software for data reading).
4. Connect P-CM-Fl-ash, P-C-MTu-ner J2534passthru.
5. Connect the computer to open the software and select “Auto”.
Used with K-E-S-S-V DQ200, DQ250, DQ500:
Easy Operation:
1. Connect GODIAG GT107 to gearbox E-CU DQ250, DQ200, DQ500.
2. Connect GODIAG E-CU IMMO Prog AD and connect vehicle battery or 12v 3A power supply.
3. Connect k-e-s-s-v2 device, and press down the GT107’s switch to make it in “Manual” ignition mode.
4. Connect the computer to open the software.
Product Highlights：
A full-protocol E-CU connection line for E-CU prog-ramming power adjustment
OBD2 independent PIN 4 body GND, PIN5 signal GND for special prog-ramming of some modules.
PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.
Standard OBD2 independent PIN4, PIN5.
Pure copper female seat supports repeated insertion and removal, and has a long service life.
Battery clip treated with environmentally-friendly salt spray, with a thickness of 0.5mm.
The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5/ DC5.5*2.1 interface.
The DC connector has a resettable 7A fuse.
DC power interface, dedicated laboratory power connector.

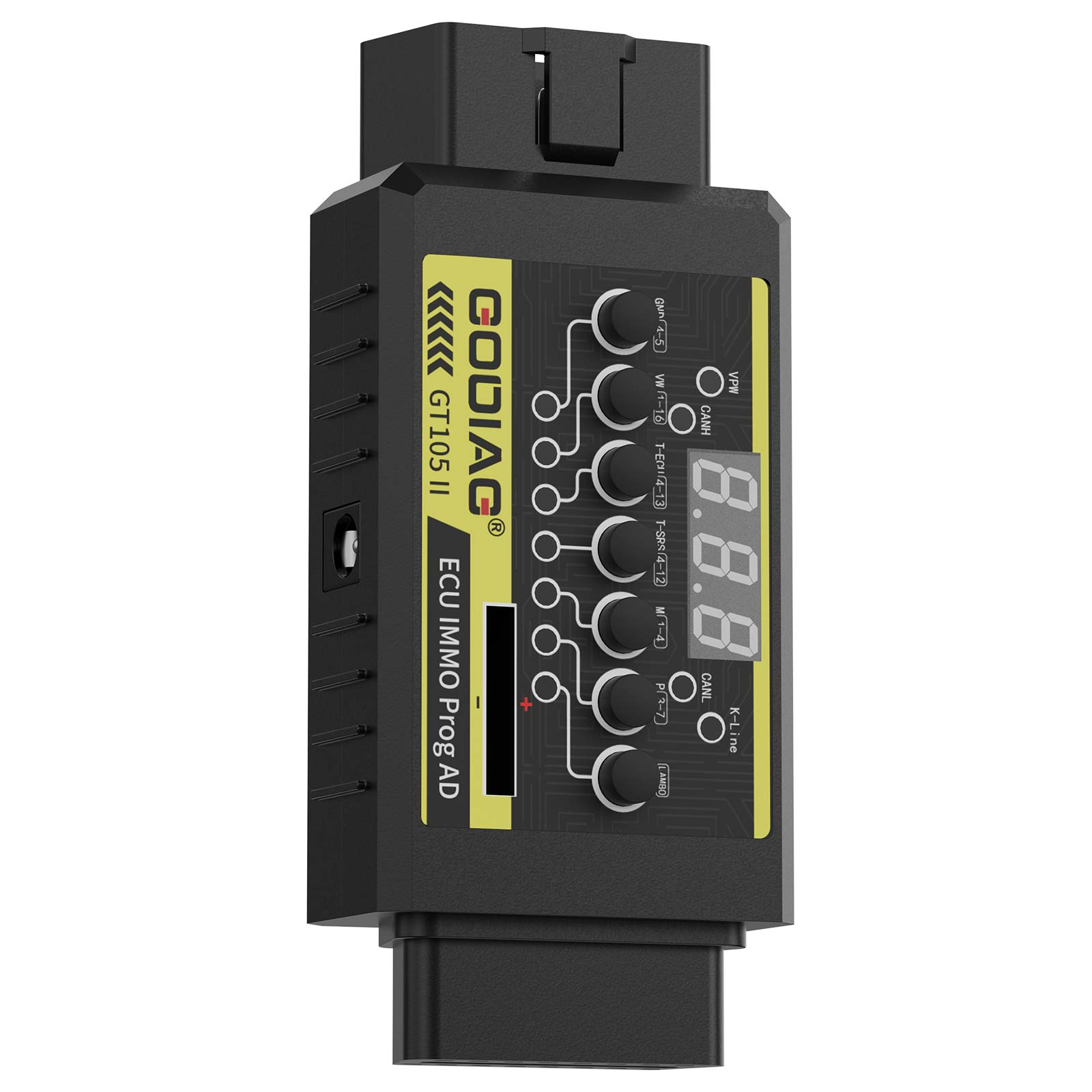

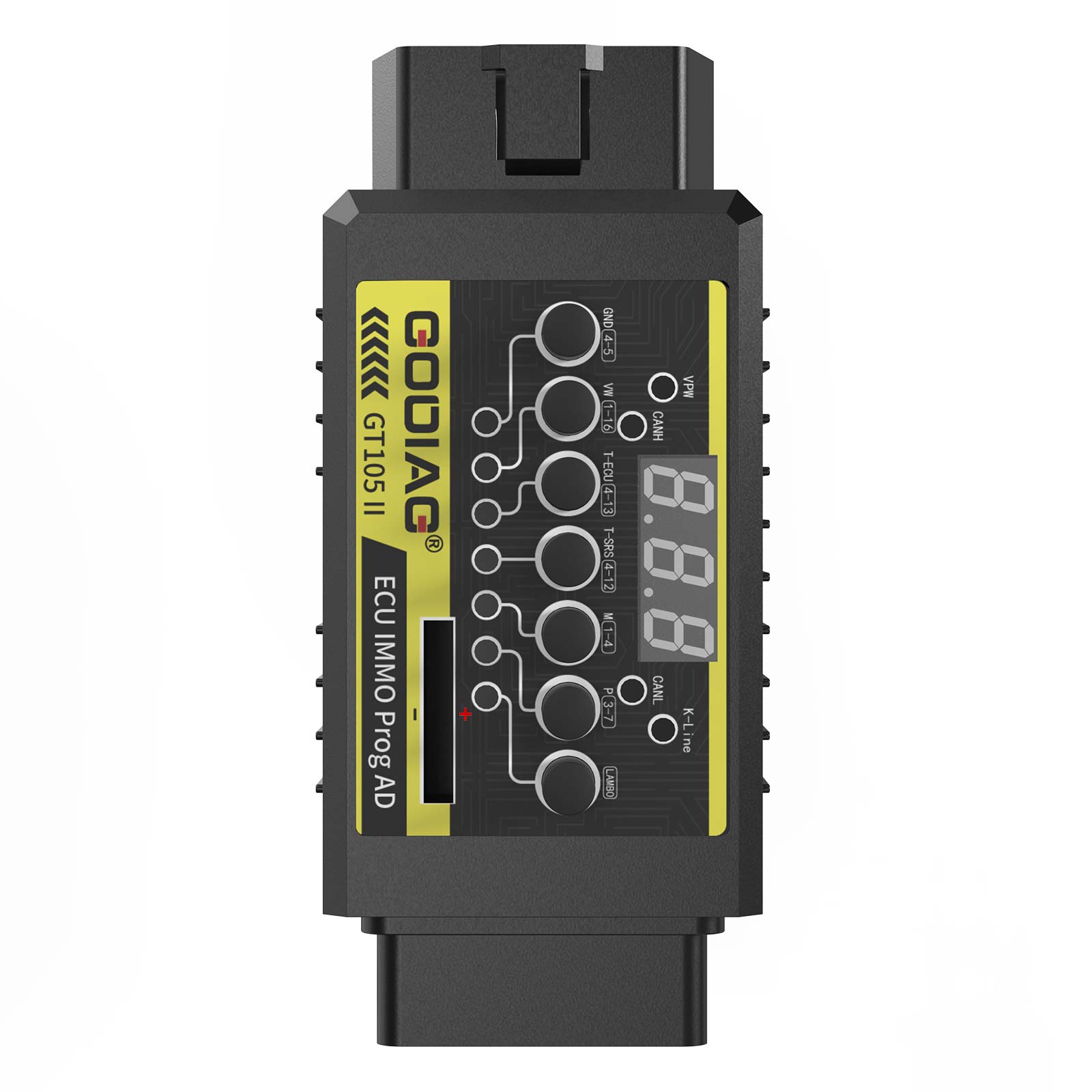

Product Functions:
Vehicle voltage display
Car remote control battery CR2032 battery test
Car battery voltage alarm prompt(lower than 11V)
For TOYOTA steering angle matching
Lamborghini ID48 k-ey IMMO auxiliary activation
IMMO AD power adapter function. After 2016, for Ford all smart k-eys lost, GT105 II cooperates with VVDI equipment (OBDSTAR, AUTEL,) and other anti-theft matching equipment to pro-gram the k-eys.
All car k-eys lost matching---wake up the meter or wake up the anti-theft E-CU. (Support V-A-G 4th and 5th generation anti-theft, Toyota E-CU synchronization, auxiliary Mitsubishi all k-ey lost matching or all lost remote control k-ey setting, old Porsche Cayenne car for IMMO k-ey learning.)
VPW, CANH, CANL, K-Line indicator lights can judge the communication status between the vehicle and the diagnostic prog-ramming device. (If the product is used to connect the device, the user can simply judge whether the diagnostic prog-ramming is normal or not according to whether the device can send communication.)
On-site Maintenance
The GT105 II power adapter cable obtains 12V power from the car battery. (For pro-gramming equipment such as Xhorse K-ey Tool Plus Pad, VVDI Prog, CGDI Prog, IM608, etc., it provides 12V power supply when they need power outdoors, so as to read the data of for BMW for BENZ IMMO E-CU, or other car E-CUs, and finally realize the on-site maintenance of outdoor faulty vehicles. )
Provide 12V power supply for the k-ey cutter (12V).
Standard OBD2 full protocol E-CU pro-gramming line. (With M-P-P-S, F-G-T-e-ch, K-e-s-s v2, etc., for E-CU data reading and writing, E-CU cloning, E-CU tuning, etc.) (Note: OBD2 full protocol E-CU pro-gramming line is purchased separately)
OBD Battery Replacement Tool
Realize the uninterruptible power supply during the battery replacement, so it can prevent data loss, k-ey failure or re-matching caused by power interruption during the battery replacement.

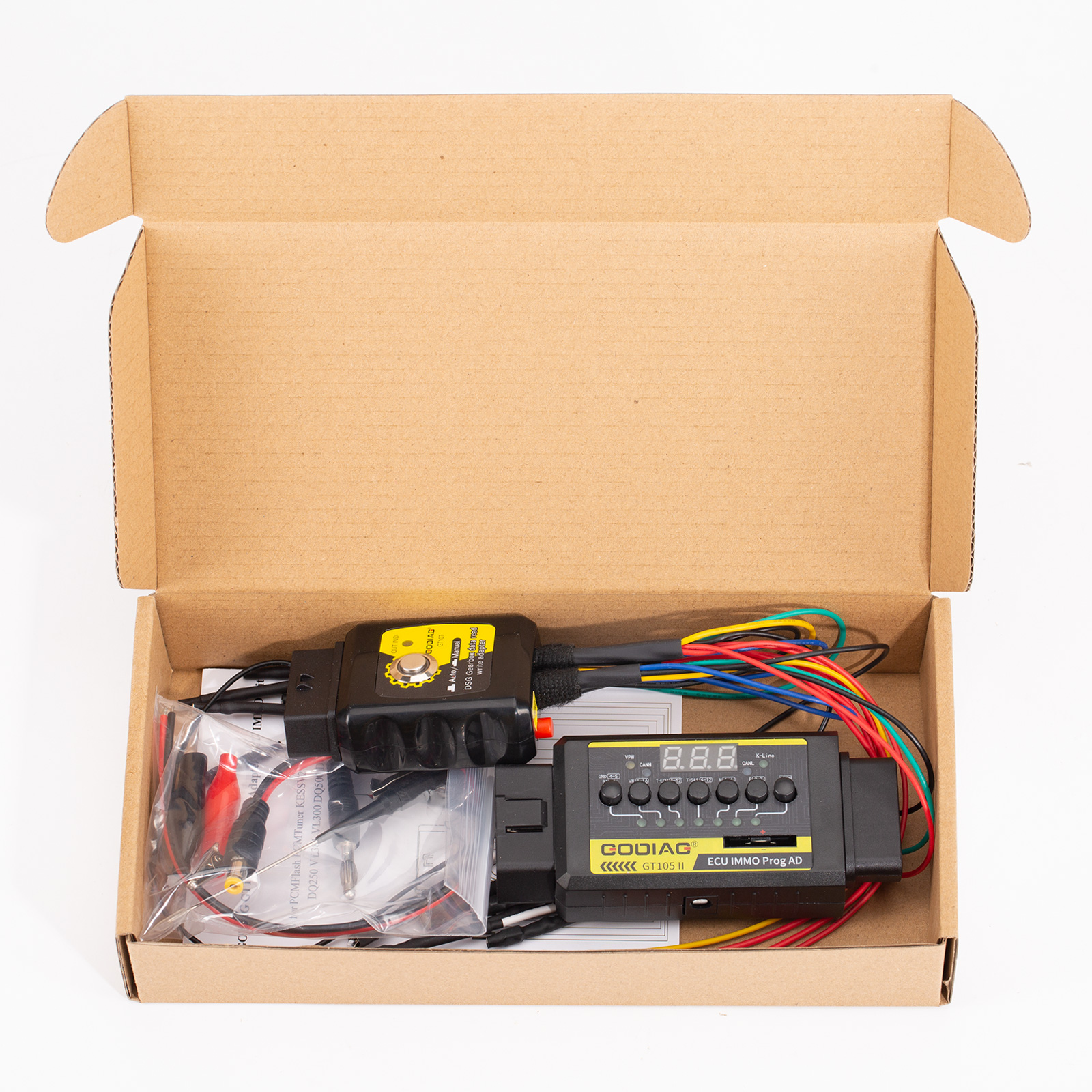

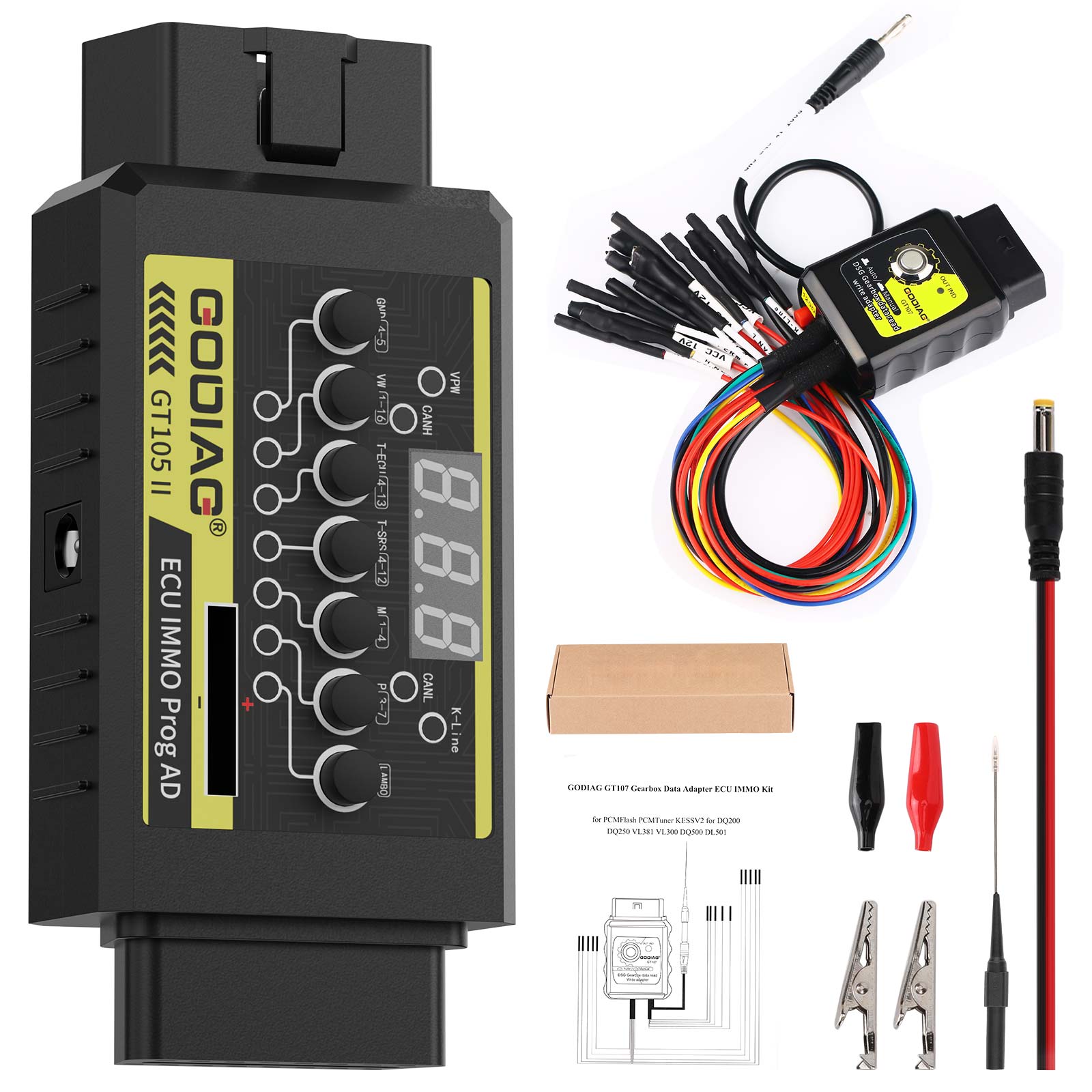

Package Includes:
1pc x GT107 DSG Adapter
1pc x GODIAG GT105 II E-CU IMMO Prog AD
1pc x Power Cord with Battery Clip
1pc x Probe
