Description

All types of rulers are to be installed on different machines, which depends on the available installation height & length. The type Sino KA-200 is the smallest ruler in the market, To the small space on machine, KA-200 with 16mm*16mm cross section may be the best choice.

KA-200 is a super-miniature thin ruler,it facilitates the use in somenarrow placesand the installation of special purpose measuring instrument.For the KA Series of linear encoder,every ruler has passed through the strict quality measure technology dynamic laser control is used to ensure that the precision of every ruler has met the required standard before being deliveried from the factory.

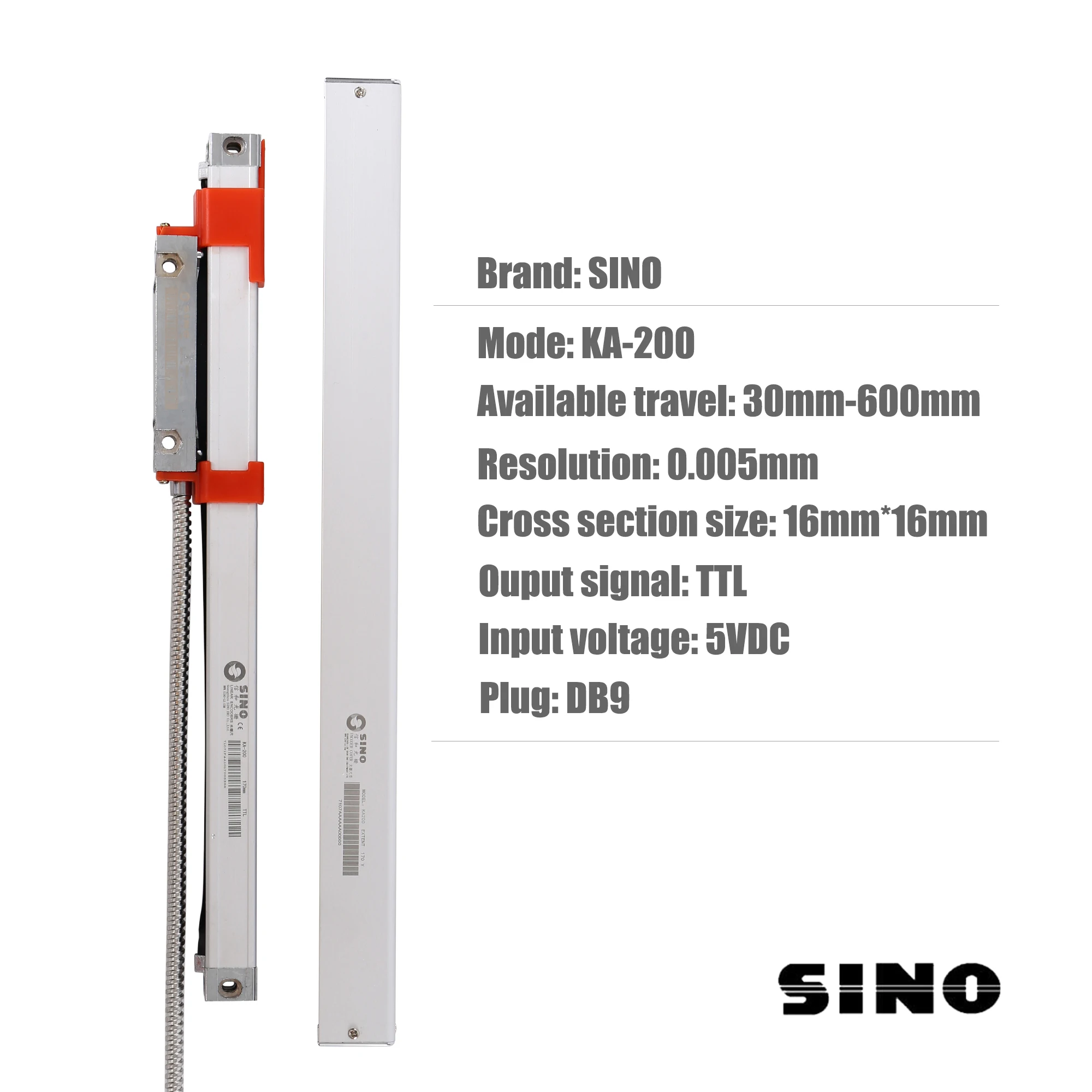

KA-200 Parameter

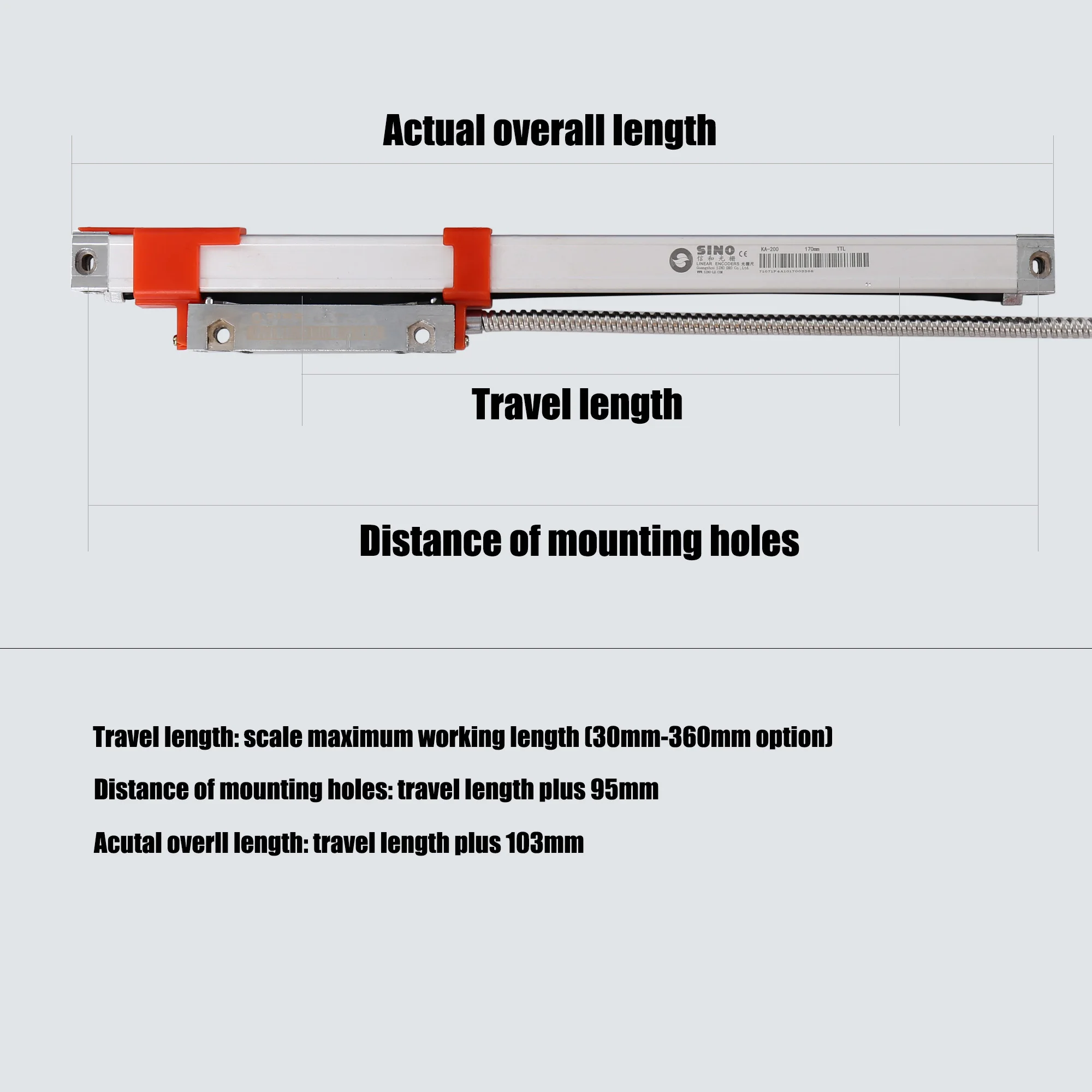

Available Measrus Length: 30mm-360mm

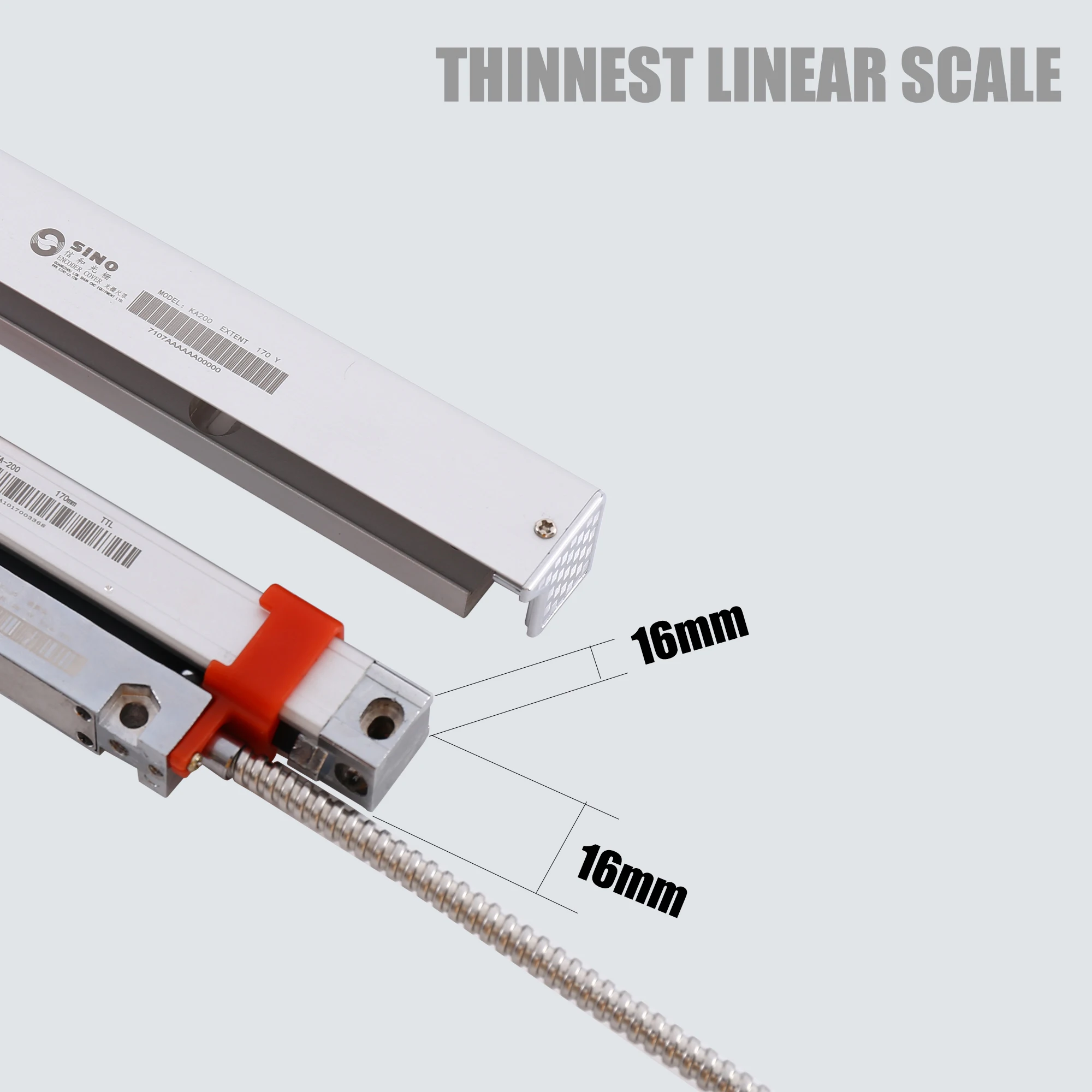

Cross Section: 16mm X 16mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Reference Point:  one unit per 50mm
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 5um(0.005mm)
Output signal: TTL

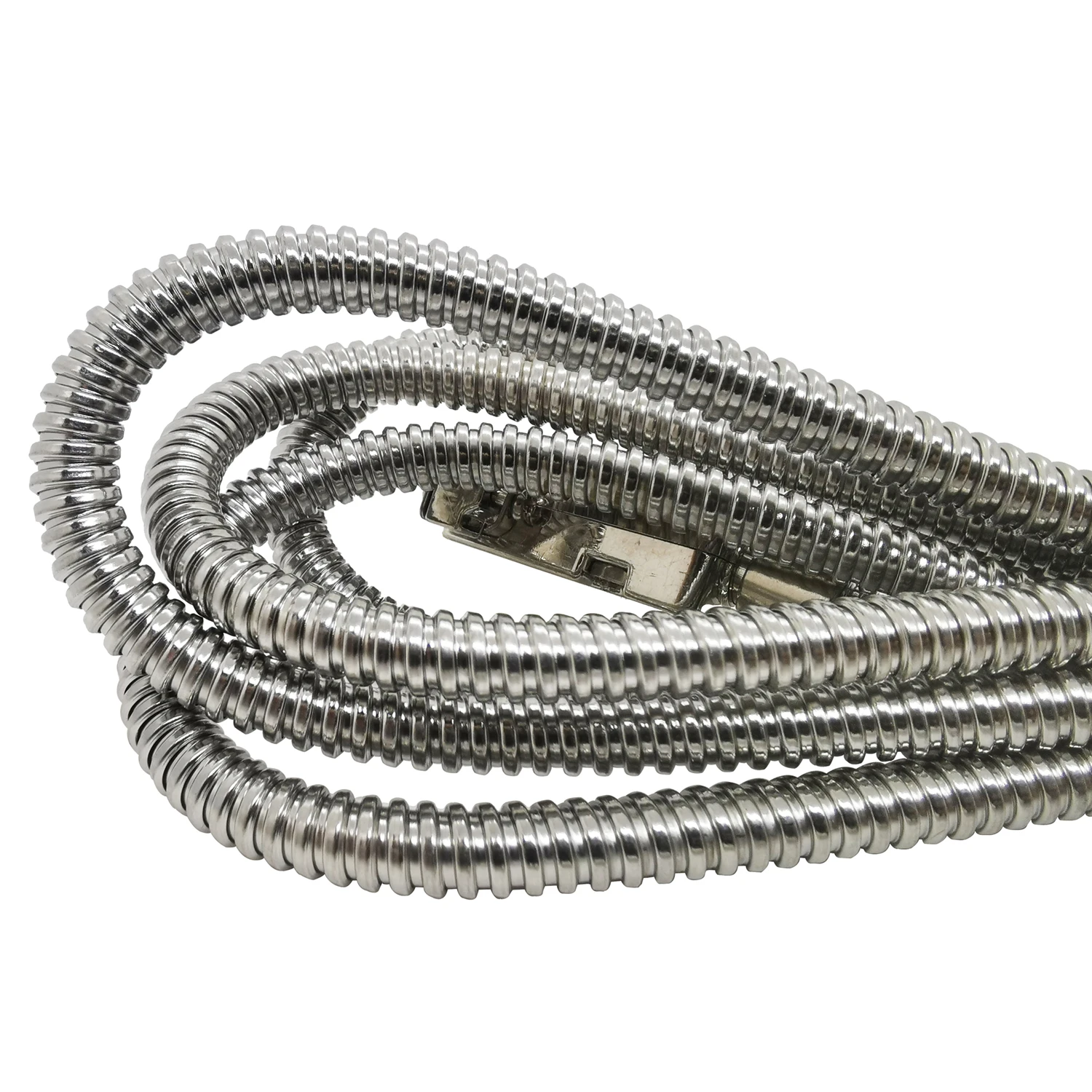

Cable standard: 2 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45  egree centigrade

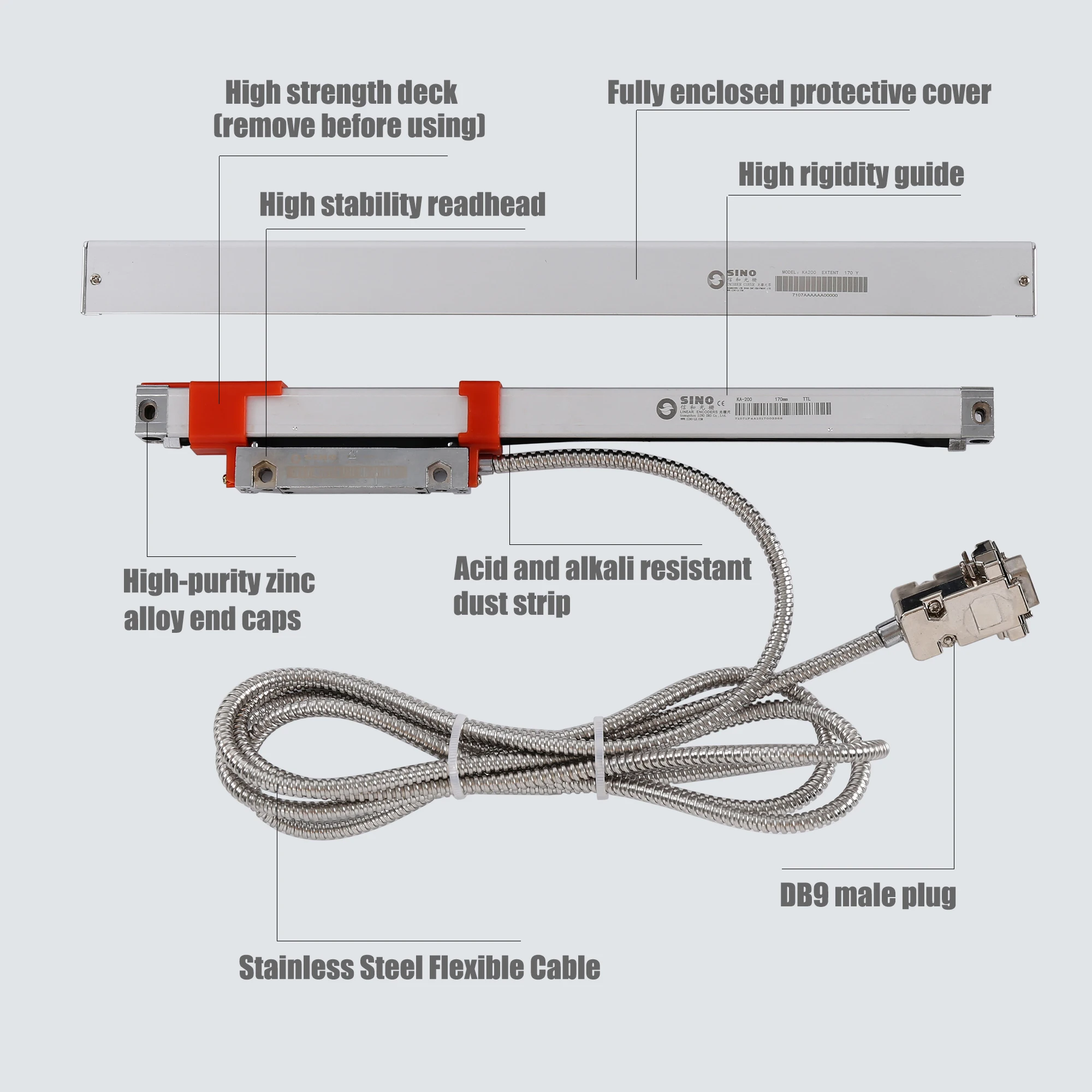

Connetor: 9 Pins
1. A,  2. 0V,   3. B,   4. Empty,   5. Z,  6. A,   7. +5V,   8. B,  9 .Z

Package content

-1 piece Sino KA-200 scale,
-1 piece scale cover
-1 bag screws
