Specification
CPU:Processor N-series N100 processor
BIOS:AMI 128Mb BIOS,ACPI supported, Supports Power on startup
Memory:1*DDR5 SODIMM  up to 16GB
Graphics controller: CPU integration
DP :1*DP interface
HD:1*HD interface
Multi-display support:Support DP+ HD synchronous or asynchronous dual display output
SATA:6*SATA, 6Gb/s
Storage:M2_ SSD    1*M2_ SSD NVME/NGFF+1*M.2_ NVME
Network:RJ45  4*i226 2.5G adaptive network port
Audio:Line Out  ALC897 chip, Line out Mic 2-in-1 interface
USB3.0:External 2*USB3.0
USB2.0:External 2*USB2.0, built-in 4*USB2.0

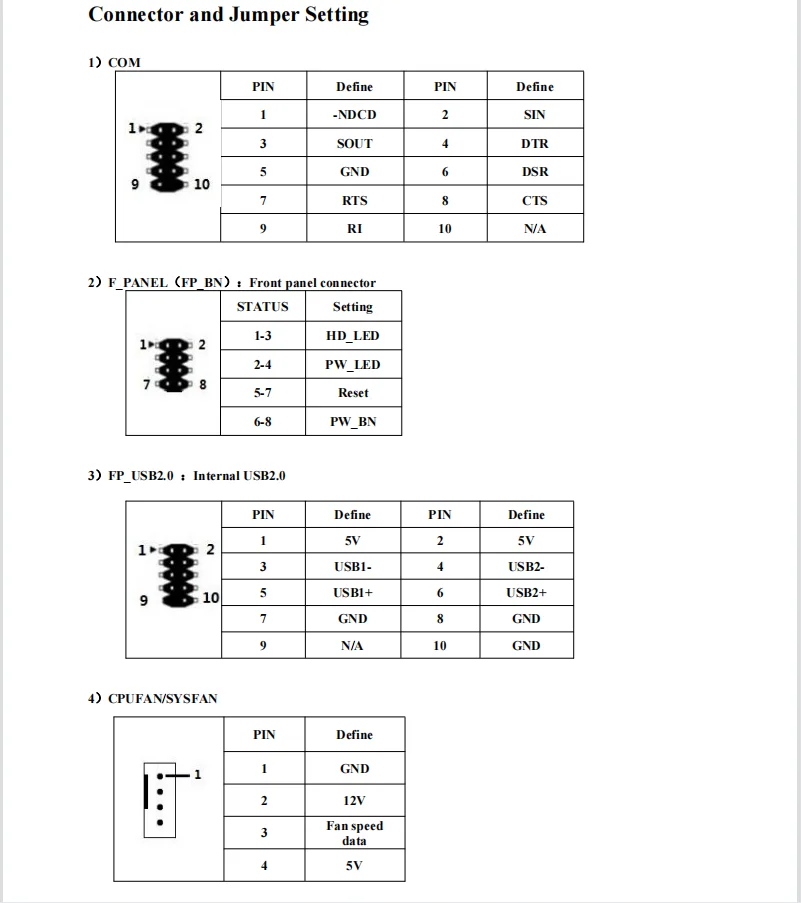

Serial port:RS232  1*COM

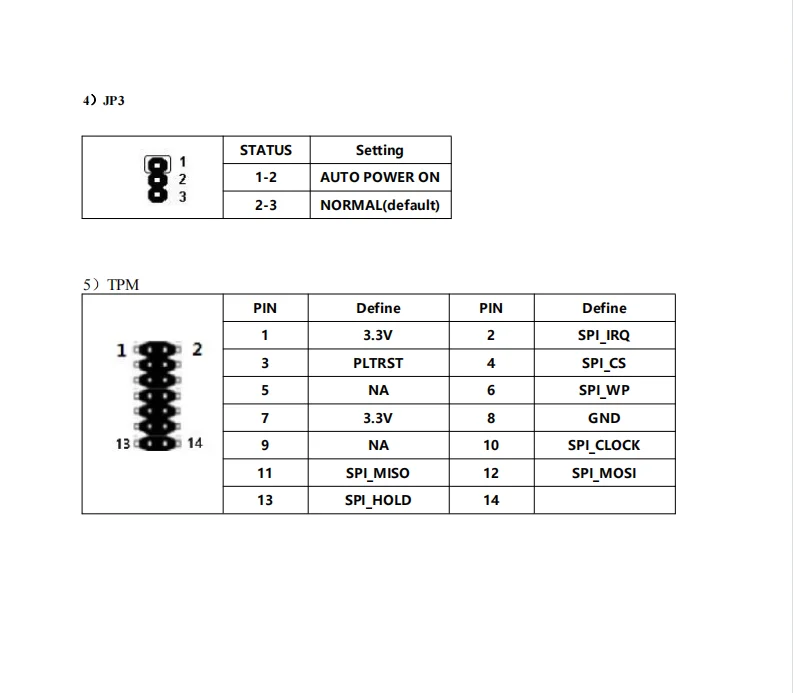

Hardware encryption: TPM TPM2.0 hardware encryption (pin header)
Watchdog: Supports 4~255 seconds watchdog timer
Voltage : Support +12V, 3.3V, 5V, CPU Vcore, DDR Power voltage detection
Temperature:Support CPU temperature detection
Fan:Supports CPU fan speed detection and intelligent fan control
Power supply:ATX    24PIN+ 4PIN ATX power supply
Operating temperature:-20~60 degrees Celsius
Storage temperature: -20~60 degrees Celsius
Working humidity:0~90% RH, relative humidity without condensation
Storage humidity: 0~90% RH, relative humidity without condensation

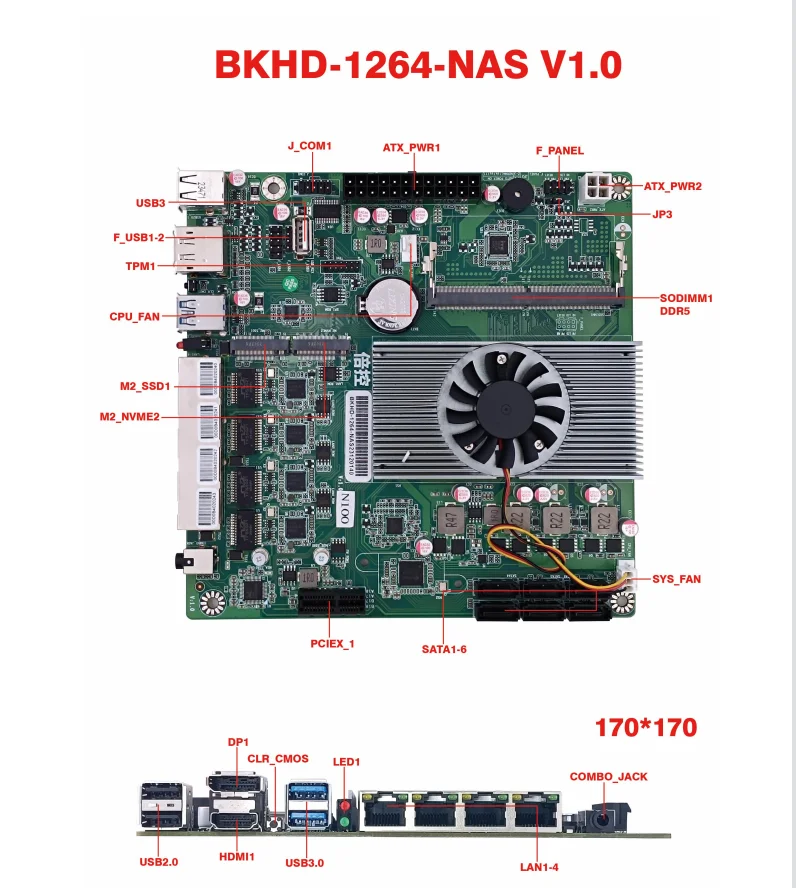

PCB specifications: Board size  MINI-ITX (170*170mm)
