Features:
*Adjustable DC Output: Offers precise voltage control from 1-36V with automatic step-up/down conversion for versatile power needs.
*PD Fast Charging: Supports quick charging protocols for efficient power delivery to compatible devices.
*120W High Power: Delivers robust performance with a maximum output of 120W for demanding applications.
*Output Reverse Protection: Features built-in protection against reverse polarity to protect connected devices.
*Multi-Power Priority: Automatically switches between external, USB, and FOR battery power sources for uninterrupted operation.
Specifications:

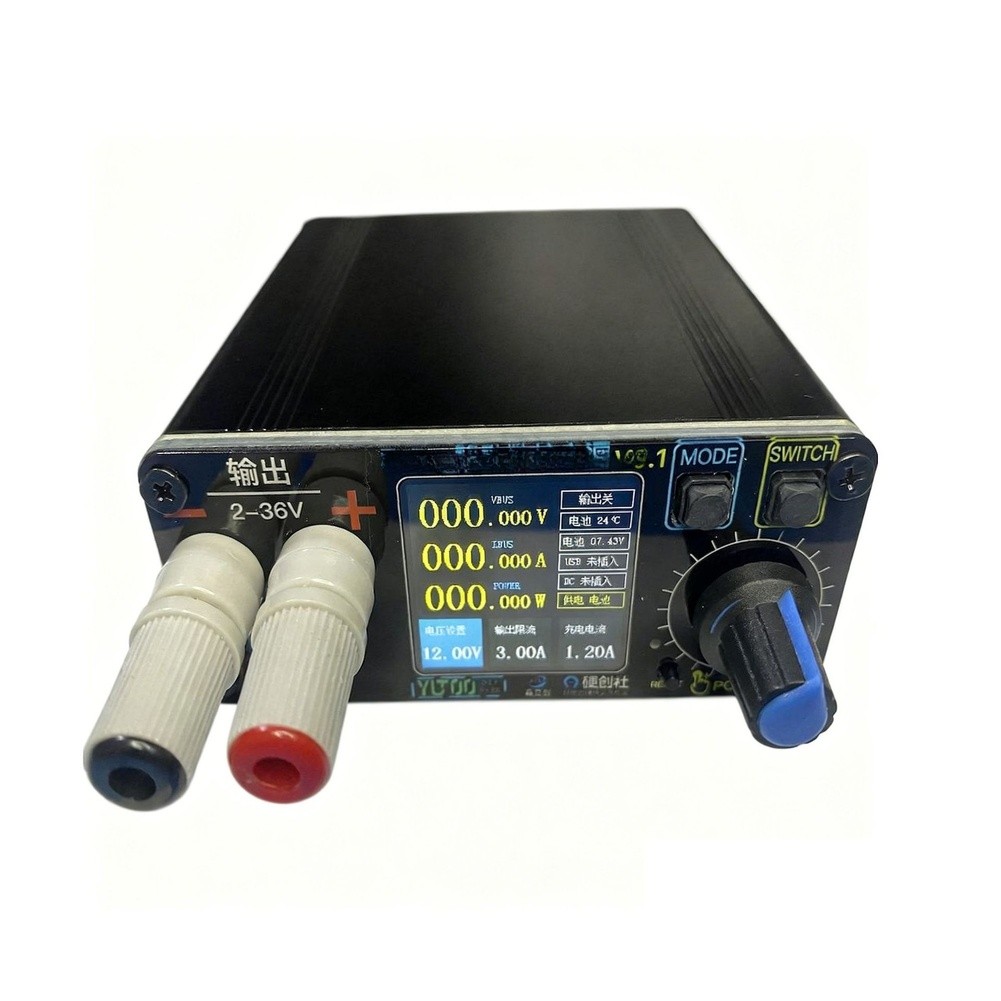

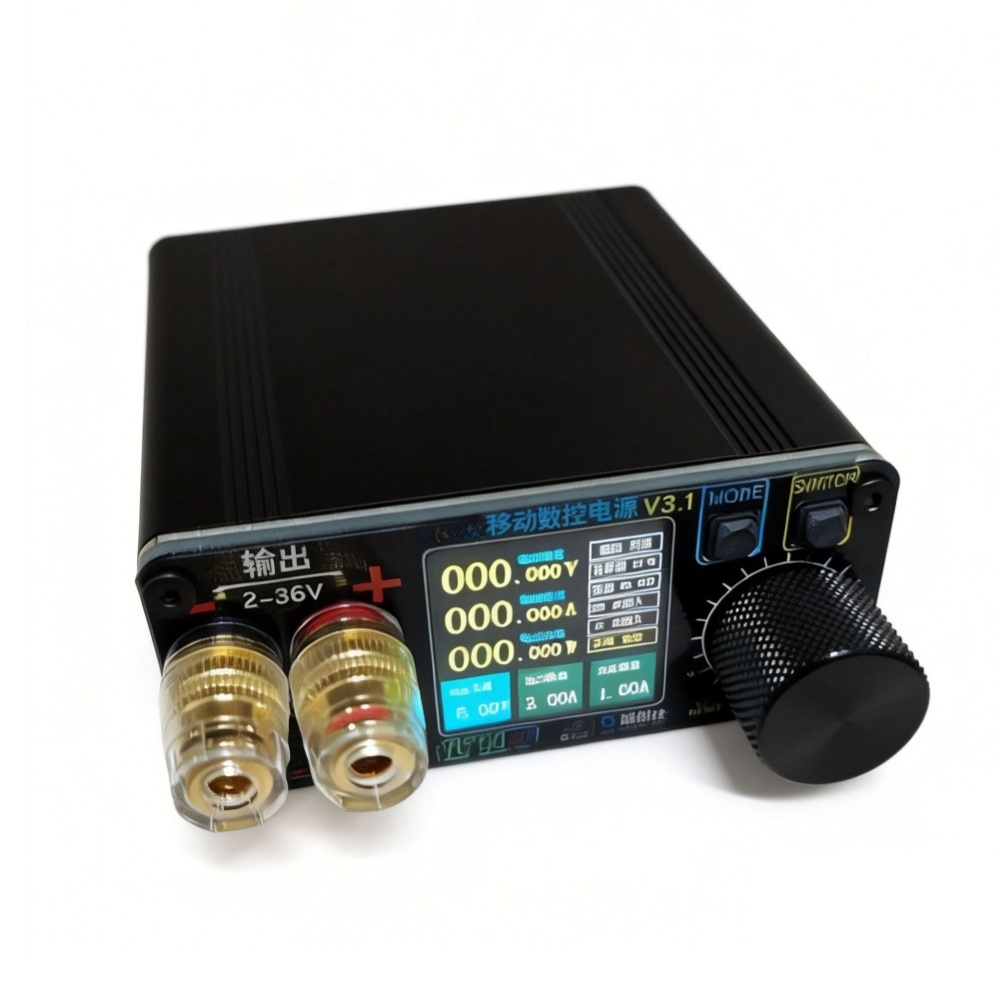

*Product Name:Version 3.1 Mobile CNC Power Supply
*Material:aluminum alloy
*Color:black
*Size:88×38×95mm
Key Upgrade Highlights (Latest for V3.1)
Added reverse connection protection (effective voltage ≥ 3.2V)
Optimized sleep power consumption (approx. 70uA after shutdown)
separate power supply control (for battery/USB/external power supply are separate, no crosstalk)
Replaced physical switch with knob control
Front panel upgraded to for acrylic panel
Supports external power supply reverse charging (1-4 units)
Product Parameters
Power Supply Voltage: 5-20V (maximum 24V, cautious testing recommended)
Output Voltage: 1-36V (automatic step-up/step-down)
Output Current: 0.3-6A adjustable, maximum 6A
Output Power: Recommended ≤ 120W, maximum 200W (avoid prolonged extreme operation)

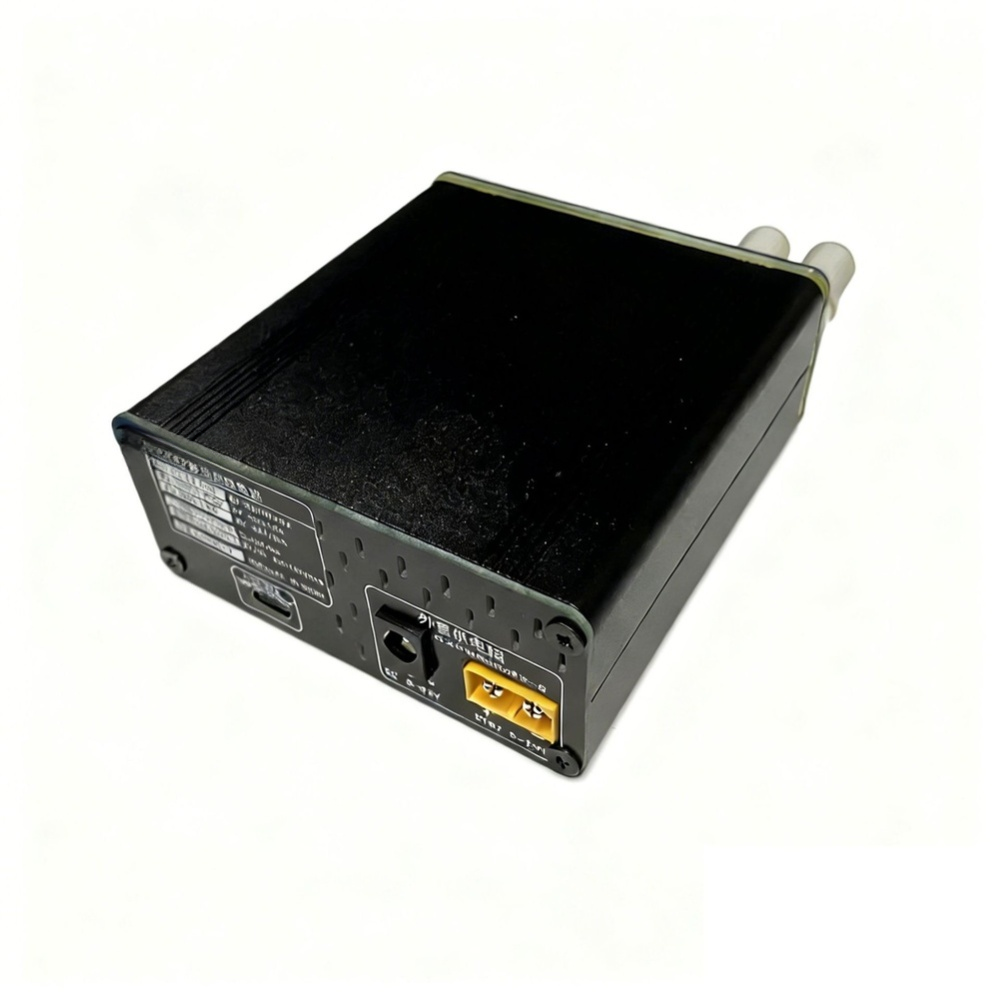

Interface Specifications: 4mm standard banana + 5.5×2.1mm DC
Weight: Approx. 260g without for battery
Protection Functions
External power supply reverse connection protection, high voltage protection (26V) TVS + Fuse) Output reverse current protection,
RC spike absorption, output TVS protection (40V) Output reverse connection protection (low voltage current limiting mode) Power supply priority (automatic/manual switching)
External power supply > USB power supply > Internal for battery
Special Features
Screen display orientation can be switched
Supports reverse charging of external power supply terminals (1-4 series, needs to be activated)
Usage Precautions:
It is recommended to open the cover for auxiliary heat dissipation when outputting high power. Output power is limited by input power. External power supply current limit is 10A.
Common Problems

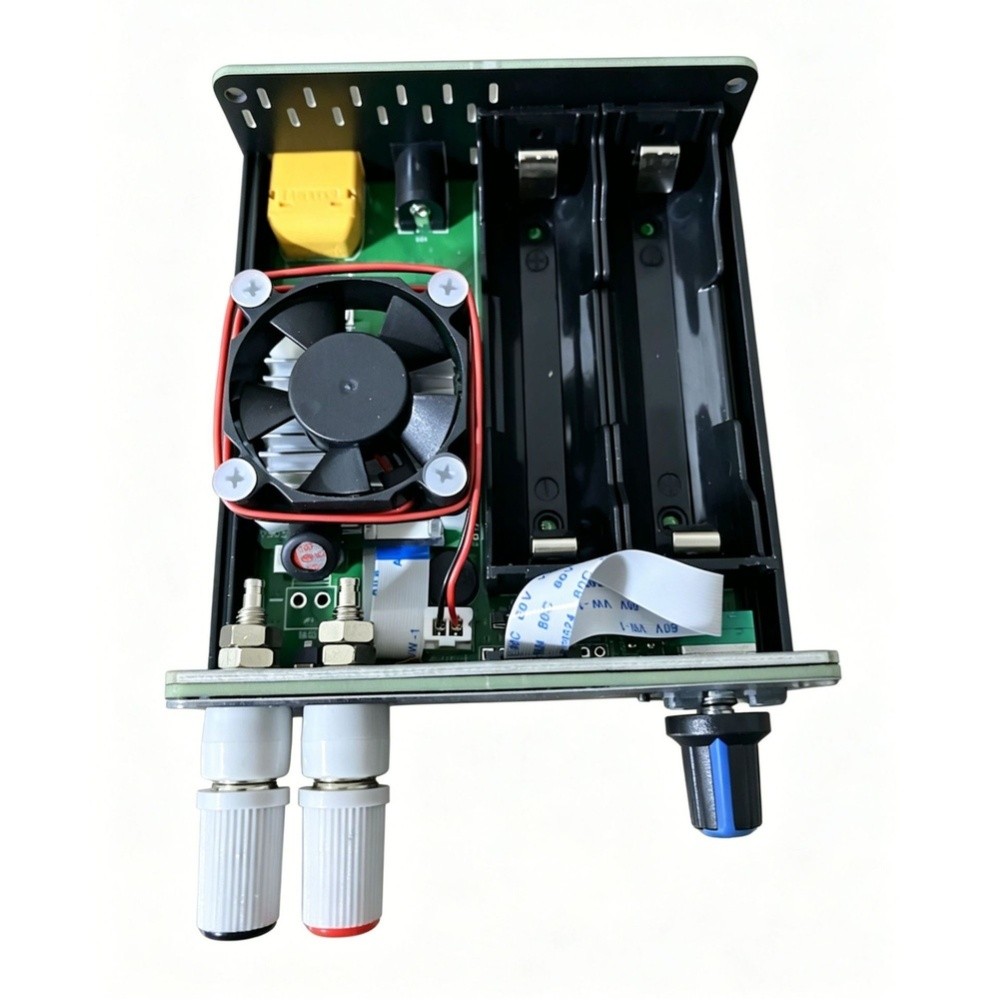

Unable to power on/charging but power supply is normal → The temperature control fuse may have tripped. After disassembling, press the temperature control fuse on the bottom of the motherboard (with text label) to restore it.
Applicable Scenarios
Electronic repair, DIY experiments, for outdoor testing, laboratory adjustable power supply replacement, etc.
Package Content:
1*Version 3.1 Mobile CNC Power Supply
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
