If you need detailed instructions, please contact us to send you.

Description

Max medium temperature: 80℃, if you need 120 ℃ or 250 ℃, please contact us.

Valve material:Stainless Steel 304

Sealing material: PTFE

Size: 2" DN50

Connection: Clamp OD 77mm

Voltage:AC220V, if you need other voltage, please contact us.

Position accuracy: 1%

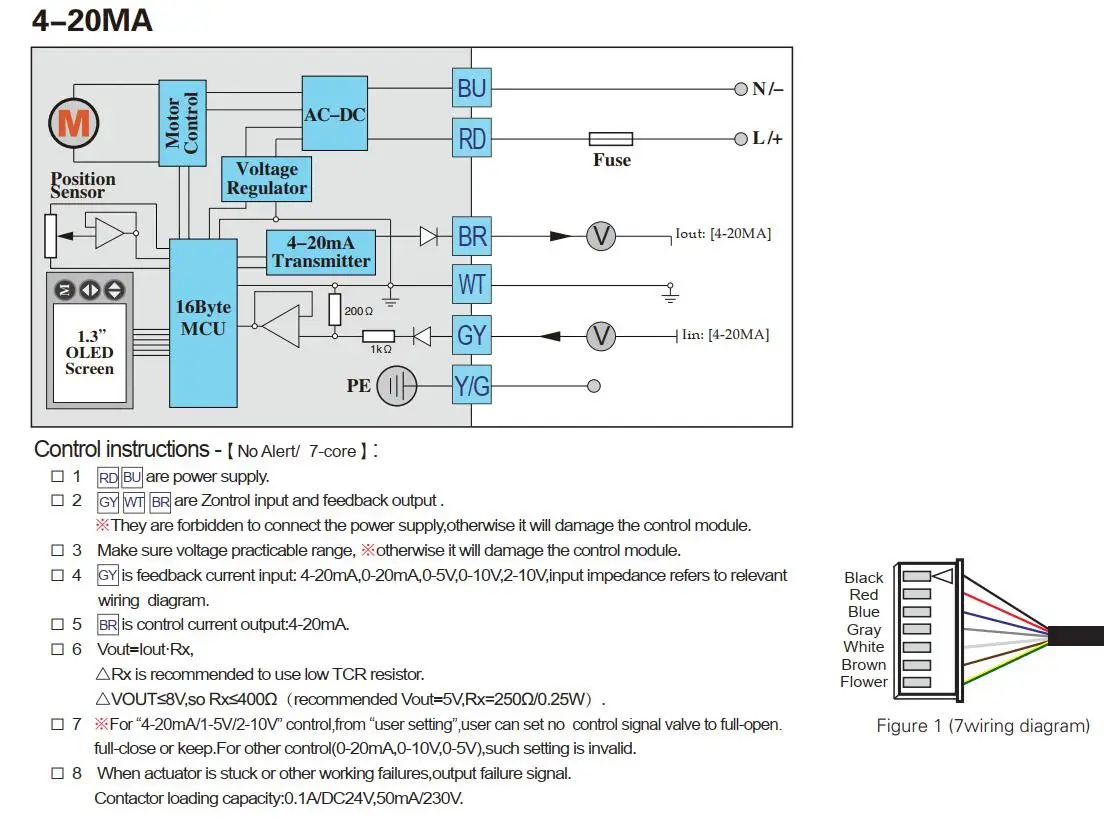

Control method: 4-20mA, if you need 0-20mA, 0-10V, 1-5V, RS-485 please contact us.

Rated torque:20N.m(Can be assembled with valves below 15N.m)

Actuation Time:10S (If you need 5S,1S, please contact us )

Pressure:1.6Mpa, if you need 4Mpa or 6.4Mpa, please contact us.

Protection Level:IP67
