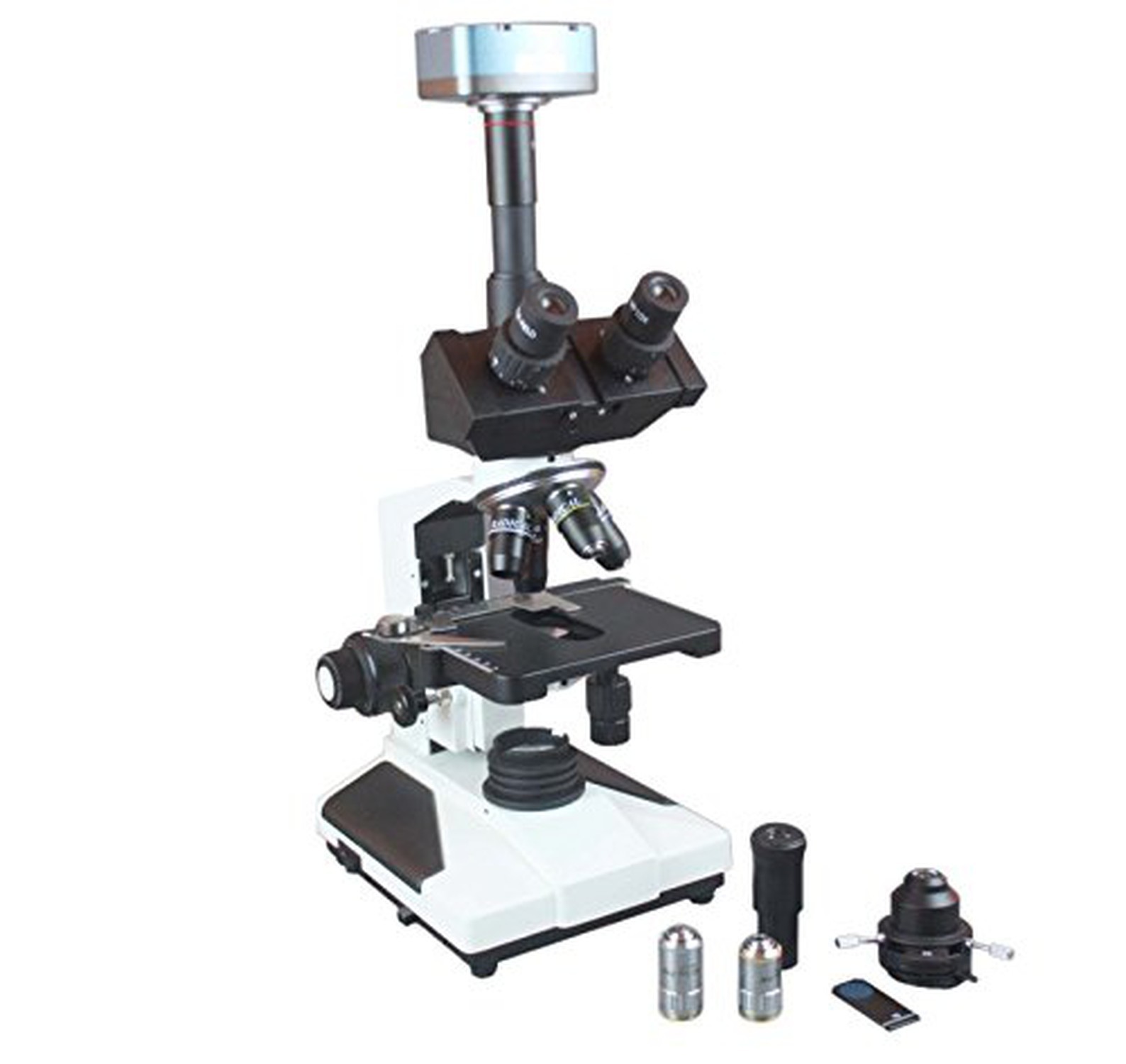

Trinocular Pathology Lab Research Phase Contrast Microscope w 5MP USB camera
This product data sheet is originally written in English.
Product Overview
- Professional Phase Contrast Microscope — ideal for semen, sperm, and asbestos PCM analysis
- Trinocular head with camera port for image & video capture via included 5 MP digital camera
- Phase Contrast Optics — designed for observing unstained, transparent, and live specimens
- SEMI PLAN Objectives — 25% improved clarity & flatness over standard achromats
- Anti-fungus, anti-reflection, and hard-coated optical components for long service life
- 8 Levels of Magnification: 40×, 80×, 100×, 200×, 400×, 800×, 1000× & 2000×
- Phase Magnification Levels: 100×, 200×, 400× & 800×
- Ergonomic, research-grade design with smooth mechanical controls
- Rugged all-metal body with variable LED/halogen illumination
- CE, UL & ISO certified — best price-to-performance ratio in its class
Technical Specifications & Features
- Objectives: Semi Plan 4×/0.10, Ph10×/0.25, Ph40×/0.65 SL, 100×/1.25 Oil SL
- Head: Trinocular, 30° inclined, 360° rotatable
- Eyepieces: HKW 10× and WF 20× high-point eyepieces
- Condenser: Centerable Abbe type NA 1.25 with annular slot and filter holder
- Stage: Low-drive mechanical stage for smooth slide scanning
- Focusing: Coaxial coarse & fine focusing with focus limit adjuster for slide protection
- Illumination: Variable LED/Halogen light source with adjustable brightness
- Body: Solid research-grade metal frame for vibration-free performance
- Camera: 5 MP Digital Camera with 0.5× reduction lens, USB interface & software for image/video capture
- Software: Image and video capture with measurement tools and analysis functions
Applications
- Sperm & semen morphology and motility analysis
- Asbestos fiber counting (PCM – Phase Contrast Microscopy)
- Microbiology, cytology, parasitology, and live cell studies
- Clinical, medical, and educational laboratory research
Package Includes
- Microscope body (Trinocular, metal construction)
- Semi Plan objective set (4×, Ph10×, Ph40×, 100× Oil)
- Centerable Abbe condenser NA 1.25 with annular slot
- Eyepiece pair HKW 10× and WF 20×
- 5 MP camera with software and adapter lens
- Blank slides set and dust cover
- Power supply and manual
CE & ISO compliant. Sample images available upon request.
