About Solar Generator 1500 v2

About Solar Generator 1500 v2

Main Features

Main Features

Portable & Lightweight
Weighs only 31.97 lbs, making it one of the smallest and lightest 1.5kWh LFP power stations available. Its compact design saves space for easy storage, while the foldable handle makes it simple to carry from home to the car, campsite, or outdoor setup.

Comprehensive Protection
Built for reliable performance in tough conditions, with charging and discharging support from -20°C to 45°C. Features surge protection up to 3000V, helping protect against lightning, short circuits, and fire risks. The UL94V-0 fire-rated casing offers added heat and impact resistance.

Ultra-Low Self-Discharge
Equipped with Jackery ZeroDrain™ technology, reducing self-discharge to less than 5% over six months. Ideal for long-term storage, emergency backup power, outdoor use, and unexpected outages.

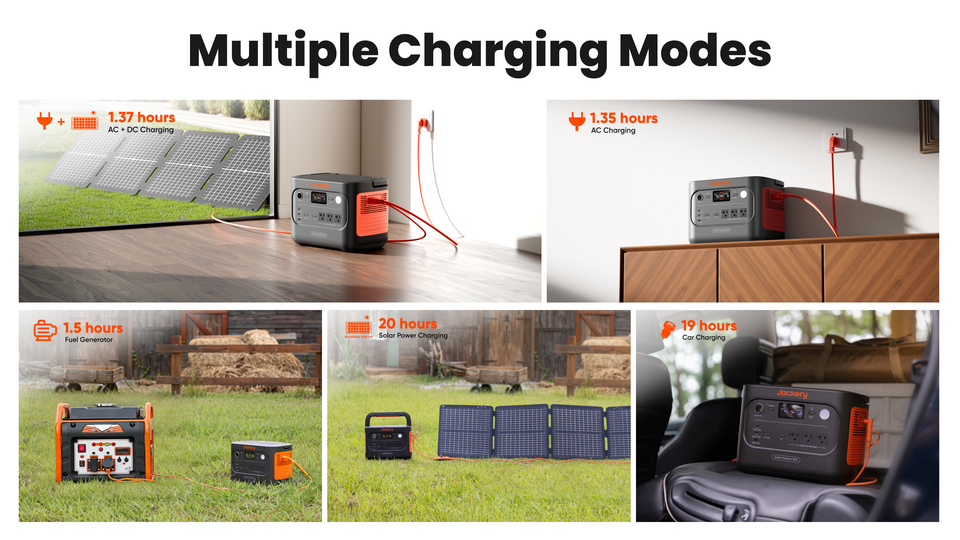

Fast & Quiet Charging
Fully charges in as little as 1 hour with ChargeShield 2.0™ technology. Designed for faster, safer, and quieter operation at under 36dB. Emergency Super Charging Mode can be activated through the app when quick power is needed.

Durable & Safe Power
Uses reliable LiFePO₄ battery cells with over 6,000 life cycles and dependable performance for up to 10 years. Designed to operate in extreme conditions as low as -20°C.

Smart App Control
Monitor battery level, charging power, and output performance in real time through Wi-Fi or Bluetooth. Easily control AC/DC output, customize charge and discharge settings, adjust charging power, and enable automatic power-off for smarter energy use.

Dimensions and Weight of Solar Generator 1500 v2 Kit

Solar Generator 1500 v2 Kit Specifications

Capacity


40Ah / 38.4V DC (1536 Wh)

Cell Chemistry

LiFePO4

Weight

About 31.97 lbs/14.5 kg

Dimension

12.99×8.7×9.53 in / 33×22.1×24.2 cm

Cycle Life

6000 cycles to 70%+ capacity

1 × AC Input

Charge Mode: 100-120V~60Hz, 15A Max

Bypass Mode: 120V~60Hz, 12A Max

2 × DC8020 Ports

Car: 11-16V⎓8A Max, Double to 8A Max

PV: 16-60V⎓12A Max, Double to 21A Max/ 400W Max

3 × AC Output

120V~ 60Hz, 16.7A Max, 2000W (14°F to 113°F / -10°C to 45°C )

120V~ 60Hz, 10A Max, 1200W (-4°F to 14°F / -20°C to -10°C )

AC Total Output

2000W Rated, 4000W Surge peak (14°F to 113°F / -10°C to 45°C )

AC Output in Bypass Mode

120V~60Hz, 12A Max, 1440W Max

2 × USB-C Output

100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A (14°F to 113°F /-10°C to 45°C)

USB-C Output is off (-4°F to 14°F / -20°C to -10°C)

30W Max, 5V⎓3A, 9V⎓3A, 12V⎓2.5A, 15V⎓2A, 20V⎓1.5A

1 × USB-A Output

18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A

DC 12V Port

12V⎓10A Max

Charging Temperature

-4°F to 113°F / -20°C to 45°C

Discharging Temperature

-4°F to 113°F / -20°C to 45°C

Dimensions (unfolded)

65.67 × 16.65 × 0.67 in / 1668 × 423 × 17mm

Dimensions (folded)

17.05 × 16.65 × 1.85 in / 433 × 423 × 47mm

Weight

7.05 lb ± 0.44 lb / 3.2kg ± 0.2kg

IP Rating

IP68

Operating Temperature Range

-4℉ to 149℉ / -20°C to 65°C

Maximum Power (Pmax)

110W±5%

Open-Circuit Voltage (Voc)

30.0V±5%

Short-Circuit Current (Isc)

4.5A±5%

Maximum Power Voltage (Vmp)

25.7V±5%

Maximum Power Curren

4.28A±5%

Maximum System Voltage

80V

Maximum Reverse Current

15A

Protection Class Against Electric Shock

Class II

Bifaciality Coefficient (back/front)

P max: >65%, Voc: >97%, Isc: >65%

Voltage Temperature Coefficient

-0.25%/°C

Power Temperature Coefficient

-0.22%/ °C

Photovoltaic Consumer Products

IEC TS 63163 Consumer Product Category 2

USB-A Output

5V⎓2.4A

USB-C Output

5V⎓3A

Item 1996984
