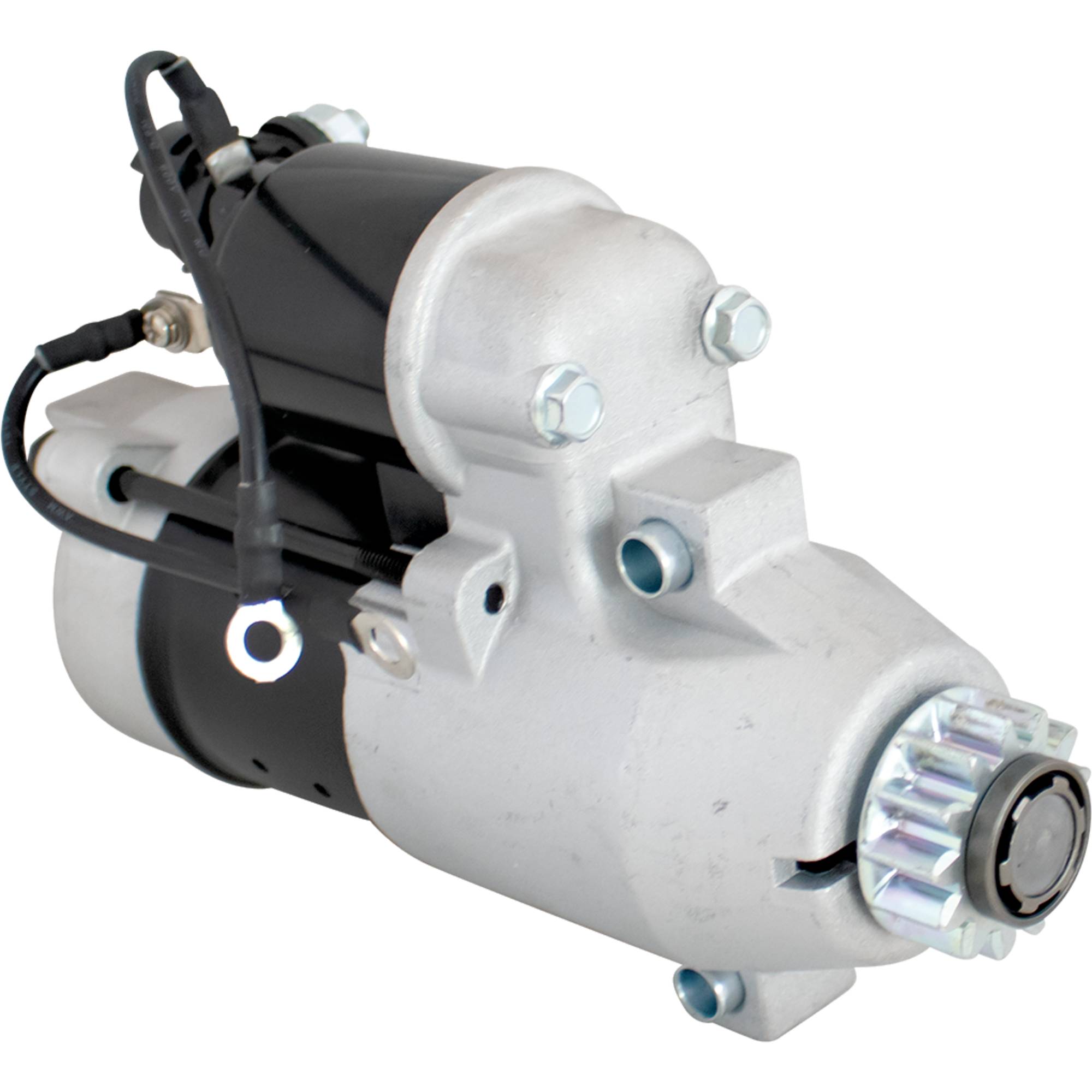

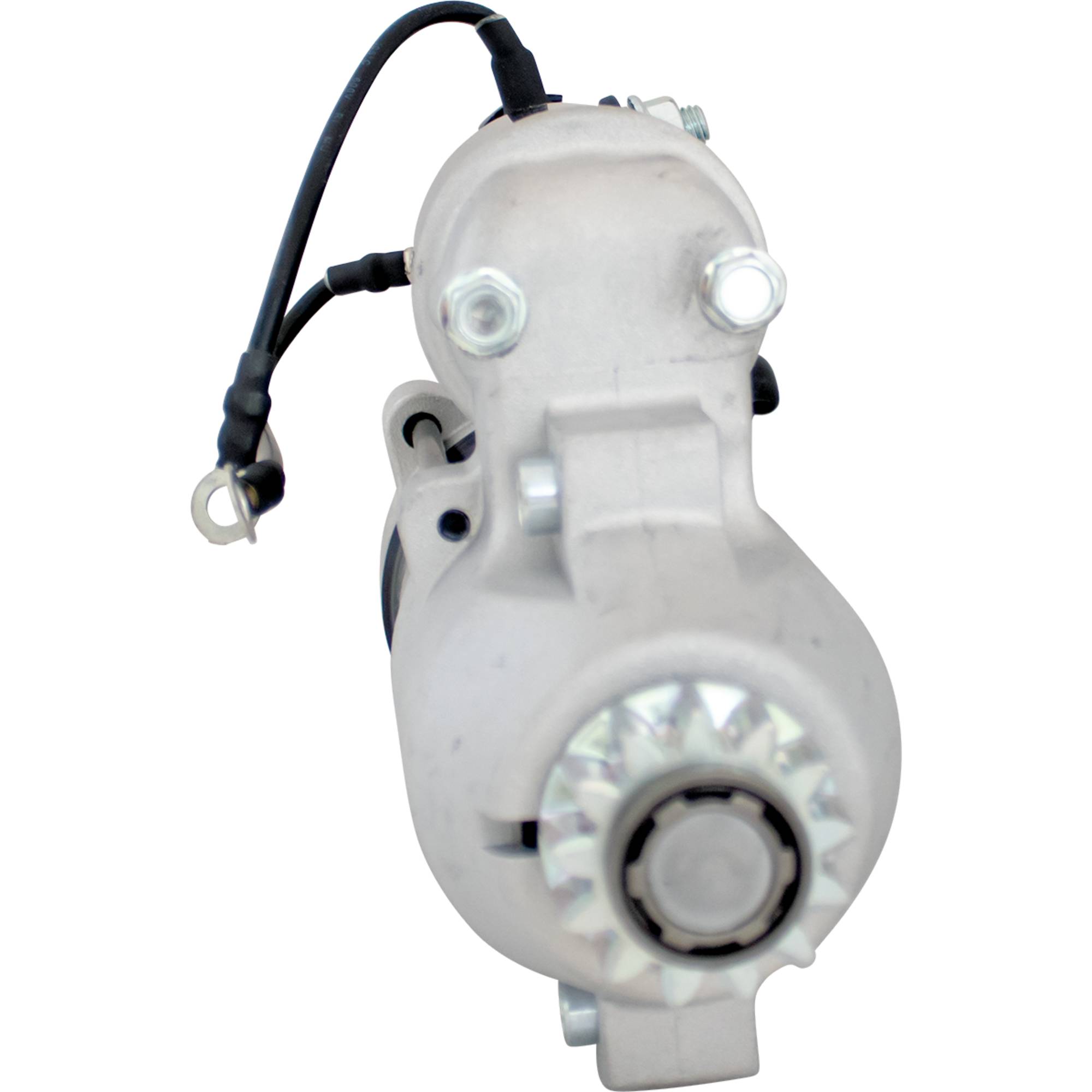

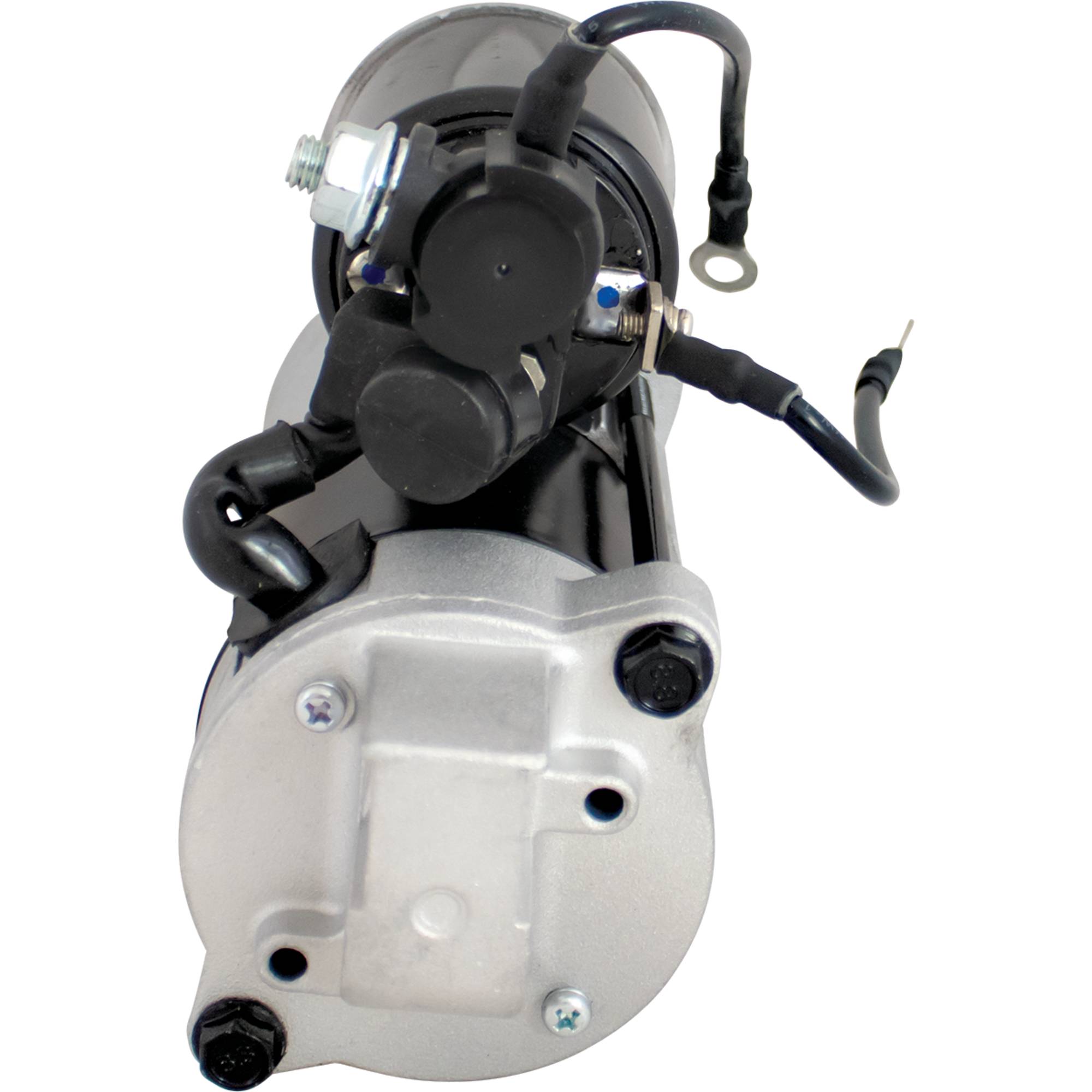

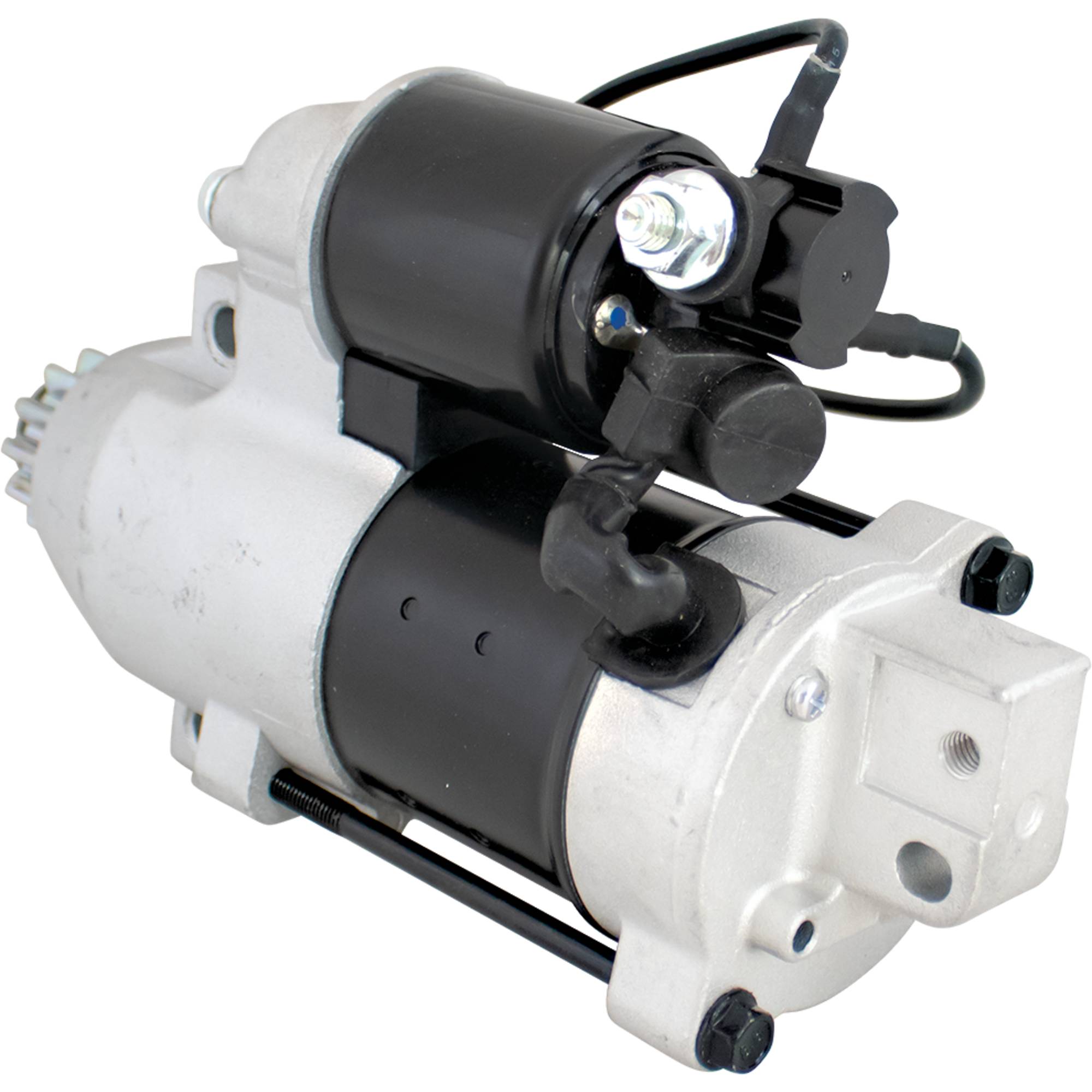

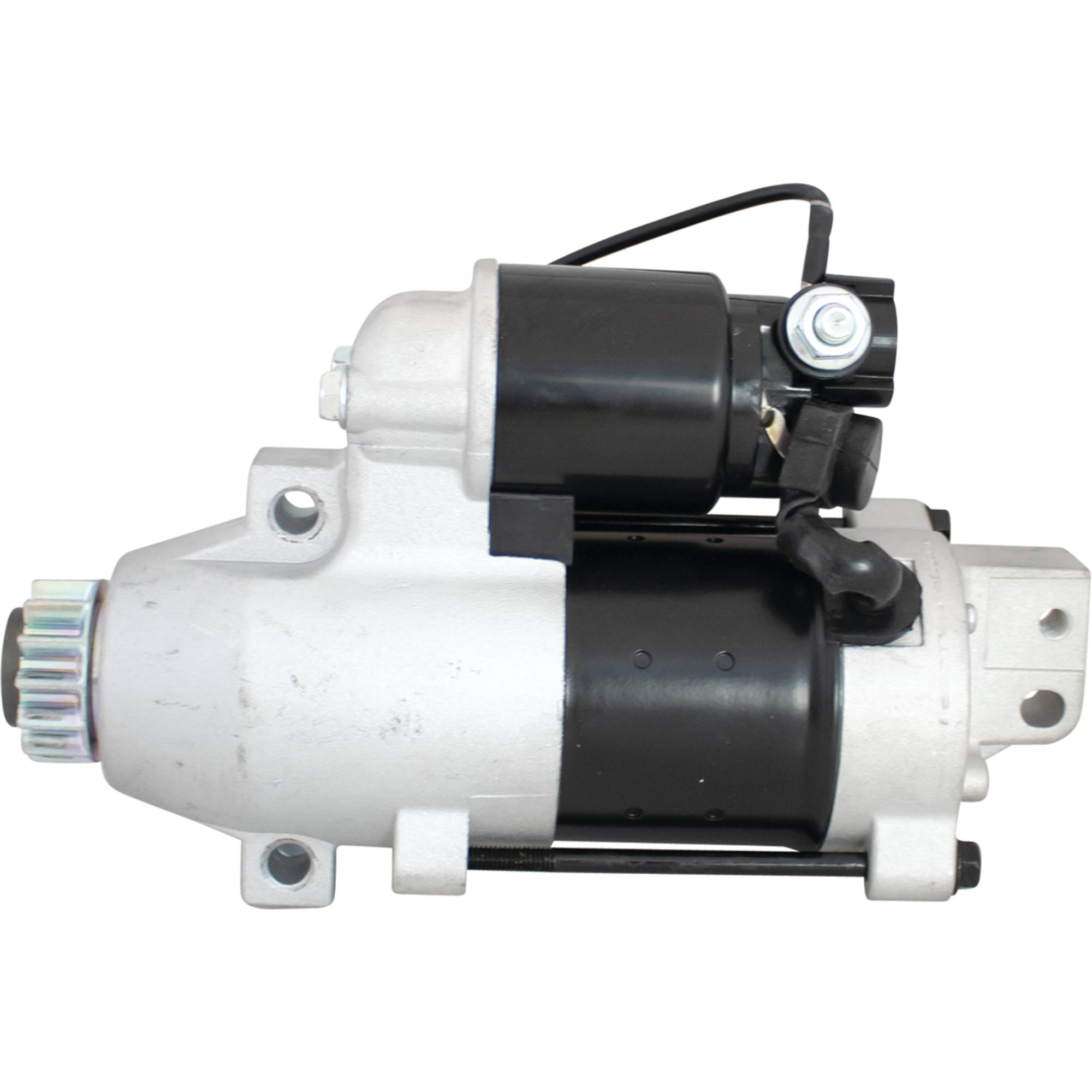

Starter For Yamaha Outboard Motor F80TLR, F90TJR, F90TLR 1999-2004; SHI0128
| Unit Type | Starter |
| Part Type | Starter |
| Item Condition | New |
| MPN | SHI0128 |
| Voltage | 12 |
| Rotation | CCW |
| Amperage | |
| Starter Type | |
| Clock | |
| Teeth | 13 |
| Pulley Class | |
| Regulator | |
| Fan Type | |
| Color | |
| Gear ID | |
| Gear OD | |
| KW | 1.4 |
| Pinion/Splines OD | |
| Warranty |
Specifications
| Unit Type | Starter |
| Voltage | 12 |
| Rotation | CCW |
| Teeth | 13 |
| KW | 1.4 |
| Dimension | Replacement Unit:, Gear OD: 1.571in / 39.9mm, Mtg. Ear Holes: 8.5mm Unthreaded, Notes: Battery Stud M8-1.25 Threaded, 130mm Ignition Lead, 100mm Battery Lead, |
| Starter Type | PMGR |
| Fits | Mercury Outboards 75, 90HP 4-Stroke Yamaha Outboards 75, 80, 100HP 4-Stroke |
Applications
| make | type | model | year | engine |
| Mariner | Engine | 75ELHPT | 2000 | 84cu in, 4-Stroke |
| Mariner | Engine | 75ELHPT | 2001 | 84cu in, 4-Stroke |
| Mariner | Engine - Marine Outboard | 75ELHPT 4-Stroke | 2000 | 84cu in |
| Mariner | Engine - Marine Outboard | 75ELHPT 4-Stroke | 2001 | 84cu in |
| Mariner | Engine | 75ELPT | 2000 | 84cu in, 4-Stroke |
| Mariner | Engine | 75ELPT | 2001 | 84cu in, 4-Stroke |
| Mariner | Engine - Marine Outboard | 75ELPT 4-Stroke | 2000 | 84cu in |
| Mariner | Engine - Marine Outboard | 75ELPT 4-Stroke | 2001 | 84cu in |
| Mariner | Engine | 90ELHPT | 2000 | 97cu in, 1.6L 4-Stroke |
| Mariner | Engine | 90ELHPT | 2001 | 97cu in, 1.6L 4-Stroke |
| Mariner | Engine - Marine Outboard | 90ELHPT 4-Stroke | 2000 | 97cu in, 1.6L |
| Mariner | Engine - Marine Outboard | 90ELHPT 4-Stroke | 2001 | 97cu in, 1.6L |
| Mariner | Engine | 90ELPT | 2000 | 97cu in, 1.6L 4-Stroke |
| Mariner | Engine | 90ELPT | 2001 | 97cu in, 1.6L 4-Stroke |
| Mariner | Engine - Marine Outboard | 90ELPT 4-Stroke | 2000 | 97cu in, 1.6L |
| Mariner | Engine - Marine Outboard | 90ELPT 4-Stroke | 2001 | 97cu in, 1.6L |
| Mariner | Engine | 90ELPT Coastal | 2000 | 97cu in, 1.6L 4-Stroke |
| Mariner | Engine - Marine Outboard | 90ELPT Coastal 4-Stroke | 2000 | 97cu in, 1.6L |
| Mariner | Engine | 90EXLPT Saltwater | 2001 | 97cu in, 1.6L 4-Stroke |
| Mariner | Engine - Marine Outboard | 90EXLPT Saltwater 4-Stroke | 2001 | 97cu in, 1.6L |
| Mercury Marine | Engine | 75ELHPT | 2000 | 84cu in, 4-Stroke |
| Mercury Marine | Engine | 75ELHPT | 2001 | 84cu in, 4-Stroke |
| Mercury Marine | Engine - Marine Outboard | 75ELHPT 4-Stroke | 2000 | |
| Mercury Marine | Engine - Marine Outboard | 75ELHPT 4-Stroke | 2001 | |
| Mercury Marine | Marine - Outboard | 75ELPT | 2000 | 84cu in, 4-Stroke |
| Mercury Marine | Engine | 75ELPT | 2000 | 84cu in, 4-Stroke |
| Mercury Marine | Marine - Outboard | 75ELPT | 2001 | 84cu in, 4-Stroke |
| Mercury Marine | Engine | 75ELPT | 2001 | 84cu in, 4-Stroke |
| Mercury Marine | Marine - Outboard | 75ELPT | 2002 | 84cu in, 4-Stroke |
| Mercury Marine | Engine | 75ELPT | 2002 | 84cu in, 4-Stroke |
| Mercury Marine | Marine - Outboard | 75ELPT | 2003 | 84cu in, 4-Stroke |
| Mercury Marine | Engine | 75ELPT | 2003 | 84cu in, 4-Stroke |
| Mercury Marine | Marine - Outboard | 75ELPT | 2004 | 84cu in, 4-Stroke |
| Mercury Marine | Engine | 75ELPT | 2004 | 84cu in, 4-Stroke |
| Mercury Marine | Marine - Outboard | 75ELPT | 2005 | 84cu in, 4-Stroke |
| Mercury Marine | Engine | 75ELPT | 2005 | 84cu in, 4-Stroke |
| Mercury Marine | Engine - Marine Outboard | 75ELPT 4-Stroke | 2000 | |
| Mercury Marine | Engine - Marine Outboard | 75ELPT 4-Stroke | 2001 | |
| Mercury Marine | Engine - Marine Outboard | 75ELPT 4-Stroke | 2002 | |
| Mercury Marine | Engine - Marine Outboard | 75ELPT 4-Stroke | 2003 | |
| Mercury Marine | Engine - Marine Outboard | 75ELPT 4-Stroke | 2004 | |
| Mercury Marine | Engine - Marine Outboard | 75ELPT 4-Stroke | 2005 | |
| Mercury Marine | Marine - Outboard | 90ELHPT | 2000 | 97cu in, 4-Stroke |
| Mercury Marine | Engine | 90ELHPT | 2000 | 97cu in, 4-Stroke |
| Mercury Marine | Marine - Outboard | 90ELHPT | 2001 | 97cu in, 4-Stroke |
| Mercury Marine | Engine | 90ELHPT | 2001 | 97cu in, 4-Stroke |
| Mercury Marine | Engine - Marine Outboard | 90ELHPT 4-Stroke | 2000 | |
| Mercury Marine | Engine - Marine Outboard | 90ELHPT 4-Stroke | 2001 | |
| Mercury Marine | Marine - Outboard | 90ELPT | 2000 | 1600cc, 1.6L 4-Stroke |
| Mercury Marine | Engine | 90ELPT | 2000 | 97cu in, 1.6L 4-Stroke |
| Mercury Marine | Marine - Outboard | 90ELPT | 2001 | 1600cc, 1.6L 4-Stroke |
| Mercury Marine | Engine | 90ELPT | 2001 | 97cu in, 1.6L 4-Stroke |
| Mercury Marine | Marine - Outboard | 90ELPT | 2002 | 1600cc, 1.6L 4-Stroke |
| Mercury Marine | Engine | 90ELPT | 2002 | 97cu in, 1.6L 4-Stroke |
| Mercury Marine | Marine - Outboard | 90ELPT | 2003 | 1600cc, 1.6L 4-Stroke |
| Mercury Marine | Engine | 90ELPT | 2003 | 97cu in, 1.6L 4-Stroke |
| Mercury Marine | Marine - Outboard | 90ELPT | 2004 | 1600cc, 1.6L 4-Stroke |
| Mercury Marine | Engine | 90ELPT | 2004 | 97cu in, 1.6L 4-Stroke |
| Mercury Marine | Marine - Outboard | 90ELPT | 2005 | 1600cc, 1.6L 4-Stroke |
| Mercury Marine | Engine | 90ELPT | 2005 | 97cu in, 1.6L 4-Stroke |
| Mercury Marine | Engine - Marine Outboard | 90ELPT 4-Stroke | 2000 | |
| Mercury Marine | Engine - Marine Outboard | 90ELPT 4-Stroke | 2001 | |
| Mercury Marine | Engine - Marine Outboard | 90ELPT 4-Stroke | 2002 | |
| Mercury Marine | Engine - Marine Outboard | 90ELPT 4-Stroke | 2003 | |
| Mercury Marine | Engine - Marine Outboard | 90ELPT 4-Stroke | 2004 | |
| Mercury Marine | Engine - Marine Outboard | 90ELPT 4-Stroke | 2005 | |
| Mercury Marine | Marine - Outboard | 90ELPT Saltwater | 2004 | 1600cc, 1.6L 4-Stroke |
| Mercury Marine | Engine | 90ELPT Saltwater | 2004 | 97cu in, 1.6L 4-Stroke |
| Mercury Marine | Marine - Outboard | 90ELPT Saltwater | 2005 | 1600cc, 1.6L 4-Stroke |
| Mercury Marine | Engine | 90ELPT Saltwater | 2005 | 97cu in, 1.6L 4-Stroke |
| Mercury Marine | Engine - Marine Outboard | 90ELPT Saltwater 4-Stroke | 2004 | |
| Mercury Marine | Engine - Marine Outboard | 90ELPT Saltwater 4-Stroke | 2005 | |
| Mercury Marine | Marine - Outboard | 90EXLPT Saltwater | 2001 | 1600cc, 1.6L 4-Stroke |
| Mercury Marine | Engine | 90EXLPT Saltwater | 2001 | 97cu in, 1.6L 4-Stroke |
| Mercury Marine | Marine - Outboard | 90EXLPT Saltwater | 2002 | 1600cc, 1.6L 4-Stroke |
| Mercury Marine | Engine | 90EXLPT Saltwater | 2002 | 97cu in, 1.6L 4-Stroke |
| Mercury Marine | Marine - Outboard | 90EXLPT Saltwater | 2003 | 1600cc, 1.6L 4-Stroke |
| Mercury Marine | Engine | 90EXLPT Saltwater | 2003 | 97cu in, 1.6L 4-Stroke |
| Mercury Marine | Marine - Outboard | 90EXLPT Saltwater | 2004 | 1600cc, 1.6L 4-Stroke |
| Mercury Marine | Engine | 90EXLPT Saltwater | 2004 | 97cu in, 1.6L 4-Stroke |
| Mercury Marine | Marine - Outboard | 90EXLPT Saltwater | 2005 | 1600cc, 1.6L 4-Stroke |
| Mercury Marine | Engine | 90EXLPT Saltwater | 2005 | 97cu in, 1.6L 4-Stroke |
| Mercury Marine | Engine - Marine Outboard | 90EXLPT Saltwater 4-Stroke | 2001 | |
| Mercury Marine | Engine - Marine Outboard | 90EXLPT Saltwater 4-Stroke | 2002 | |
| Mercury Marine | Engine - Marine Outboard | 90EXLPT Saltwater 4-Stroke | 2003 | |
| Mercury Marine | Engine - Marine Outboard | 90EXLPT Saltwater 4-Stroke | 2004 | |
| Mercury Marine | Engine - Marine Outboard | 90EXLPT Saltwater 4-Stroke | 2005 |
interchanges
| API MARINE | MOT5017 |
| ARCO MARINE | 3430 |
| ARROWHEAD | SHI0128 |
| ARROWHEAD (OEM) | S114-828DN |
| ARROWHEAD (OEM) (OLD) | S114-828B, S114-828C, S114-828CN |
| EMP PARTS | 4-6425 |
| HITACHI | S114-828B, S114-828C |
| J & N | 410-44071 |
| LESTER | 18347 |
| MERCURY MARINE | 50-804312T1, 804312T1 |
| QUICKSILVER | 8M6007420 |
| SIERRA MARINE | 18-6425 |
| WAI | 18347N |
| YAMAHA | 67F-81800-00-00, 67F-81800-01-00, 67F-81800-02-00 |
Total Power Parts Marine Starters
Total Power Parts keeps watercrafts moving forward on the lakes, rivers and coastlines. We work directly with factories to ensure each component is manufactured to our exacting quality control standards. But because there is no middleman, we can offer these exceptional-quality electrical components at low factory direct prices.
Marine Starters that Exceed OEM Quality
The stationary gear of many OEM marine grade starters is made of a composite material that is prone to premature wear and corrosion. These starters from Total Power Parts improve upon the original design. With our starters, a high-quality metal gear is embedded into the composite material for added stability and performance. The advantage is a more durable and longer lasting starter that keeps you enjoying more days out on the water.
- Superior Quality Every Time – Our aftermarket starters deliver high performance
- Direct-Fit OEM Replacement Parts – Total Power Parts aftermarket starters are designed for perfect fitment to replace the ones that originally came with your marine engine
- Engineer-Tested Excellence – Our starters go through a rigorous testing program to ensure optimal performance
Reasons to choose Total Power Parts for your next starter:
- Fast engine starts – High quality magnets or field coils deliver more torque for fast and efficient engine starts
- Seals out residue – Sealed housings and bearings keep the internal workings cleaner and drier
- Resistant properties – Carefully engineered to combat the corrosive effects of water – epoxied armatures, top quality bearings and magnets, and sealed solenoids
- Brand new starter – Never settle for a secondhand refurbished one
The Total Power Parts Advantage – 1-Year Warranty
Total Power Parts delivers exceptional value for products that we stand behind with our total-confidence 1-year warranty. Yes, you have a full year to make sure your starter meets your expectations.
