Fuel Injection Wiring Harness; Throttle By Wire; Standard Length; 8 Fuses w/2 Ignition/1 Fuel Pump Relay;

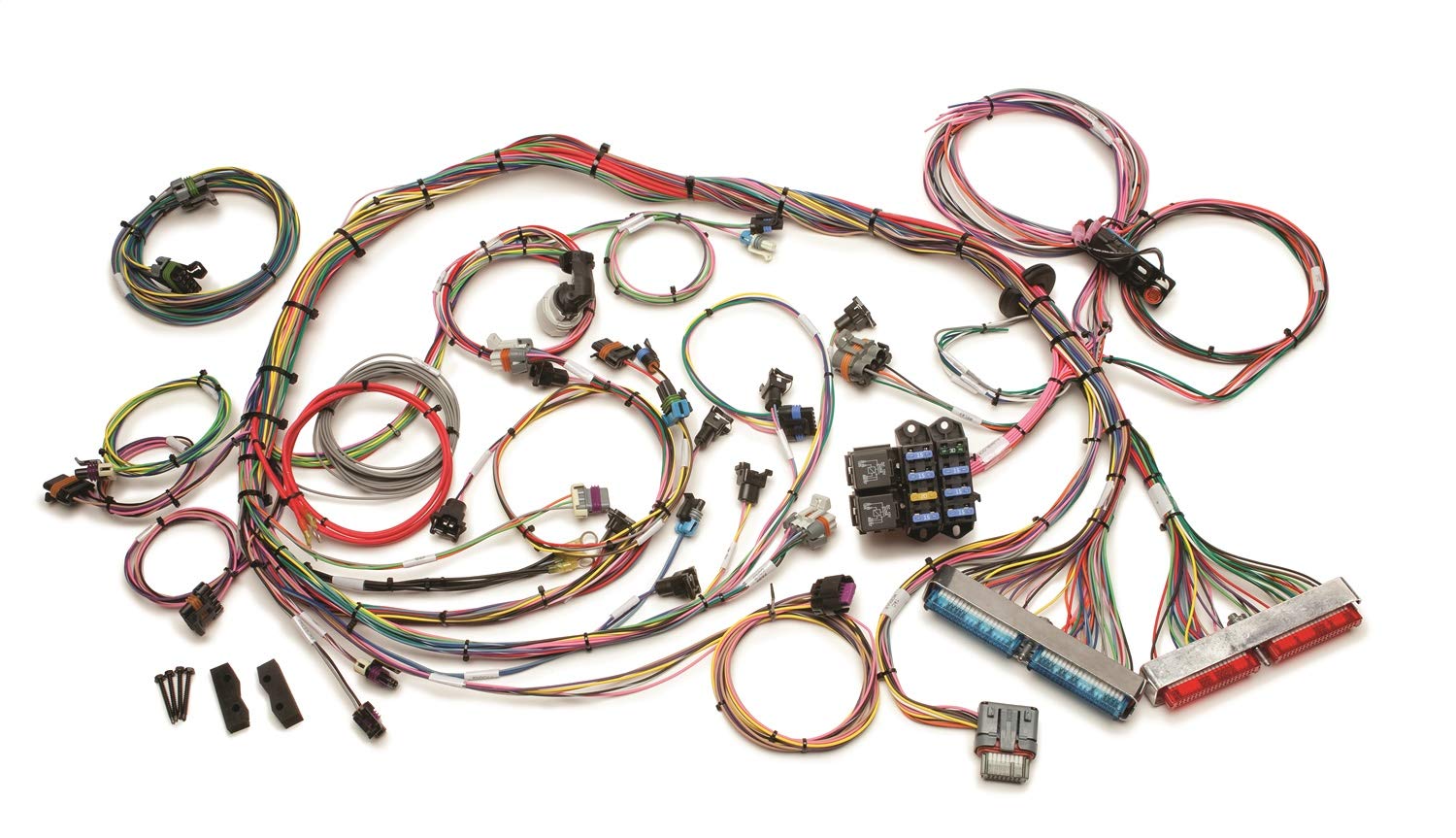

Painless Wiring 60522 Fuel Injection Wiring Harness


Description

Fuel Injection Wiring Harness; Throttle By Wire; Standard Length; 8 Fuses w/2 Ignition/1 Fuel Pump Relay;

Fuel Injection Wire HarnessFuel Injection Wiring HarnessFuel Injection Wiring Harness; Throttle By Wire; Standard Length; 8 Fuses w/2 Ignition/1 Fuel Pump Relay;SPECIFICATIONS:WARNING CA Proposition 65: YesWARNING CA Proposition 65 Message: WARNING: This product can expose you to Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. FEATURES:Drive By Wire Throttle Body ApplicationsFactory Style Connectors For All Required SensorsWill Control 4L60E/4L80E TransmissionIncludes VSS Output Wire For SpeedometerIncludes Ground Activation Wires For 2 Cooling FansComprehensive Instructions And Tech SupportGuaranteed For LifeThis harness is designed for the 1998-2002 LS1 mechanical throttle body engines using a 1999+ LS1 / LS6 ECM with a 4L60E/4L65E automatic or T56 manual transmission. This harness will also work on 1997-2004 Throttle By Wire (TBW) LS1/LS6 engines which has been changed to mechanical throttle body or any 1999-2006 (4.8, 5.3, & 6.2) Vortec truck engine which has been changed to a factory of aftermarket LS1 intake manifold, mechanical throttle body, and injectors. Harnesses do not include any emissions related connections but are available separate. Included with this harness is an 8 circuit modular fuse block and GM color coded wires with labels for easy installation. This standard length harness allows four feet from the back of the intake manifold to where the fuse block and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box. The Fuse Block Protects The Following Circuits: DLC B+, Driver Side Injectors and Coils, Dual 40 amp Ignition Relays, Fuel Pump, Heated O2 Sensors, Mass Airflow Sensor, & Brake Switch, Pass Side Injectors and Coils, ECM and Malfunction Indicator Lamp, ECM B+, Transmission. This harness includes connections for the following components: Alternator , Brake Switch, Cam Position Sensor, Crank Position Sensor, Data Link Connector , Driver/Pass Front O2 Sensors, Engine Coolant Temperature, Fan #1 Relay Ground ECM Activation, Fan #2 Relay Ground ECM Activation, Fuel Pump, Fuel Pump Relay, Fuel Pump Test , Gear Indicator Switch, Grounds , Idle Air Control, Ignition Coils, Ignition Switch Signal, Injectors, Intake Air Temperature Sensor, Knock Sensors, Malfunction Indicator Lamp, MAP Sensor, Mass Airflow Sensor, ECM, Reverse Lockout Solenoid , Skip Shift Light , Skip Shift Solenoid , Starter ,Tachometer, Throttle Position Sensor, Transmission, VATS, Vehicle Speed Sensor. VSS Output for Speedometer.It's a lot more than circuits and wire! How often have you seen advertisements for wiring harnesses promising, 21-circuit kit for the low, low price of...? What do you get for that low price? 21 circuits and yards of colored wire? Is that all you need, and exactly what makes up a proper wiring harness, anyhow? Well, it's a lot more than just circuits and wire. A wiring harness is, first and foremost, engineering. At Painless, all of our harnesses are designed by real engineers using the latest in diagnostic equipment and AutoCAD to ensure consistency in manufacturing and an accurate and easy installation. Finally, and certainly not least, there's quality. You deserve the assurance that after installing a harness it's going to work: That when you turn on the headlights, they shine; That the blinkers blink and that the engine starts. At right you see a Painless fuel injection harness on our exclusive test board. Every single fuel injection harness, before it goes in the box, is mounted first on a test board like this. Each blue connector simulates a particular engine function. This test ensures that all connections are working properly, all pinouts are correct and there is continuity in all the wires. When you install a Painless harness, we GUARANTEE it is going to work. If you're looking for superior quality, engineering and craftsmanship, Painless is your only sensible choice. Painless has remained the leader in automotive wiring and electrical products for over seventeen years through engineering and innovation, not corner cutting and imitation.

Product Details

Sku DHDT60522
Brand Painless Wiring
MPN 60522
UPC 749823605220
