Package include:
- 1 x 4 Axis CNC Offline Stand alone Controller DDCSV3.1
- 1 x 4 Axis 100 Pulse Pendant Handwheel MPG with Emergency Stop with 15-pin plug
- 1 x USB Extension Cable+Accessories
- Pdf. user manual (If you have not received the user manual at Amazon Message Center from us,please message us)
DDCS V3.1 Controller Brief Introduction
1.1 Introduction of Product
The DDCS is a 3~4 axis motion controller for stepper and servo systems. DDCS V3.1 is updated from DDCS V2.1 on software and hardware.It combines great power with a tiny footprint and is easy to use. The highest output pulse per axis is 500KHz. This provides high control precision for stepper motors and servo motors.
The DDCS numerical control system adopts the ARM+FPGA design framework. ARM controls the human-computer interface and code analysis and the FPGA provides the underlying algorithms and creates the control pulse. This guarantees reliable control and easy operation. The internal operating system is Linux based. The panel layout structure of the DDCS V3.1 is very rational to save space. All operations are controlled by only 17 keys and a comprehensive G code set is supported. The DDCS can be used for many styles and types of CNC machines. Lathes, Routers, Pick&- Place and Mills are just a few examples.
The DDCS operates as a Stand Alone system without the need of a computer. This guarantees high precision, accuracy and reliability. The interface, even very comprehensive, can be learned in a very short time.
1.2 DDCS V3.1 Brief technical feature:
1) 16 photoelectric isolated digital inputs,3 photoelectric isolated digital outputs;
2) 3.1 Version enhenced Algorithm,support soft interpolation,fixed arc interpolation bug of the old version;
3) Analog spindle control 0-10V spindle control (can be modified as PWM output);
4) 3-4 axis motor Control.Differential Pulse and direction output signal,Max.500Khz per axis;
5) ARM9 main control chip,FPGA core algorithm chip;
6) 5 inches TFT screen, resolution ratio: 480x272,17 operation keys;
7) The Power Supply for the controller is 24VDC, minimum Current is 0.5A;
8) The Power Supply for IO Port is 24VDC,minimum current is 0.5A;By the IO power supply,system already supply the power for IO ports.So no need the external power supply for IO port anymore;
9) USB flash disk support for G code file input,no size limited of the G-code file ;
10) Support standard MPG;
11) Jog function for each axis (continuous, step, defined distance);Customer can define the distance;
12) Support the operation of quickly specify the running position;
13) Support for “Power Cut” recovery. Data is automatically saved;
14) The controller only support NPN type limited switch.
1.3 Appearance, Structure and Size of Product

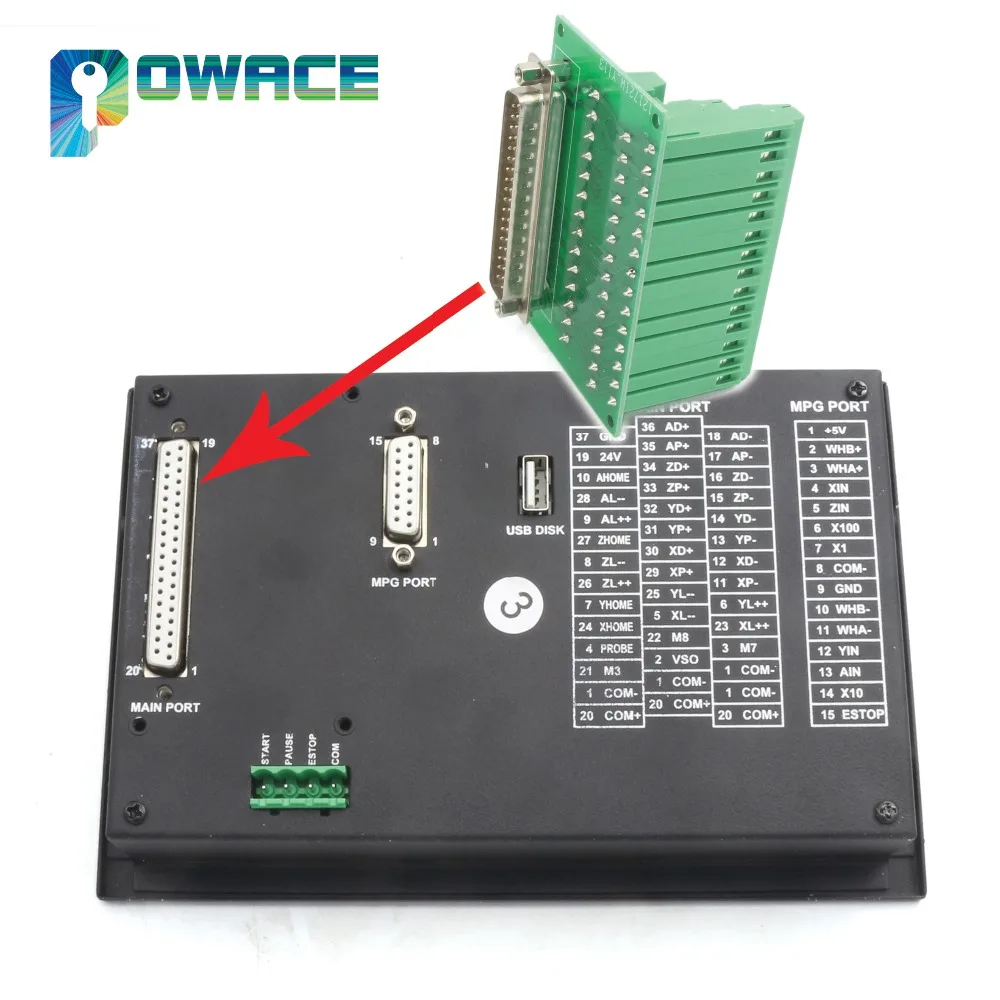

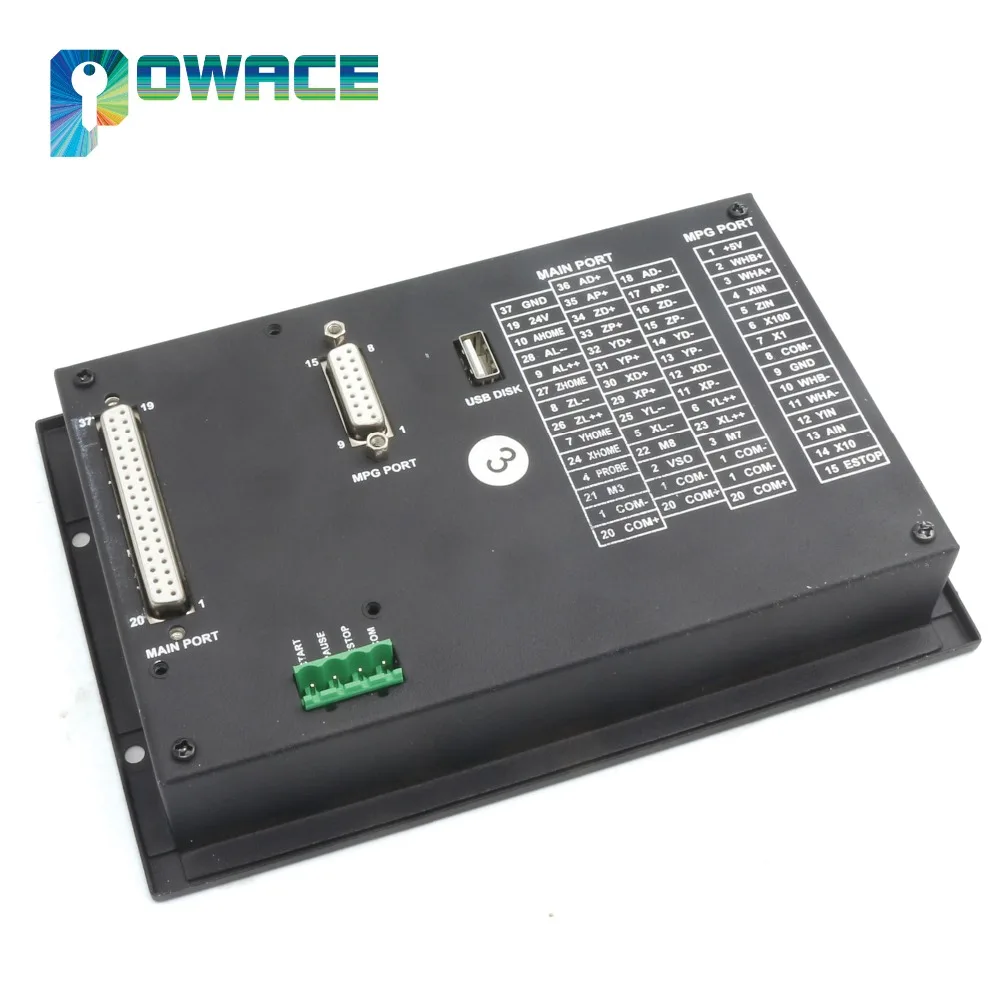

The DDCS V3.1 is a small box that can fit in a window of a small control box or control cabinet. Four locking hooks fix this controller from the frame. The dimension you find in picture 1-1 and picture 1-2. The front panel is 191mm*128mm*5mm； The main body is 191mm*128mm*37mm； To mount the unit in an equipment cabinet, cut the hole182.5mm*59mm
Product Wiring Overview
Explanation of Abbreviations
When operating the DDCS, the users will come across some English abbreviations. Here a list with explanations
FRO: Feed Rate Override
SRO: Spindle Rate Override
SRJ: Jog Speed Setting
F: Feed rate, unit is mm/min
S: Spindle Speed, unit rev/min.
X: The coordinate code of the X axis.
Y: The coordinate code of the Y axis.
Z: The coordinate code of the Z axis.
A: The coordinate code of the A axis
BUSY: The system is busy. You still can adjust FRO and SRO
READY: READY mode, any operation can be done
RESET: Reset mode, controller is in“ OFF” mode, no operation can be performed
CONT: Continuous mode, each axis can be manually jogged with the arrow keys
Step :Manual Step Mode，each axis can be jogged in defined steps
MPG: MPG mode. Operate the machine with the MPG (Manual Pulse Gener ator)
AUTO: Run G code. Auto is showing when file is processing
II. Pendant Handwheel
Description:
1.The CNC 4 Axis handheld controller MPG Pendant with x1, x10, x100 selectable, You are bidding one complete unit of the MPG pendant with Emergency stop for 4 axis CNC machine, it equipped with our popular machined MPG unit with 4 axis and scale selector, LED indicator also send feedback from the CNC machine to user about the status of the unit. 2.All Wiring isolated from MPG unit and provide a easy to install wiring diagram, it suit both commercial machine as a replacement jog control unit or other computer based controller. Which add great control flexibility to the system. Specification:1. x1, x10, x100 switch2. X,Y,Z,4th axis selector switch3. LED indicator4. With Emergency stop5. High quality professional chassis6. 6ft extendable high quality shielded cable cord7. Magnetic base holder can place anywhere on the machine steel surface8. Required 5V+, 150mA, power for MPG9. Phase output is A ,/A and B,/B;10. TTL output, drive capability +-20mA;11. Support CNC system:Taiwan Pou Yuen M600 M500 M520i T300 series, Higerman, HANUC,GSK,opened NC, KND,Siemens, the NUM, Spain FAGOR (NEW, 8055I) and so on.12.Wiring:User can wire this unit to the CNC system with easy.
- 1 x 4 Axis CNC Offline Stand alone Controller DDCSV3.1
- 1 x 4 Axis 100 Pulse Pendant Handwheel MPG with Emergency Stop with 15-pin plug
- 1 x USB Extension Cable+Accessories
- Pdf. user manual (If you have not received the user manual at Amazon Message Center from us,please message us)
DDCS V3.1 Controller Brief Introduction
1.1 Introduction of Product
The DDCS is a 3~4 axis motion controller for stepper and servo systems. DDCS V3.1 is updated from DDCS V2.1 on software and hardware.It combines great power with a tiny footprint and is easy to use. The highest output pulse per axis is 500KHz. This provides high control precision for stepper motors and servo motors.
The DDCS numerical control system adopts the ARM+FPGA design framework. ARM controls the human-computer interface and code analysis and the FPGA provides the underlying algorithms and creates the control pulse. This guarantees reliable control and easy operation. The internal operating system is Linux based. The panel layout structure of the DDCS V3.1 is very rational to save space. All operations are controlled by only 17 keys and a comprehensive G code set is supported. The DDCS can be used for many styles and types of CNC machines. Lathes, Routers, Pick&- Place and Mills are just a few examples.
The DDCS operates as a Stand Alone system without the need of a computer. This guarantees high precision, accuracy and reliability. The interface, even very comprehensive, can be learned in a very short time.
1.2 DDCS V3.1 Brief technical feature:
1) 16 photoelectric isolated digital inputs,3 photoelectric isolated digital outputs;
2) 3.1 Version enhenced Algorithm,support soft interpolation,fixed arc interpolation bug of the old version;
3) Analog spindle control 0-10V spindle control (can be modified as PWM output);
4) 3-4 axis motor Control.Differential Pulse and direction output signal,Max.500Khz per axis;
5) ARM9 main control chip,FPGA core algorithm chip;
6) 5 inches TFT screen, resolution ratio: 480x272,17 operation keys;
7) The Power Supply for the controller is 24VDC, minimum Current is 0.5A;
8) The Power Supply for IO Port is 24VDC,minimum current is 0.5A;By the IO power supply,system already supply the power for IO ports.So no need the external power supply for IO port anymore;
9) USB flash disk support for G code file input,no size limited of the G-code file ;
10) Support standard MPG;
11) Jog function for each axis (continuous, step, defined distance);Customer can define the distance;
12) Support the operation of quickly specify the running position;
13) Support for “Power Cut” recovery. Data is automatically saved;
14) The controller only support NPN type limited switch.
1.3 Appearance, Structure and Size of Product
The DDCS V3.1 is a small box that can fit in a window of a small control box or control cabinet. Four locking hooks fix this controller from the frame. The dimension you find in picture 1-1 and picture 1-2. The front panel is 191mm*128mm*5mm； The main body is 191mm*128mm*37mm； To mount the unit in an equipment cabinet, cut the hole182.5mm*59mm
Explanation of Abbreviations
When operating the DDCS, the users will come across some English abbreviations. Here a list with explanations
FRO: Feed Rate Override
SRO: Spindle Rate Override
SRJ: Jog Speed Setting
F: Feed rate, unit is mm/min
S: Spindle Speed, unit rev/min.
X: The coordinate code of the X axis.
Y: The coordinate code of the Y axis.
Z: The coordinate code of the Z axis.
A: The coordinate code of the A axis
BUSY: The system is busy. You still can adjust FRO and SRO
READY: READY mode, any operation can be done
RESET: Reset mode, controller is in“ OFF” mode, no operation can be performed
CONT: Continuous mode, each axis can be manually jogged with the arrow keys
Step :Manual Step Mode，each axis can be jogged in defined steps
MPG: MPG mode. Operate the machine with the MPG (Manual Pulse Gener ator)
AUTO: Run G code. Auto is showing when file is processing
II. Pendant Handwheel
Description:
