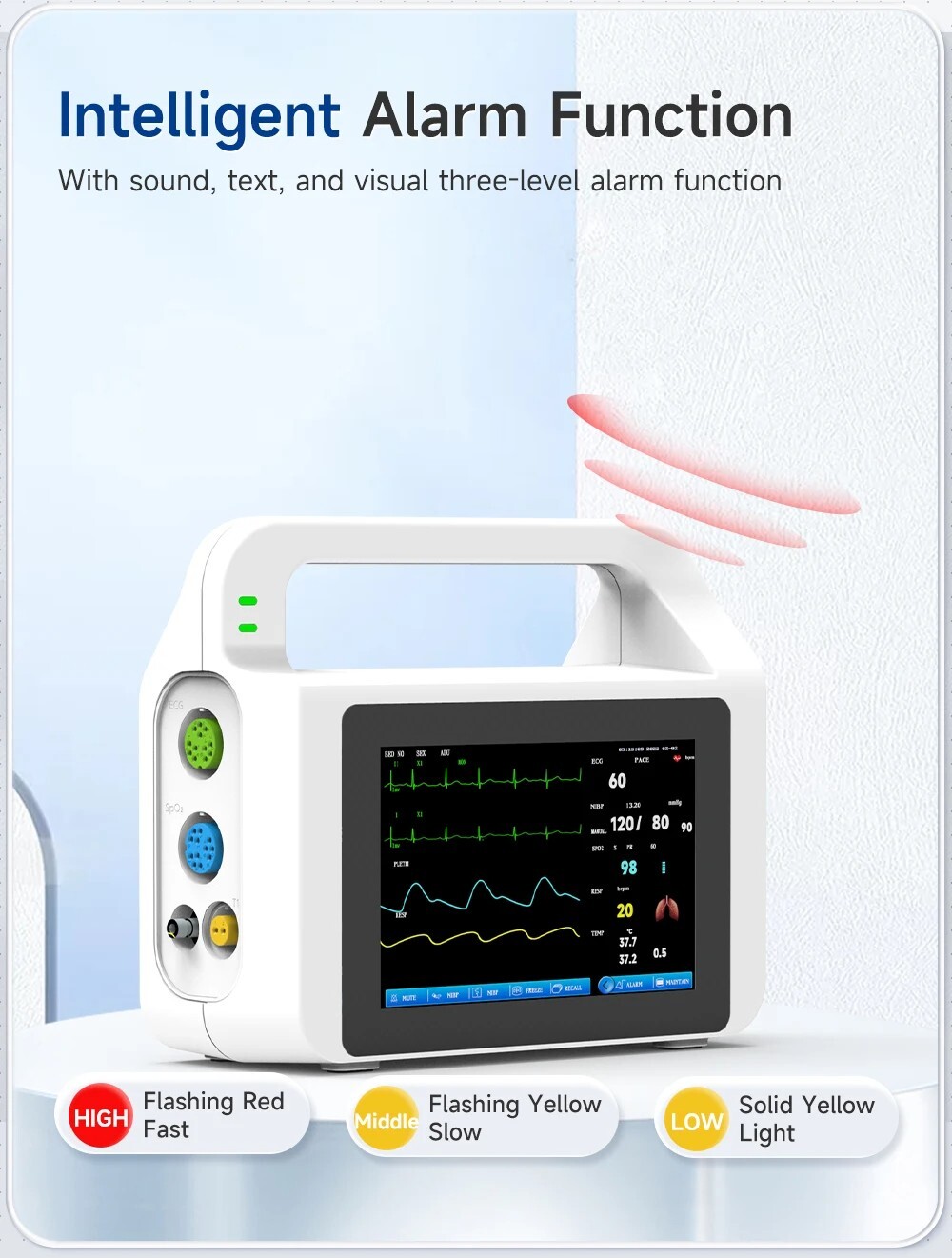

5 Inch Touch Screen Portable Multi-Parameter Medical Patient Monitor

Product Description

All parts are inspected before we ship it to make sure they work properly.
If you have a problem, feel free to contact us and we'll be happy to help you out, we're usually very quick to respond!

Tip: This device does not have ETCO2 function.

TECHNICAL SPECIFICATIONS
Quality Standards and Classification
Anti-electroshock degree:
ClassⅠequipment
(internal power supply)
Protection degree of fluid intake: IPX1

Application Range
Suitable for nurses to check the room,
doctors out, ambulance

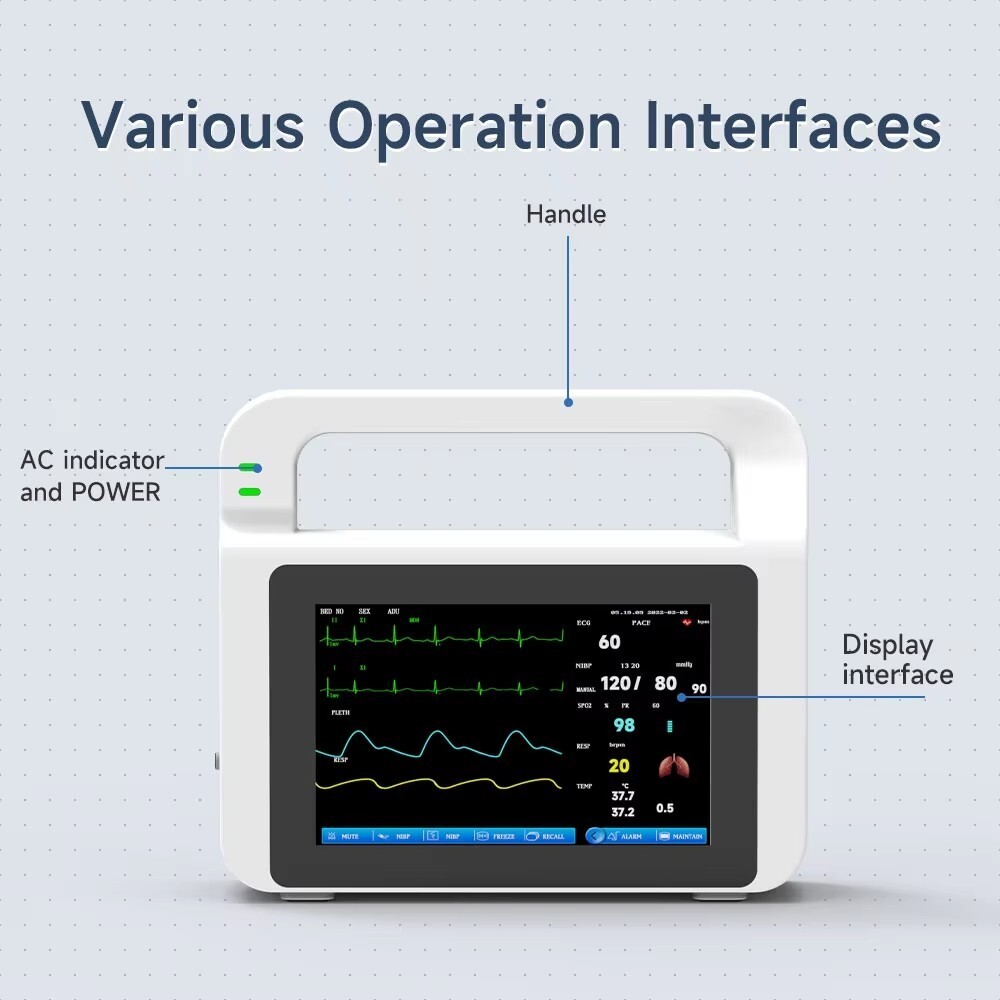

Display
5-inch color TFT LCD display

Environment
working environment conditions
a) Ambient temperature range: +5ºC～40 ºC;
b) Relative humidity range: 15%～80%, no condensation
c) Atmospheric pressure range: 60～107kPa;

Shipping and storage conditions
a) Ambient temperature: -20ºC~+55ºC
b) Atmospheric pressure: 16kPa～107kPa
c) Humidity range: 10%～95%

Electrical Specifications
Input: AC 100~240V AC,
Power frequency: 50/60Hz,
Maximum input power: 70VA
Fuse specification: 2AL 16V
Working method: continuous work
Internal lithium battery: d.c 7.4V Not less than 2000 mAh

Dimension and Weight
Product Size 168*143.3*66.5mm
Product weight 825g

ECG
Gain: X0.25, X0.5, X1, X2, Auto
Timebaseline selection: 12.5mm/s, 25mm/s, 50mm/s
Sensitivity＞200uV (peak-to-peak)
bandwidth:
Diagnostic mode: 0.05~130Hz
Monitoring mode: 0.5~40Hz
Operation mode: 1~20Hz
Common Mode Rejection Ratio:
Diagnostic mode: >90dB
Custody mode: >100dB
Operation mode: >100dB
Electrode polarization voltage: ±300mV
Input impedance: <20%
DC bias voltage: -300mV~ 300mV
Multi-channel crosstalk: <5%
ST segment detection measurement:
Measurement range: -2.0mV~+2.0mV
Measurement accuracy: the measurement error
between-0.02 mV and + 0.8 mV is ± 0.02 mV or ± 10%.
Other scope is not defined

NIBP
Adult systolic blood pressure: 40～270mmHg
Diastolic blood pressure: 10～210mmHg
Average pressure: 20～230mmHg
Children systolic blood pressure: 40～200mmHg
Diastolic blood pressure: 10～150mmHg
Average pressure: 20～165mmHg
Neonatal systolic blood pressure: 40～135mmHg
Diastolic blood pressure: 10～95mmHg
Average pressure: 20～110mmHg
Static pressure range: 0～300mmHg
Static pressure accuracy : 3mmHg
Blood pressure accuracy:
maximum average error 5mmHg;
maximum standard deviation 8mmHg
Overvoltage Protection:
Adult mode: 300 mmHg±10mmHg
Child mode : 240mmHg±10mmHg
Neonatal mode : 150mmHg±10mmHg

SpO2
Measuring range 0～100%
Resolution 1%
The accuracy is within the range of 70% to 100%,
and the measurement error should be ±4%;
In the range of 0% to 69%, the measurement
error is undefined

Pulse Rate
Measuring range 25～250bpm
Resolution 1bpm
Accuracy ±3bpm
Refresh time 1s

Heart rate
15 to 300 bpm for adults (beat / min)
Newborn / child 15-350 bpm (beat / min)
Accuracy: ± 1% or ± 1 bpm, take the large one

Temperature
Range 0～50ºC
Resolution 0.1ºC
Accuracy ±0.1ºC (without probe error)

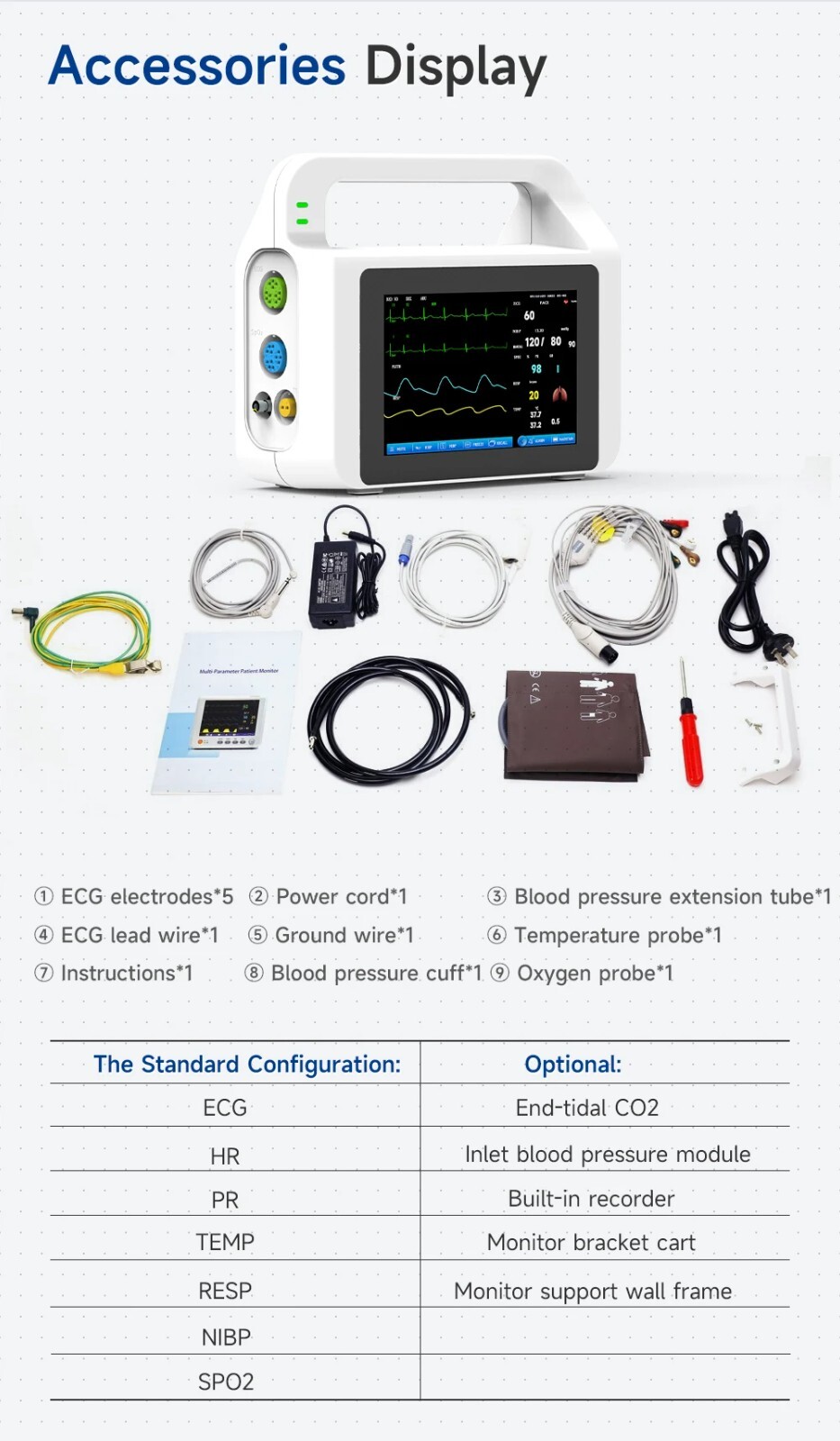

Standard accessories
ECG lead line
Cuff
SpO 2 sensor
TEMP probe
Lithium-ion battery
Power cable
Operator's manual
