SINO 5 languages SDS2-3VA 3 Axis LCD DRO Kits Digital Readout KA300 KA500 Linear Scale Encoders Ruler For Lathe Grinder Milling Machines

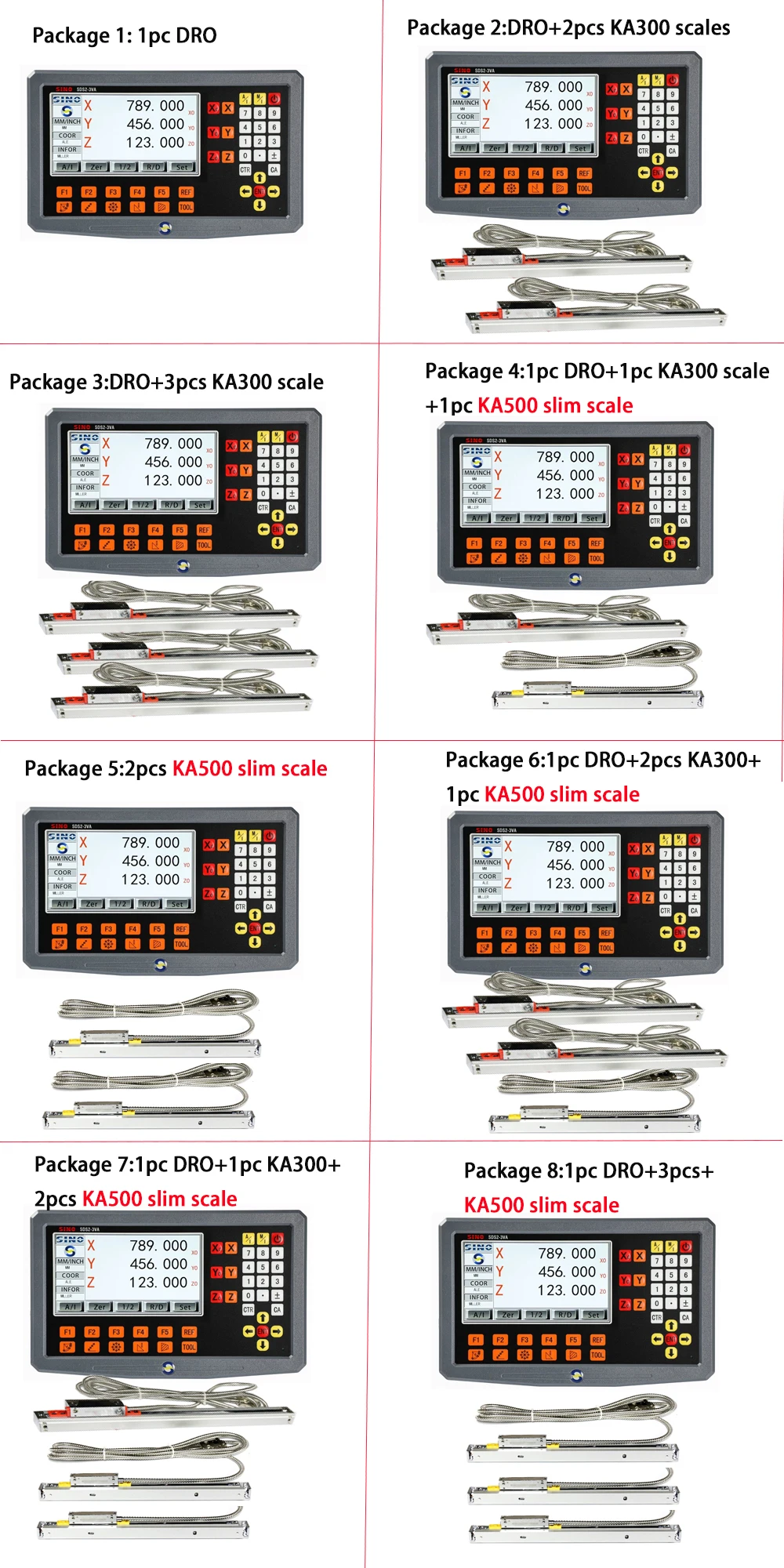

Package includes:

-Pckage 1, 1x piece x  DRO,no include linear scale;

-Pckage 2,1x piece DRO+ 2 x pieces KA-300 linear scales;

-Pckage 3, 1x piece DRO + 3 x pieces KA-300 scales;

-Pckage 4 ,1 piece DRO + 1 x piece KA-300 scale+ 1 x piece KA-500 slim scales;

-Pckage 5 ,1 piece DRO + 2 x piece KA-500 slim scales;

-Pckage 6 ,1 piece DRO + 2 x piece KA-300 scale+ 1 x piece KA-500 slim scales;

-Pckage 7 ,1 piece DRO + 1 x piece KA-300 scale+ 2 x piece KA-500 slim scales;

-Pckage 8 ,1 piece DRO + 3 x piece KA-500 slim scales.

Notes:

1. KA300 is normal size scale with 21*34mm ; KA500 is slim scale with size 18*20mm;

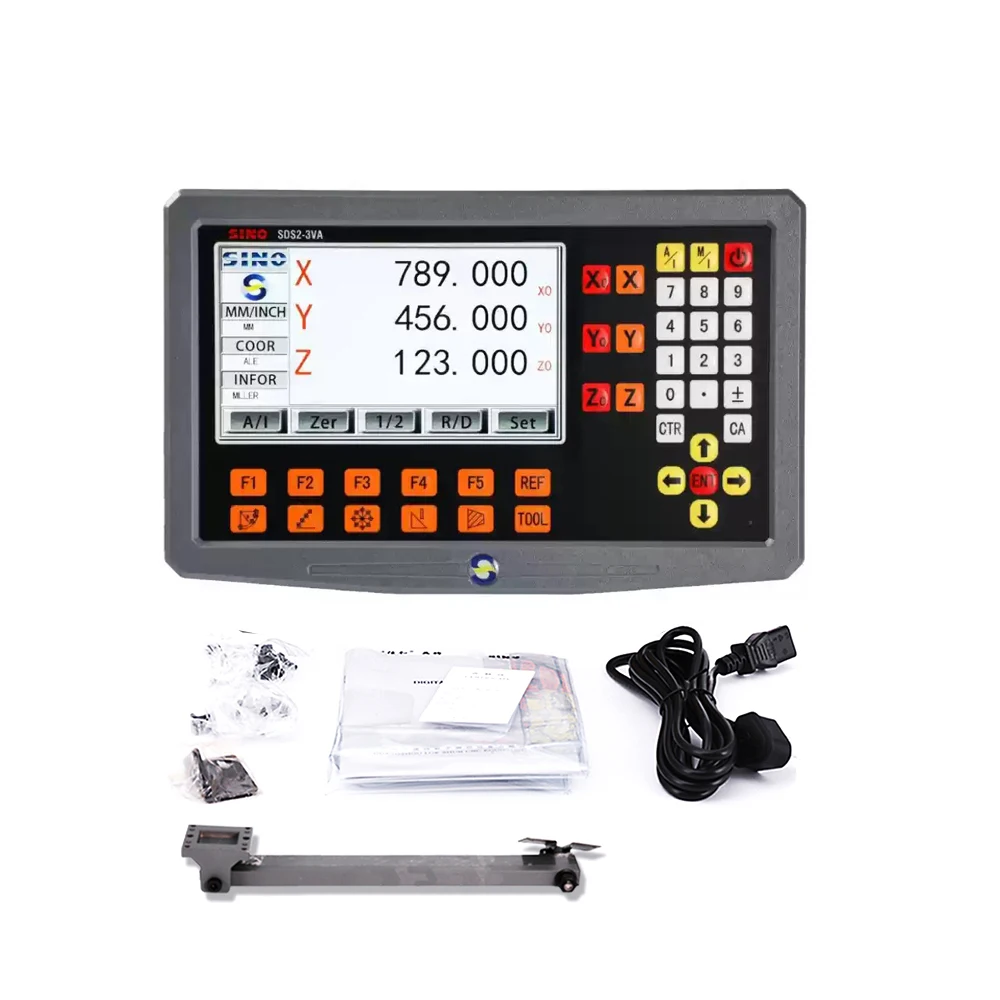

2.Accessoriess: 1pc DRO include power cord, dust cover, English manual, install arm each 1 pc; 1 pc scale include dust cover,bracket, screw bag each 1 pc.

3.KA300 working length is 70mm to 1020mm, KA500 working length is 70-520mm.
4.Our price is not include your import taxes and other charges, our price is only include products cost and shipping freight.Please make custom clear and pay the taxes when the goods arrival, it depends on your custom.


How to choose the length of scales when ordering ? (package 2 -8 )

1st method:

Click "contact seller" to write a message about the travel length(L0),or the scale models that needed.

2nd method:

When confirming and paying for the order, write "leave a message for this seller" that you need the travel length, or models of the scales.Or just send a message to us will also fine, thank youIt unable ship the goods if do not provide the models of the scale you need !

Buyer may chose the scale model as follows:

KA300 scale, 70/120/170/220/270/320/370/420/470/520/570/620/670/720/770/820/870/920/970/1020mm (L0);

KA500 scale,70/120/170/220/270/320/370/420/470/520mm(L0).Please note, its total length will add 106mm.

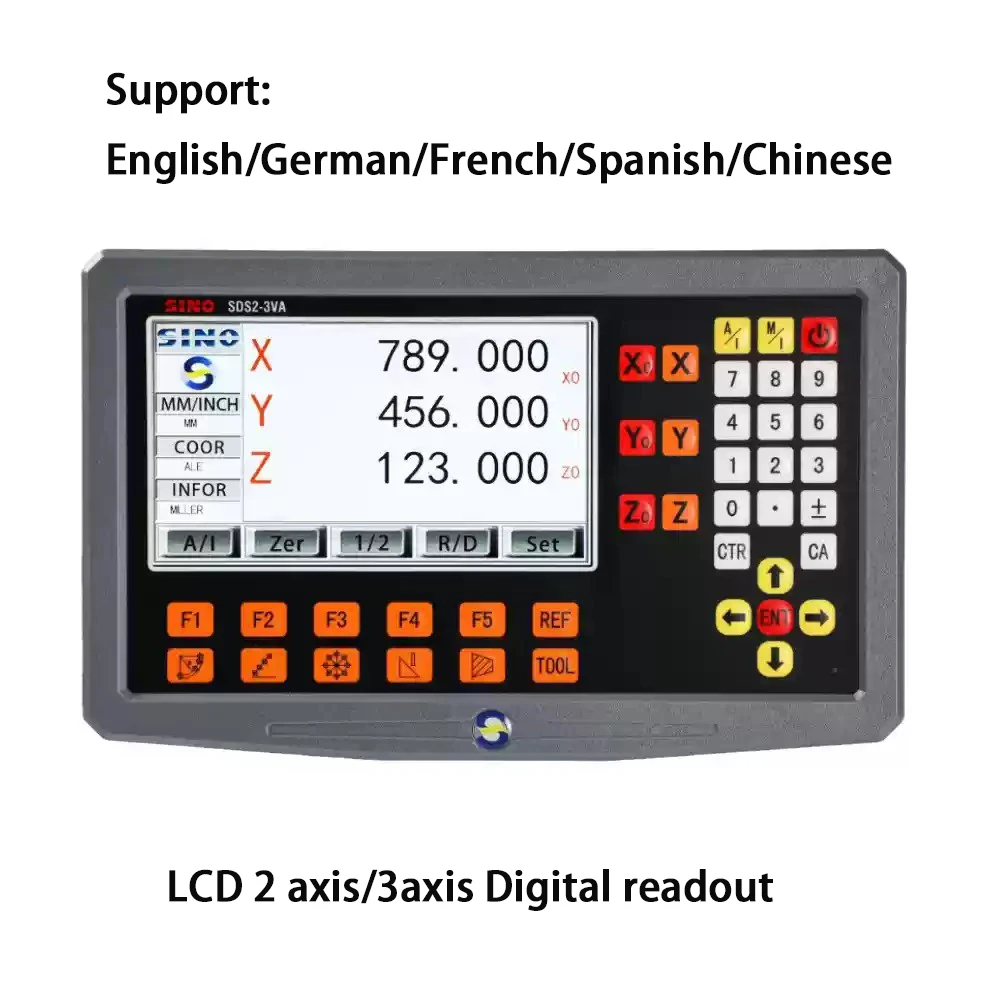

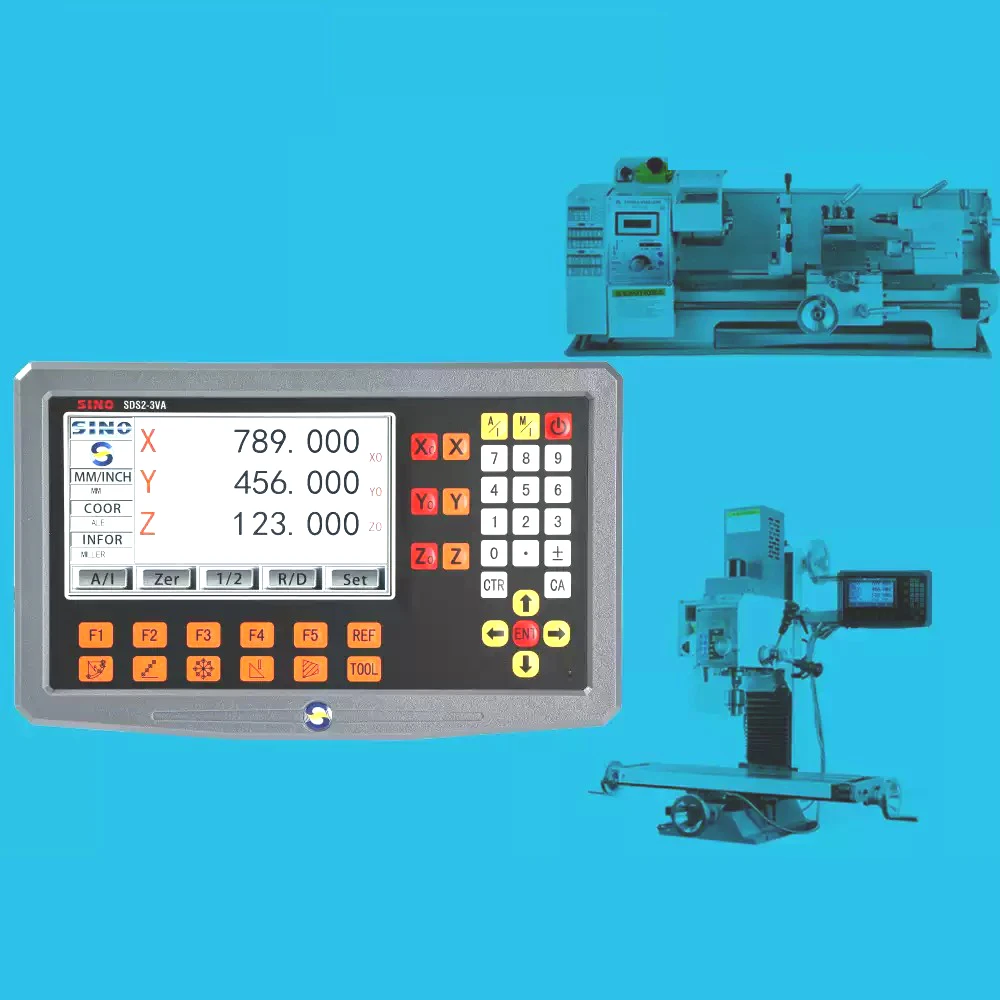

SINO SDS2-3VA LCD digital readout parameters
1. The voltage range: AC 85 v ~ 250 v / 50 hz ~ 60 hz, can be use at whole countries.
2. 15 w power consumption: 25 va
3. Coordinate the number: one coordinates, two coordinates, three coordinates
4. Show that signed seven display (two or three axis) output data information using eight meters words show symbols

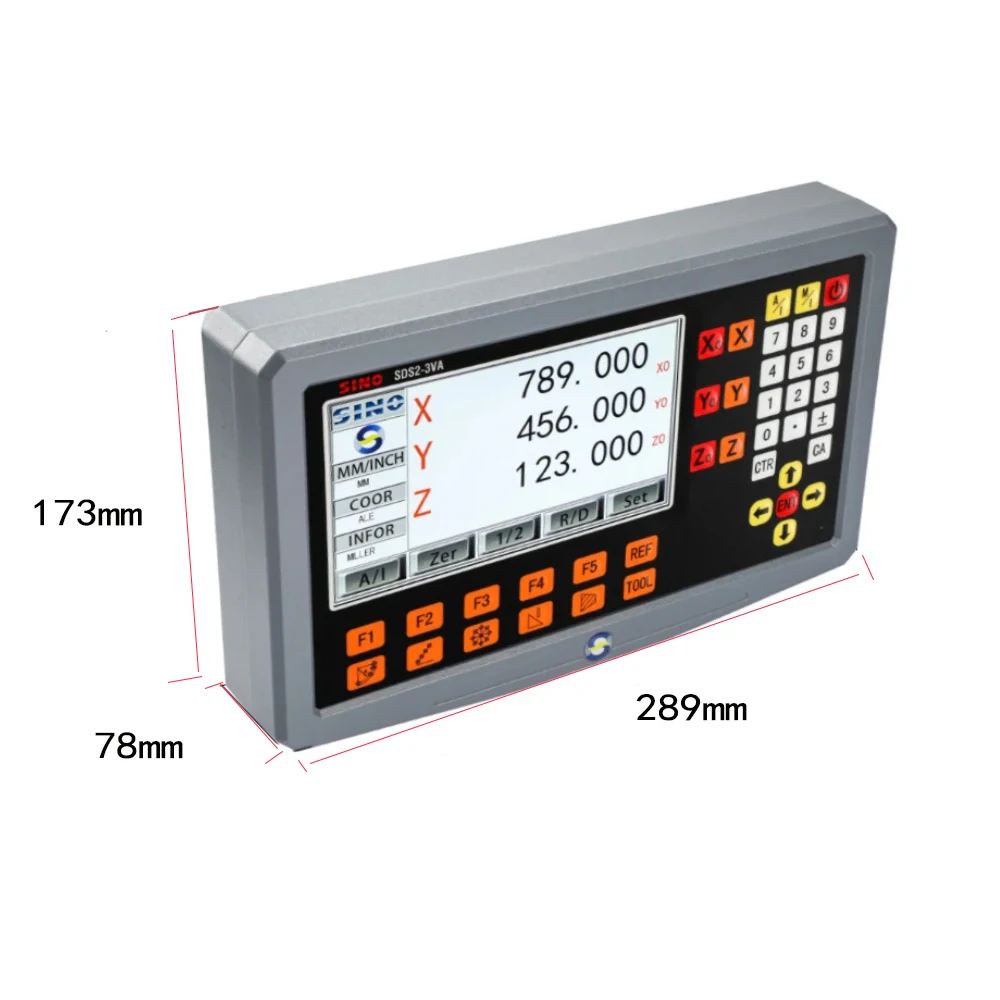

5. Net Weight: 1.5 kg
6. The input signal: TTL, EIA - 422 open collector output signal, convenient interface with a programmable controller.
7. Allow the input signal frequency: > 100 KHZ
8. Accepted resolution: 10um, 5um, 2um, 1um,0.5um

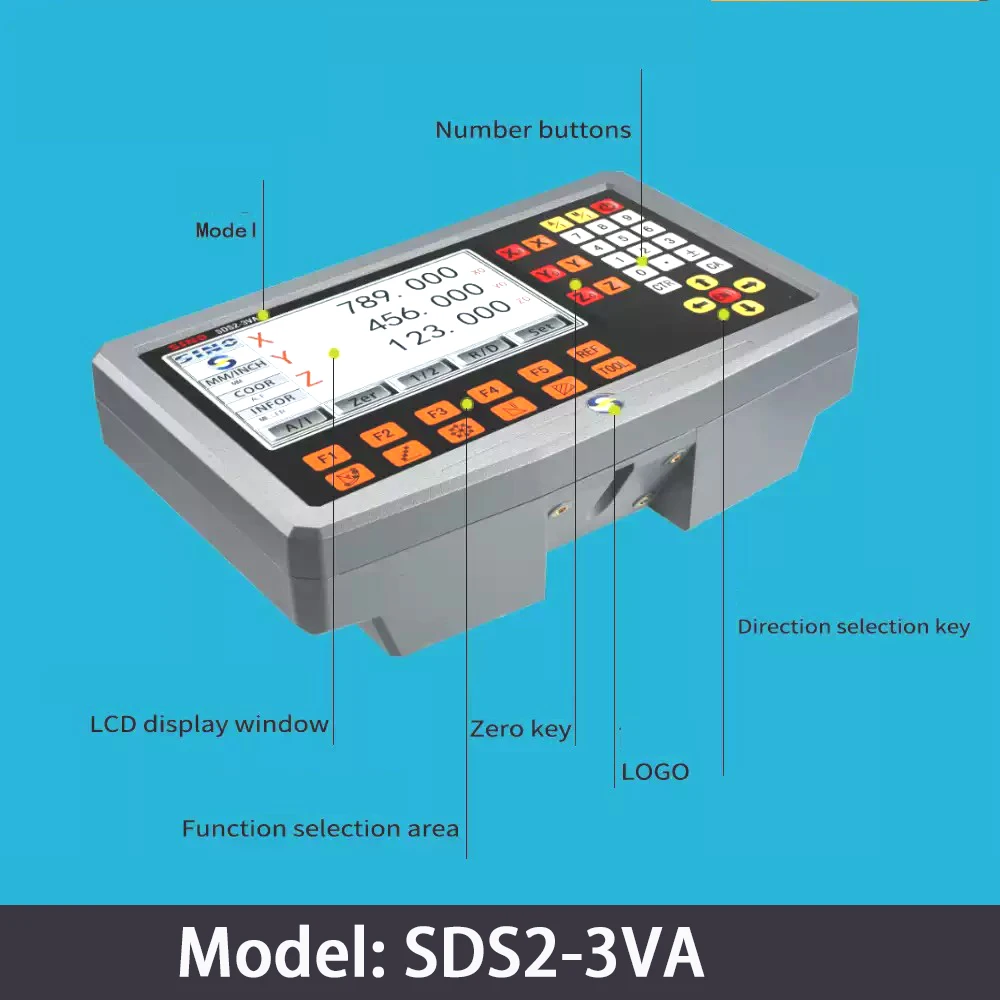

Digital display advantages:

-Support 5 languages, including Chinese, German, French, English, Spanish

-Thin size ,PC cover, good signal

-Simple system, easy to operate

-Big LCD screen, clear display


Basic Functions
√ mm/inch Transformation                 √ Absolute/Relative Transformation
√ Mid-split Function                           √ Simple "R" Function
√ Smooth "R" Function                      √ Divide the perimeter of circle
√ Save 200 workpiece zero points     √ Divide holes on an oblique line
√ Mathematics calculation                 √ Tool diameter compensation
√ Bevel process                                 √ Zero location autorest
Goods ship from Poland, Russia or China fast delivery !


KA300 Linear scale Specifications:

1. Travel (measuring) length (L0): 70/120/170/220/270/320/370/420/470/520/570/620/670/720/770/820/870/920/970/1020mm

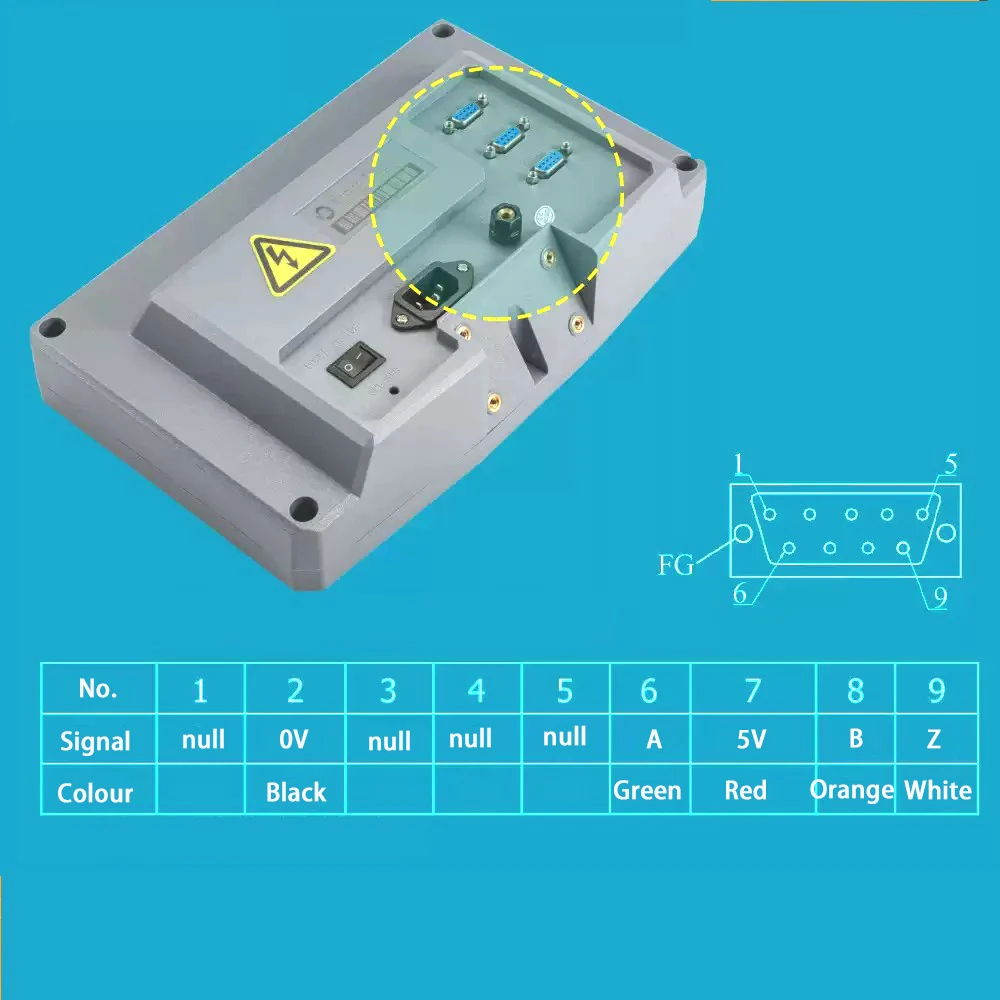

2. Plug: DB9
3. Resolution: 0.005mm(5micron)
4. Input voltage: 5VDC
5. Grating pitch: 0.02mm (50LP/min)
6. Cable length: 3 Meter
7. Width*heigth size: 21*34mm
8. KA-300 grating ruler is a kind of grating ruler which is widely used. It has reasonable structure, the shape design is beautiful, good rigidity, can meet the majority of general machine tool users use, use long Degree in 70~1020mm
9. Moving speed: 60m/min
10. Working temperature: 0~45 degree


KA300 Linear scale Advantage:


1.The reading head for the design of five bearing system


2.Grating sensor is closed type


3.The signal line is coverred by the nets of multilayer isolatio ,so waterproof, rust protection


4.The light source adopts imported infrared leds


5.Special oil resistance, corrosion resistant


6.With high level of anti-interference ability, high stability, high speed, vibration resistance



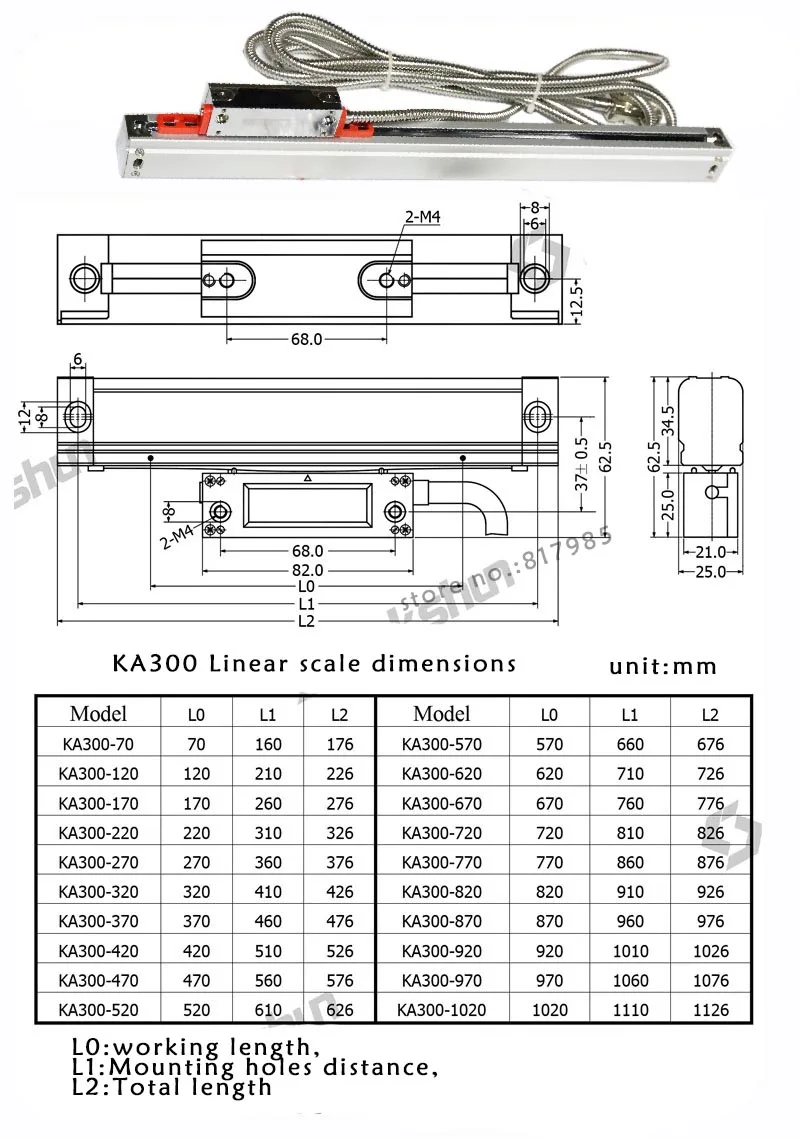

Linear scale drawing:



KA-500 Slim scale Futures

Available Measrus Length: 70mm-520mm

Cross Section: 18mm X 20mm

Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)

Max of Measuring speed: 60m/min

Reference point: one unit per 50mm

Protection level: IP55

Resolution: 5um(0.005mm)

Output signal: TTL

Cable standard: 3 meters

Connetor: 9 Pins
