OBDSTAR MarineMaster A+B Marine Diagnostic Scan Key Coding for Jet ski/Outboard

PRODUCT DESCRIPTION

International Buyers - Please Note:
a)  Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.
b)  Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.

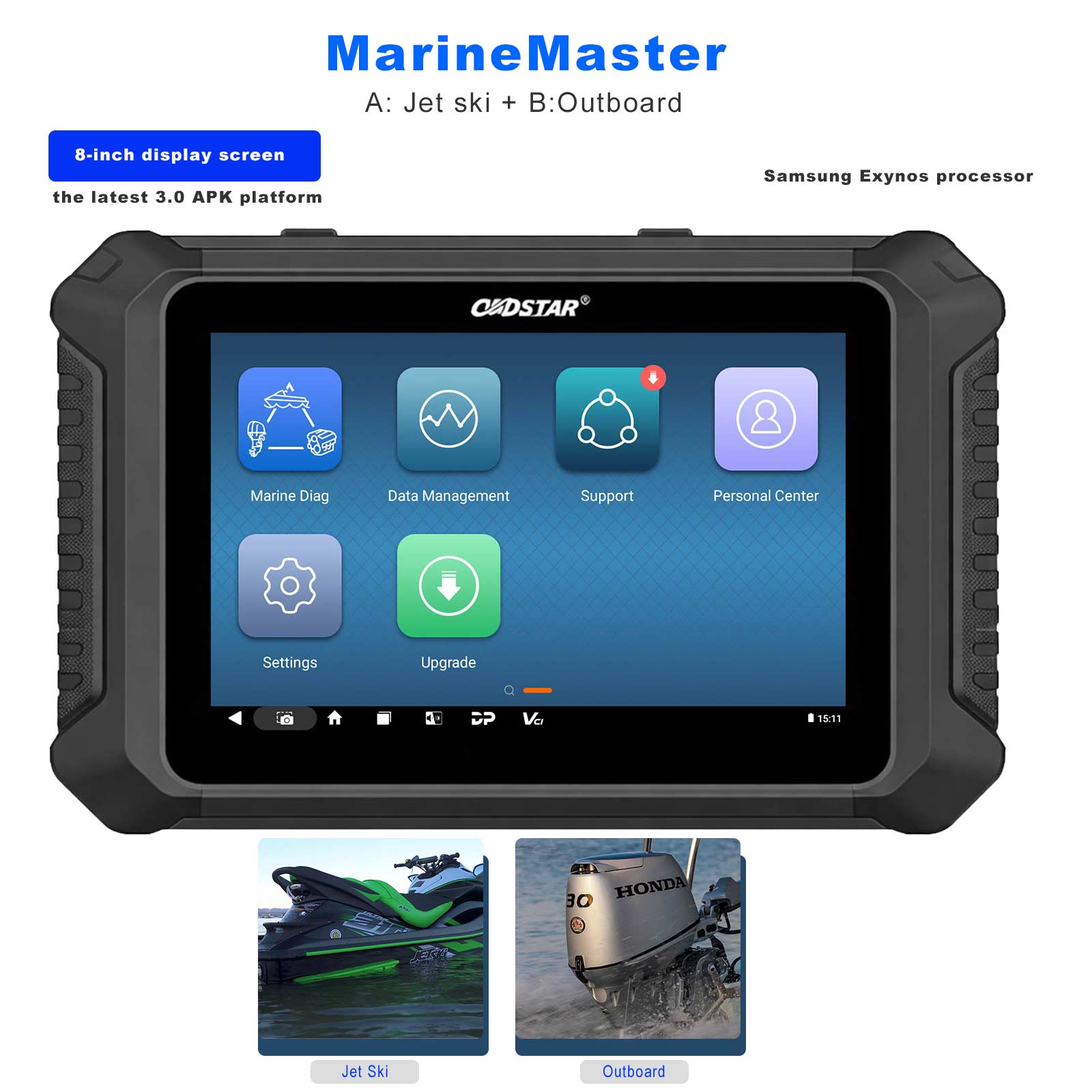

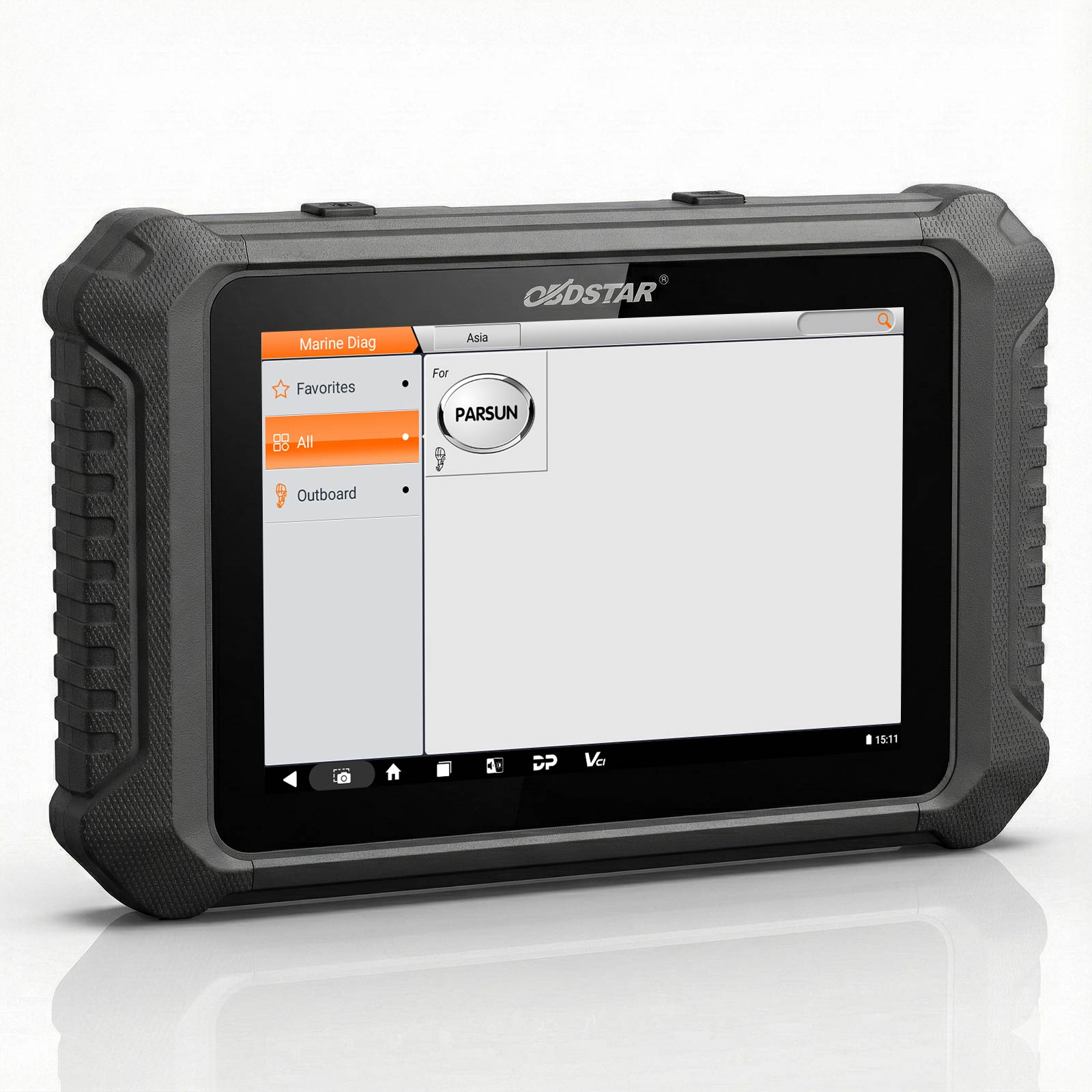

OBDSTAR MarineMaster A+B Marine Diagnostic Tool for Jet ski, Outboard

MarineMaster is OBDSTAR's new generation device for marine (Jet ski/Outboard) intelligent diagnosis.

Based on Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth.

MarineMaster adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The MarineMaster marine scanner, with its fast upgrade performance and built-in help materials, is a good helper for marine maintenance engineers!

Functions:
1. Android 11 operating system with one-click OTA (Over-The-Air) updates ;

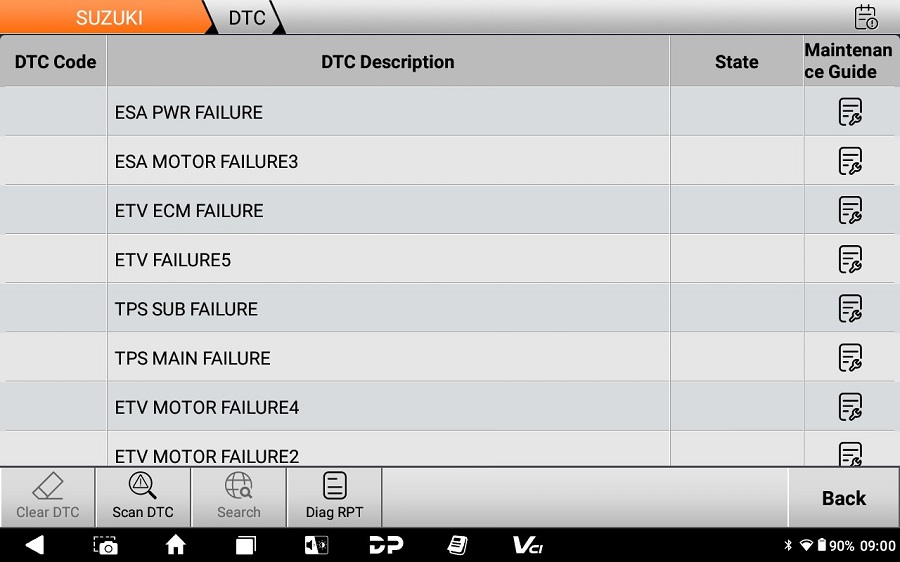

2. Provide complete diagnostic functions including E-C-U information, code reading, code clearing, data flow, freeze frames, action test, setting, coding, read working hours, Helm Setup, etc;
3. Record and play back real-time flow, quickly and accurately locate sensor and component faults;
4. Wi-Fi connection to the internet, one-click software upgrade;
5. One-click remote function, OBDSTAR technical staff remote assistance;
6. Built-in screen recording and wireless screen mirroring capabilities.
7. Free upgrade for 2 year.
8. Support English only, can't change to other languages.

Advanced Functions:
1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with MarineMaster to make marine diagnosis more accurately and efficiently (some functions are only available for MarineMaster users to check for free);
2. The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free;
3. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyze faults;
4. Supports Auto Scan, BCM Simulator, Instance Setting, Maintenance Setting, Remote Control Reset, System Calibration, Torque Adjustment and other functions...

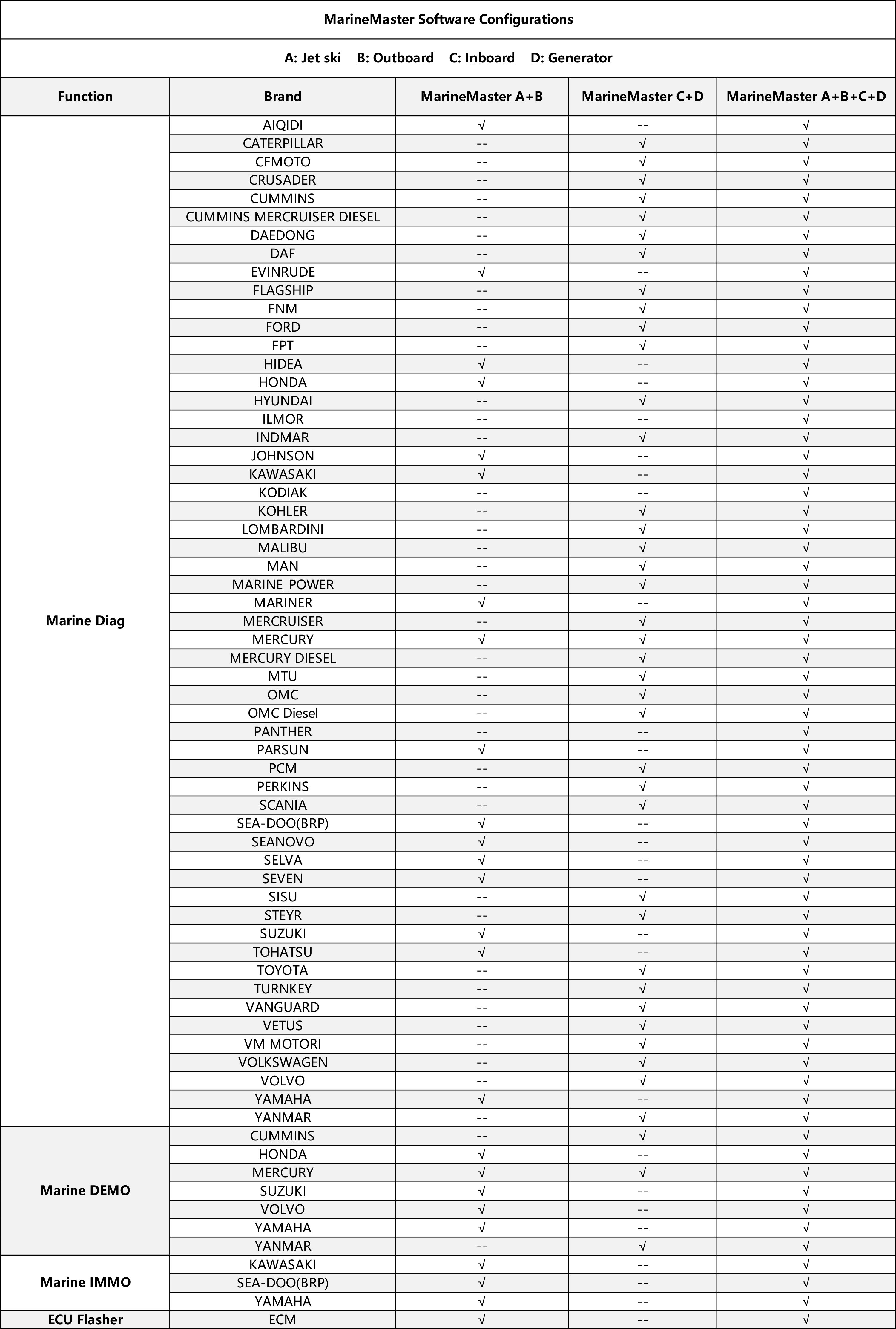

It has below three configurations

A: Jet ski    B: Outboard    C: Inboard    D: Generator

MarineMaster A+B: Jet ski, Outboard

MarineMaster C+D: Inboard, Generator

MarineMaster A+B+C+D: Jet ski, Outboard, Inboard, Generator



Function Display-(From OBDSTAR Mobile App)


1) Main Page

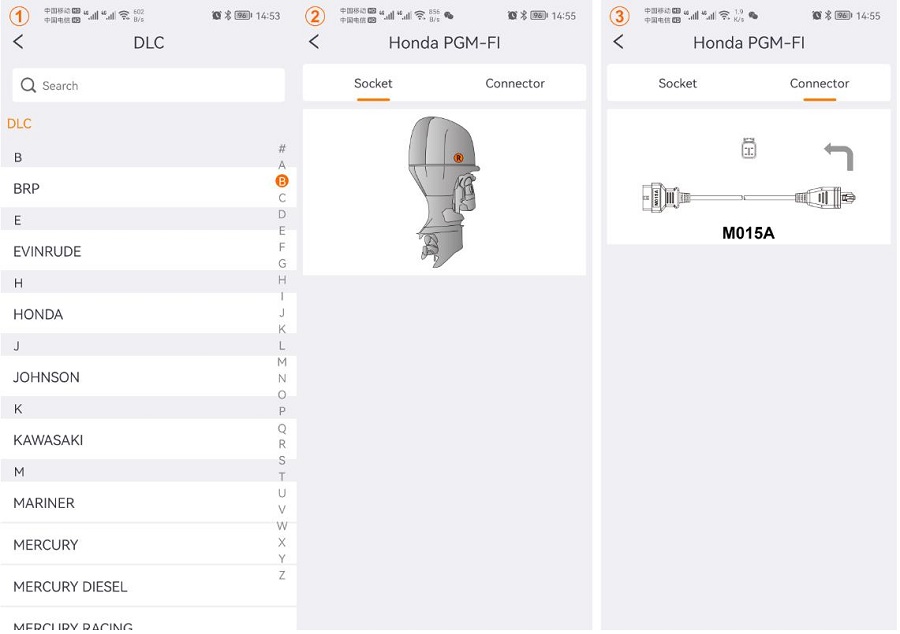

2) Diag Socket/Diag Connector Location



Function Display-(From MarineMaster)

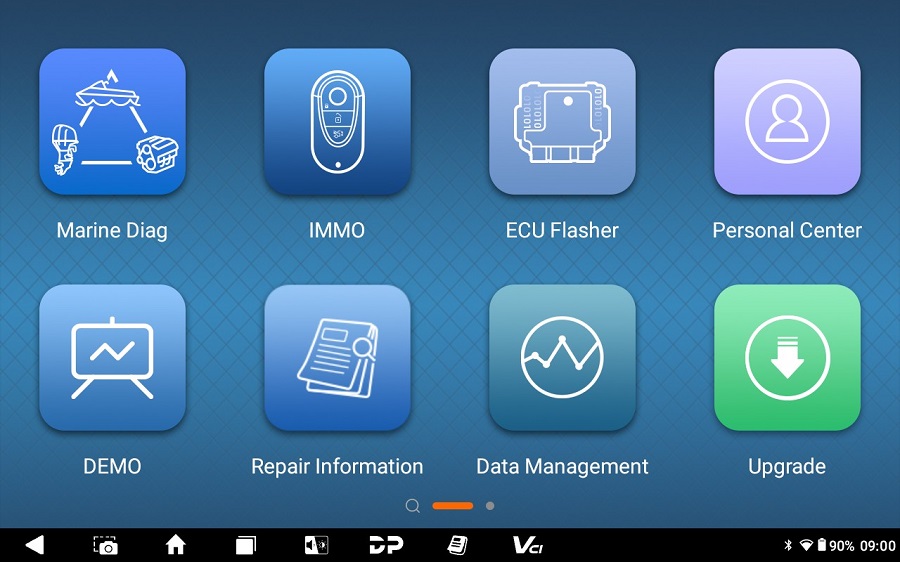

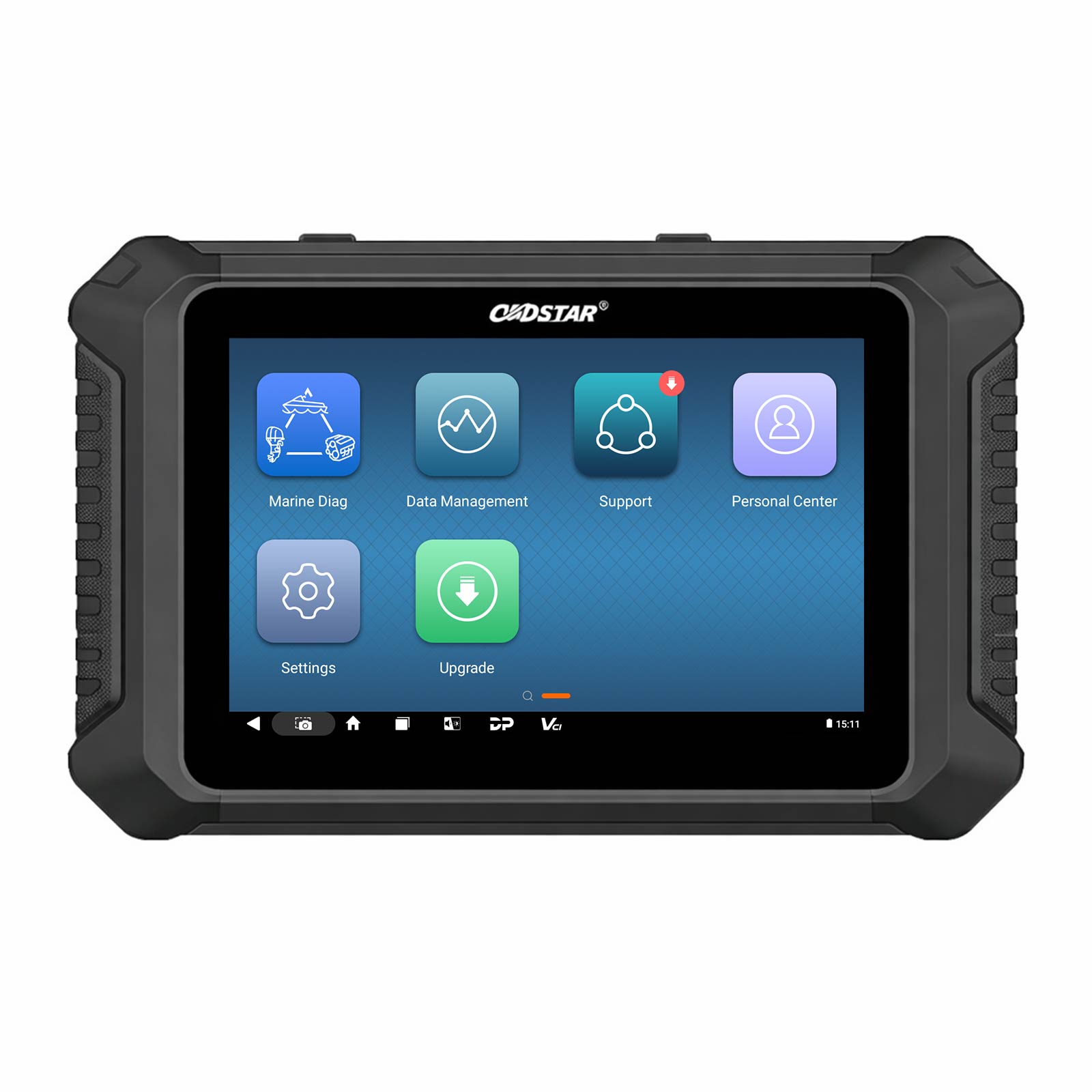

1) Main Page

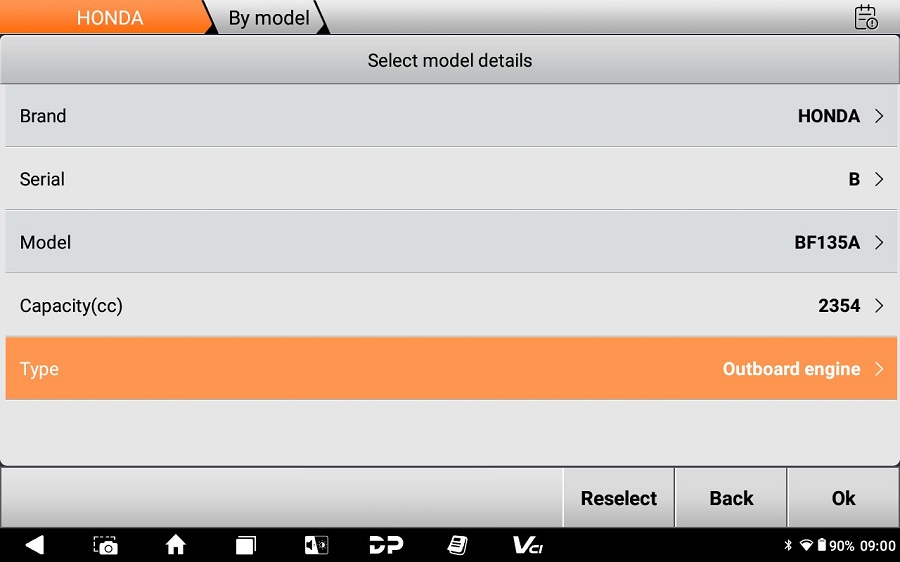

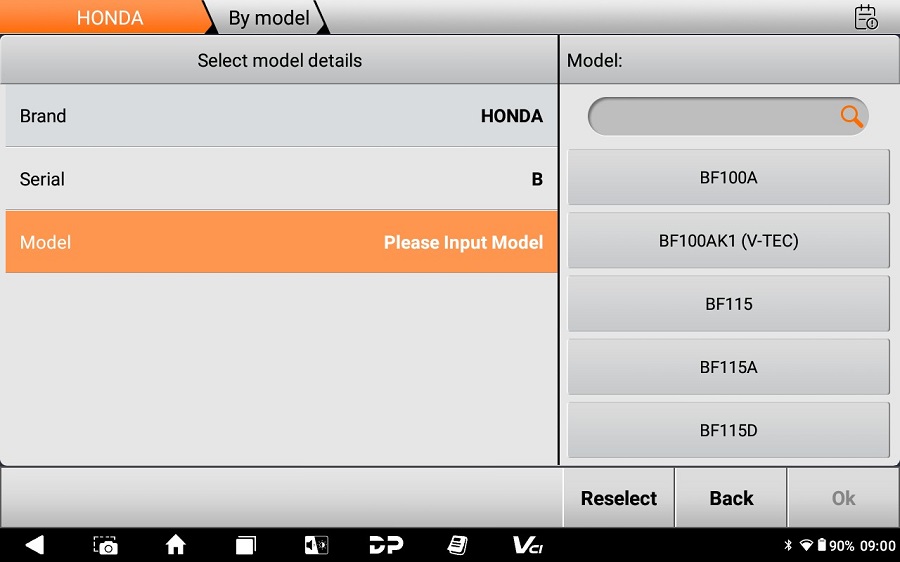

2) Menu Selection

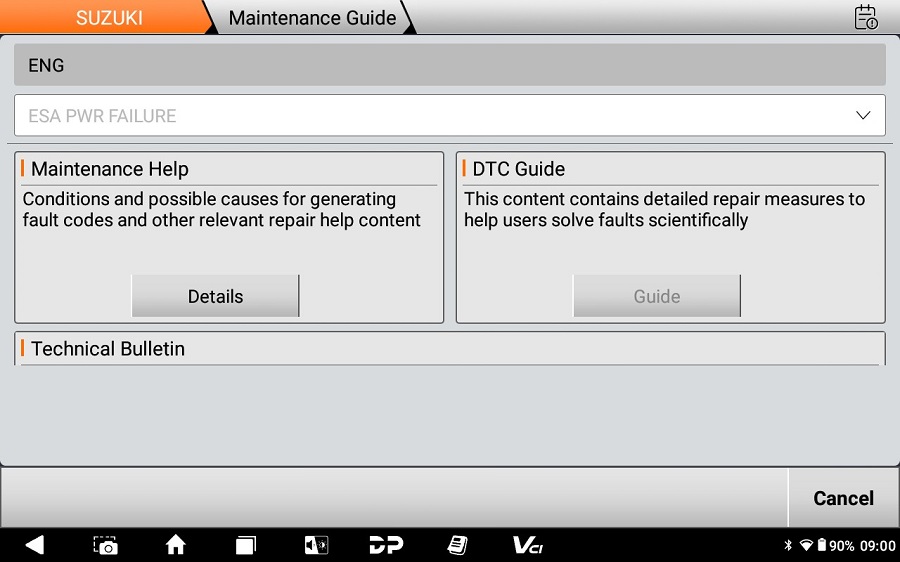

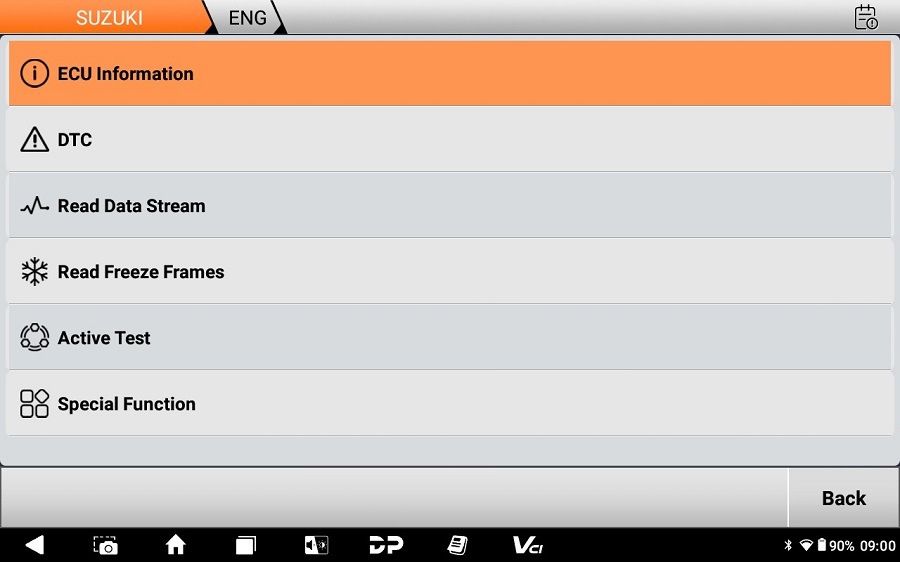

3) Function Menu

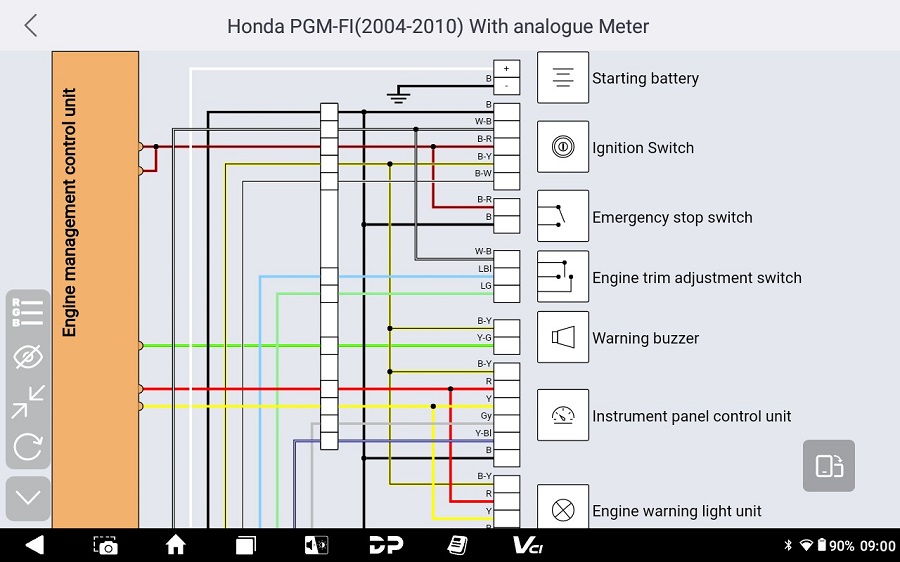

4) Interactive Circuit Diagram

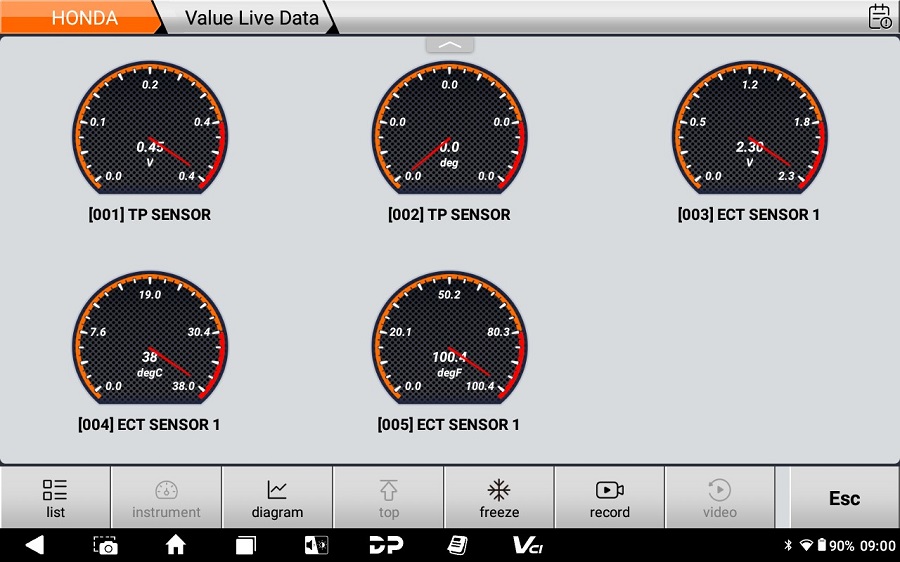

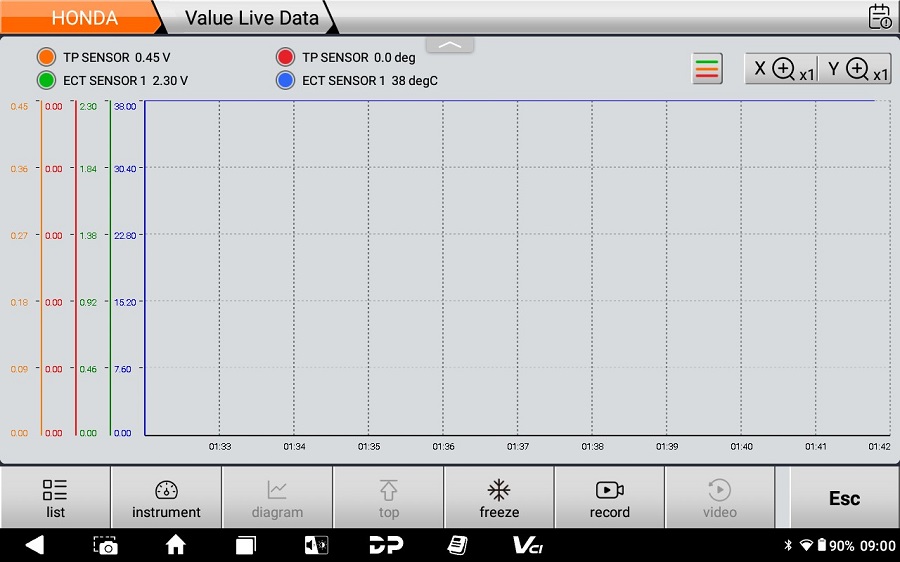

5) Data Flow Text/Waveform Diagram/Instrument Diagram

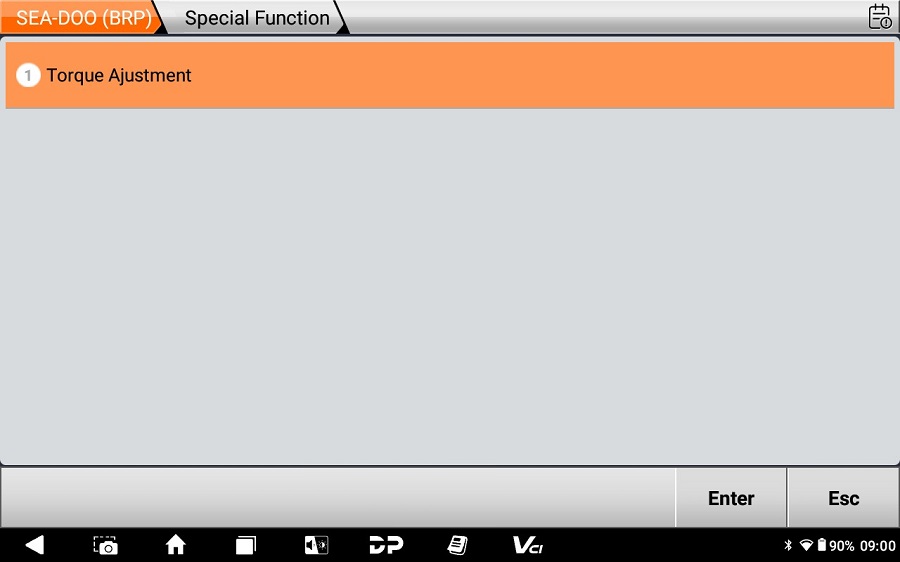

6) Special Function-for BRP

Product Specifications:

Operation system: Android 11
OTA:√
Screen recording:√
Wireless screen casting:√
CPU: Quad-core 64-bit Cortex-A55 2.0GHZ
Battery: 9000mA
Storage capacity: 4+64GB
LCD: 8.0 inch fully laminated sunlight readable screen
LCD resolution: 1280*800
Camera: Rear camera 800W pixels, auto-focus
Bluetooth: Bluetooth 5.0

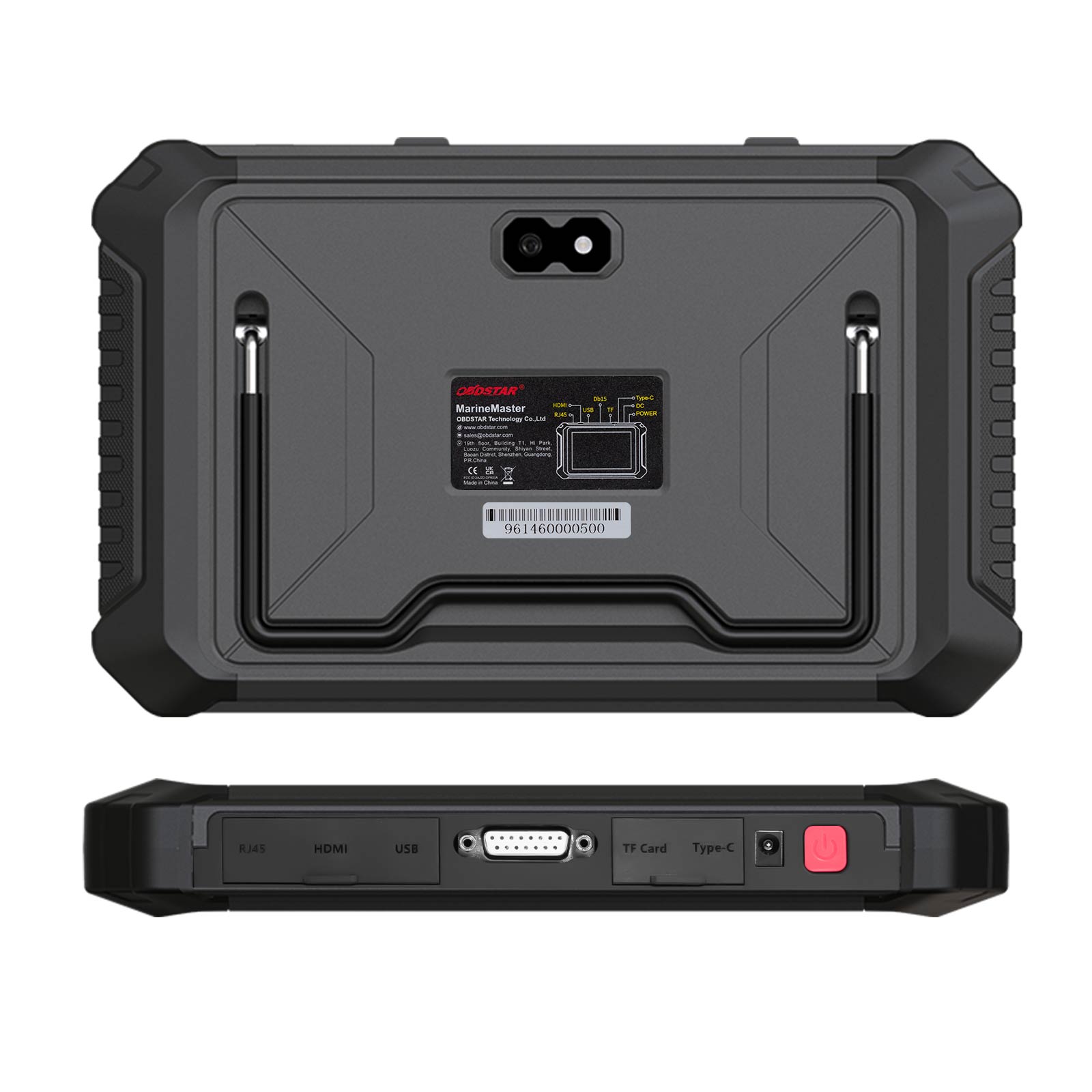

External interfaces: RJ-45√  HDMI√  TYPE-A,TYPE-C
WiFi: Dual-band 2.4G/5GHZ
VCI: CANFD built in√
        DOlP built in√
        Low Speed(Fault Tolerant) CAN built in√
        All other common protocol types

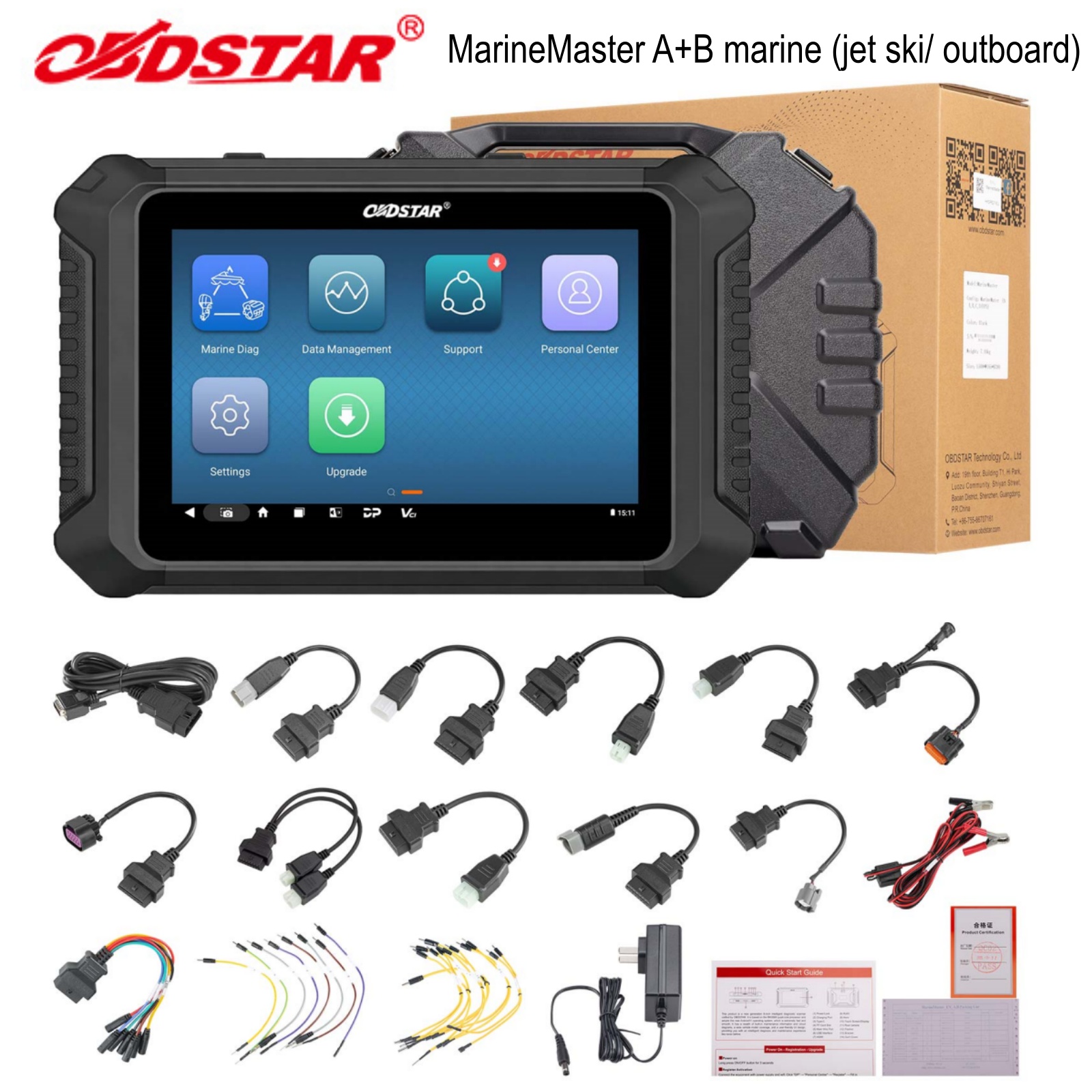

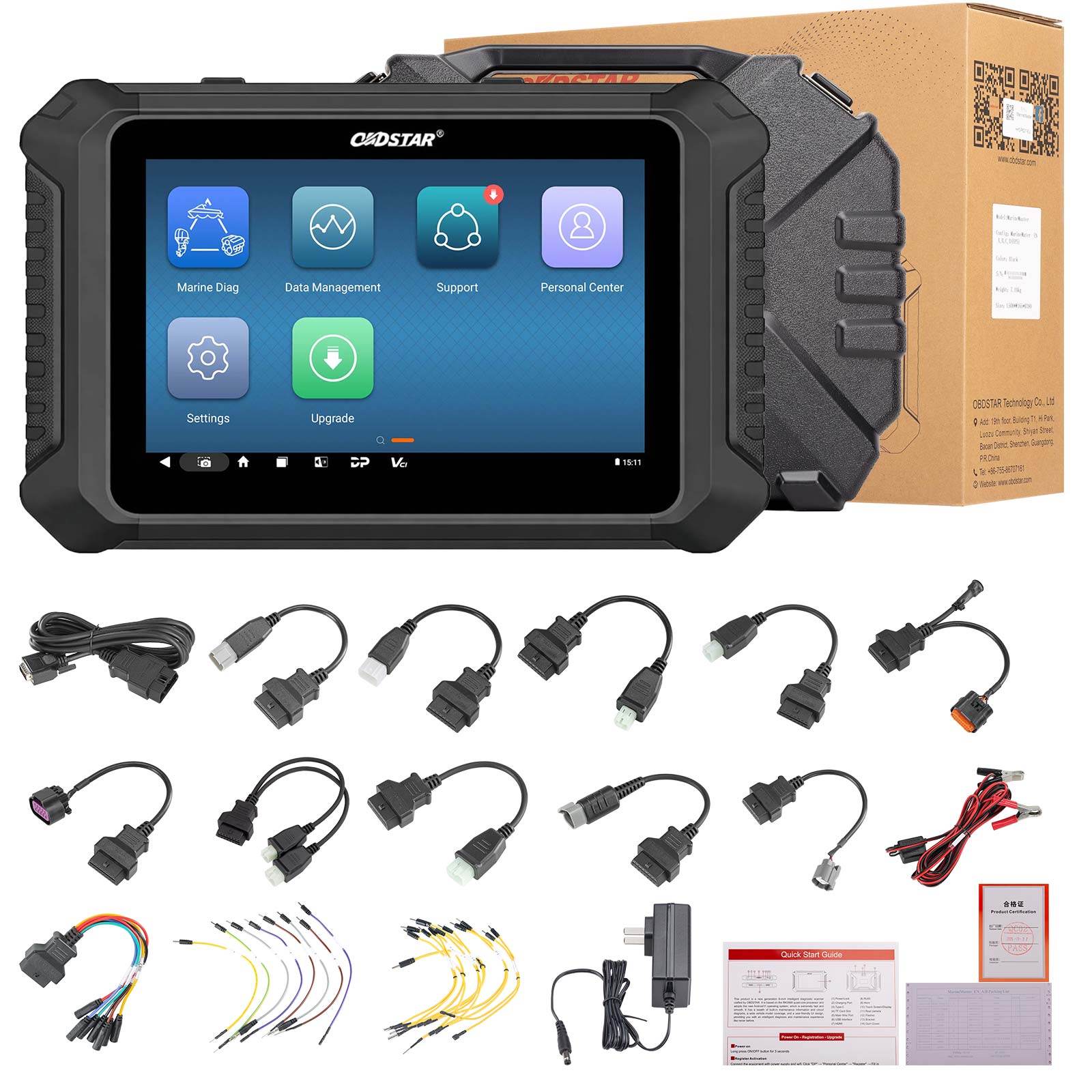

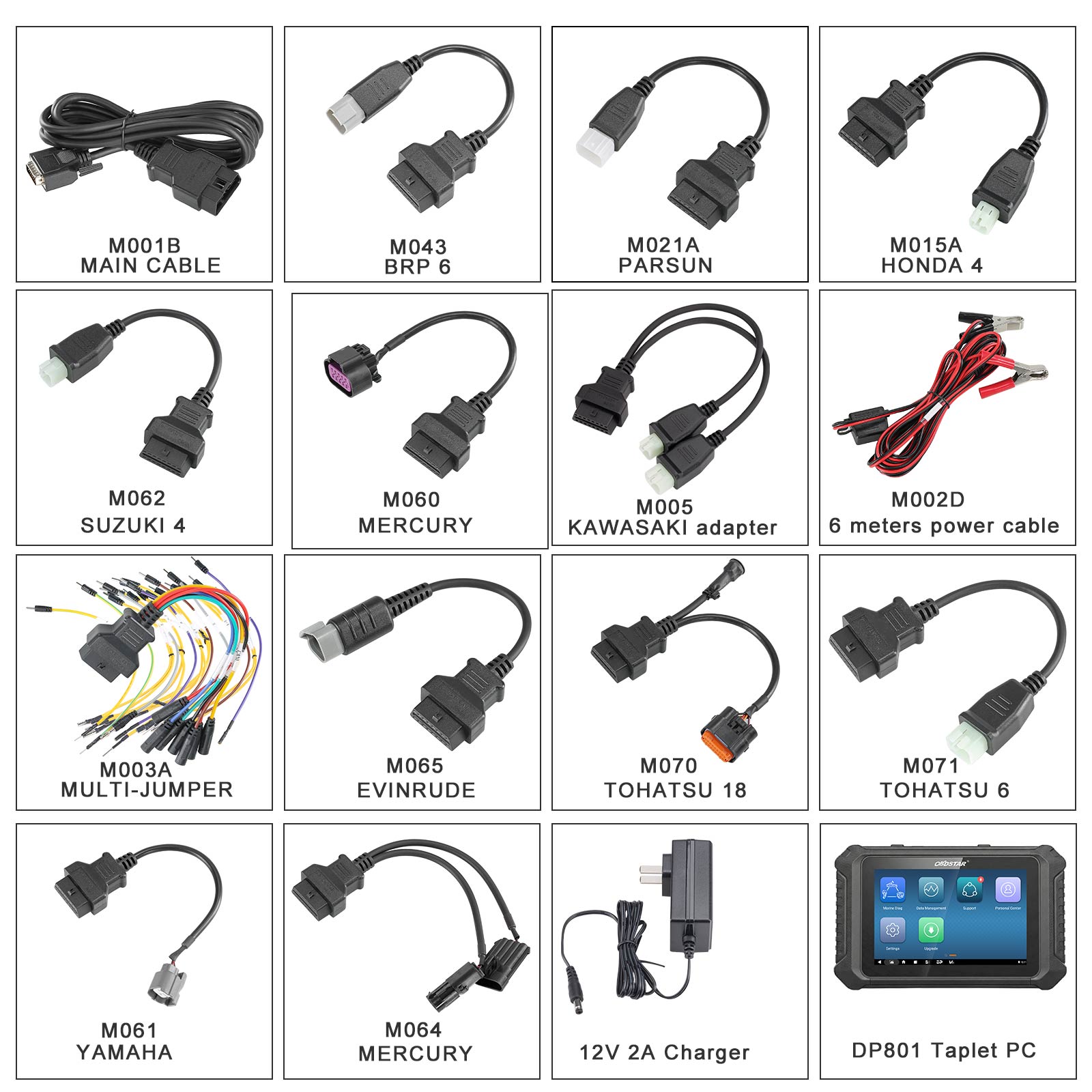

Package includes:

1pc x tablet
1pc x 12V2A charger adapter
1pc x M001B main cable
1pc x M002D 6 meters power cable
1pc x M003A Multi-functional jumper
1pc x M005 for KAWASAKI adapter
1pc x M015A for Honda adapter
1pc x M021A for Parsun adapter
1pc x M043 for BRP adapter
1pc x M060 for Me--r-c-ury adapter
1pc x M061 for Yamaha adapter
1pc x M062 for Suzuki adapter
1pc x M064 for M-e-rc-u-ry adapter
1pc x M065 for Evinrude adapter
1pc x M070 for Tohatsu adapter
1pc x M071 for Tohatsu adapter

MarineMaster Accessories
