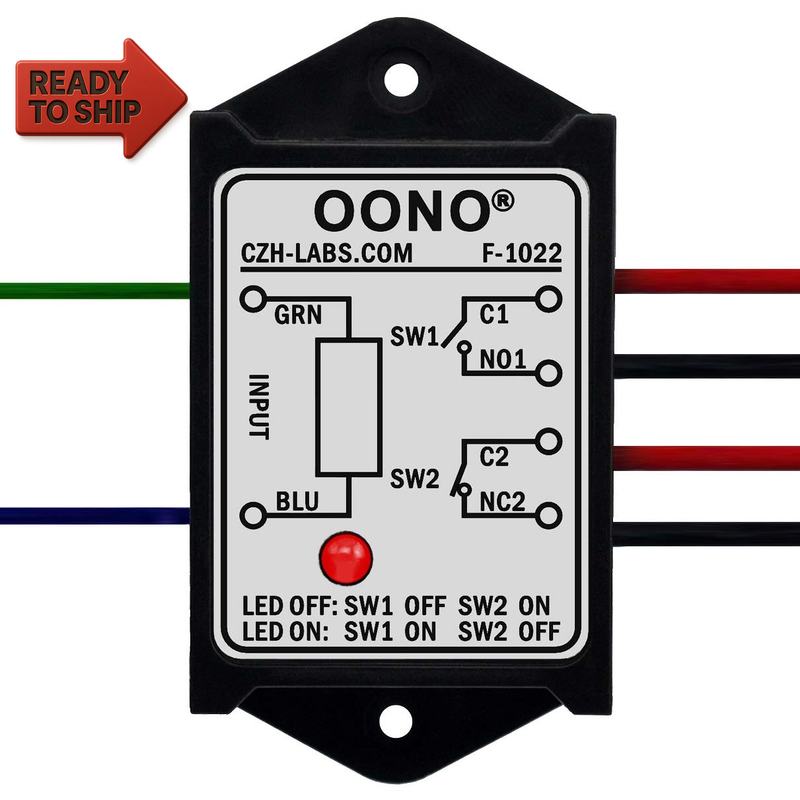

OONO DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 12V Control Voltage
Item Details
| Maximum Switching Current | 8 Amps |
| Part Number | F-1022 Series |
| Style | AC/DC 12V |
| Minimum Switching Voltage | 12 Volts |
| Current Rating | 8 Amps |
| Mounting Type | Screw Mount |
| Brand Name | OONO |
| Contact Current Rating | 8 Amps |
| Coil Voltage | 12 Volts |
| Connector Type | Screw |
| Operation Mode | Automatic |
| Contact Type | Normally Open |
| Model | F-1022 Series |
| Contact Material | Silver |
| Specification Met | Ma |
| Manufacturer | CZH-LABS |
Description
- Input control signal: Voltage AC or DC 12V, Current 33mA.
- Output switch DPST 1NO 1NC(Double Pole Single Throw, 1x Normally Open and 1x Normally Close ), rated current 8A/250VAC or 8A/30VDC (one switch).
- Compact plastic case and wires connects for easy mount. LED indication for relay action.
- This is a simple and practical passive relay module, which is very convenient to use. It can support both Normally Open and Normally Close. Two screw mounting holes are convenient for you to fix it on the wall or wooden board. Of course, you can also choose not to lock the screw.
Product description
- Input control signal: AC/DC5V, AC/DC12V, AC/DC24V, AC/DC48V, AC115V and AC230V version selectable.
- Output switch DPST 1NO 1NC(Double Pole Single Throw, 1x Normally Open and 1x Normally Close ), rated current 8A/250VAC or 8A/30VDC (one switch).
- Compact plastic case and wires connects for easy mount.
- LED indication for relay action.
- This is a simple and practical passive relay module, which is very convenient to use. It can support both Normally Open and Normally Close. Two screw mounting holes are convenient for you to fix it on the wall or wooden board. Of course, you can also choose not to lock the screw.
Input Control Signal
Input control signal: AC/DC5V, AC/DC12V, AC/DC24V, AC/DC48V, AC115V and AC230V selectable.
5V: AC 4.0-6.0V or DC 4.2-6.5V, Current 80mA.
12V: AC 10-13V or DC 9.6-15V, Current 33mA.
24V: AC 16-25V or DC 19-30V, Current 17mA.
48V: AC 36-50V or DC 38-60V, Current 9mA.
115V: AC 87-143V, Current 6mA.
230V: AC 174-286V, Current 3mA.
Output Switch
Output switch DPST 1NO 1NC(Double Pole Single Throw, 1x Normally Open and 1x Normally Close ).
Rated current 8A/250VAC or 8A/30VDC (one switch).
Easy Installation
Compact plastic case and wires connects for easy mount.
LED indication for relay action.
This is a simple and practical passive relay module, which is very convenient to use. It can support both Normally Open and Normally Close. Two screw mounting holes are convenient for you to fix it on the wall or wooden board. Of course, you can also choose not to lock the screw.
Dimensions:
