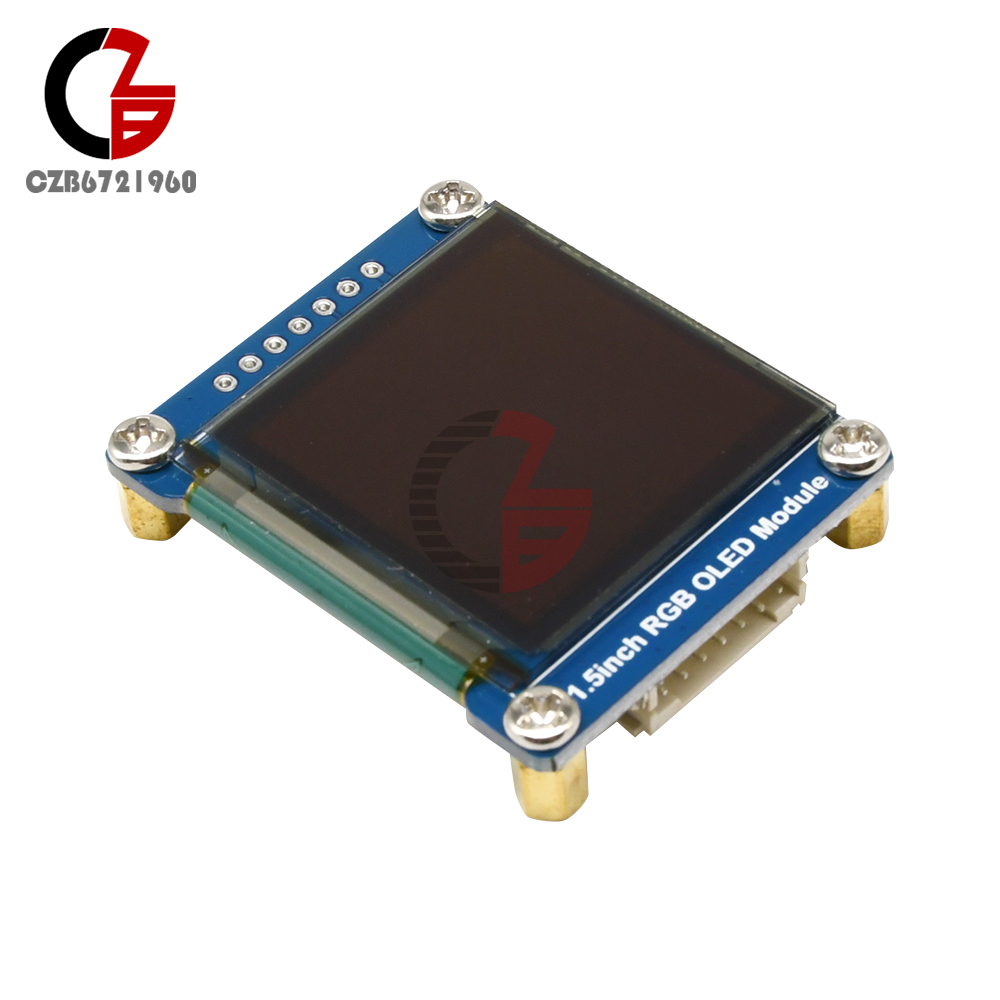

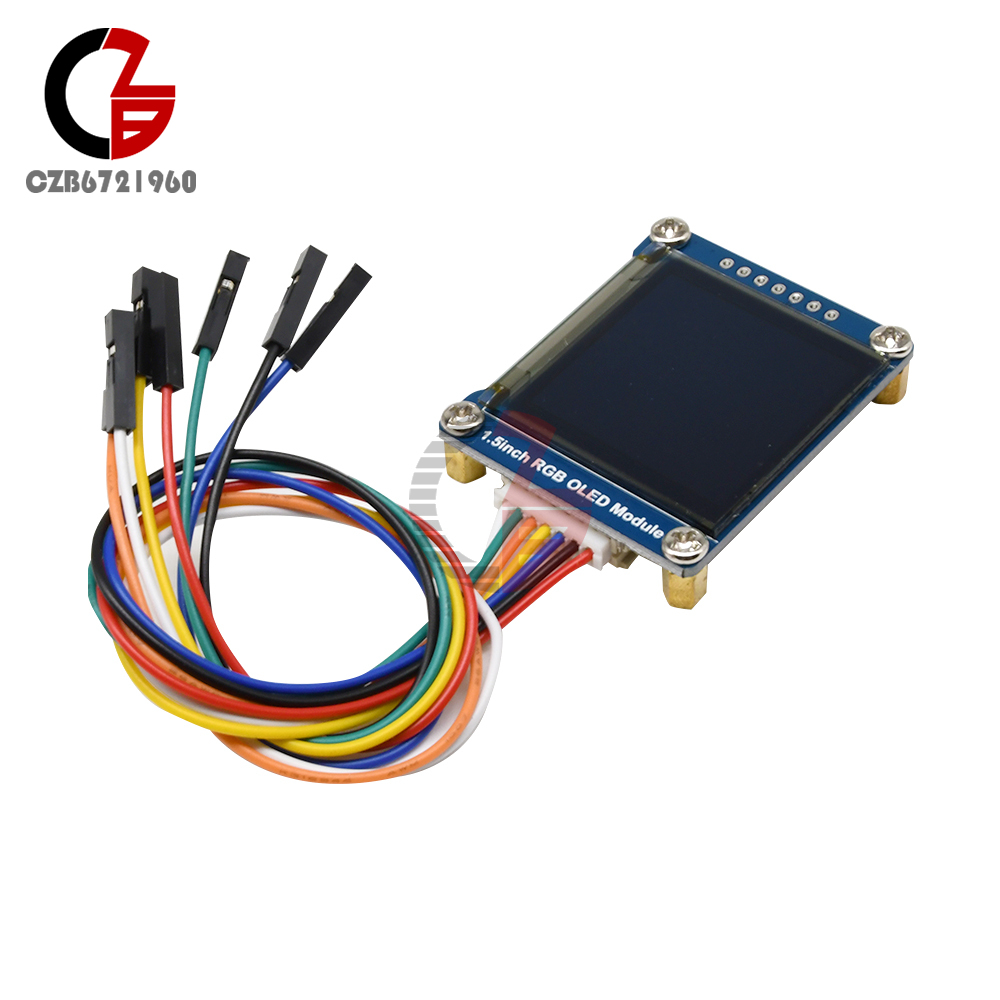

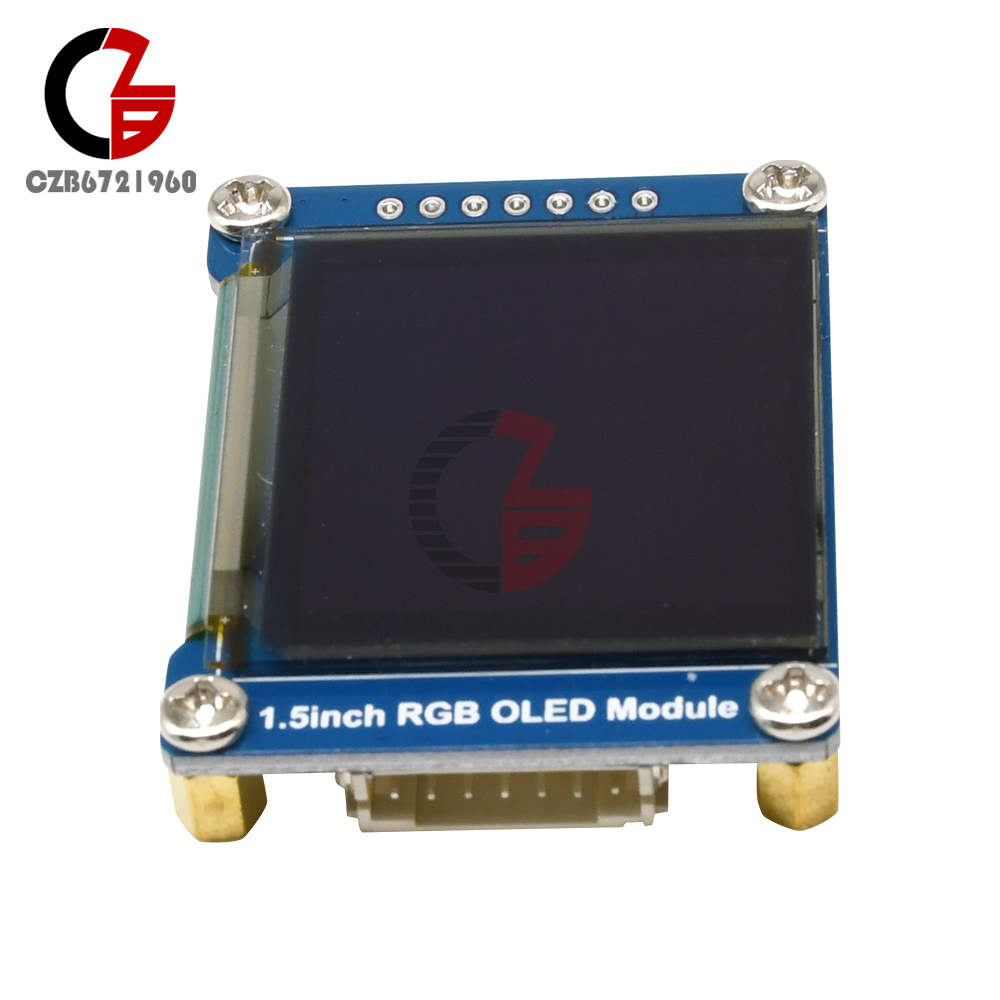

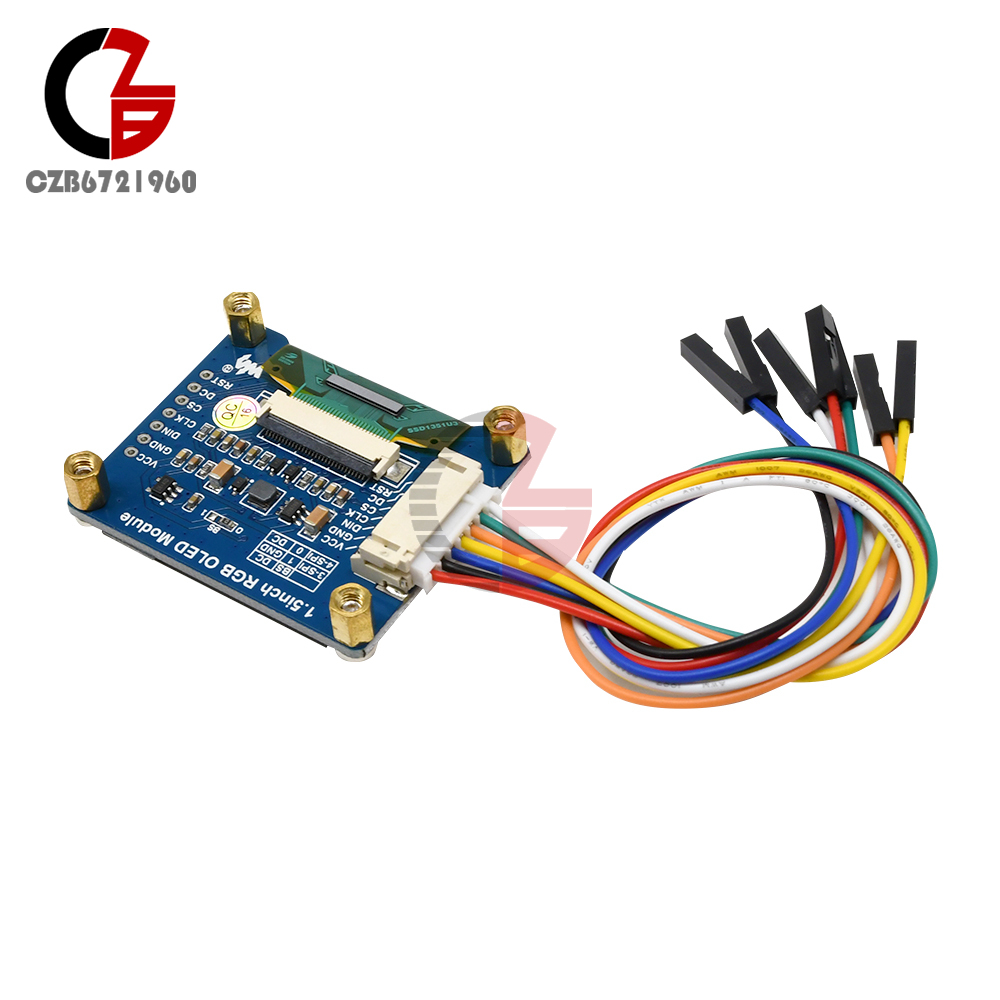

1.5" RGB OLED Display Expansion Board Module SSD1351 128×128 for Raspberry Pi 4B

Popular

    Product Introduction

    Features:
    128x128 high resolution, 65K colors, clear display of color images
    Supports 4-wire SPI or 3-wire SPI interfaces, configured via on-board resistors
    This is a universal RGB OLED display module with a 1.5-inch diagonal, 128x128 pixels,
    16-bit high color (65K colors), featuring an embedded controller and communicating via SPI interface
    Specifications:
    Driver: SSD1351
    Interface: 4-wire SPI, 3-wire SPI
    Display Colors: RGB, 65K colors
    Resolution: 128x128
    Viewing Angle: >160°
    Operating Voltage: 3.3V/5V
    Dimensions: 44.5 x 37 mm

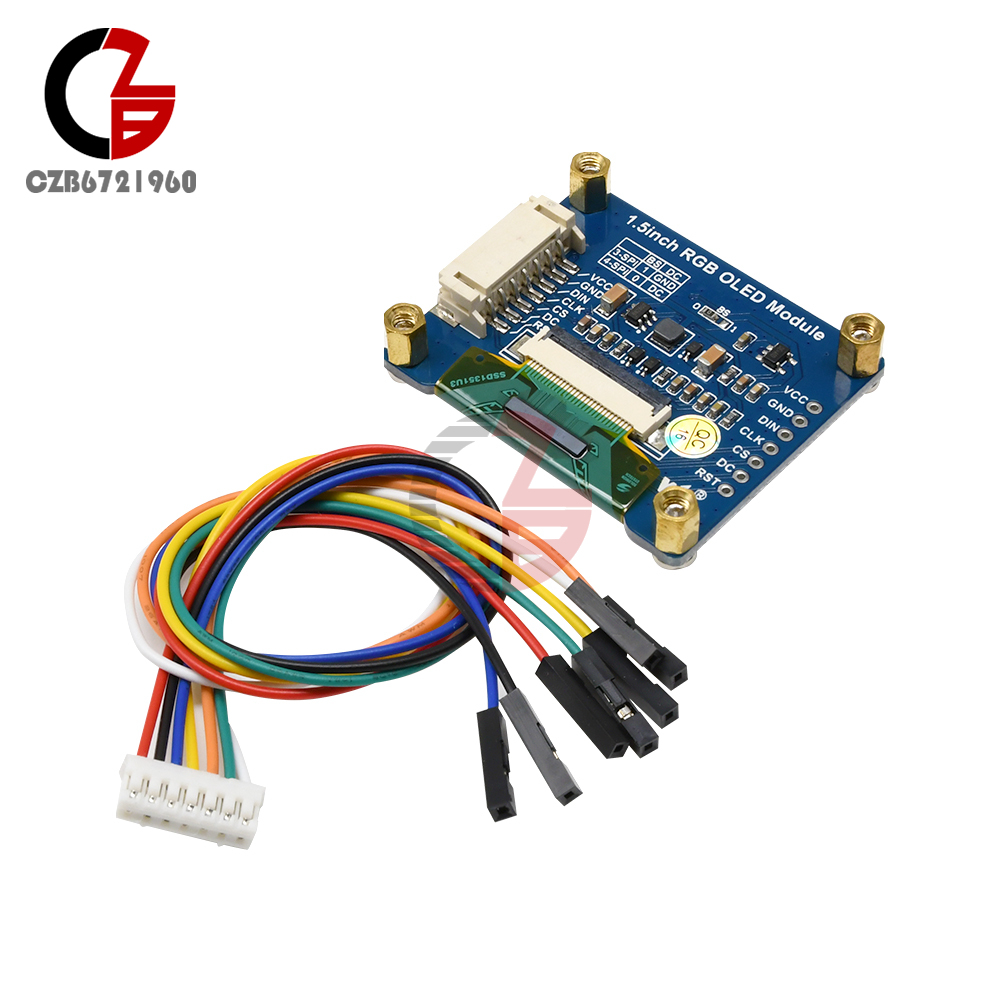

    Interface:
    Pin: Description
    VCC: Power supply (3.3–5V input)
    GND: Ground
    DIN: Data input
    CLK: Clock data input
    CS: Chip select, active low
    DC:
    4-wire SPI: Data/Command selection (High for data, Low for command)
    3-wire SPI: Connected to GND, kept at a low level
    RST: Reset, active low

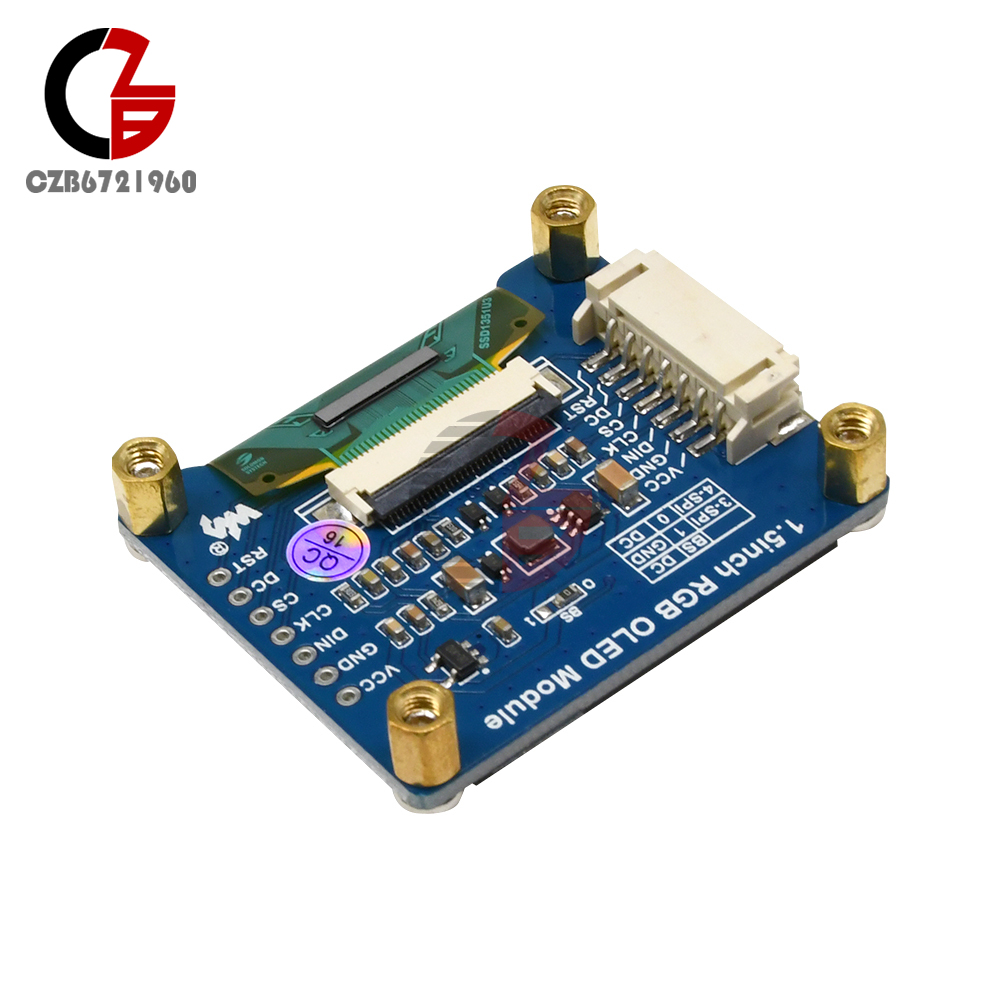

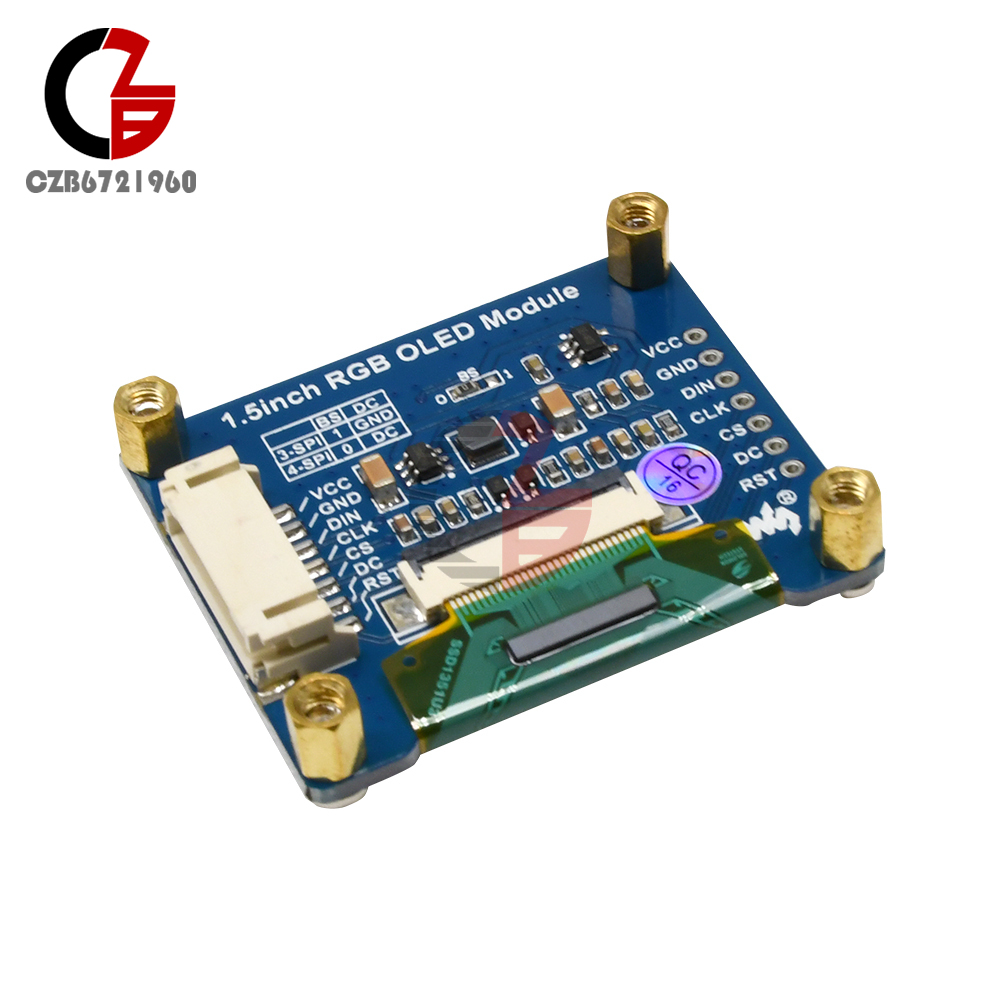

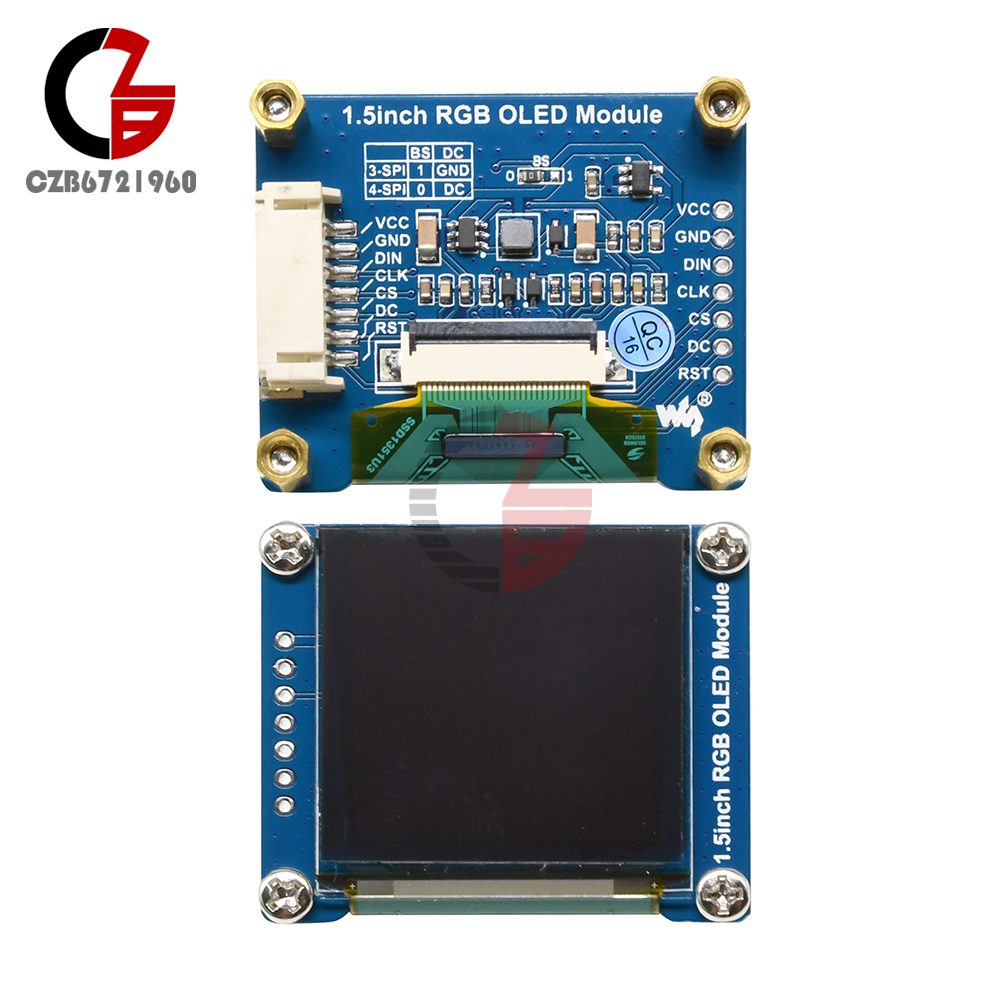

    This RGB OLED module has two available driver interfaces: 4-wire SPI (default) and 3-wire SPI:
    BS DC
    4-wire SPI 0 DC
    3-wire SPI 1 connected to GND

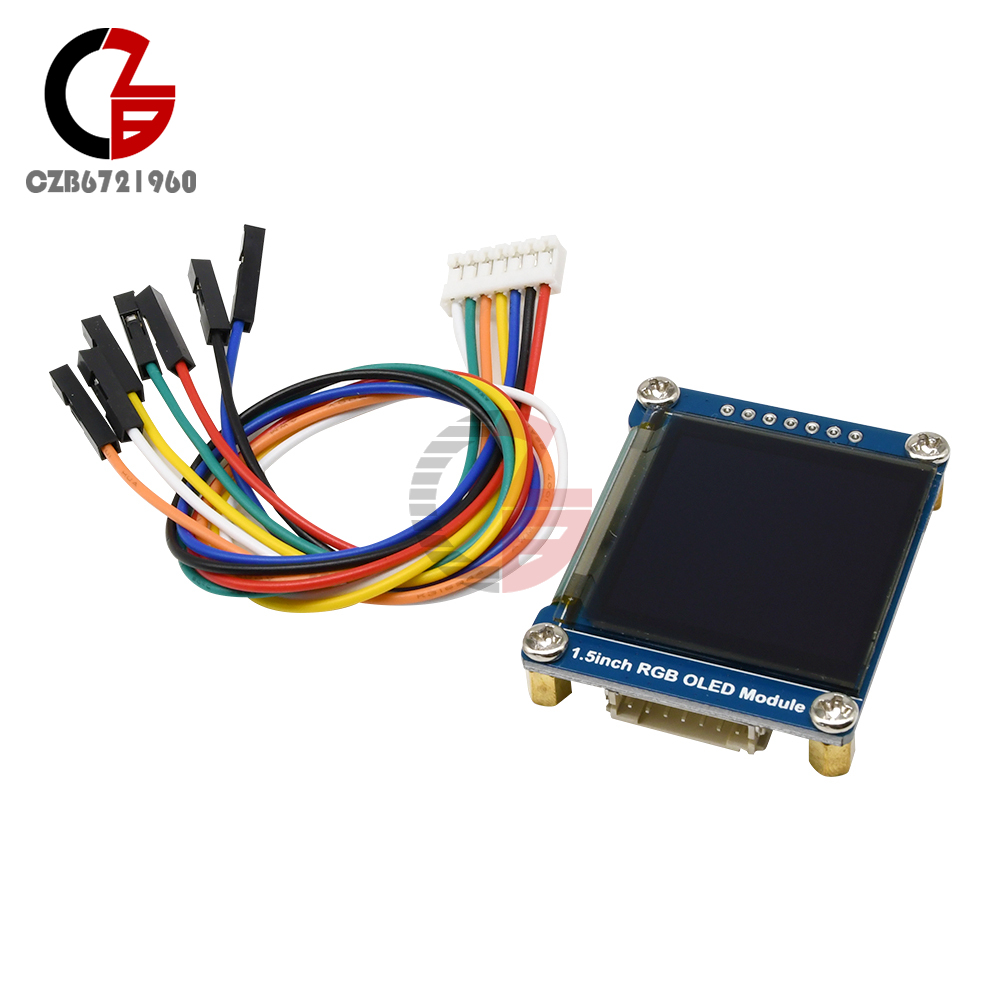

    Package Includes:
    1 x 1.5-inch OLED display module

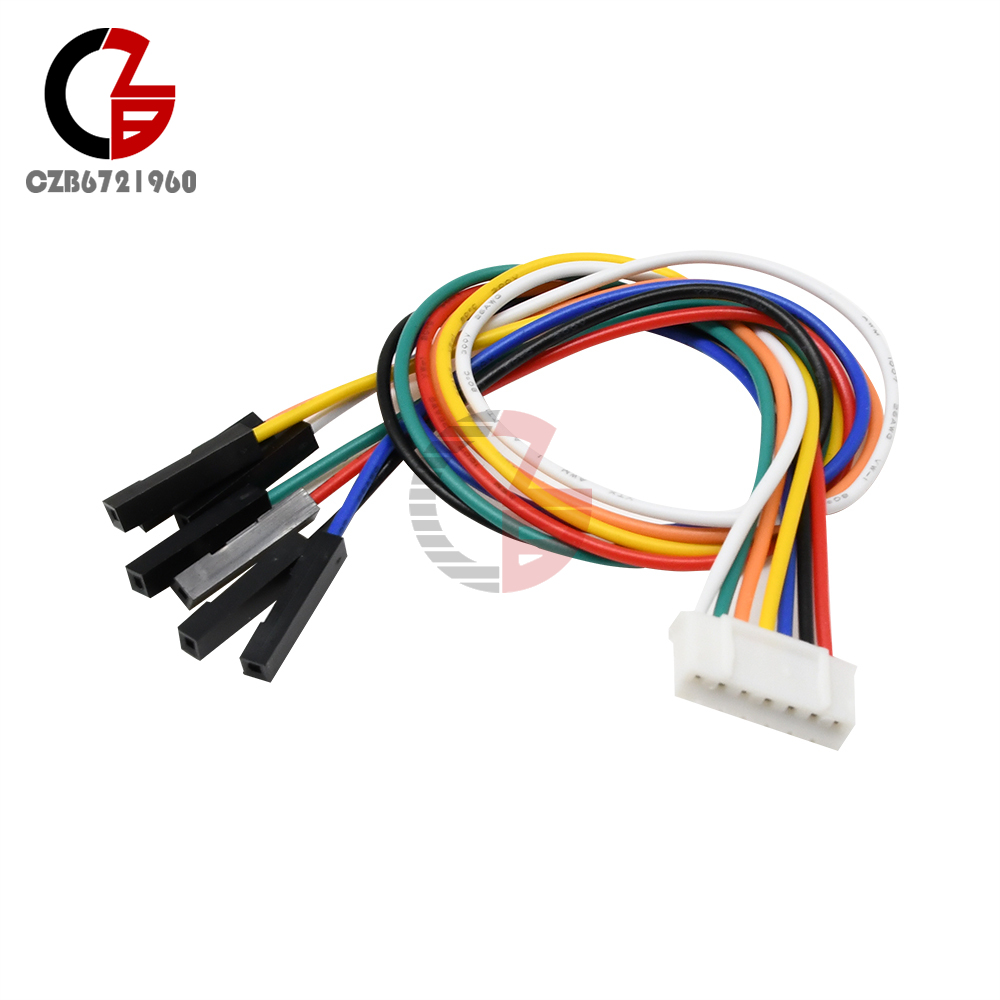

    1 x PH2.0 7-pin twisted-pair cable
