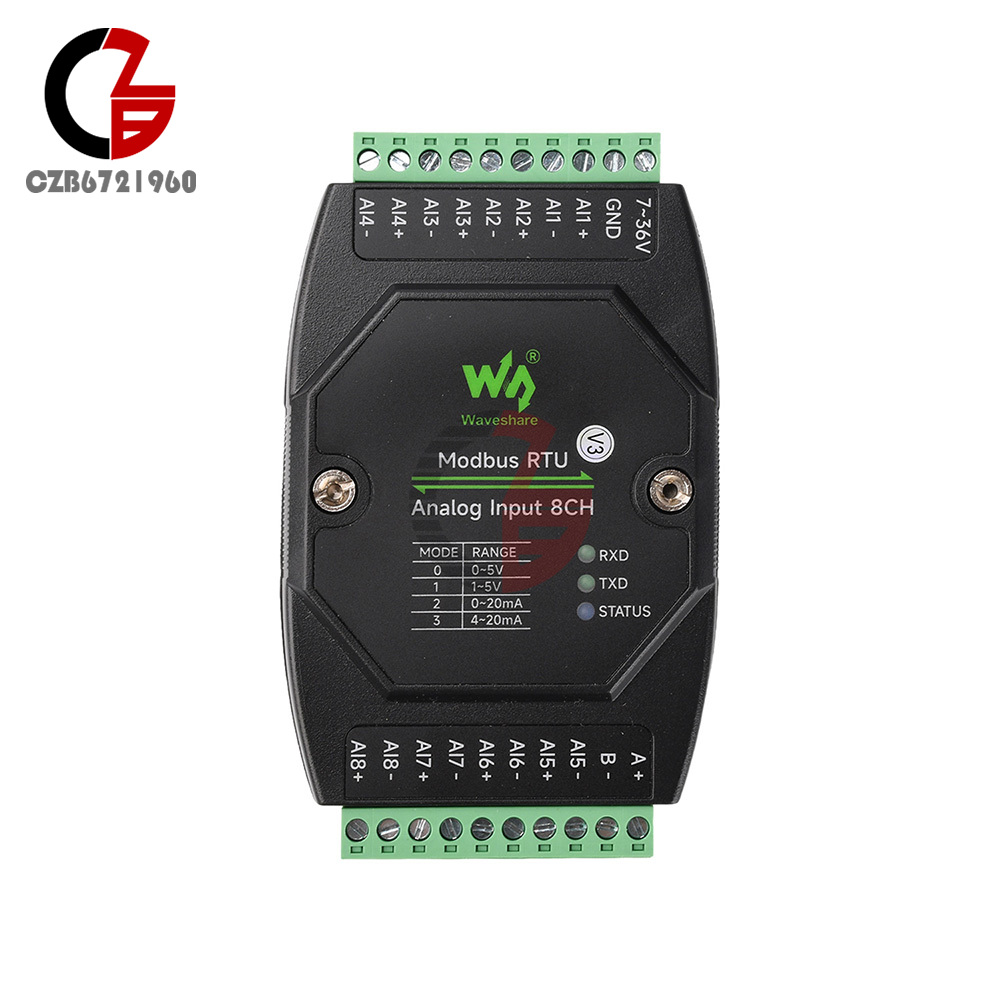

Industrial 8CH Analog Acquisition Module DINRail 12Bit RS485 Modbus RTU Protocol
Popular
Product Introduction
Features:

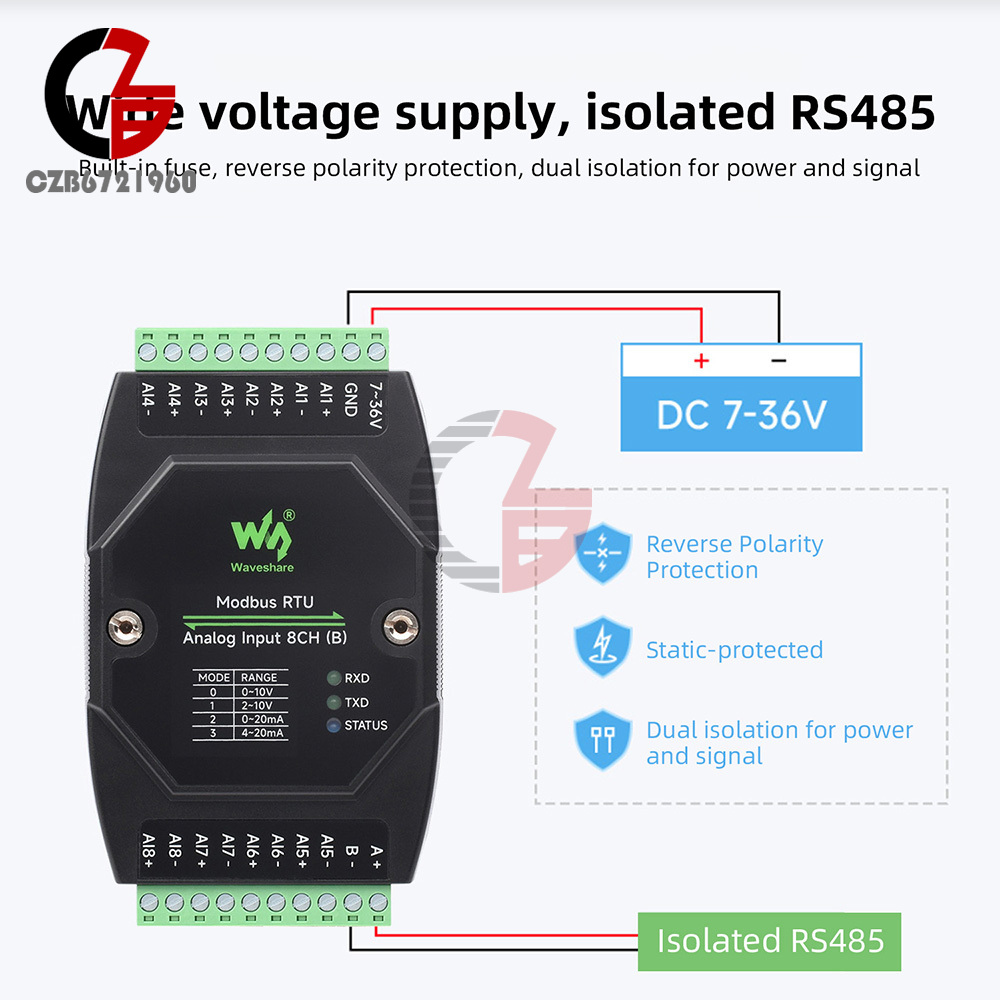

1. Wide-range DC 7–36V power supply with an onboard voltage regulator chip, suitable for complex industrial power sources
2. Built-in protection circuits, including power isolation and magnetic isolation
3. Industrial-grade 8-channel analog acquisition module with 12-bit high-precision acquisition for greater accuracy

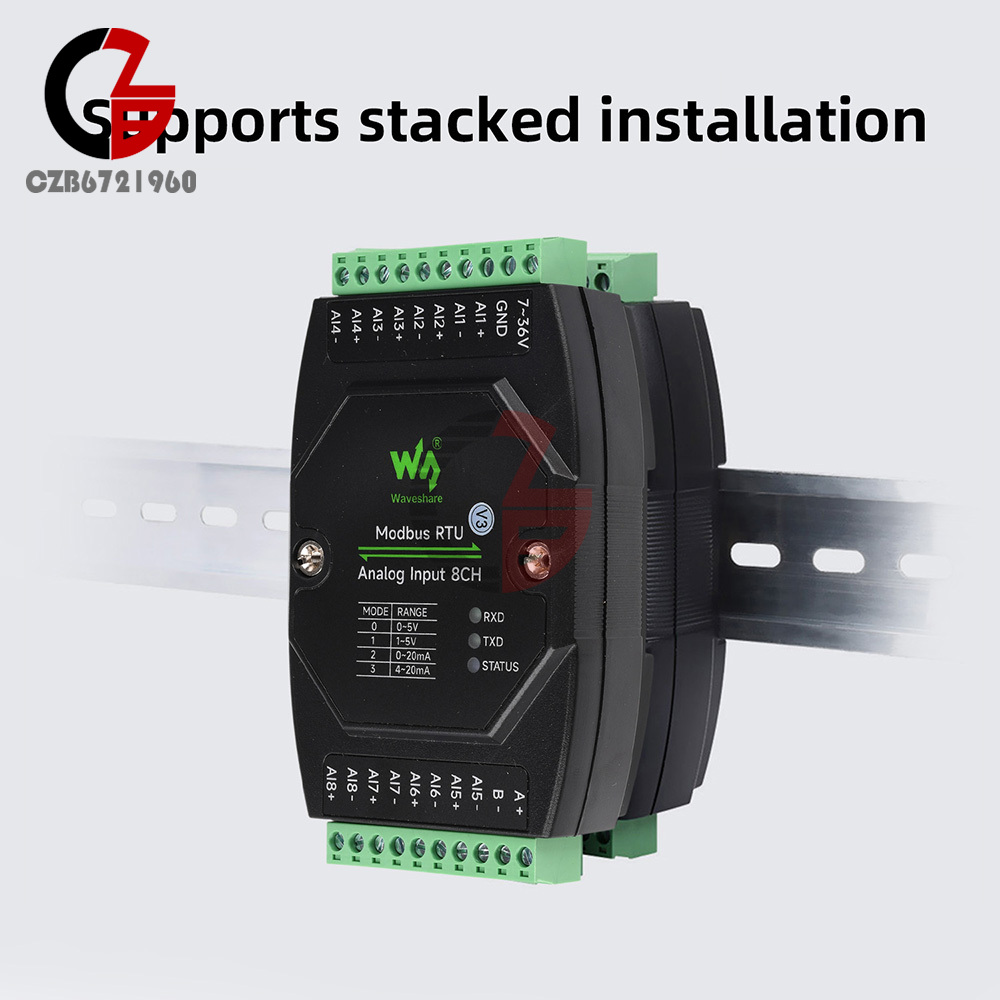

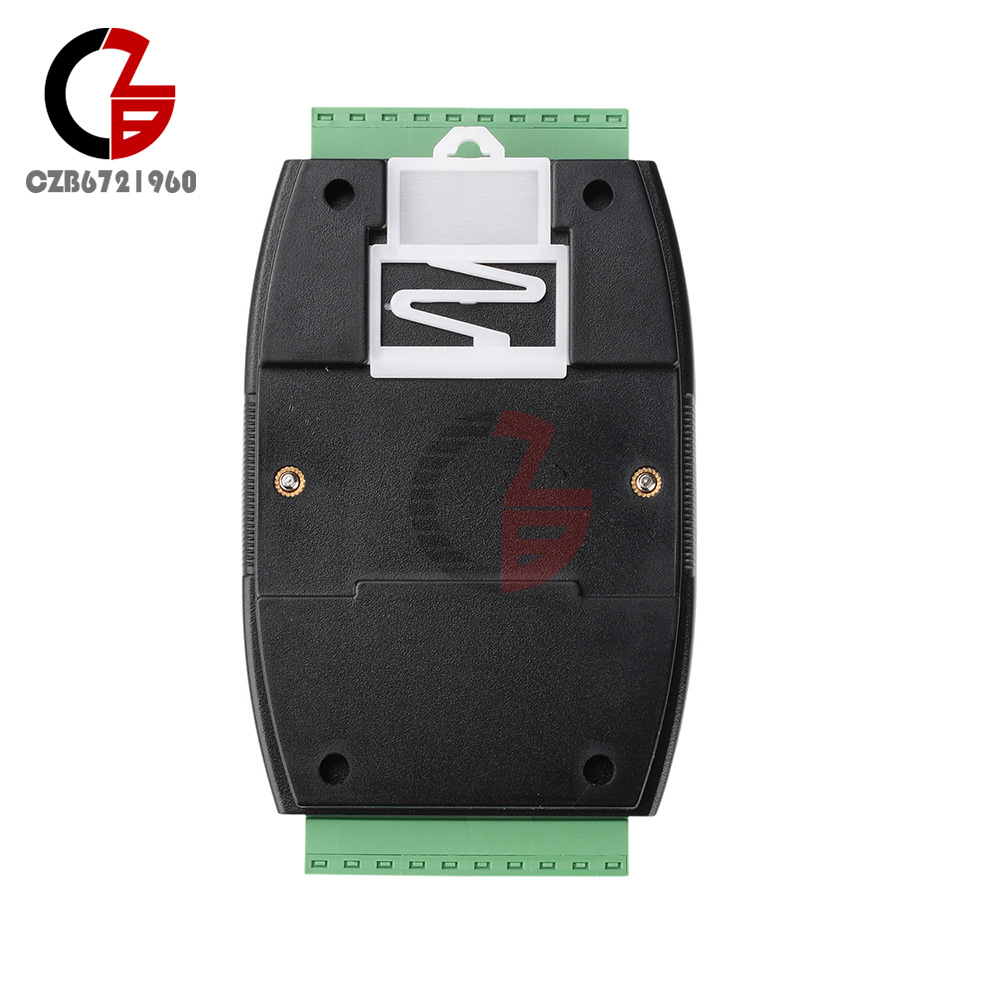

4. DIN-rail housing design supports stacking and combination, ensuring easy installation and safer operation
5. Features terminal block power input, suitable for data acquisition, IoT applications, and other fields
1. Wide-range DC 7–36V power supply with an onboard voltage regulator chip, suitable for complex industrial power sources
2. Built-in protection circuits, including power isolation and magnetic isolation
3. Industrial-grade 8-channel analog acquisition module with 12-bit high-precision acquisition for greater accuracy
4. DIN-rail housing design supports stacking and combination, ensuring easy installation and safer operation
5. Features terminal block power input, suitable for data acquisition, IoT applications, and other fields
Specifications:

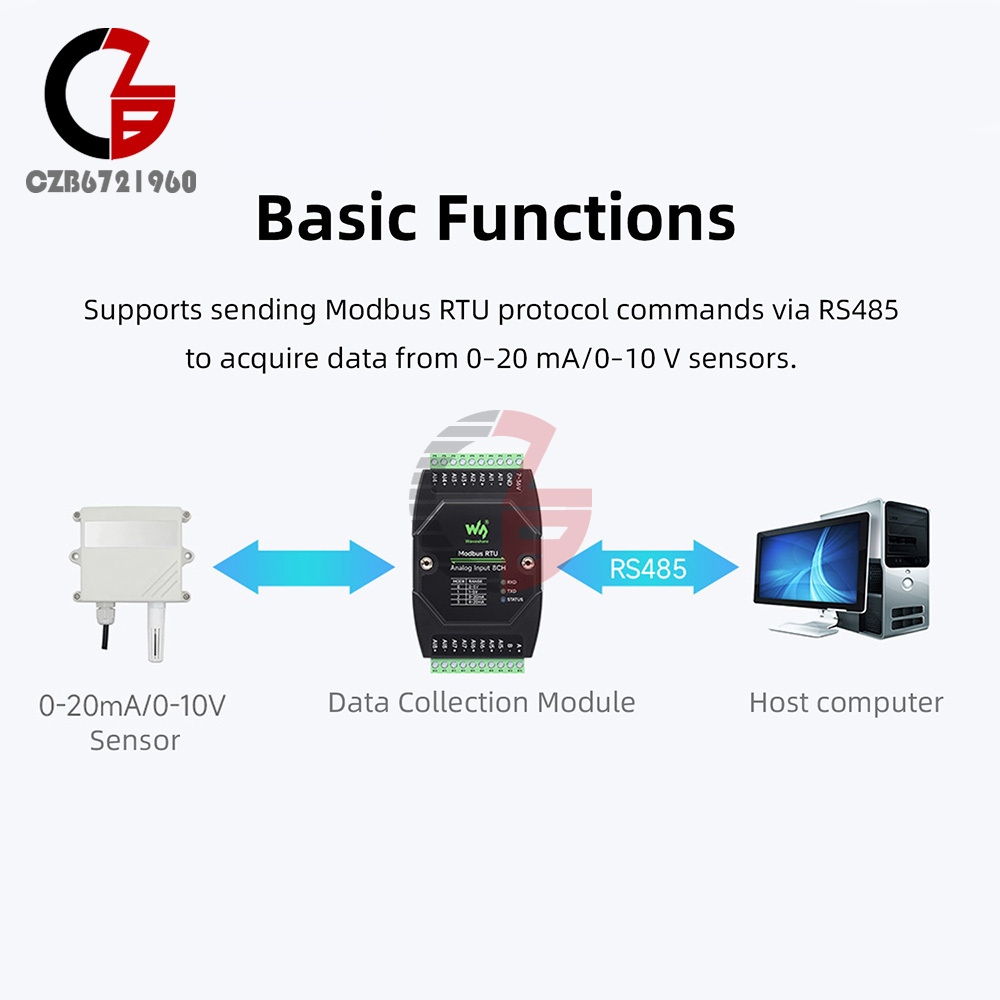

This product is an industrial-standard analog acquisition module supporting 8-channel synchronous acquisition across multiple ranges. It utilizes the Modbus RTU protocol and incorporates protection circuits such as power isolation, optocoupler isolation, self-resetting fuses, and TVS diodes.

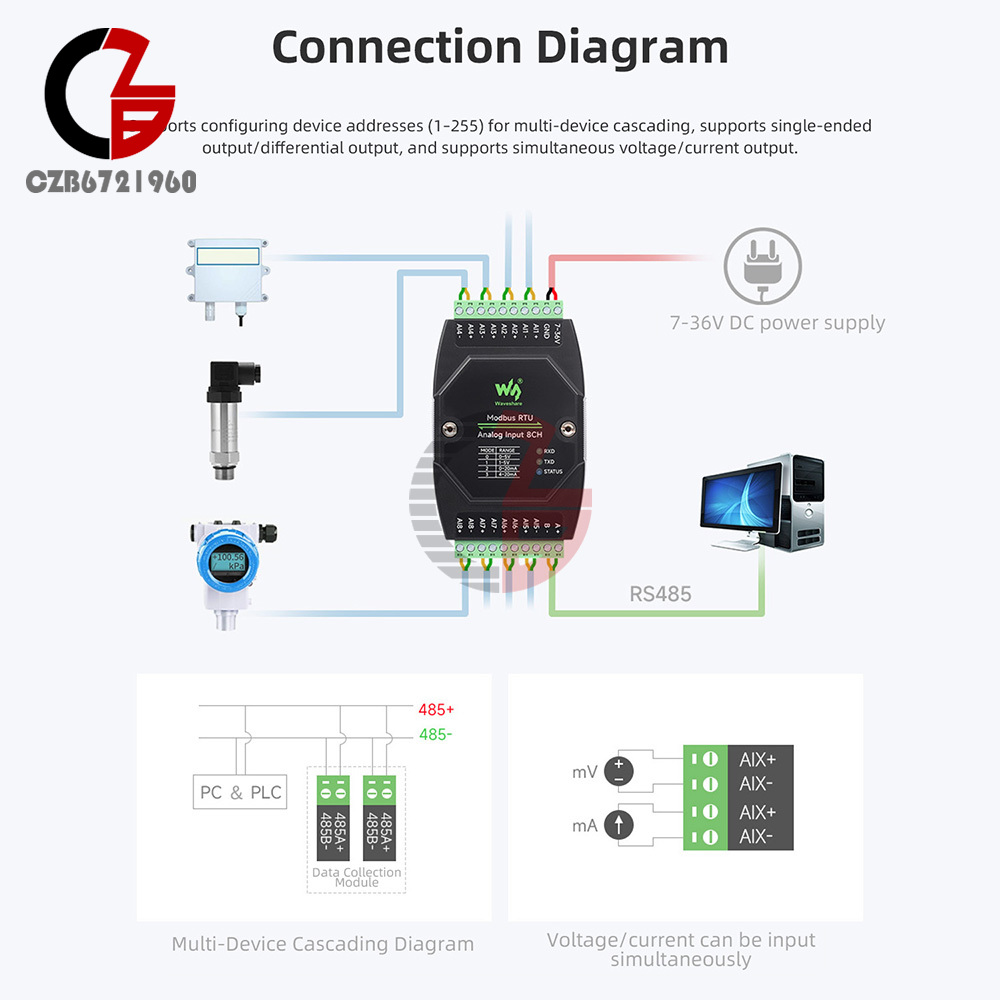

Supports device address configuration (1–255) to allow cascading of multiple devices via the RS485 bus
On-board voltage regulator chip supports a wide input voltage range of 7–36 V
On-board integrated power isolation provides a stable isolated voltage; the isolated output requires no additional power supply
On-board integrated optocoupler isolation ensures signal isolation with high reliability and strong anti-interference capabilities

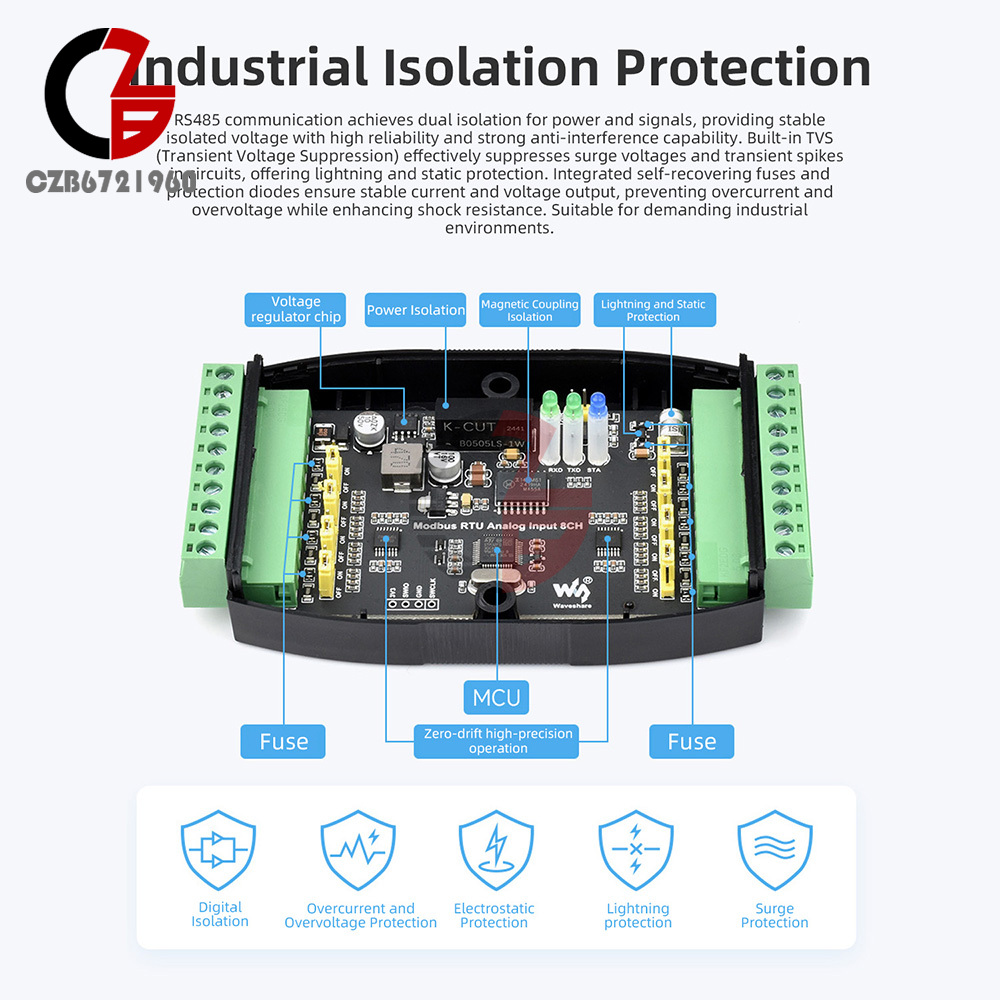

On-board self-resetting fuses and TVS (Transient Voltage Suppressors) effectively suppress surge voltages and transient spikes in the circuit, providing protection against overcurrent, overvoltage, lightning, and static electricity
12-bit high-precision data acquisition with multiple input range modes; supports single-ended/differential inputs and simultaneous voltage and current measurement
Utilizes high-precision resistors and zero-drift precision operational amplifiers for more accurate data acquisition
Built-in oversampling digital filtering algorithm and watchdog timer ensure stable output without system crashes

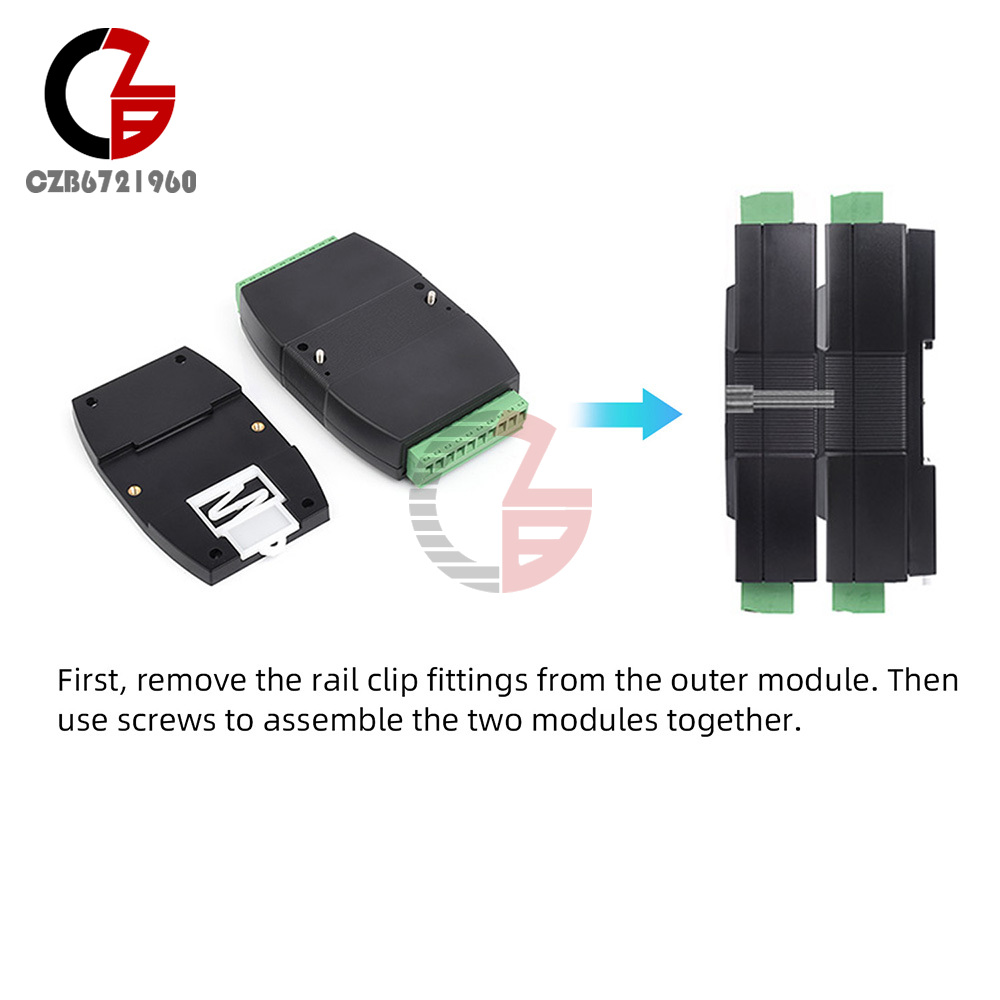

DIN-rail housing design supports stacking and combination, offering convenient installation and enhanced safety

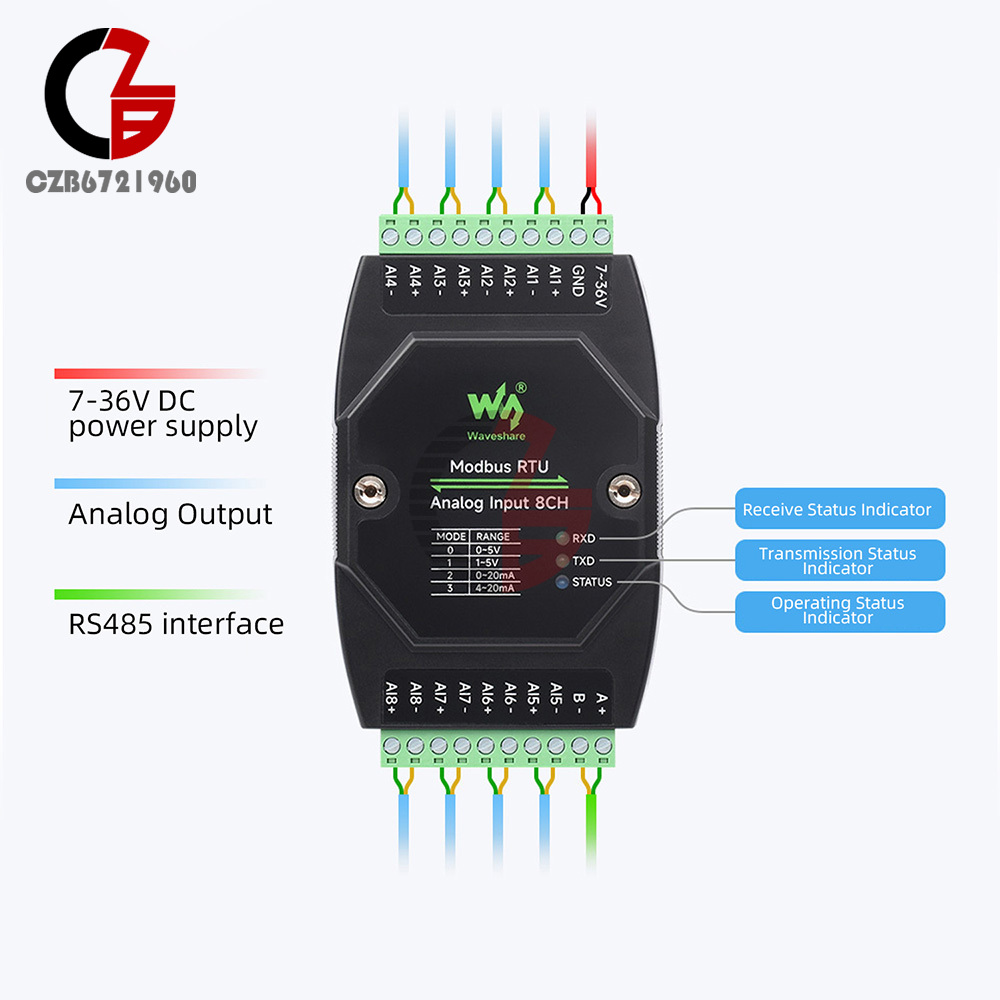

Three external LED indicators facilitate monitoring of MCU status and signal transmission/reception status
This product is an industrial-standard analog acquisition module supporting 8-channel synchronous acquisition across multiple ranges. It utilizes the Modbus RTU protocol and incorporates protection circuits such as power isolation, optocoupler isolation, self-resetting fuses, and TVS diodes.
Supports device address configuration (1–255) to allow cascading of multiple devices via the RS485 bus
On-board voltage regulator chip supports a wide input voltage range of 7–36 V
On-board integrated power isolation provides a stable isolated voltage; the isolated output requires no additional power supply
On-board integrated optocoupler isolation ensures signal isolation with high reliability and strong anti-interference capabilities
On-board self-resetting fuses and TVS (Transient Voltage Suppressors) effectively suppress surge voltages and transient spikes in the circuit, providing protection against overcurrent, overvoltage, lightning, and static electricity
12-bit high-precision data acquisition with multiple input range modes; supports single-ended/differential inputs and simultaneous voltage and current measurement
Utilizes high-precision resistors and zero-drift precision operational amplifiers for more accurate data acquisition
Built-in oversampling digital filtering algorithm and watchdog timer ensure stable output without system crashes
DIN-rail housing design supports stacking and combination, offering convenient installation and enhanced safety
Three external LED indicators facilitate monitoring of MCU status and signal transmission/reception status

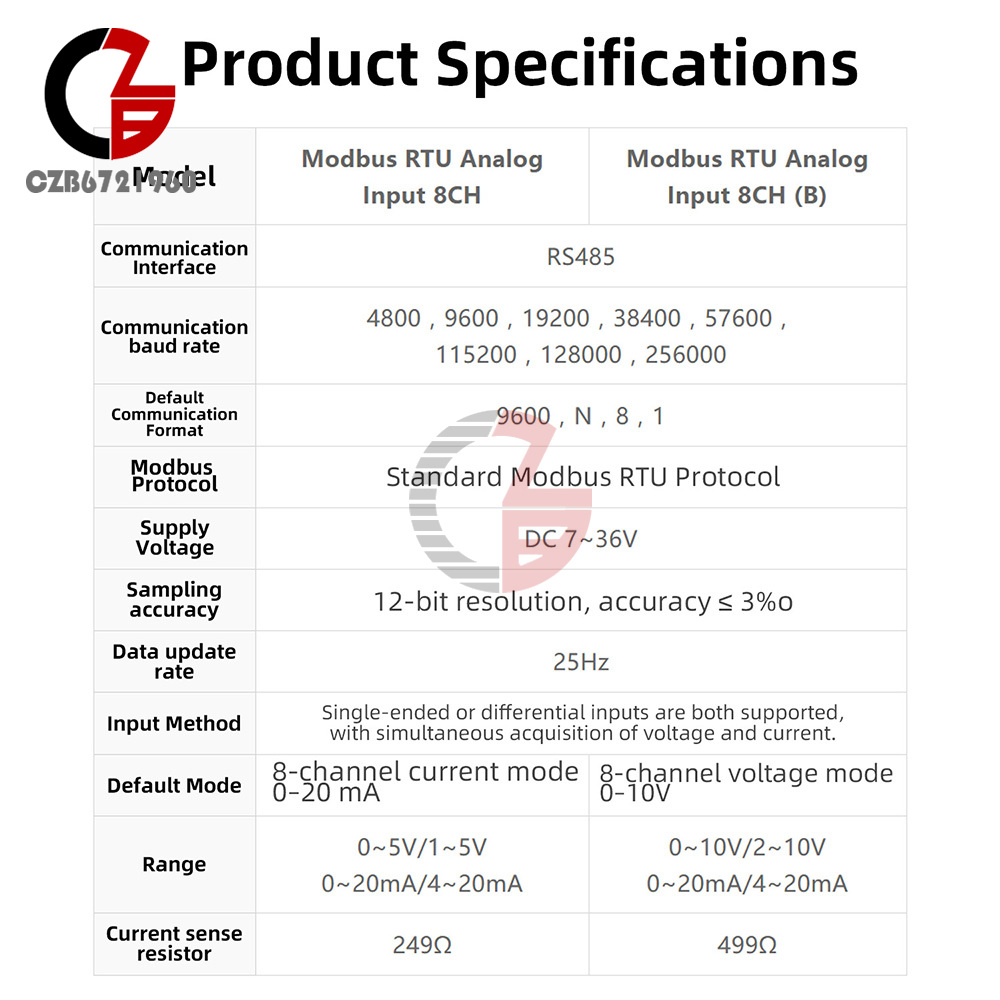

Product Specifications:

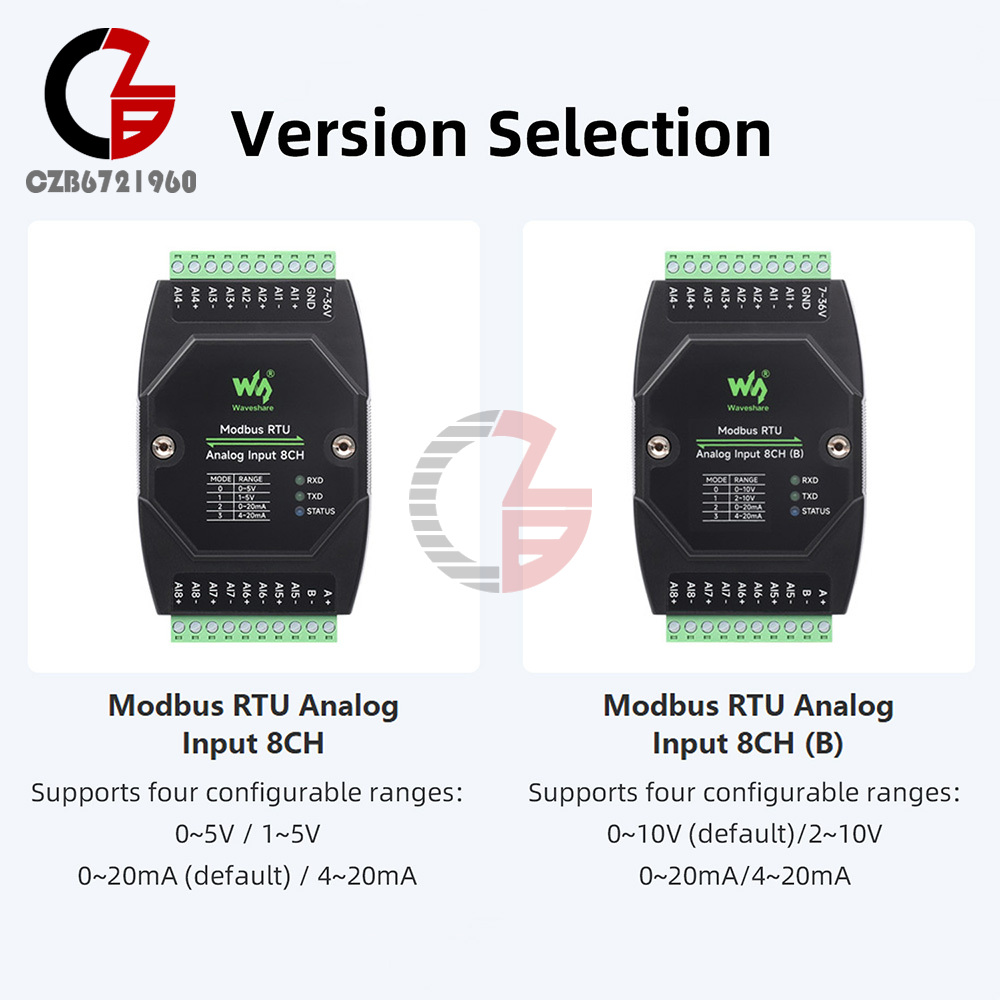

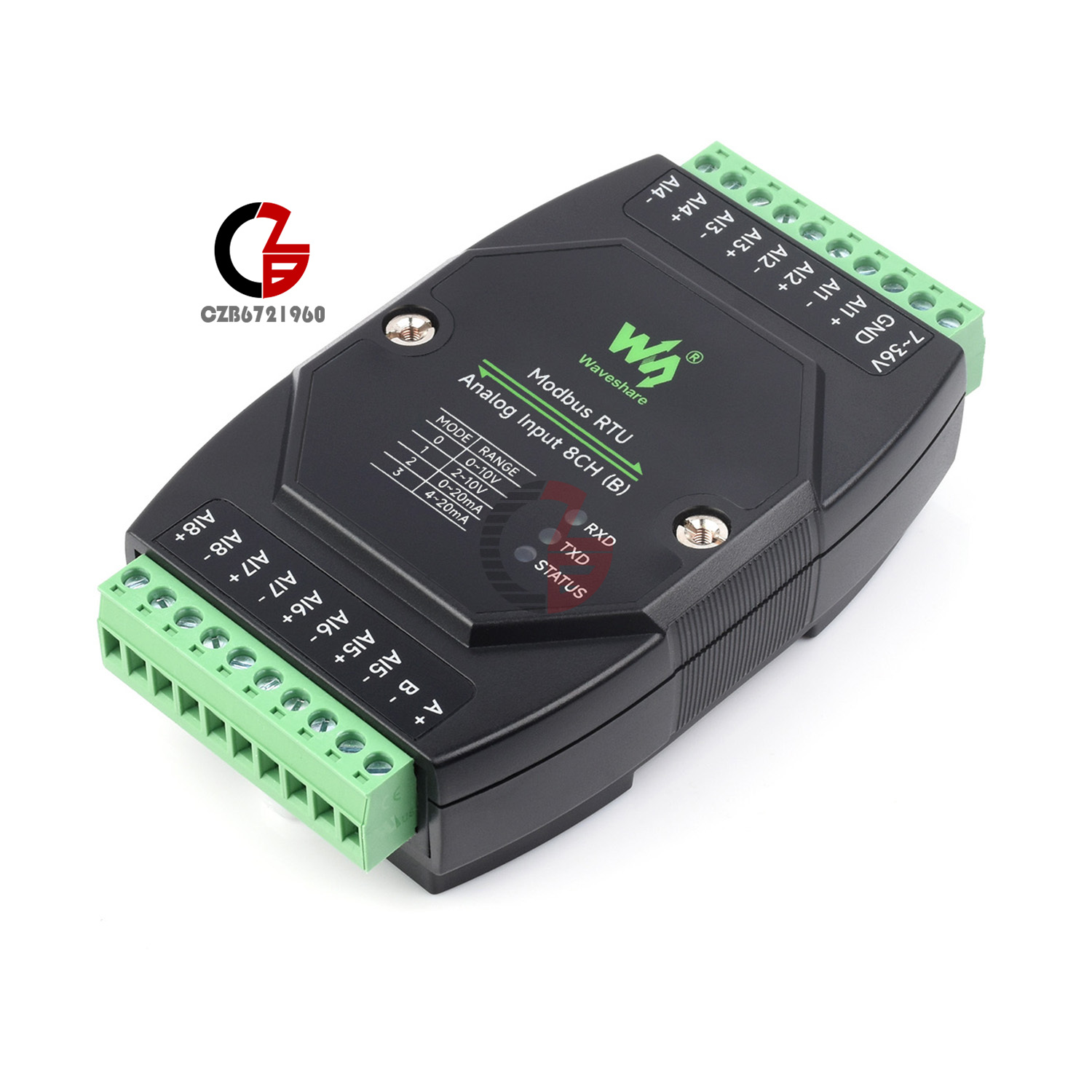

Model: Modbus RTU Analog Input 8CH, Modbus RTU Analog Input 8CH (B)
Communication Interface: RS485
Communication Baud Rates: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
Default Communication Format: 9600, N, 8, 1
Modbus Protocol: Standard Modbus RTU Protocol
Supply Voltage: DC 7–36 V
Sampling Accuracy: 12-bit resolution, accuracy ≤3‰
Data Update Rate: 25 Hz
Input Mode: Supports both single-ended and differential inputs; simultaneous voltage and current
Model: Modbus RTU Analog Input 8CH, Modbus RTU Analog Input 8CH (B)
Communication Interface: RS485
Communication Baud Rates: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
Default Communication Format: 9600, N, 8, 1
Modbus Protocol: Standard Modbus RTU Protocol
Supply Voltage: DC 7–36 V
Sampling Accuracy: 12-bit resolution, accuracy ≤3‰
Data Update Rate: 25 Hz
Input Mode: Supports both single-ended and differential inputs; simultaneous voltage and current
acquisition
Default Mode: 8 channels in current mode (0–20 mA), 8 channels in voltage mode (0–10 V)
Range: 0–5 V/1–5 V, 0–20 mA/4–20 mA, 0–10 V/2–10 V, 0–20 mA/4–20 mA
Current sensing resistor: 249 Ω, 499 Ω
Default Mode: 8 channels in current mode (0–20 mA), 8 channels in voltage mode (0–10 V)
Range: 0–5 V/1–5 V, 0–20 mA/4–20 mA, 0–10 V/2–10 V, 0–20 mA/4–20 mA
Current sensing resistor: 249 Ω, 499 Ω
Product List:
8-channel analog acquisition module × 1
Power adapter × 1
8-channel analog acquisition module × 1
Power adapter × 1
Note: This product does not include a power supply by default; users may purchase a 12V power supply separately as needed by themself.
