Description

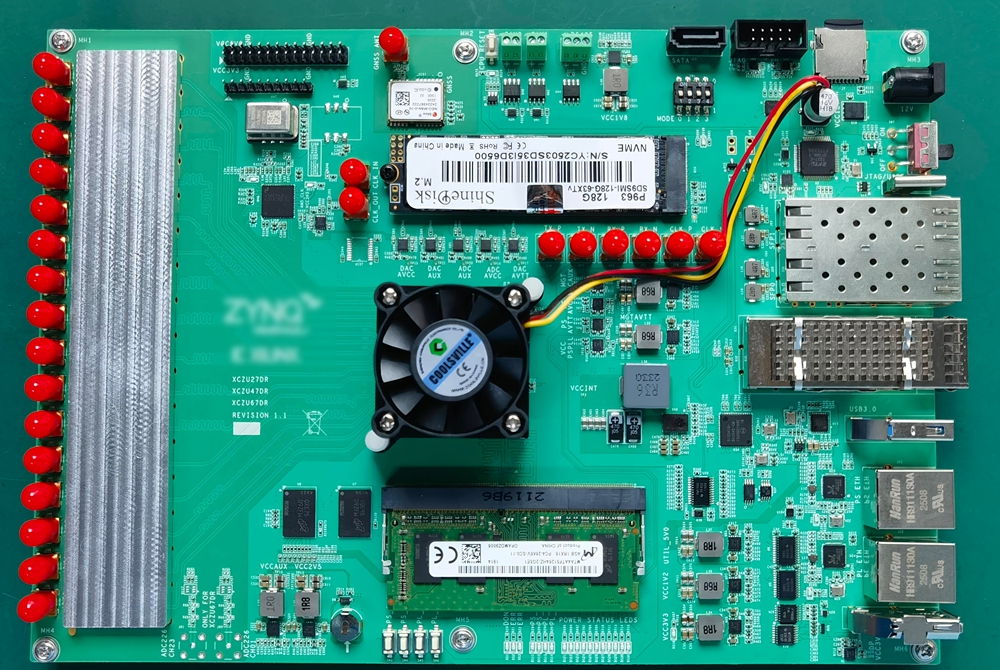

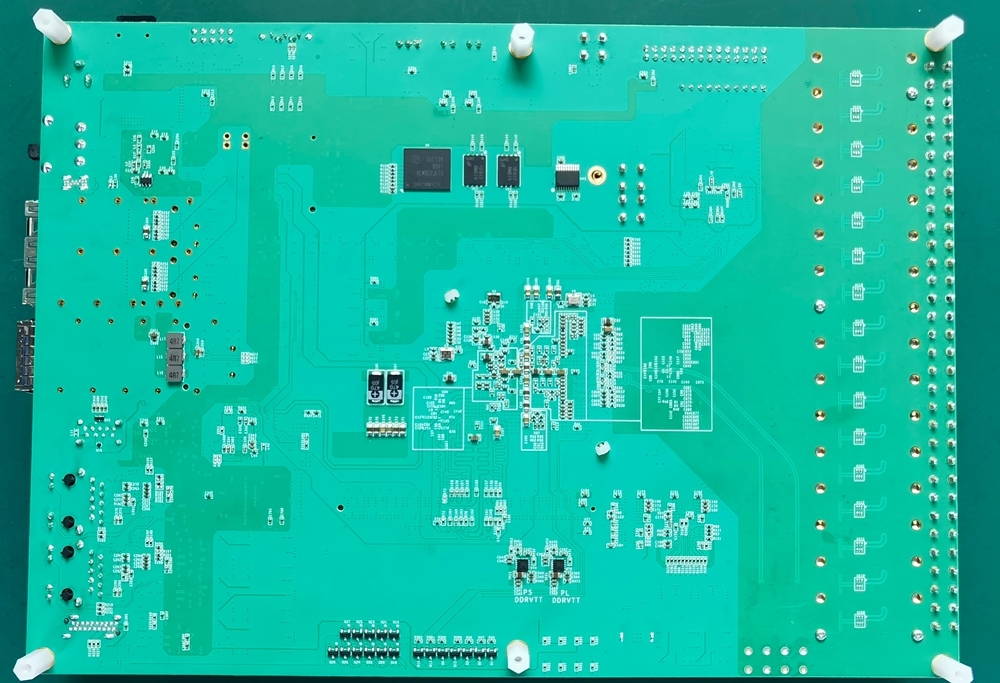

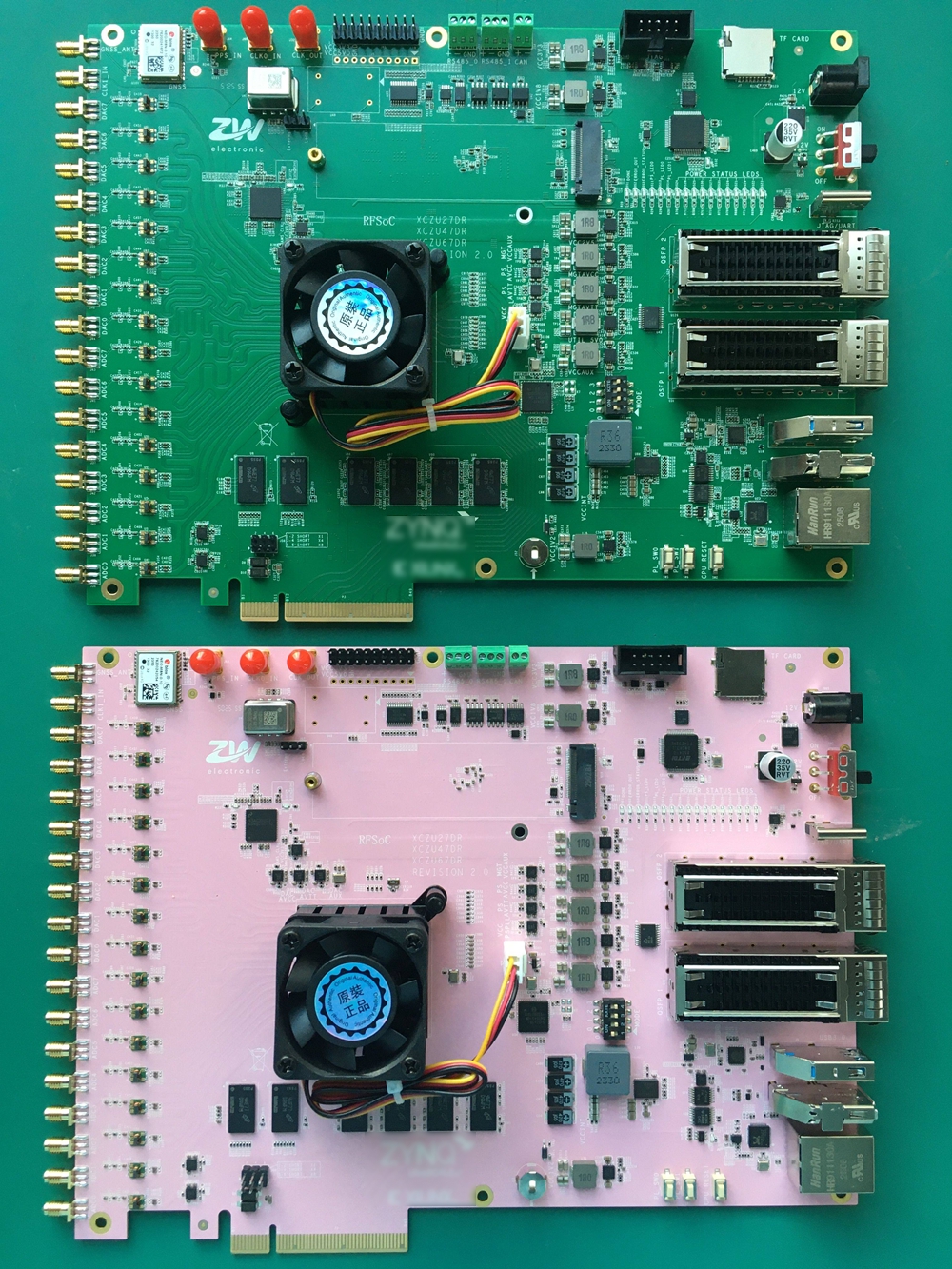

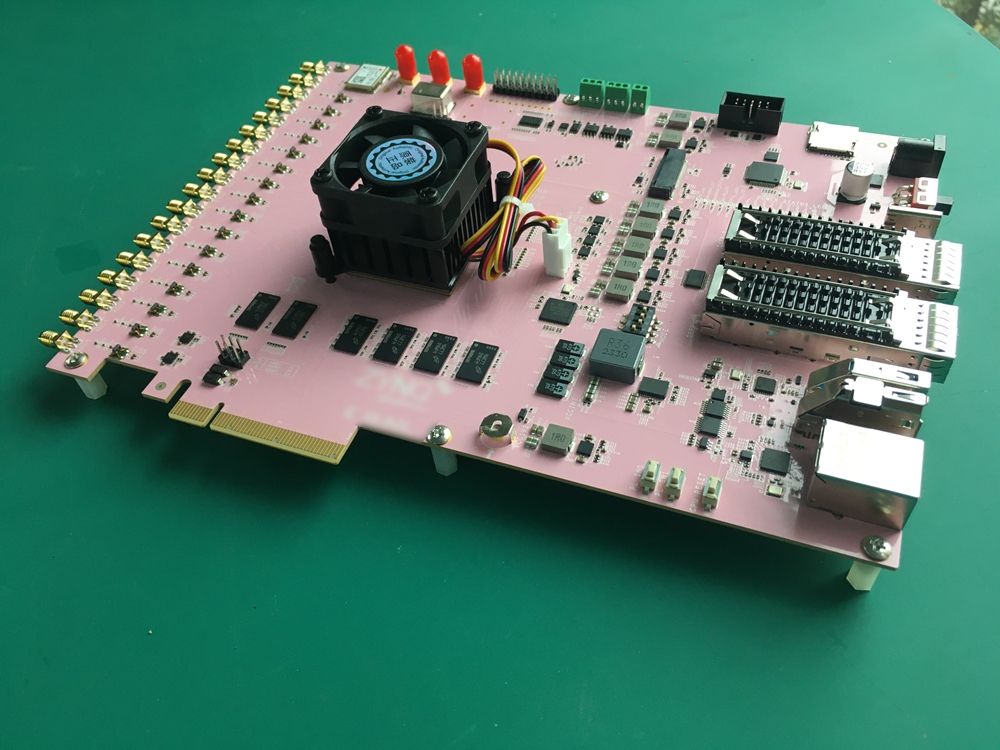

RFSOC PCIE RF Wireless Development Board for ZYNQ Onboard GNSS Module Support PPS Output
Features:
- RFSOC series XCZU27DR, XZU47DR, XCZU67DR (optional).
- For Panasonic M6 high-speed board, back drilling process, GTY speed up to 32.75Gb/s.
- Multiple startup modes can be configured through the dip switch.
- All first-line manufacturers' components, large factory processes.
Storage:
- QSPI FIASH: 512Mb x 2, model: MT25QU512ABB1EW9-0SIT
- PS SO-DIMM DDR4: 72Bit, supports ECC, 8G (can be replaced with high-capacity memory modules according to you own needs)
- PL DDR4: 32Bit, 4G
- EMMC: 32GB, model: for Micron MTFC32GAPALBH-IT
- PS SSD: NVME, PCIe x 128GB (default configuration, can be freely replaced)
- TF CARD: default configuration of 16GB TF card
- EEPROM: M24C02-RDW6TP, I2C interface

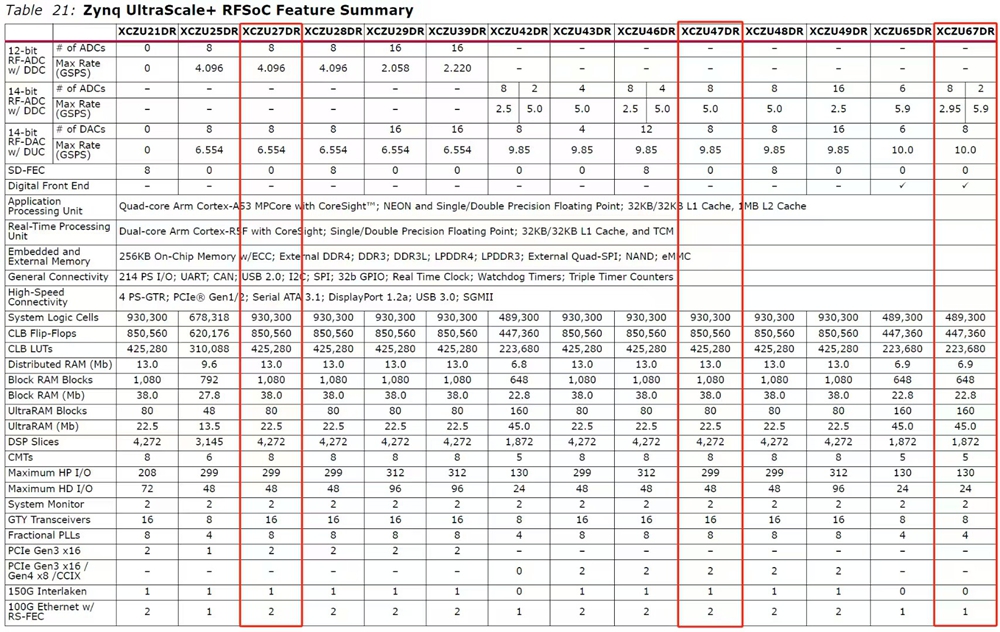

AD DA:
- XCZU27DR: 8-channel AD (12 bit 4.096 GSPS), 8-channel DA (14 bit 6.554 GSPS)
- XCZU47DR: 8-channel AD (14 bit 5.0 GSPS), 8-channel DA (9.85 GSPS)
- XCZU67DR: 10 channel AD (8 channel 14 bit 2.95 GSPS, 2 channel 14 bit 5.9 GSPS), 8 DA(14bit 10 GSPS)
Positioning and Timing:
- GNSS: Onboard GNSS module for UbIox NEO-M8N, supports PPS output
Expansion:
- IO Expansion: 2.54 pin rows, 16 IO, LVCMOS 3.3
- Expand GTY: introduce one channel GTH and CLK through SMA
Clock:
- Clock: SI5341B+LMK04828, onboard 19.2M VCXO, supports external clock input and output
Interface:
- Gigabit Ethernet: one PS and one PL, interface: RGMII
- Serial/JTAG: JTAG and PS UART in one, FT2232 solution, TYPE-C
- USB 3.0: one TYPE-A
- SATA: one, connected to PL's GTY Bank
- DP: one, connected to PS's GTR Bank
- QSFP+: one, 100Gb/s
- CAN: two, PS
- RS485: one, PL
- LED: 2 PS, 2 PL
- Dial switch: one, 2 bit
- Sensor: temperature sensor, I2C, LM75
Package Included:
- 1 x Development Board
