Description
Remote IO Expansion Module Digital Output for PROFINET
Model Selection:
- SG-PN-32DI: 32 channel digital input
- SG-PN-32DO-NPN: NPN type 32-channel digital output
- SG-PN-32DO-PNP: PNP type 32-channel digital output
- SG-PN-16DI-16DO-NPN: 16-channel digital input/NPN type 16-channel digital output (1-16 channels: input; 17-32 channels: NPN output)
- SG-PN-16DI-16DO-PNP: 16-channel digital input/NPN type 16-channel digital output (1-16 channels: input; 17-32 channels: PNP output)
Description:

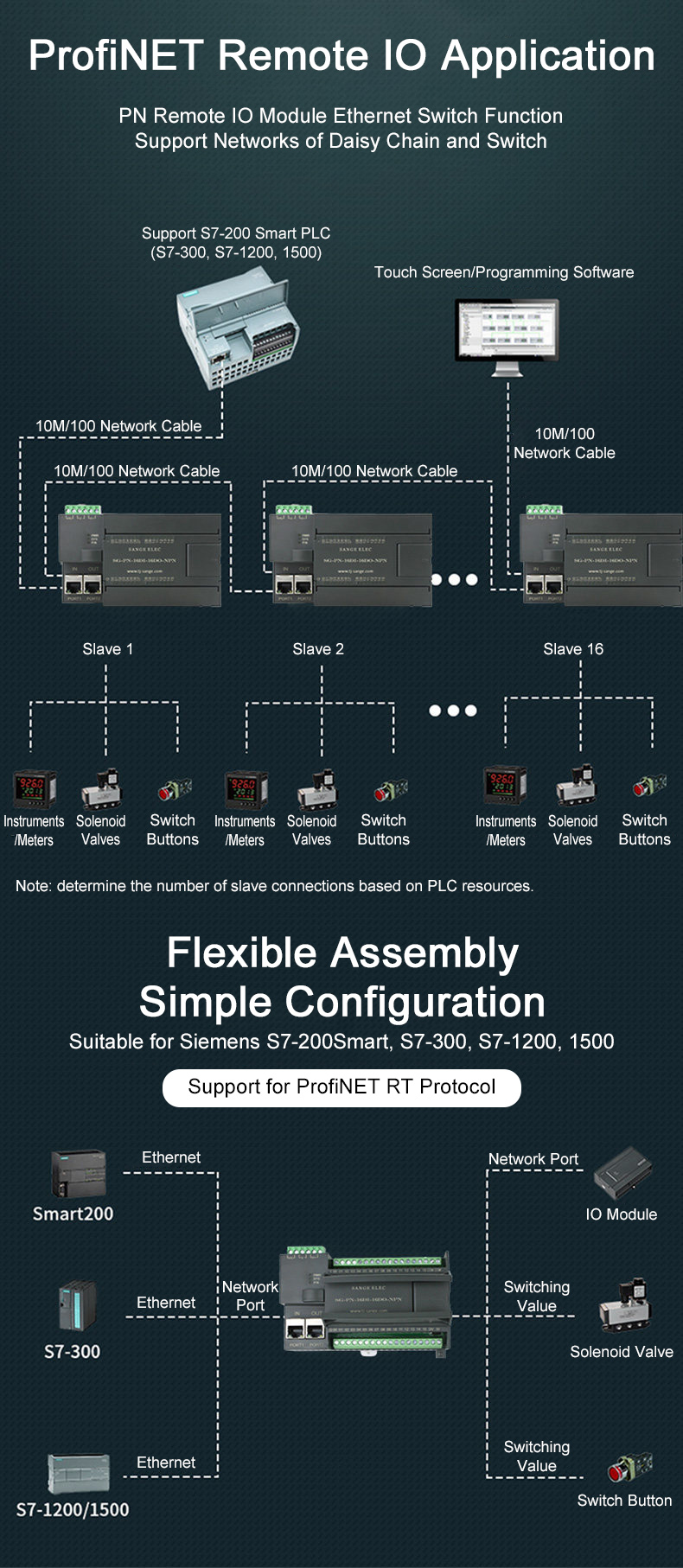

- As a device (i.e. slave) for Profinet network, the module comes with two RJ45 Ethernet interfaces, supports for 100BASE-TX/RX, MDI/MDIX self detection, integrates switch function, and can form a chain network. Adapt to PROFINET V2.4 protocol, adopt real-time (RT) communication function, and comply with GB/T25105-2014 "Industrial Communication Network Fieldbus Specification Type 10: PROFINET IO Specification", IEC61158-5-10: 2007, IDT.
- The module has a wide range of applications, including new energy, lithium batteries, non-standard automation, robots, CNC machine tools, intelligent garages, logistics sorting, educational equipment, environmental protection, heating, etc.
Specification:
- Top power supply: 9 - 36V (typ. 12/24V), over-voltage/over-current/anti reverse connection protection
- Working temperature: -30℃ to 75℃
- Working humidity: 5% - 95%RH (non-condensing)
- Protection level: IP20
- Station type: PROFINET I/O DEVICE (PROFINET slave)
- Communication method: Profinet
- Communication interface: RJ45 x 2, 10/100M adaptive, switch function
- Maximum bus length: 100m
- Configuration method: TLA software loading GSD configuration

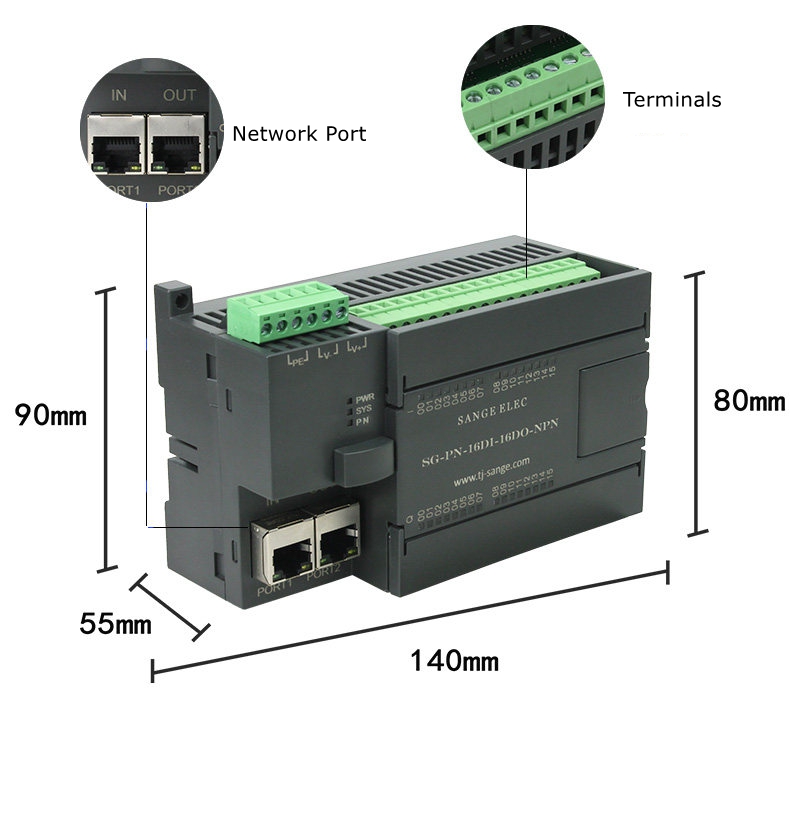

Top Terminal Signs:
- V+: positive power input
- V-: negative power input
- PE: grounding
- PORT1/PORT2: Profinet communication port
Package Included:
- 1 x IO Module
Model Selection:
- SG-PN-32DI: 32 channel digital input
- SG-PN-32DO-NPN: NPN type 32-channel digital output
- SG-PN-32DO-PNP: PNP type 32-channel digital output
- SG-PN-16DI-16DO-NPN: 16-channel digital input/NPN type 16-channel digital output (1-16 channels: input; 17-32 channels: NPN output)
- SG-PN-16DI-16DO-PNP: 16-channel digital input/NPN type 16-channel digital output (1-16 channels: input; 17-32 channels: PNP output)
Description:
- As a device (i.e. slave) for Profinet network, the module comes with two RJ45 Ethernet interfaces, supports for 100BASE-TX/RX, MDI/MDIX self detection, integrates switch function, and can form a chain network. Adapt to PROFINET V2.4 protocol, adopt real-time (RT) communication function, and comply with GB/T25105-2014 "Industrial Communication Network Fieldbus Specification Type 10: PROFINET IO Specification", IEC61158-5-10: 2007, IDT.
- The module has a wide range of applications, including new energy, lithium batteries, non-standard automation, robots, CNC machine tools, intelligent garages, logistics sorting, educational equipment, environmental protection, heating, etc.
Specification:
- Top power supply: 9 - 36V (typ. 12/24V), over-voltage/over-current/anti reverse connection protection
- Working temperature: -30℃ to 75℃
- Working humidity: 5% - 95%RH (non-condensing)
- Protection level: IP20
- Station type: PROFINET I/O DEVICE (PROFINET slave)
- Communication method: Profinet
- Communication interface: RJ45 x 2, 10/100M adaptive, switch function
- Maximum bus length: 100m
- Configuration method: TLA software loading GSD configuration
Top Terminal Signs:
- V+: positive power input
- V-: negative power input
- PE: grounding
- PORT1/PORT2: Profinet communication port
Package Included:
- 1 x IO Module
