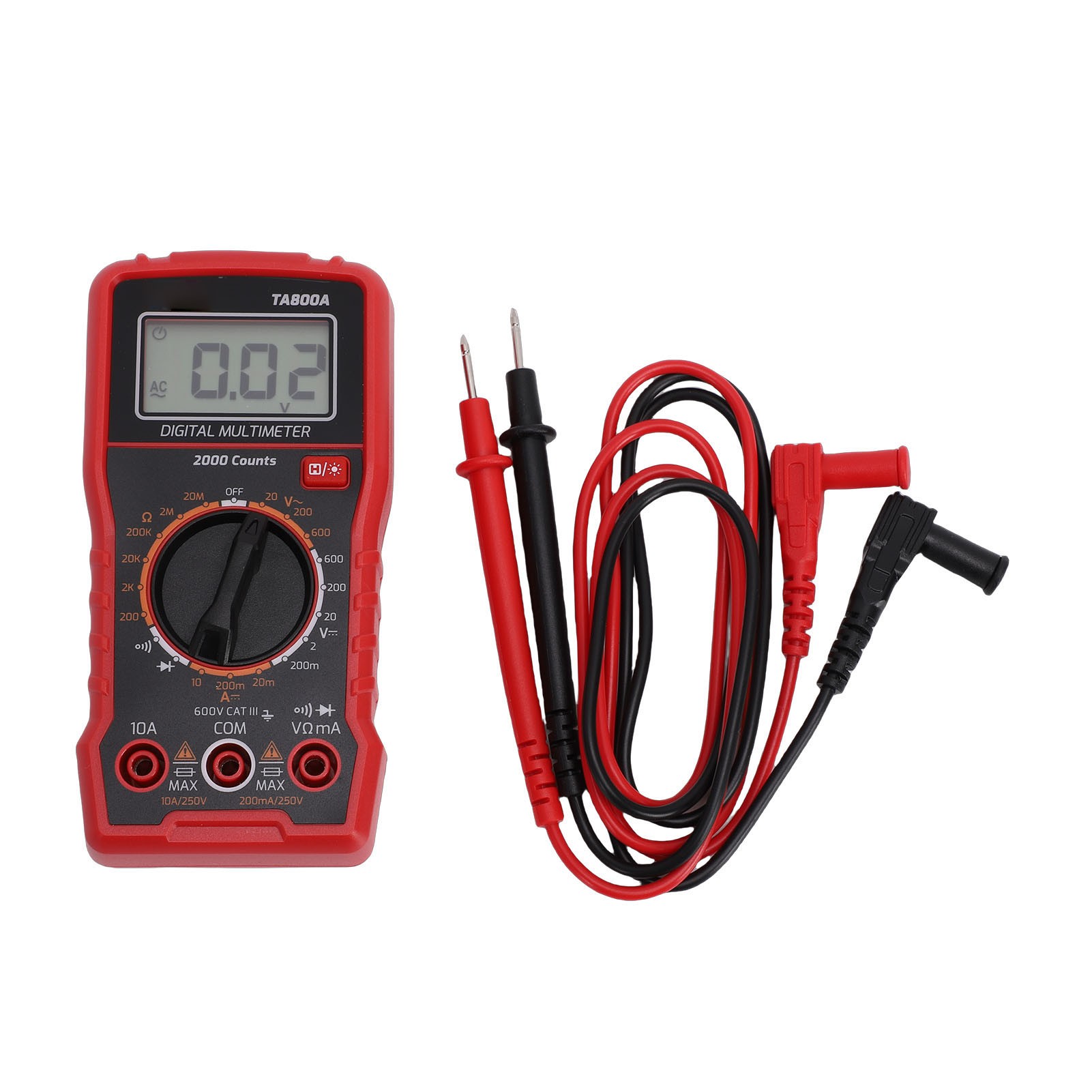

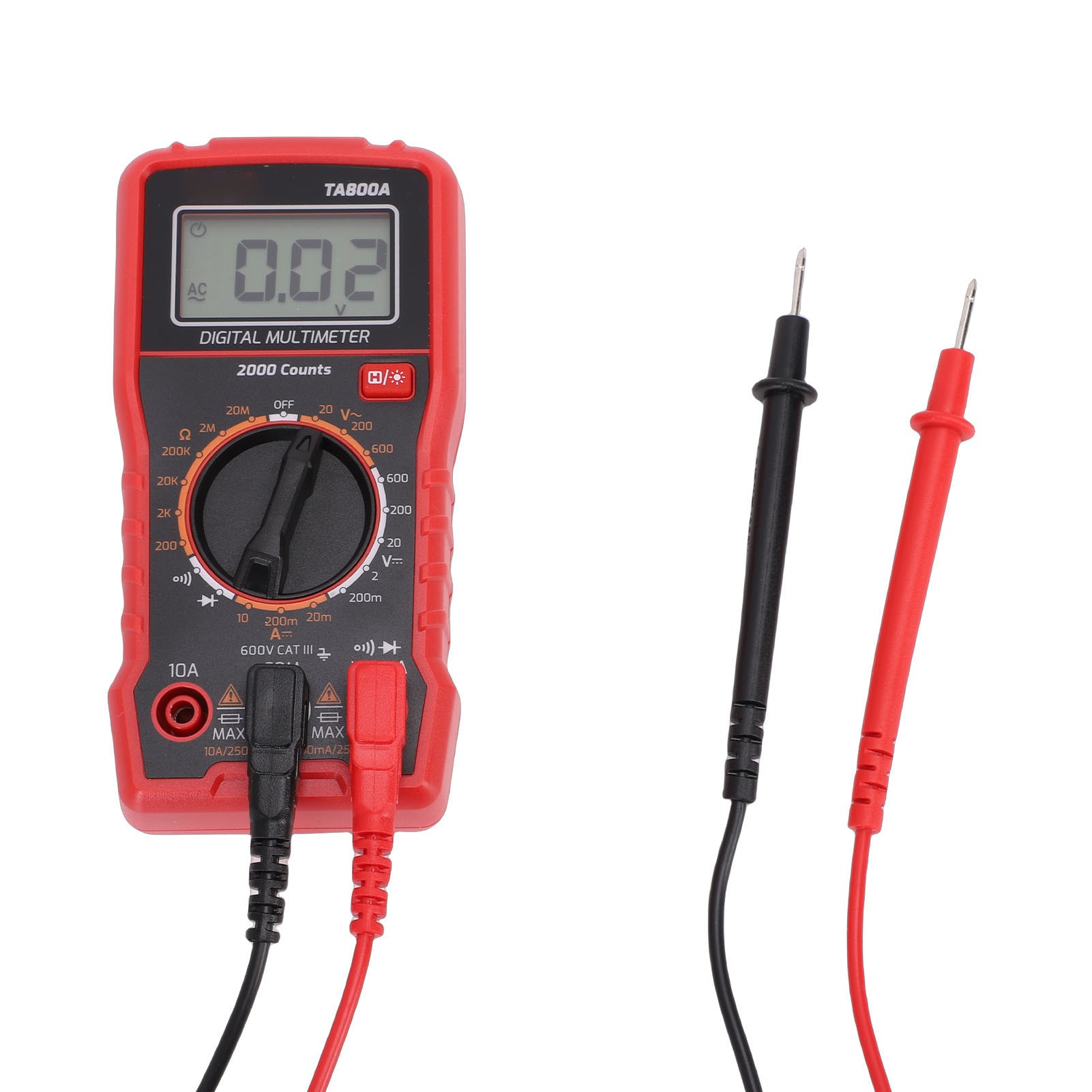

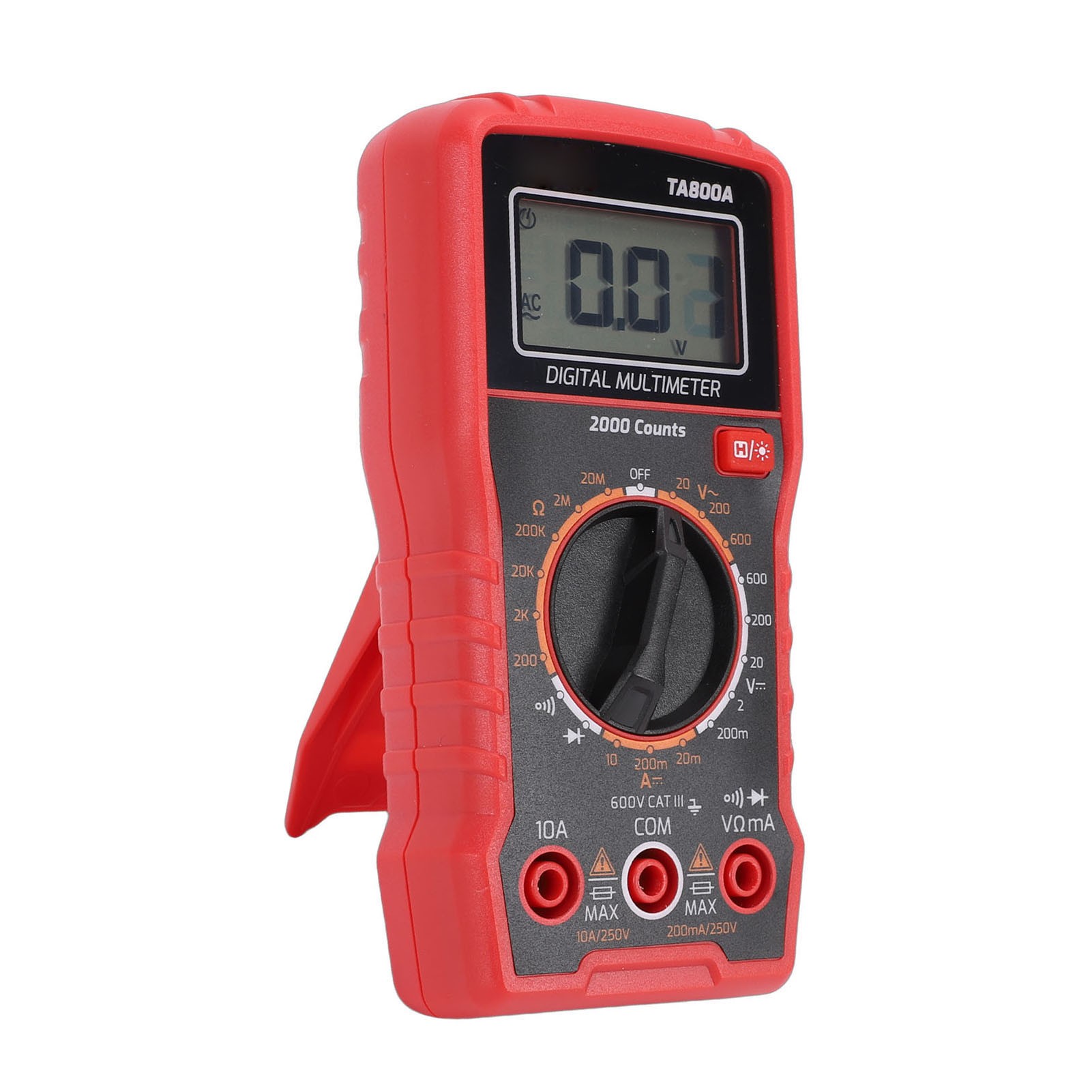

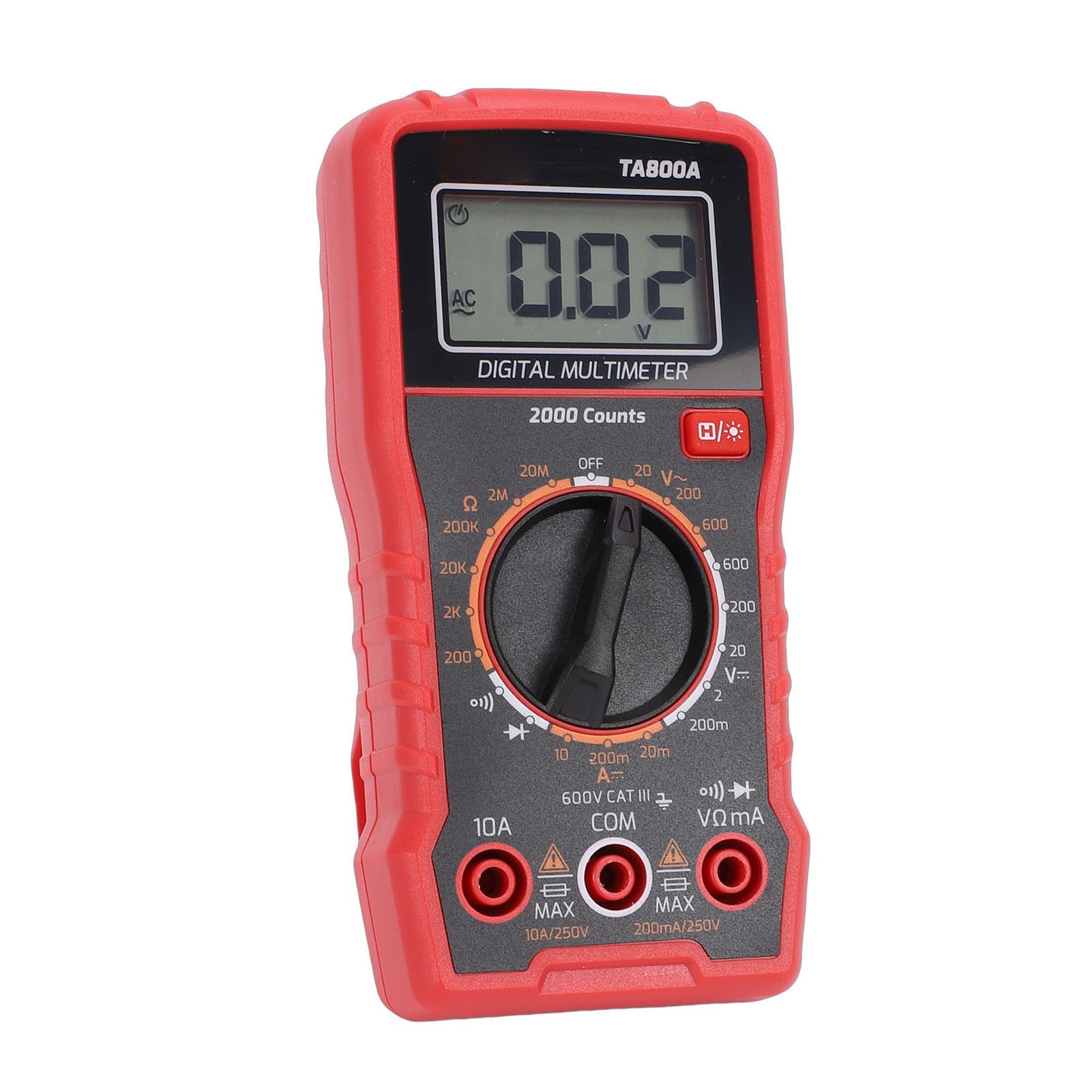

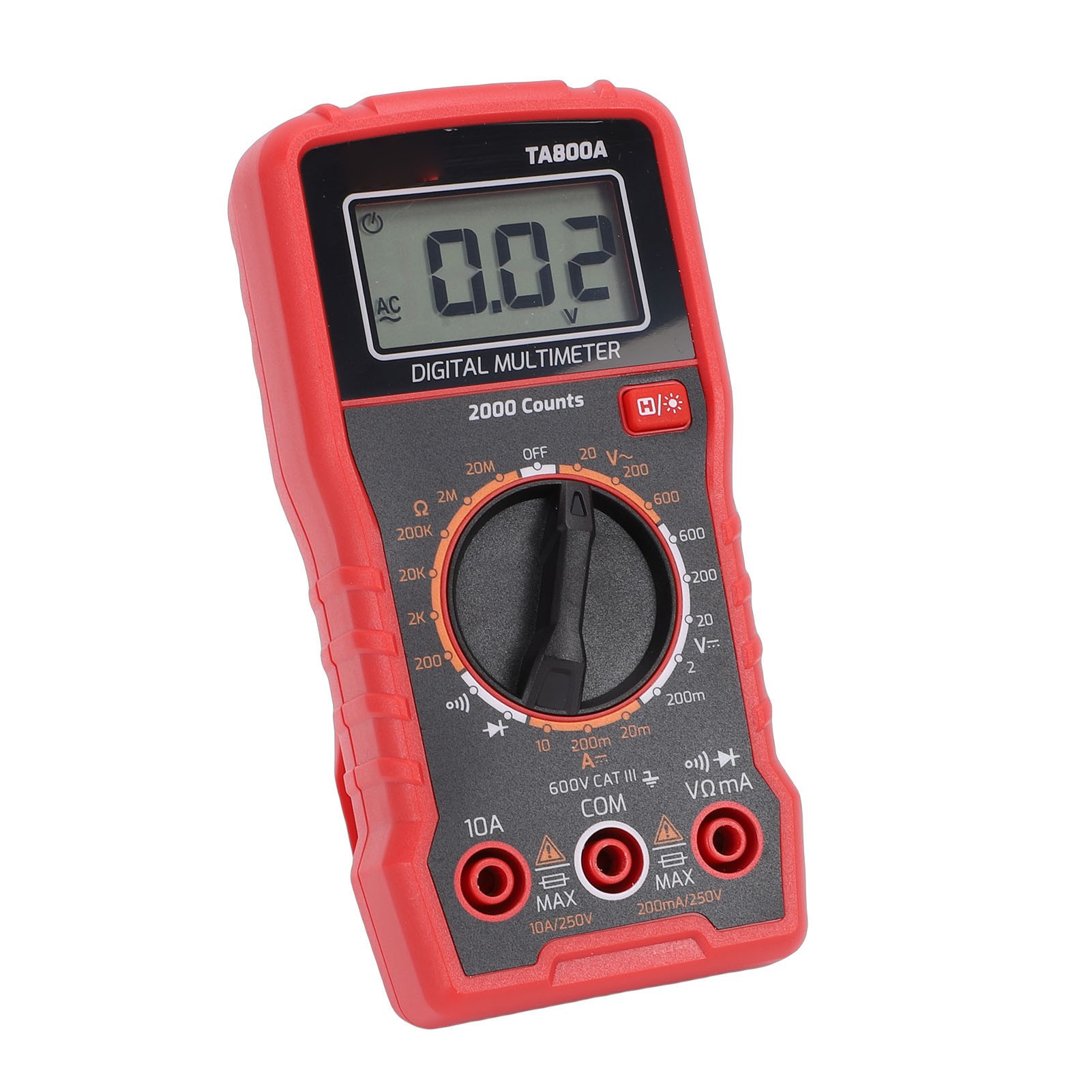

TA800A Digital Multimeter Red Black 125 x 65 x 35 mm for Electrician Field Work
DESCRIPTION

Features:

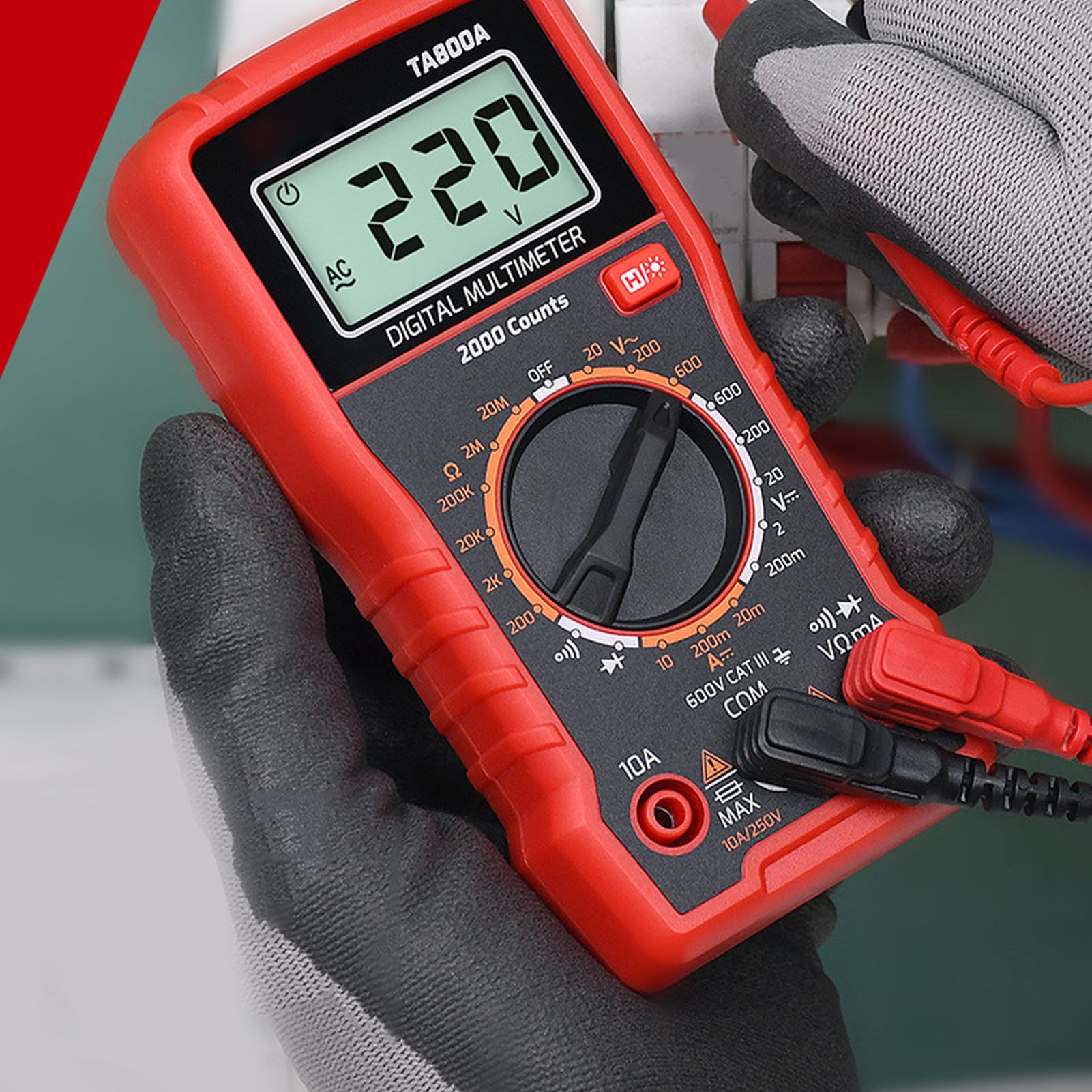

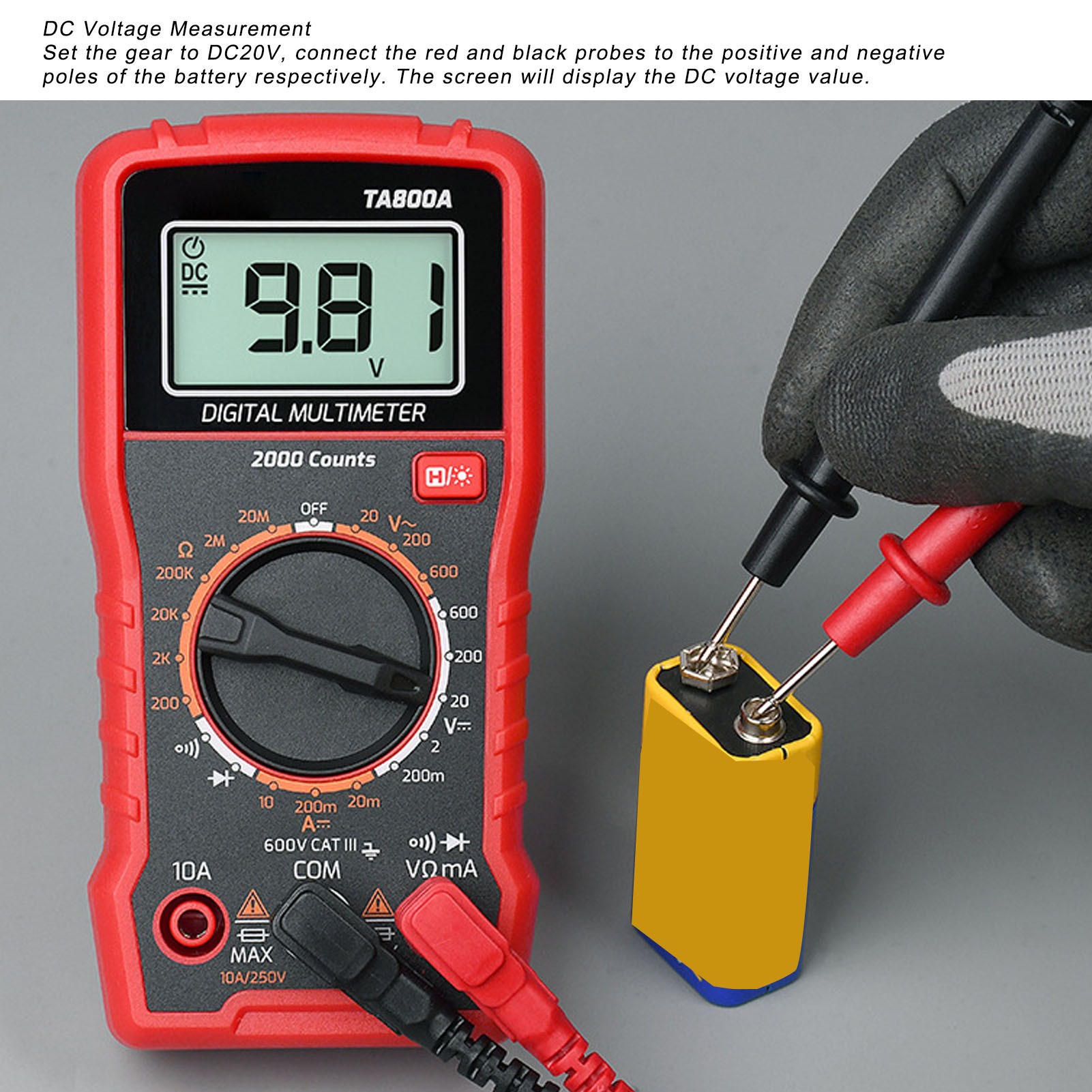

1. Voltage Testing: This multimeter accurately measures AC voltage up to 600V and DC voltage up to 20V. Connect the red and black probes respectively, and the screen will display the voltage value.

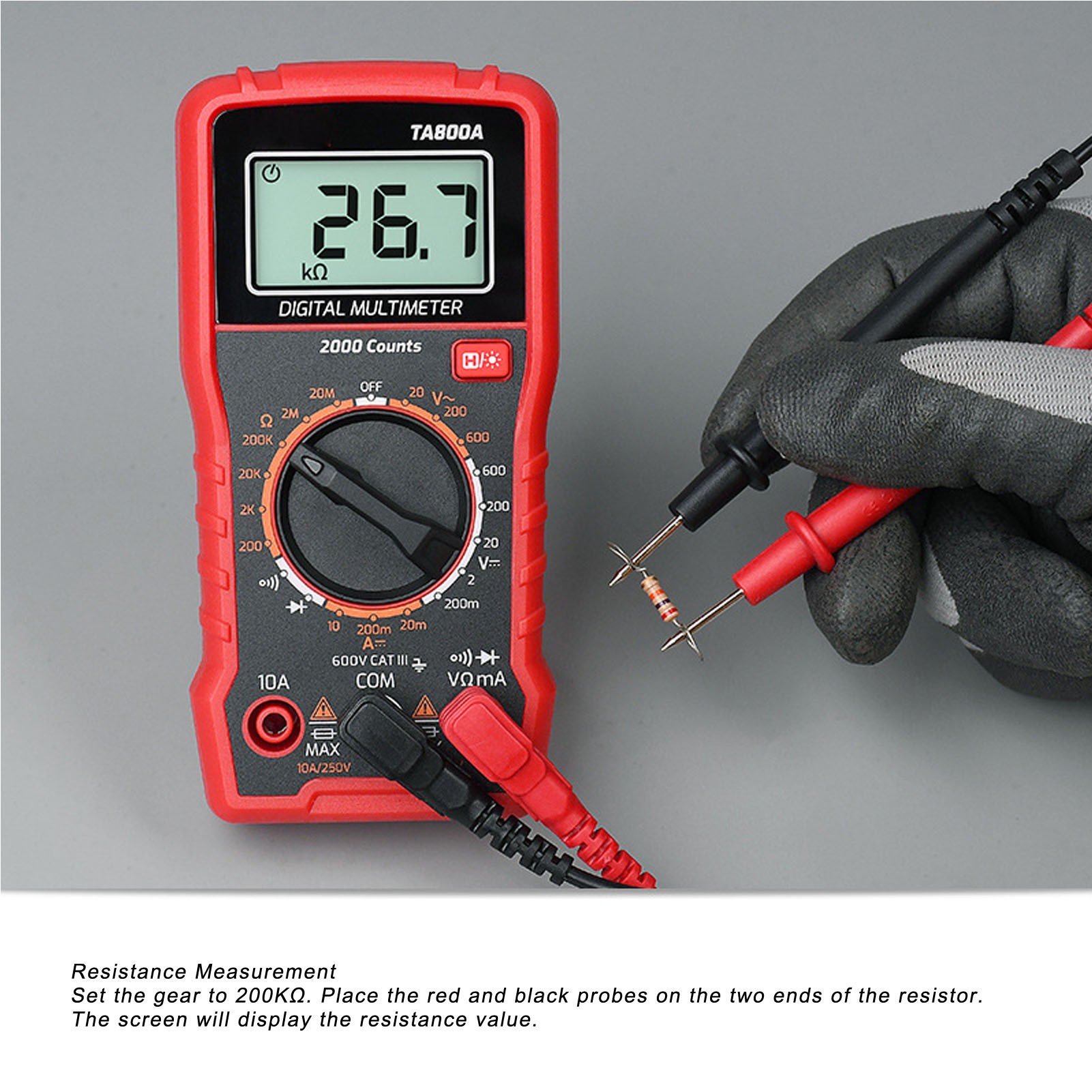

2. Resistance Testing: This auto-ranging digital multimeter efficiently measures resistance from 0.1Ω to 20MΩ,fast and accurate results for circuit troubleshooting and component inspection.

3. Continuity Buzzer: Place the probe tip for across the two ends of the circuit under test. The buzzer will sound when the circuit is connected and will not sound when the circuit is disconnected.

4. Precise Measurement: This digital multimeter features RMS and NCV functions, providing accurate AC/DC voltage, current, and resistance measurements, making it for ideal for electricians.

5. Compact and Practical: This portable electrical tester features an ABS housing design, allowing it to withstand daily use in environments from 0°C to 40°C while maintaining a compact and lightweight form factor.


Specifications:

Part Name: TA800A Multimeter

Material: ABS

Color: Red and Black

Size: 125*65*35mm

DC Voltage: 0.1mV-600V/±(1.0% reading + 5 digits)

AC Voltage: 0.01V-600V/±(1.0% reading + 5 digits)

DC Current: 0.01mA-10A/±(1.0% reading + 5 digits)

Resistance: 0.1Ω-20MΩ/±(1.2% reading + 5 digits)

Sampling Rate: 3 times/second

Operating Environment: 0-40℃, maximum relative humidity 80%, <10℃ non-condensing

Storage Environment: -10-60℃, maximum relative humidity 70% (without batteries)

Batteries: 2 AAA batteries (not included)


Package Contents:

1*Multimeter

2*Test Pens


Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
