Introduction:

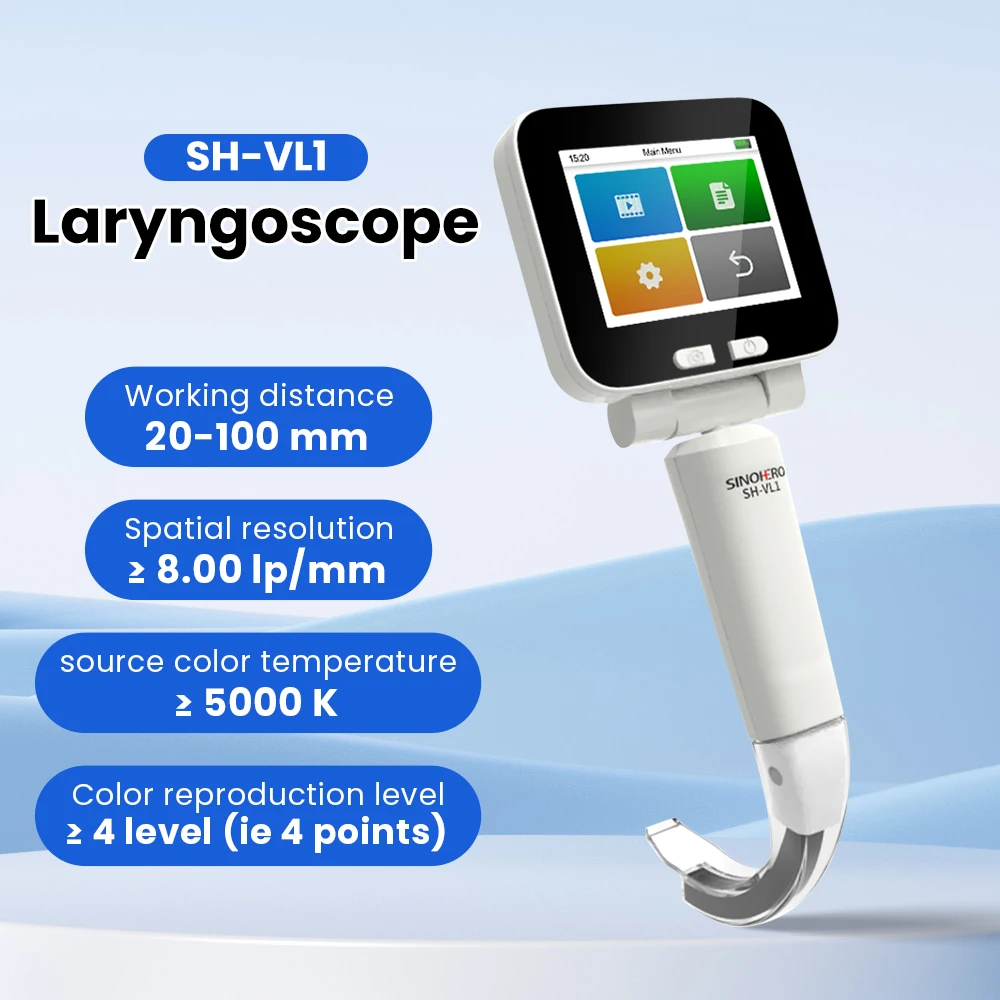

SINOHERO SH-VL1 VET is a Veterinary Reusable Video Laryngoscope,It provides better visualization for diffcult Intubation,Making the difficult airway easy and quick,it is 3.5" Full Touch Color Screen,2.0 Mega Pixel Camera, 16GB Storage,Built-in Rechargablebattery,with Different disposable blades.SmartScope LV Pro Intubation success rates higher than others.
Application Range:
It is widly use for Routine and difficult tracheal intubation Animals,Could be used for Veterinary doctors in Anesthesia,Pet Hospital and clinic,ICU/NICU/CCU,Operating Room,Emergency Rescue,Ambulance,ENT etc. Clinical training and teaching of tracheal intubation.
Features:
3.5" Full Touch Color Screen
Anti fog coating on distal lens
Video/Photo function
Battery rechargeable
Fast and simple operation
Fully Portable Video endoscope laryngoscope
Anti-fog blade

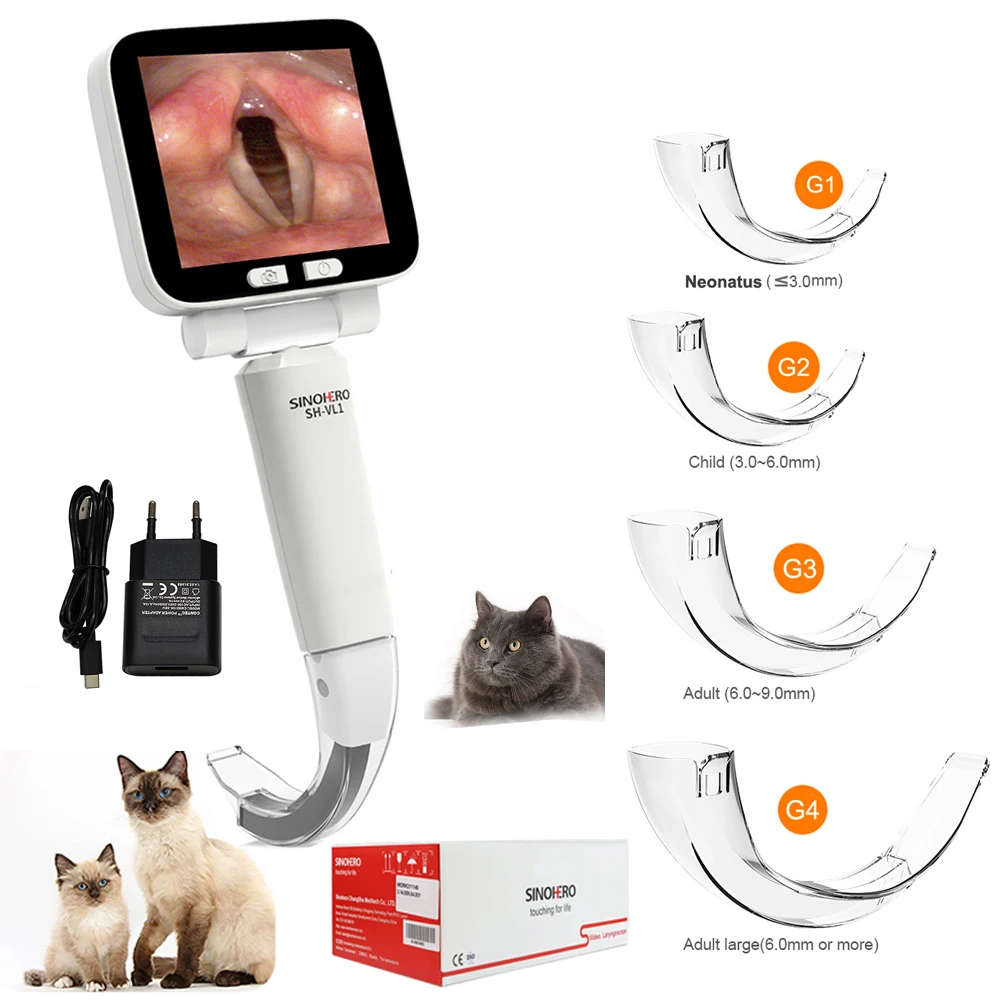

Disposable plastic G1,G2 ,G3,G4 blade:
G1: 3.0mm or less, use for Neonatus;
G2: 3.0-6.0mm,use for Child;
G3: 6.0-9.0mm,use for Adult;
G4: 6.0 or more,use for Large Adult;
Suitable For：Difficult incubation of glottic opening, easily guide the medical staff to accurately perform endotracheal intubation for anesthesia or first aid.
● Performance:
Display :
Monitor: 3.5 inch LCD
Resolution Ratio: 640×480RGB
Aspect Ratio: 4:3
Video Refresh Rata: 30FPS
Camera and image:
Resolution Ratio 2.0M Pixels, provide 1280*720P photo and video
Field Angle: ≥60°
Llluminance: ≥2250OLUx
Working Distance: 20mm-100mm
Color Temperature: ≥25000K
Color Reduction Grade: ≥6
Data Output:
Easy to establish and store files in JPEG or MP4. 8GB standard
Storage can be upgrade to 64GB, Connect to PC by USB-Type C cable
Safety：
Ergonomic and durable design for long time usage
High quality material with anti shatter protection for
whole unit
Disposable Blades avoid cross infection
Anti- Fog Lens and Anti-Microbial Handle
Fast ：
Fast intubation after short time training
Fast install or remove disposable blade
Lightweight and portable
High- Definition：
3.5 inch anti- reflective full touch display with 640*480
resolution
2.0 Mega Pixel Camera provide 1280*720P photo
and video
Rotation angle for up-down ≥120°and left-right ≥270°
Easy：
One shot button for Recording
One cable connect to PC for data management
One cable connect to large LCD for better view (option)
Full touch scree with user friendly operation
Wireless charging
Cost Effective：
Favorable cost for all kinds of disposable blades
Rechargeable battery for at least 4 hours working time
Power and Battery：
Type Rechargeable Lithium Battery
Battery Life Cycle: More Than 500 times
AC100-240V, 50/60Hz, 50VA
Charging Times: Less than 2hrs
Working Condition:Temperature: -10~+50C
Physical Identity:
Size and weight:
Product Size: 27*11*11cm; Product Weight: 226g
Peper Box Carton Size: 30*19*11cm; Weight: 700g;
Quantity: 1pcs/Carton
Aluminum Box Carton Size: 37*14*29cm Weight:2200g;Quantity: 1pcs/Carton

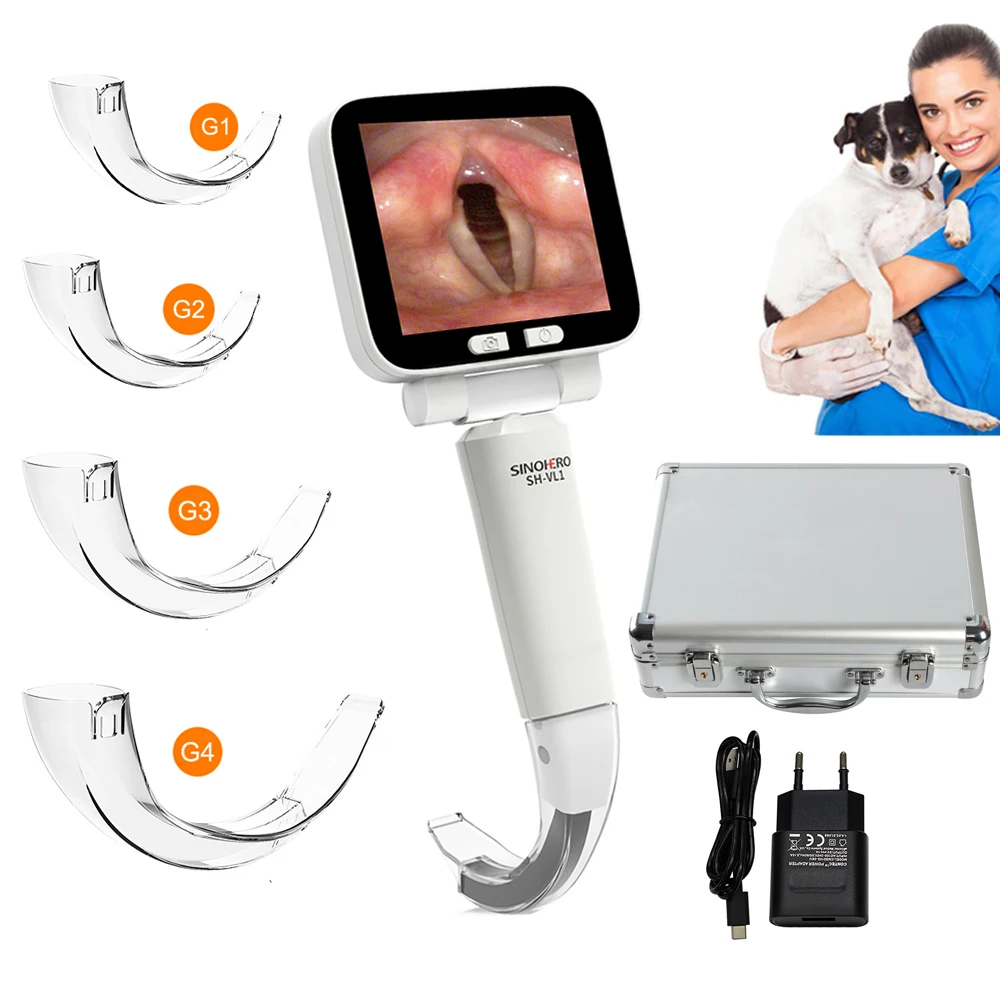

Package included:
1X SH-VL1 VET VeterinaryDigital Video Laryngoscope
4X Different Size disposable blades
1X Aluminum Box or Paper Box
1X User manual
Optional: Paper Package Box and more disposable blades(Need Optional item,please contact us to chat about)
