Precision Lathe Tool Holder Kit with Indexable CCMT Inserts and Screws
DESCRIPTION

Features:

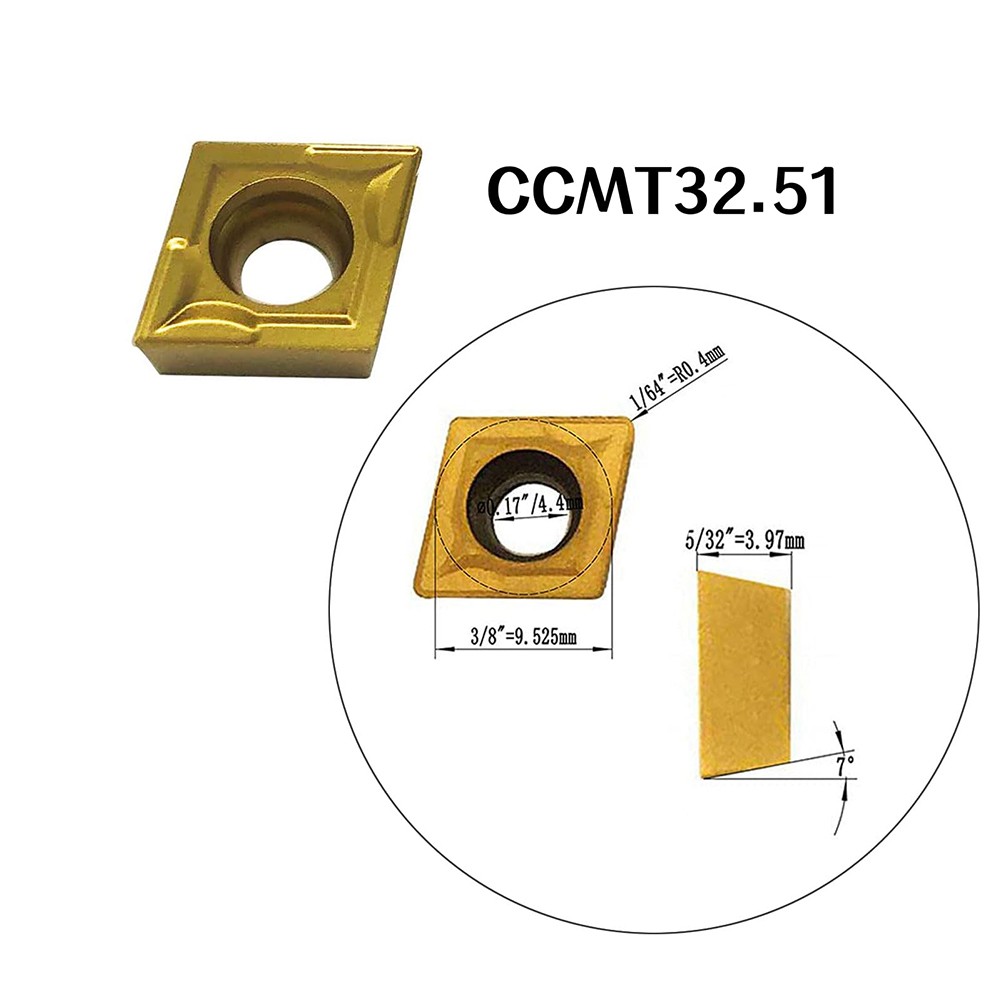

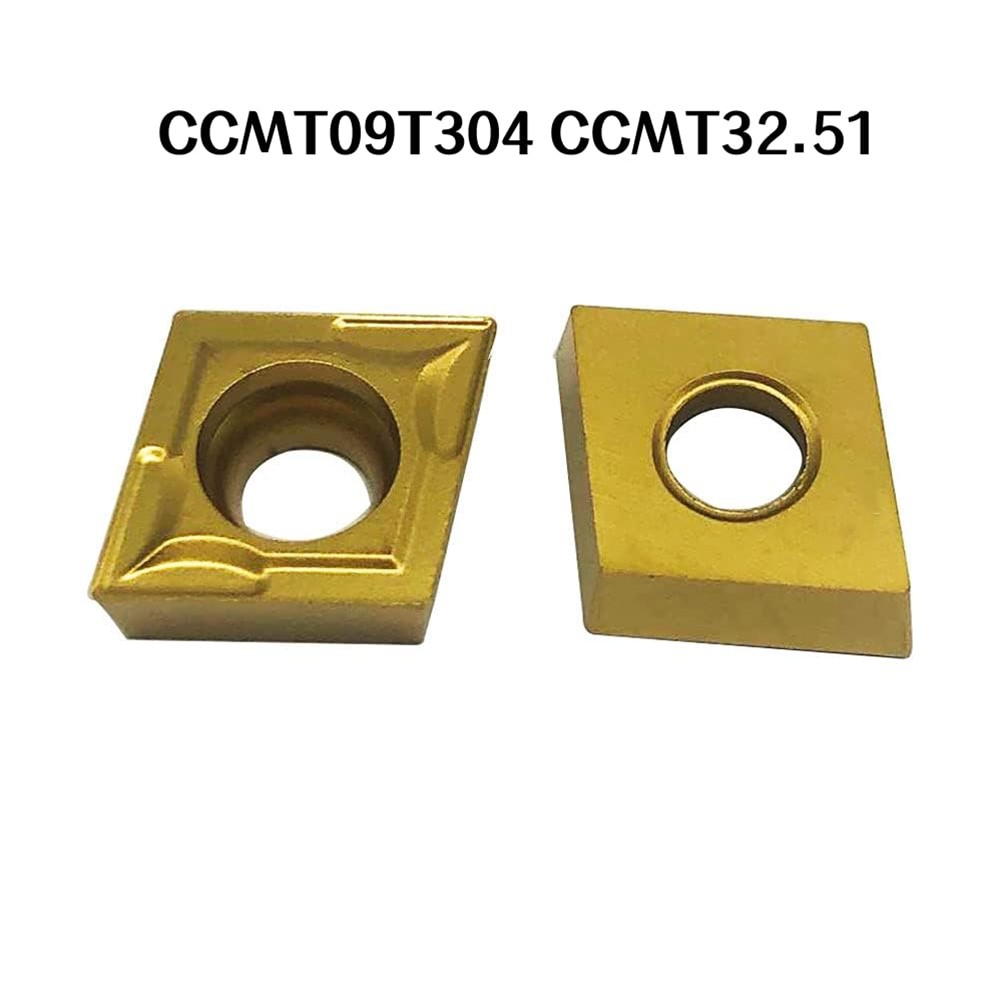

*Carbide Insert Specifications: The CCMT09T304 and CCMT32.51 are 80° indexable carbide inserts with a thickness of 5/32 inches, a through hole diameter of 0.17 inches, and a radius of /64 inches. These single-sided inserts are made from solid carbide and feature a multilayer coating for enhanced for performance.

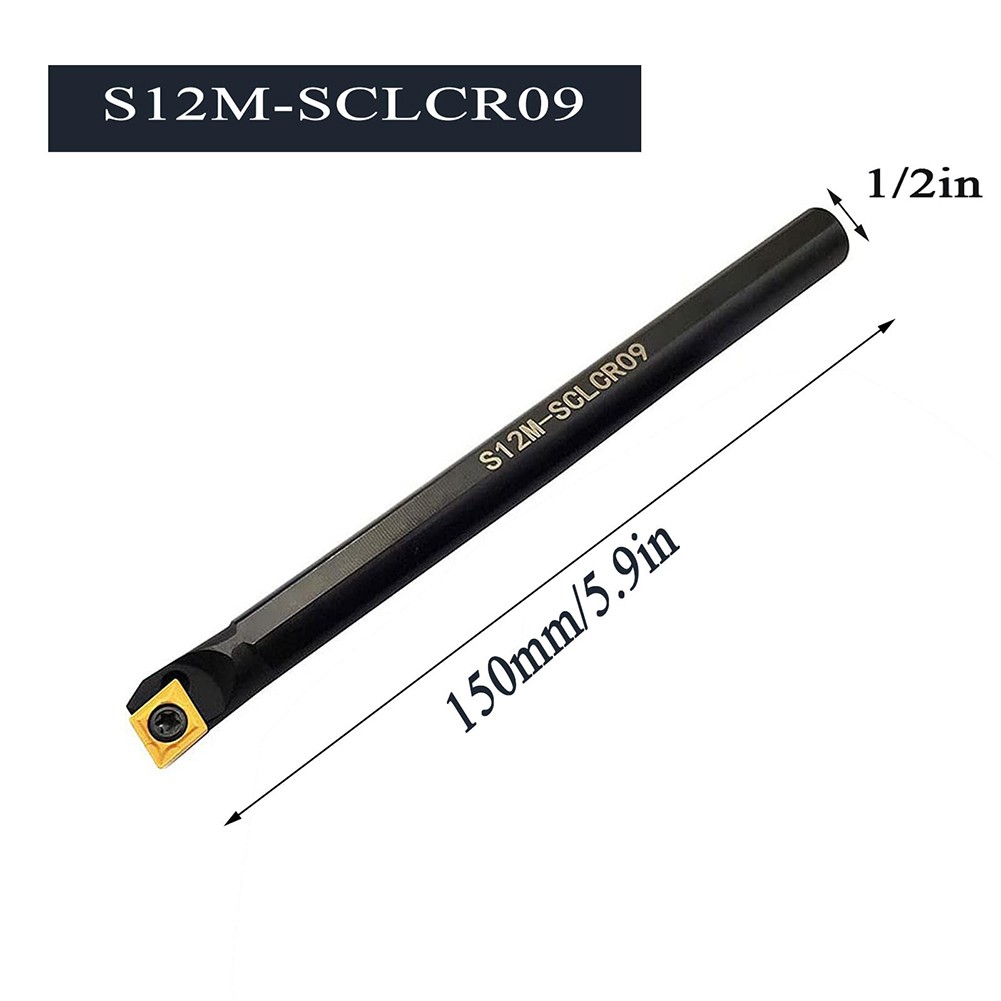

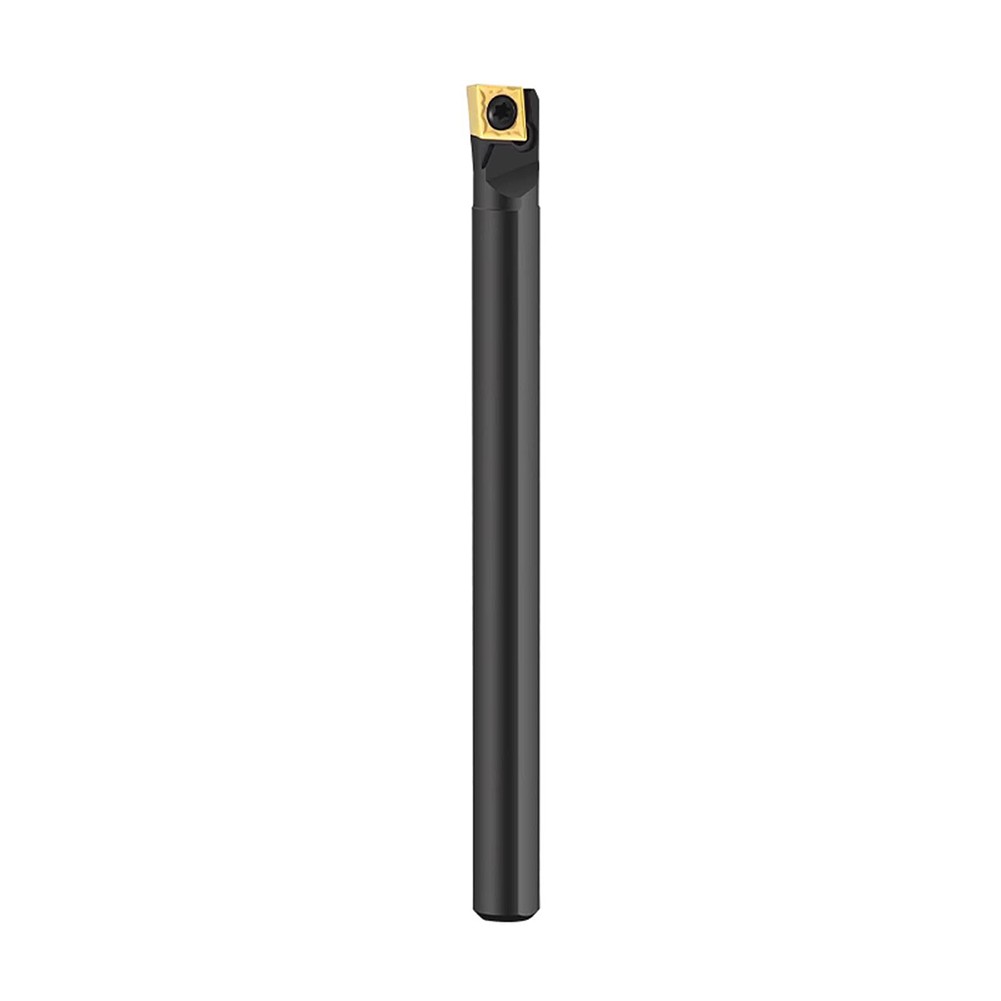

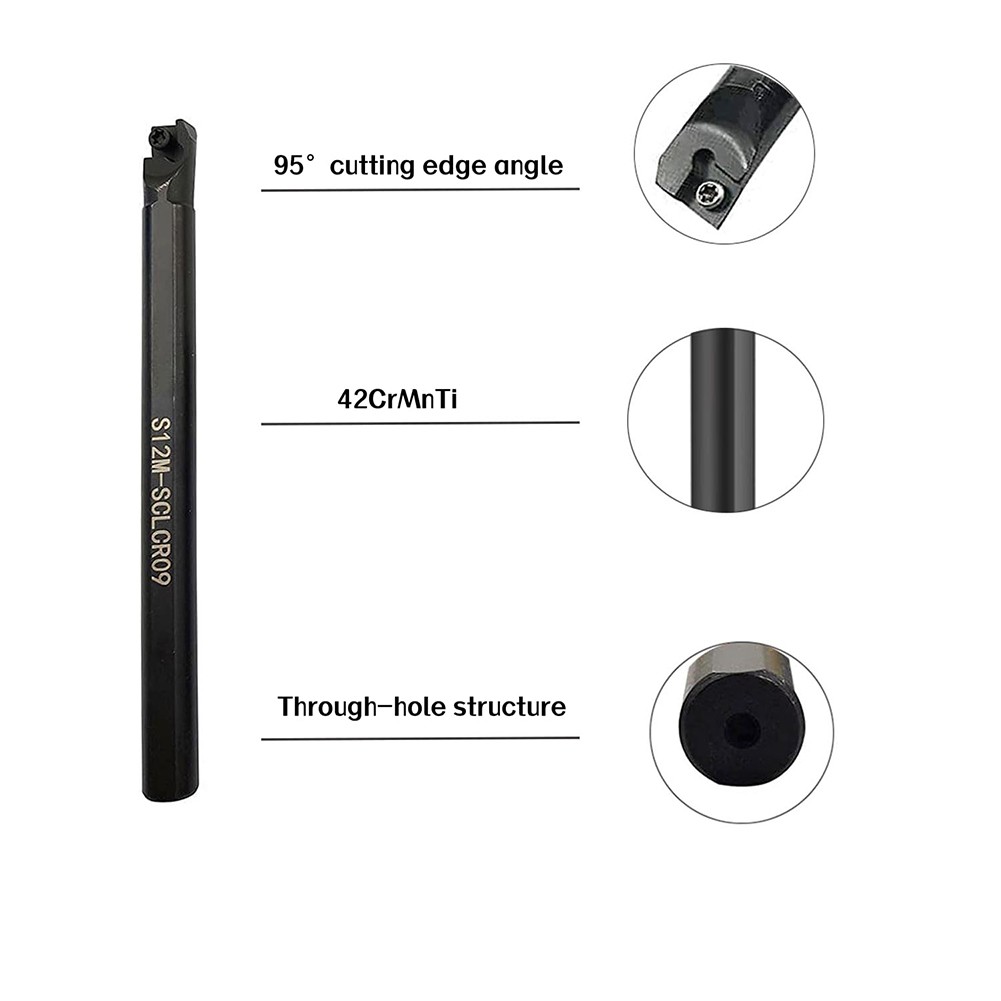

*Cutting Tool Details: The S12M-SCLCR099 tool boasts a 95-degree cutting edge angle and is constructed from a 42CrMnTi substrate with a blackened finish. It measures 5.9 inches in length and has a shank diameter of about /2 inch, providing high strength, stiffness, and good cushioning performance during use.

*Secure Fastening: Included in the package are 10 alloy steel for Torx screws (Metric4 x 8) designed to securely the carbide inserts to the holders. These screws are made from hard metal, offering high strength and stiffness to maintain stability in the connection of components.

*Material Compatibility: This tool set is designed for use with stainless steel, regular steel, cast iron, and non-ferrous materials, making it suitable for a variety of machining applications.

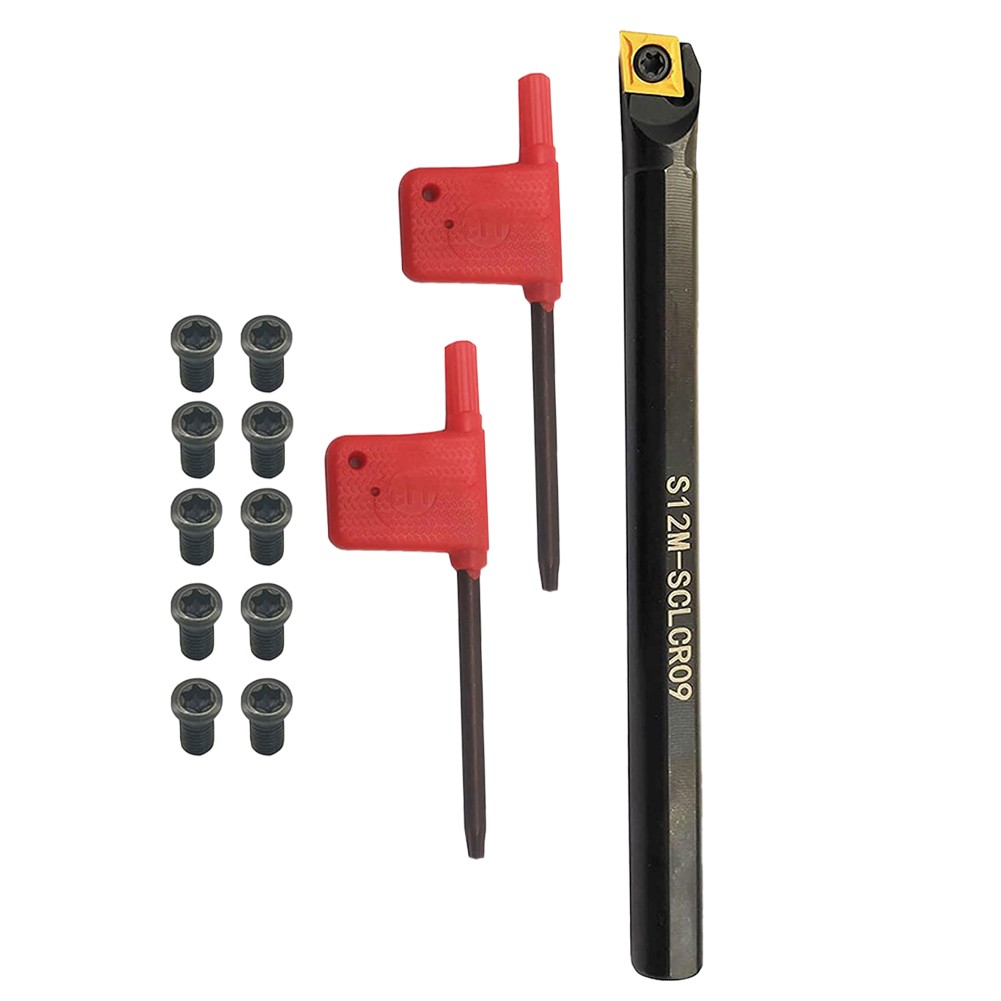

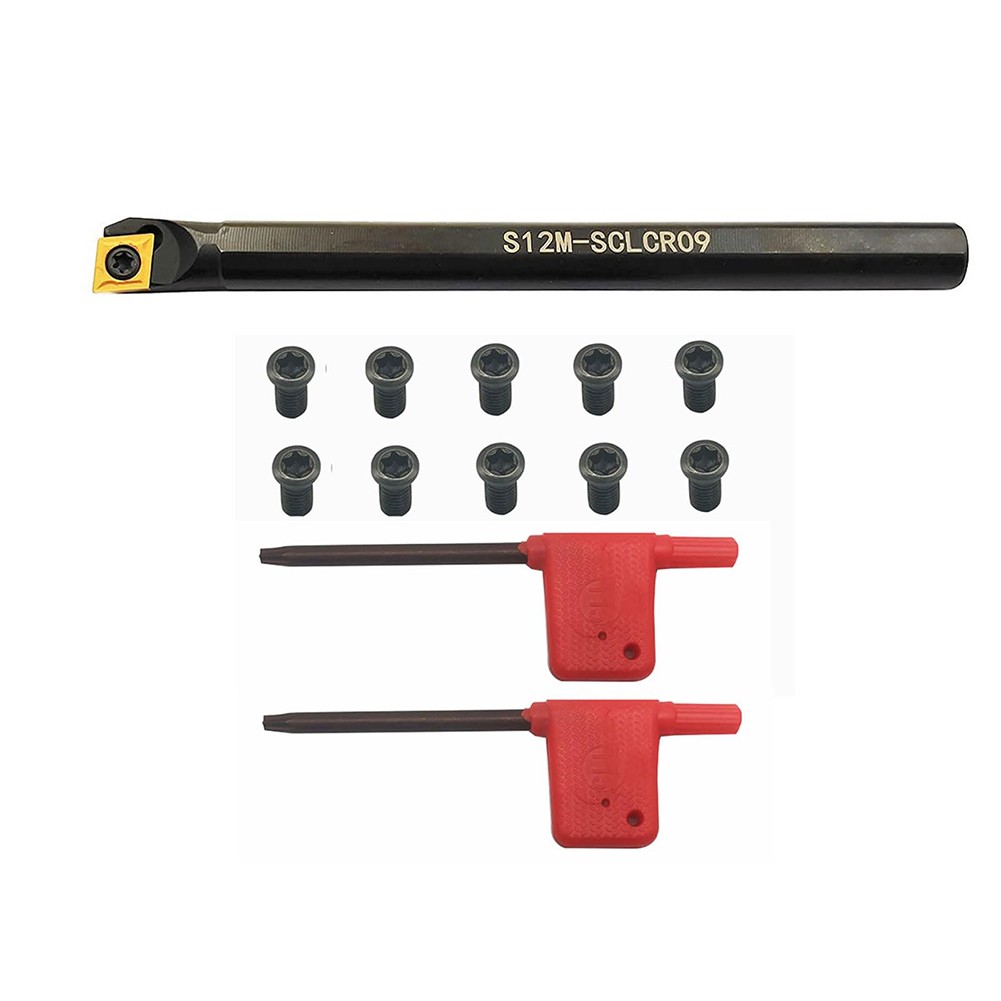

*Package Contents: The package includes a right-hand lathe turning tool holder (about /2 inch S12M-SCLCR09), a CCMT09T304 indexable carbide turning insert, ten Metric4 x 8 alloy steel screws, and two T15 wrenches, providing everything needed for effective operation and easy setup.


Specifications:

Part Name: Indexable Metal Lather Turning Tool Holder Boring Bars kit

Material: Carbide,Steel

Size: Standard

Color: Black,Gold

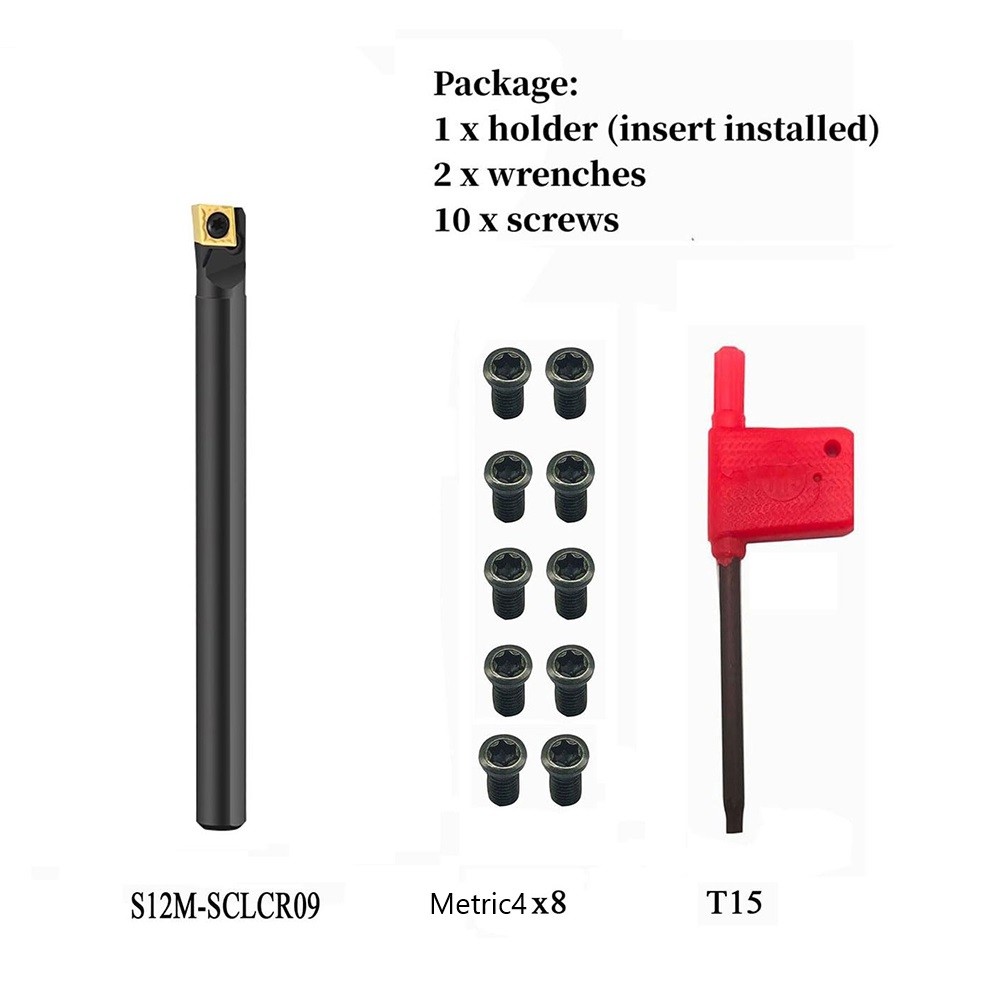

Package Content:

x Lathe tool holder

x Alloy blade

10 x Screws

2 x Wrenches


Note:

. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
