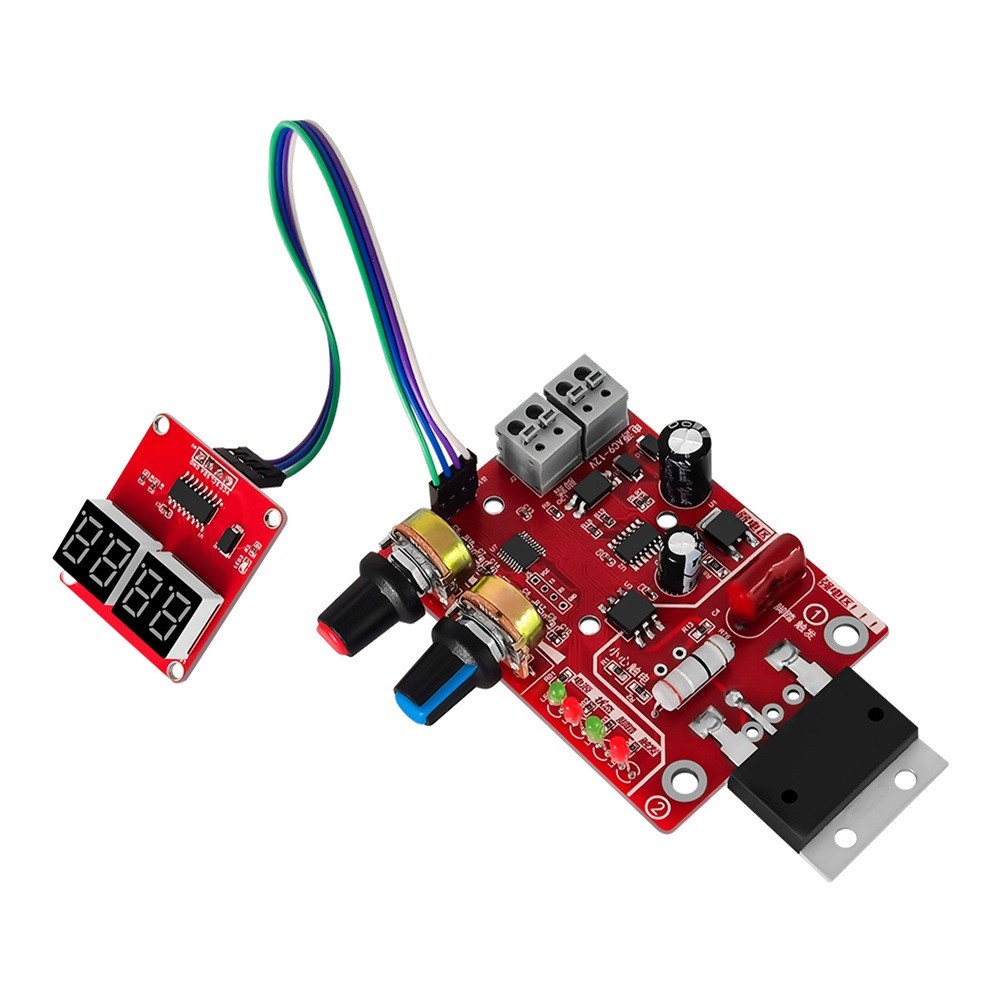

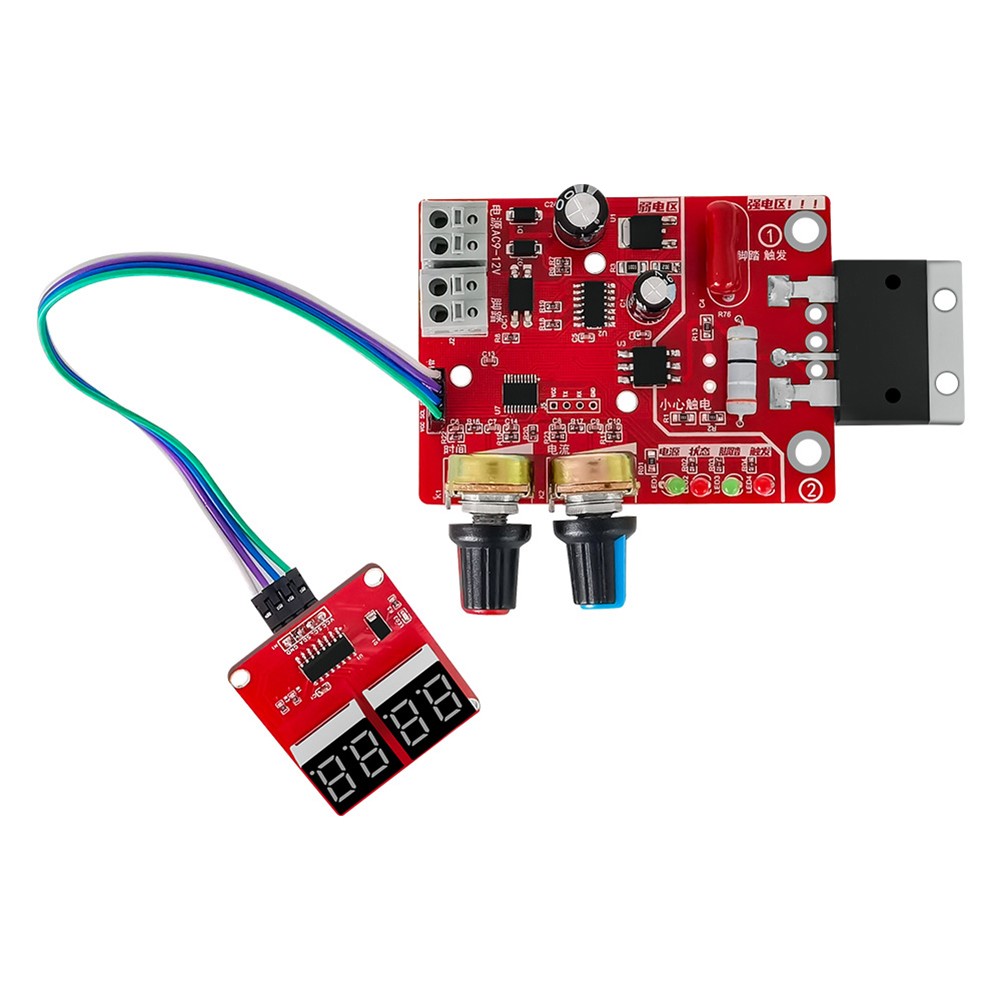

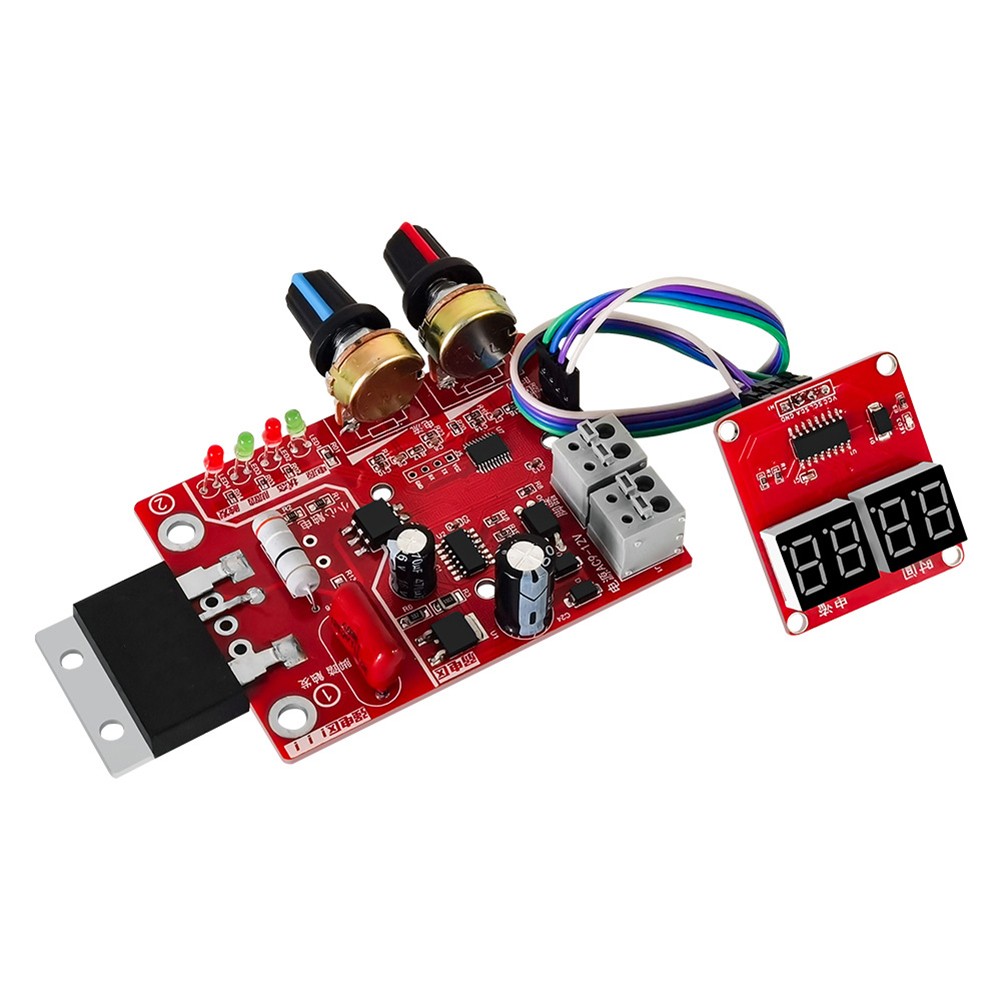

Spot Welder Control Board 40100A for NYD01 with Quick Connect Terminals
DESCRIPTION


Features:

*Compatibility: Designed to work with a 100A for SCR, featuring a digital control interface that shows current time and settings.

* for Zero-Crossing Detection: Implements a reliable zero-crossing detection circuit for accurate thyristor phase shifting.

*Isolation and Safety: Strong and weak currents are isolated via optocouplers, enhancing safe operation.

*Convenient Connections: Power cord and foot switch cord utilize screwless quick connection terminals for improved convenience and reliability.

*User-Friendly Input: High- for single potentiometer allows for accurate input of time and current, with clear visibility of the onboard power supply, foot trigger indicator, and operational status, all managed by an for STM8 industrial microcontroller.


Specifications:

Part Name: Spot Welding Machine Control Board

Material: Plastic,Metal

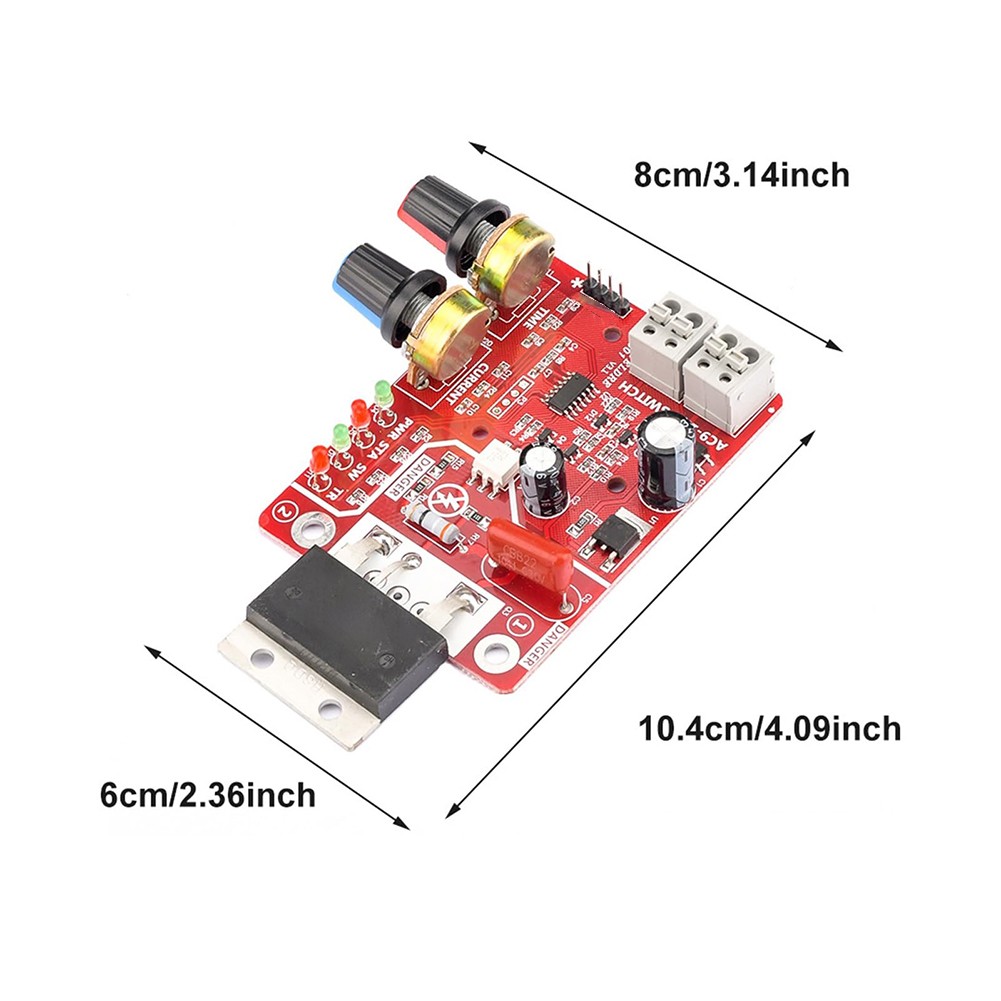

Size: Standard

Color: Red

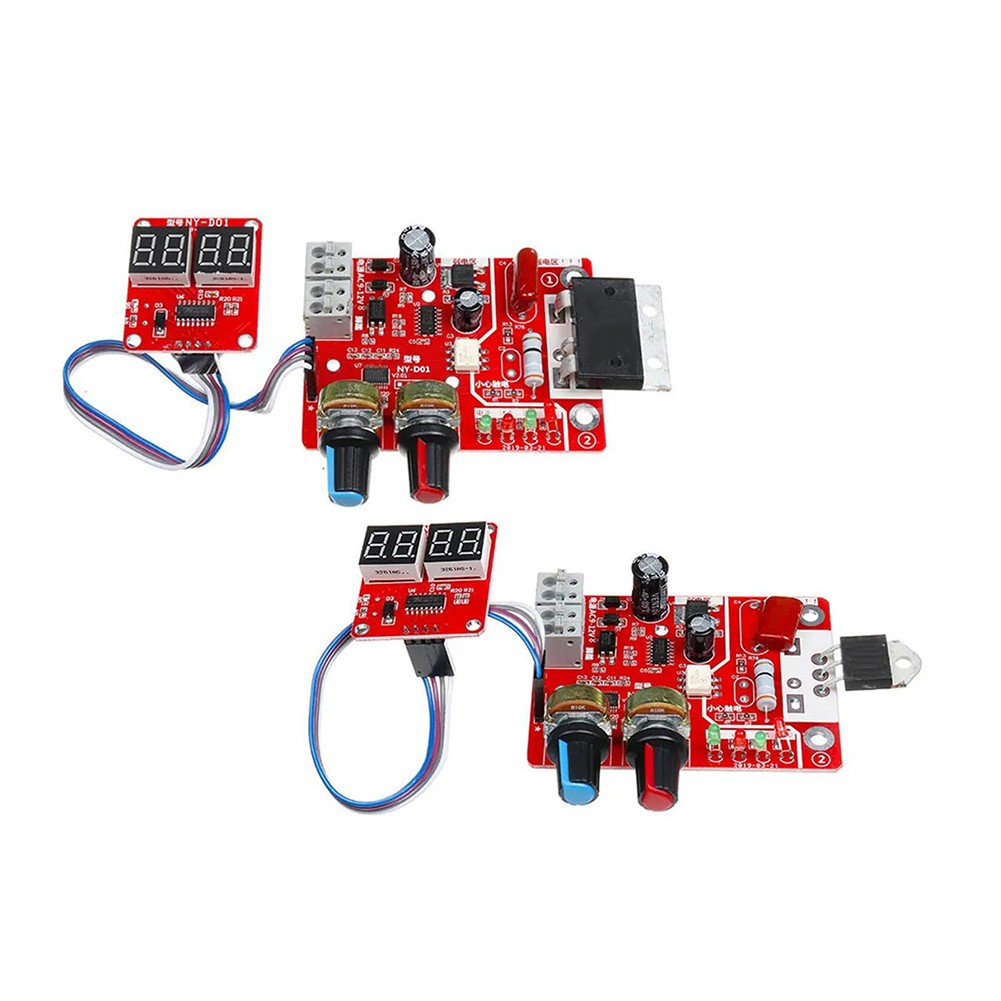

current(Optional): 40A/100A

Time input 1-50, unit cycle (1 cycle is 20 milliseconds)


Package Content:

1 x Spot Welding Machine Control Board


Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
