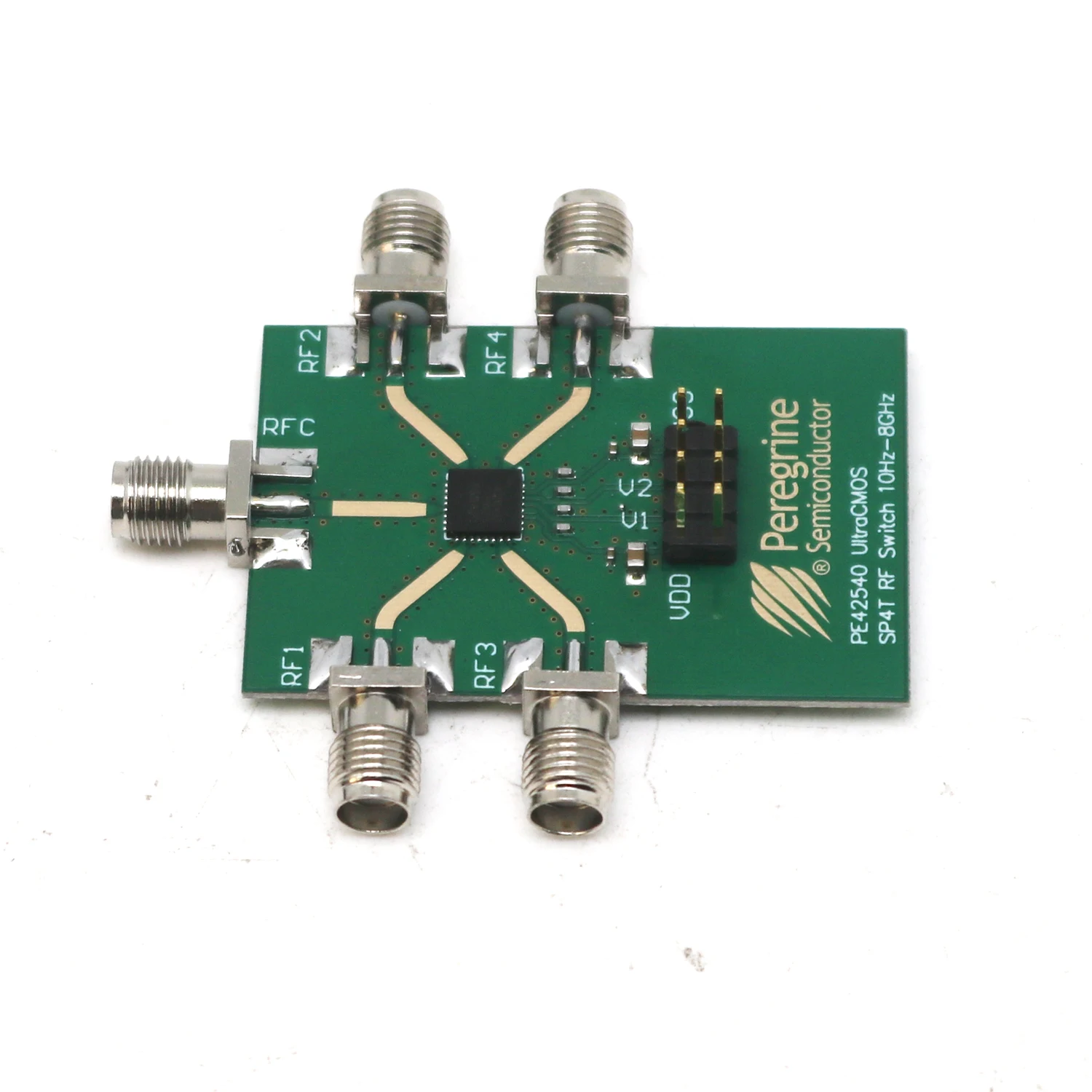

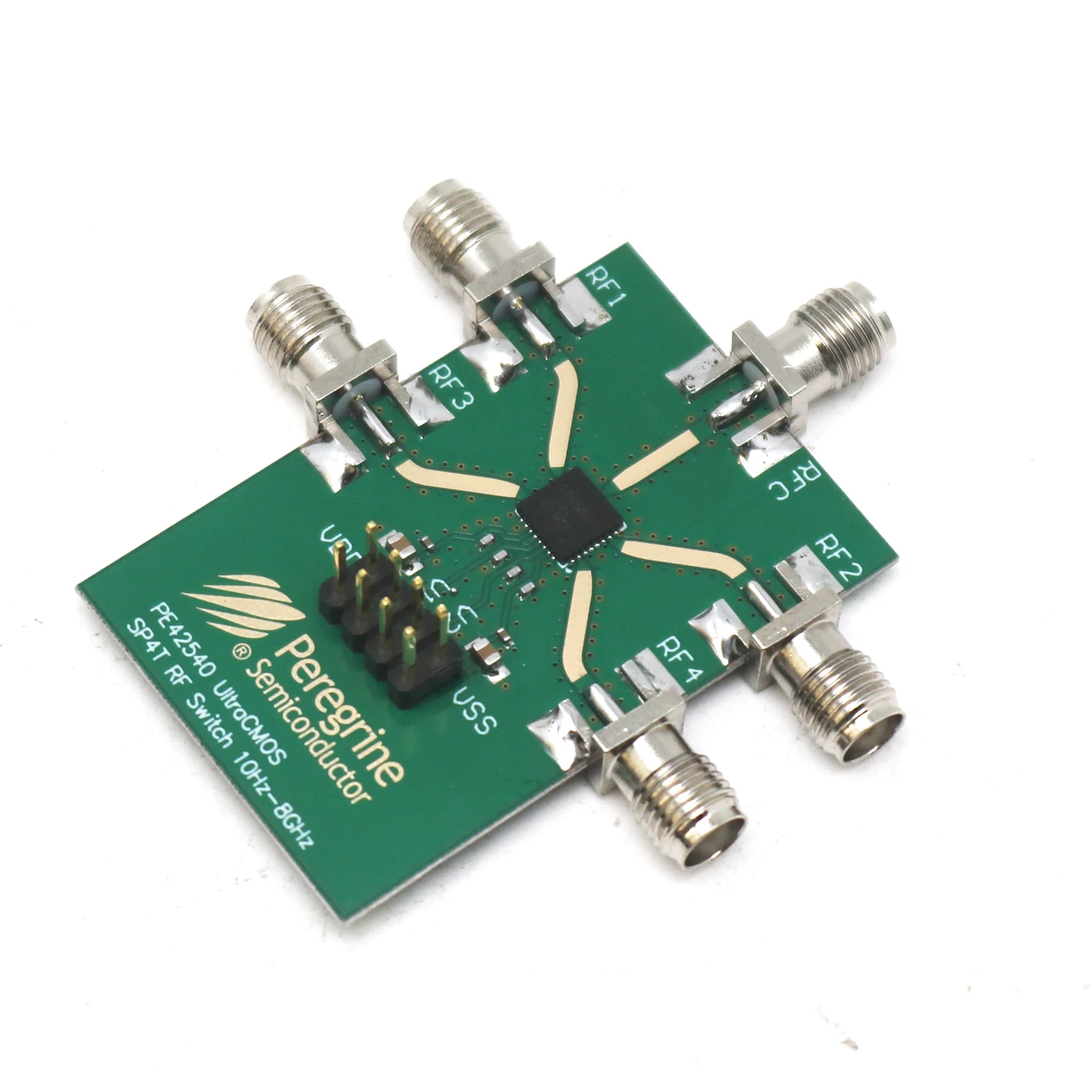

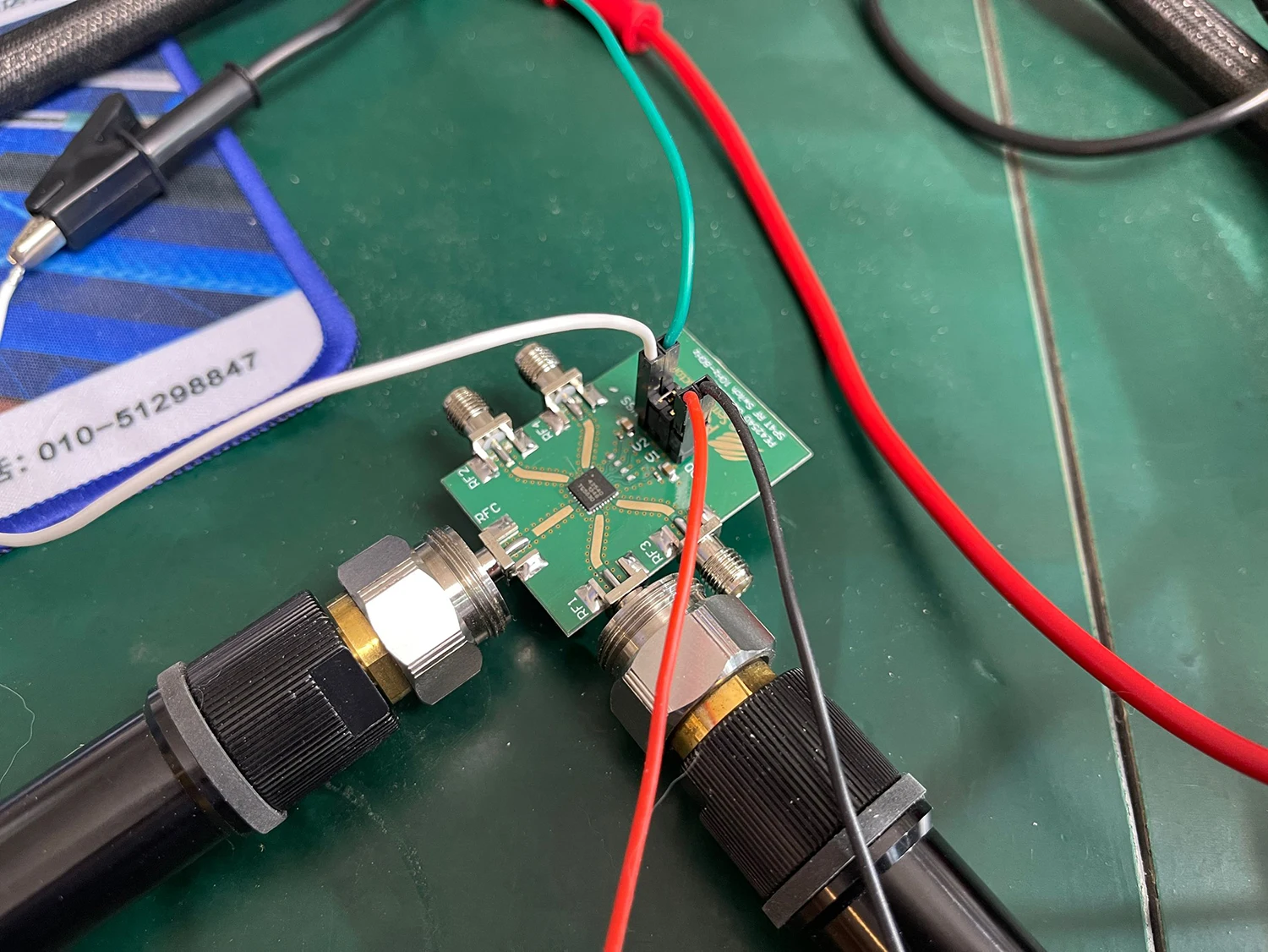

PE42540 10Hz-8GHz SP4T Reflectionless RF Switch with Gold-Plated Teflon High-Frequency PCB Board





Product Description

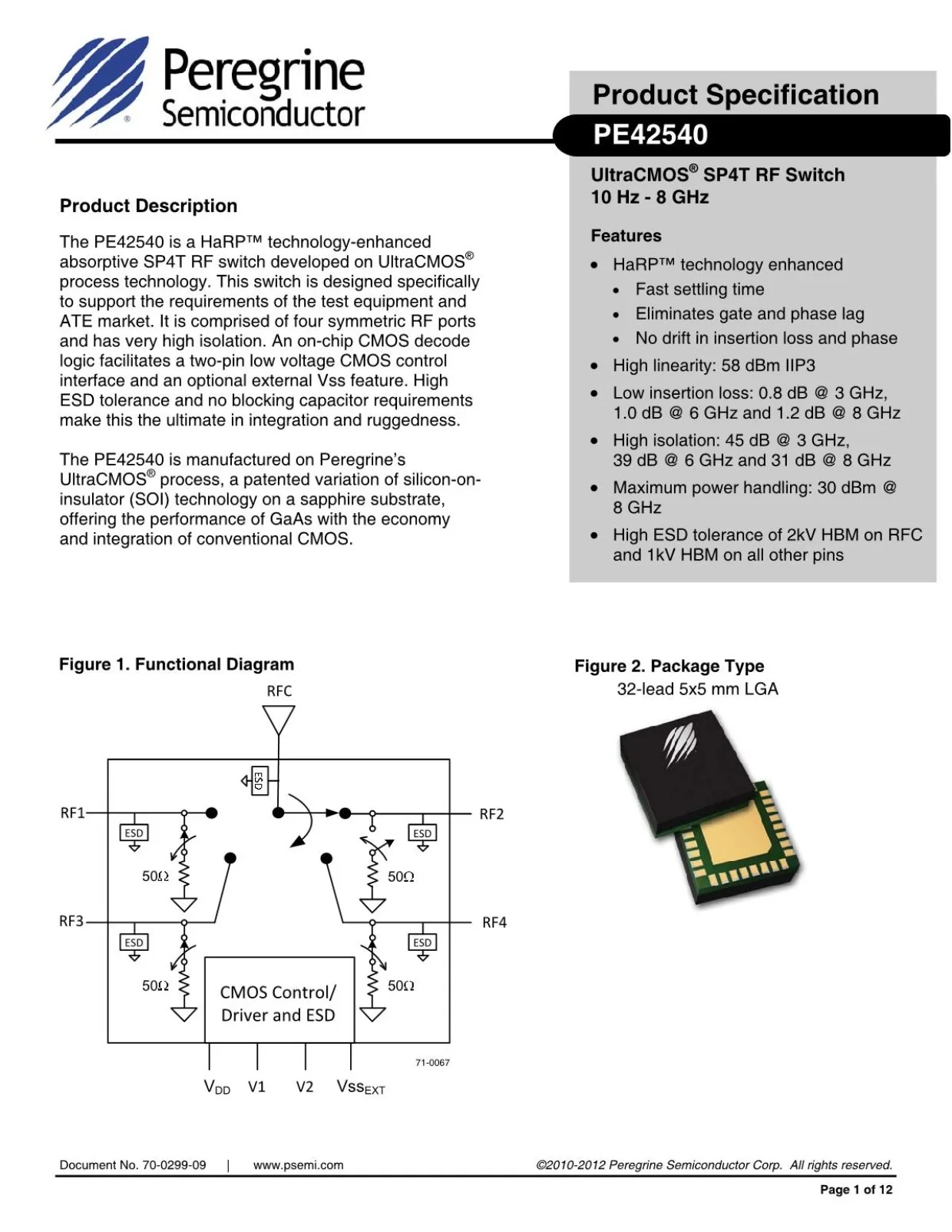

The PE42540 is a SP4T RF switch developed .This switch is designed specificallyto support the requirements of the test equipment andATE market. It is comprised of four symmetric RF portsand has very high isolation.An on-chip CMOS decodelogic facilitates a two-pin low voltage CMOS controlinterface and an optional external Vss feature. HighESD tolerance and no blocking capacitor requirementsmake this the ultimate in integration and ruggedness.





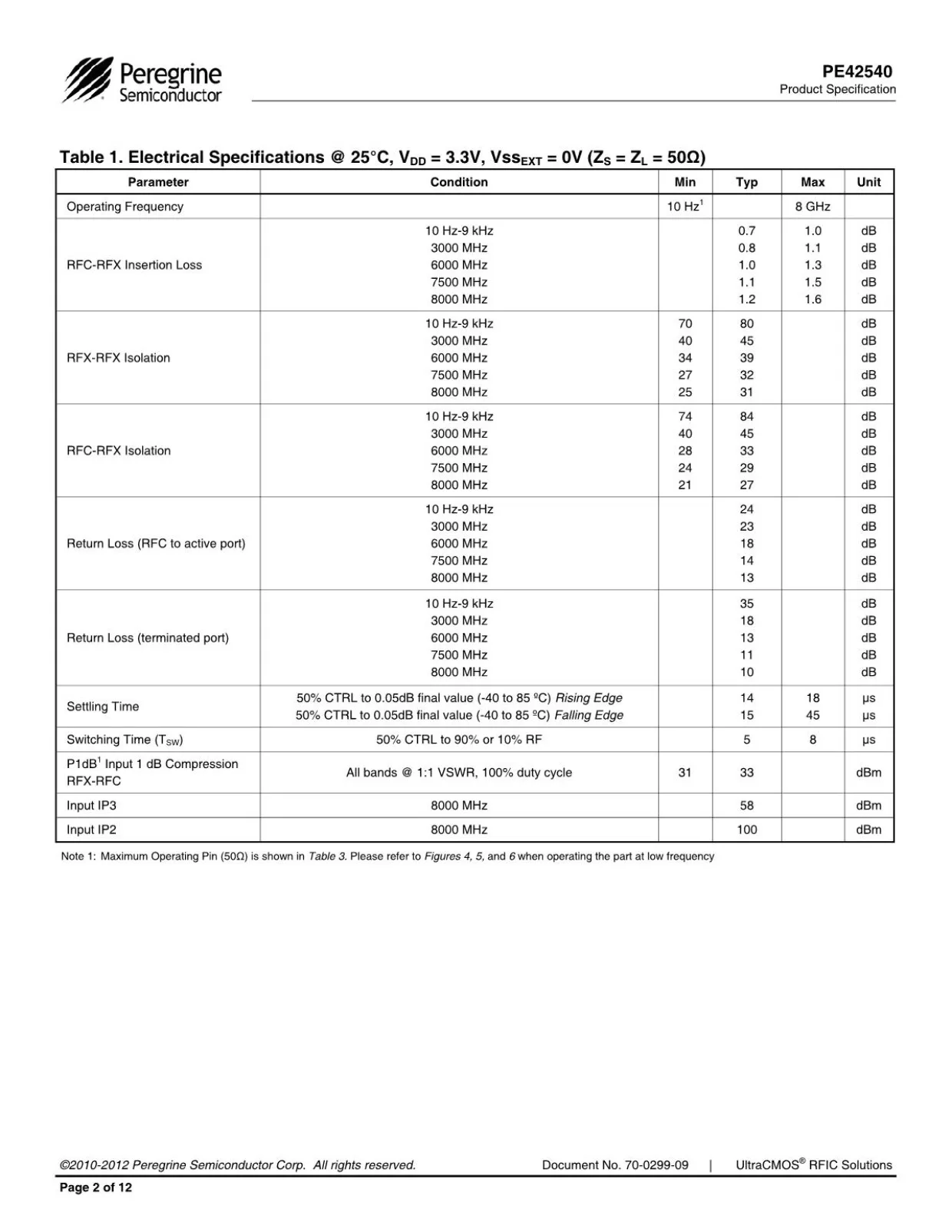

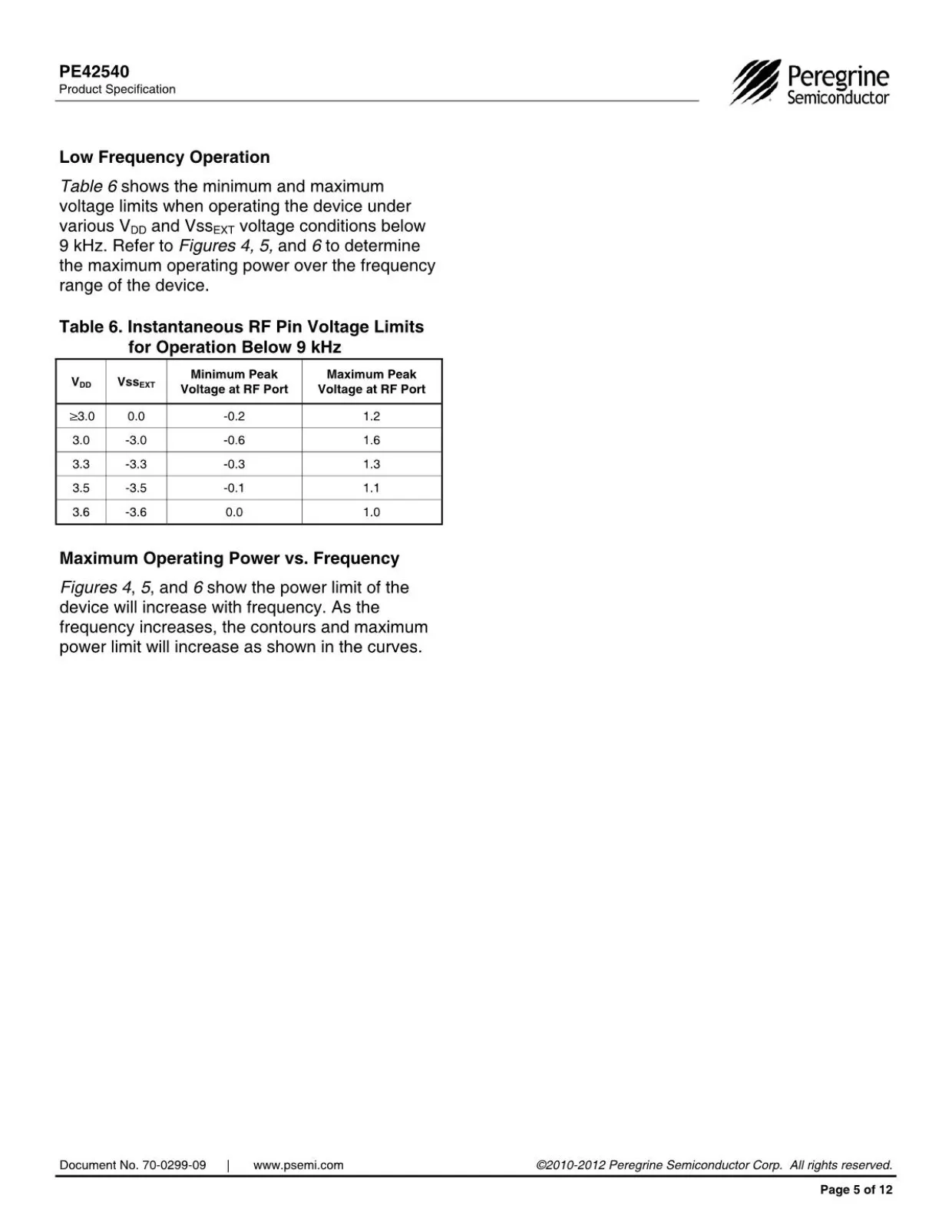

Features



Operating frequency: 10MHz-8GHz Power supply: 3.3V power supply

.HaRPTM technology enhanced

.Fast settling time

. Eliminates gate and phase lag. No drift in insertion loss and phaseHigh linearity: 58 dBm lIP3

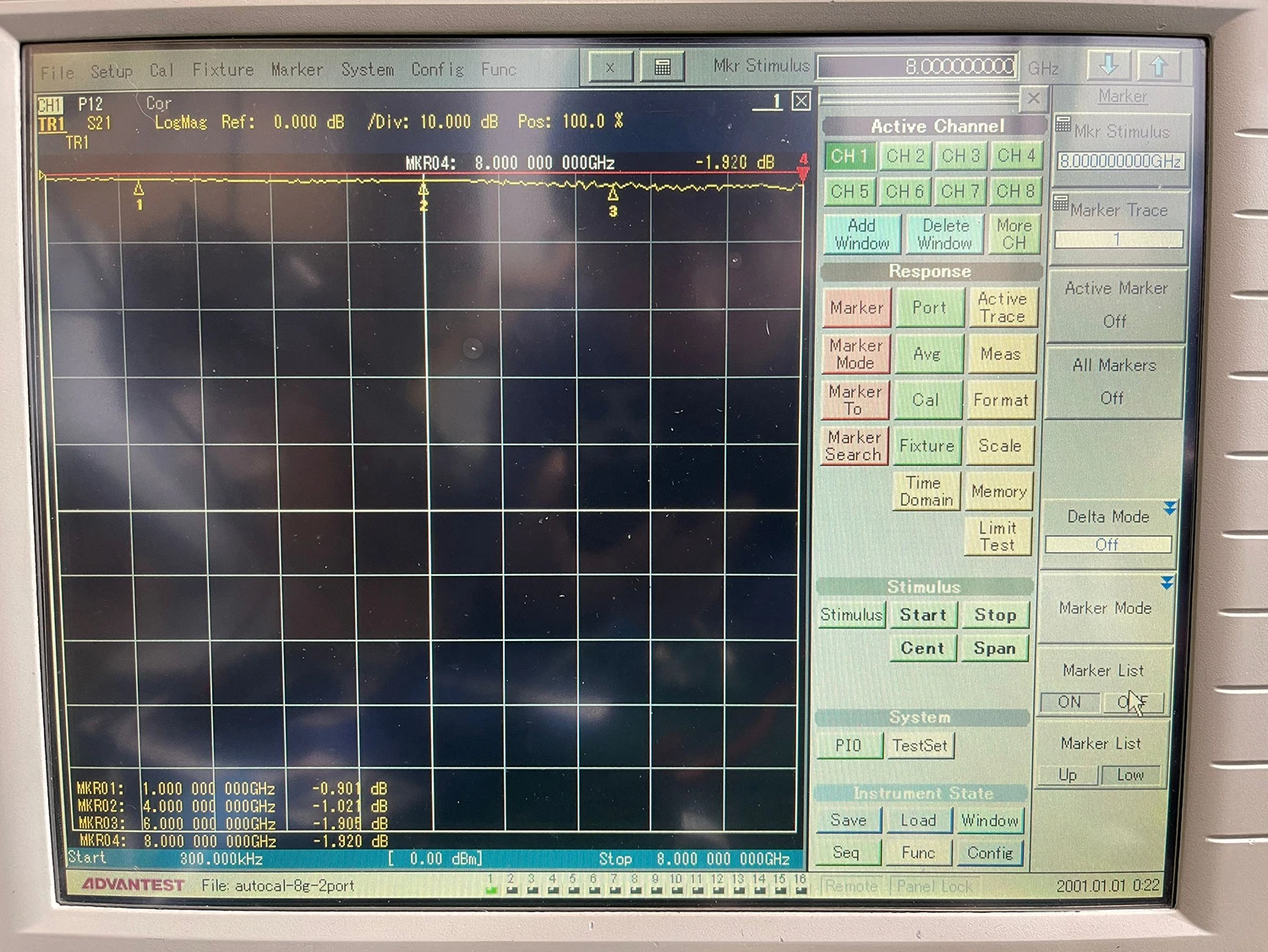

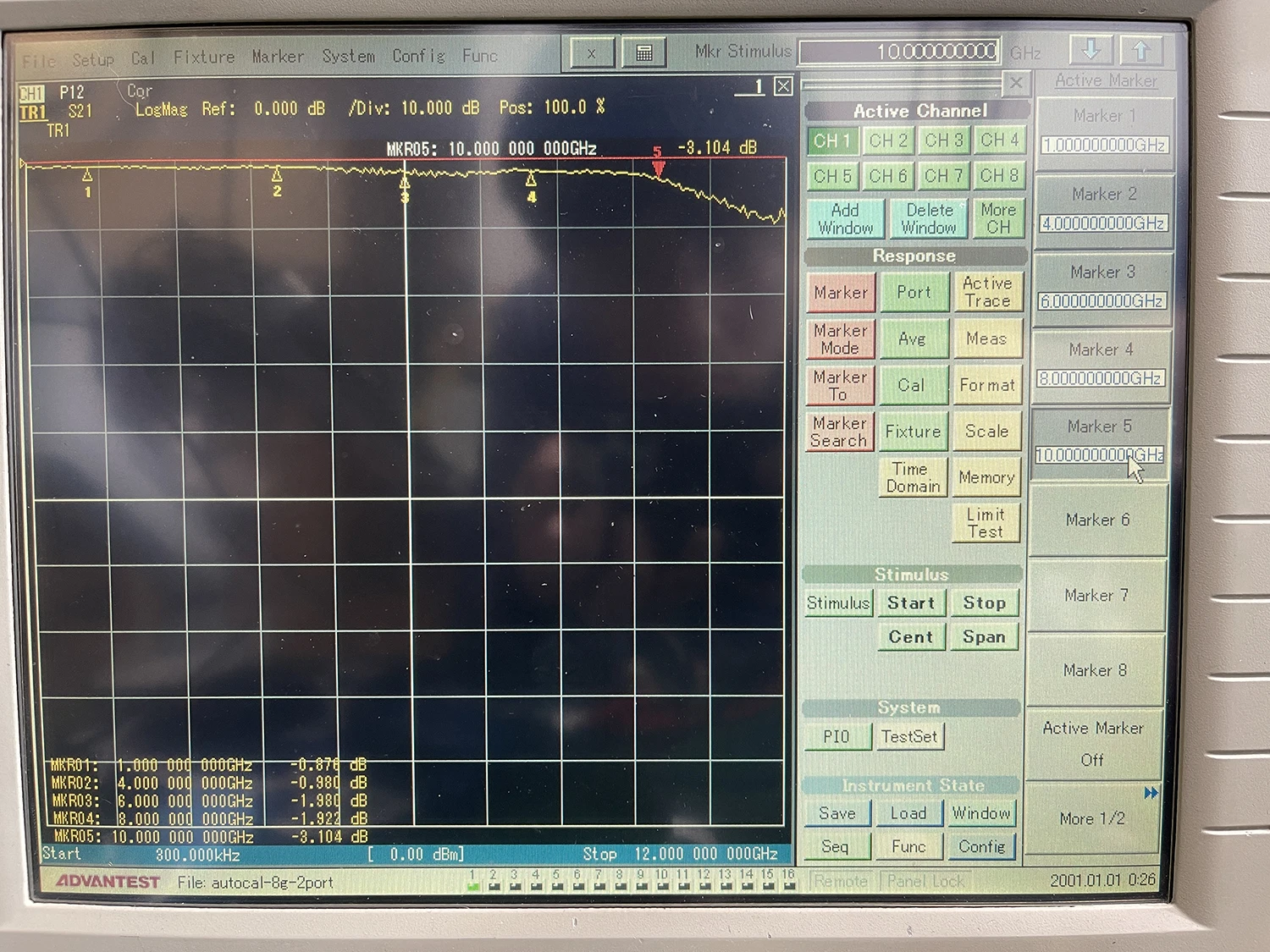

. Low insertion loss: 0.8 dB @ 3 GHz,1.0 dB @6 GHz and 1.2 dB @8 GHz

. High isolation: 45 dB @ 3 GHz,39 dB @6 GHz and 31 dB @8 GHzMaximum power handling: 30 dBm @8 GHz

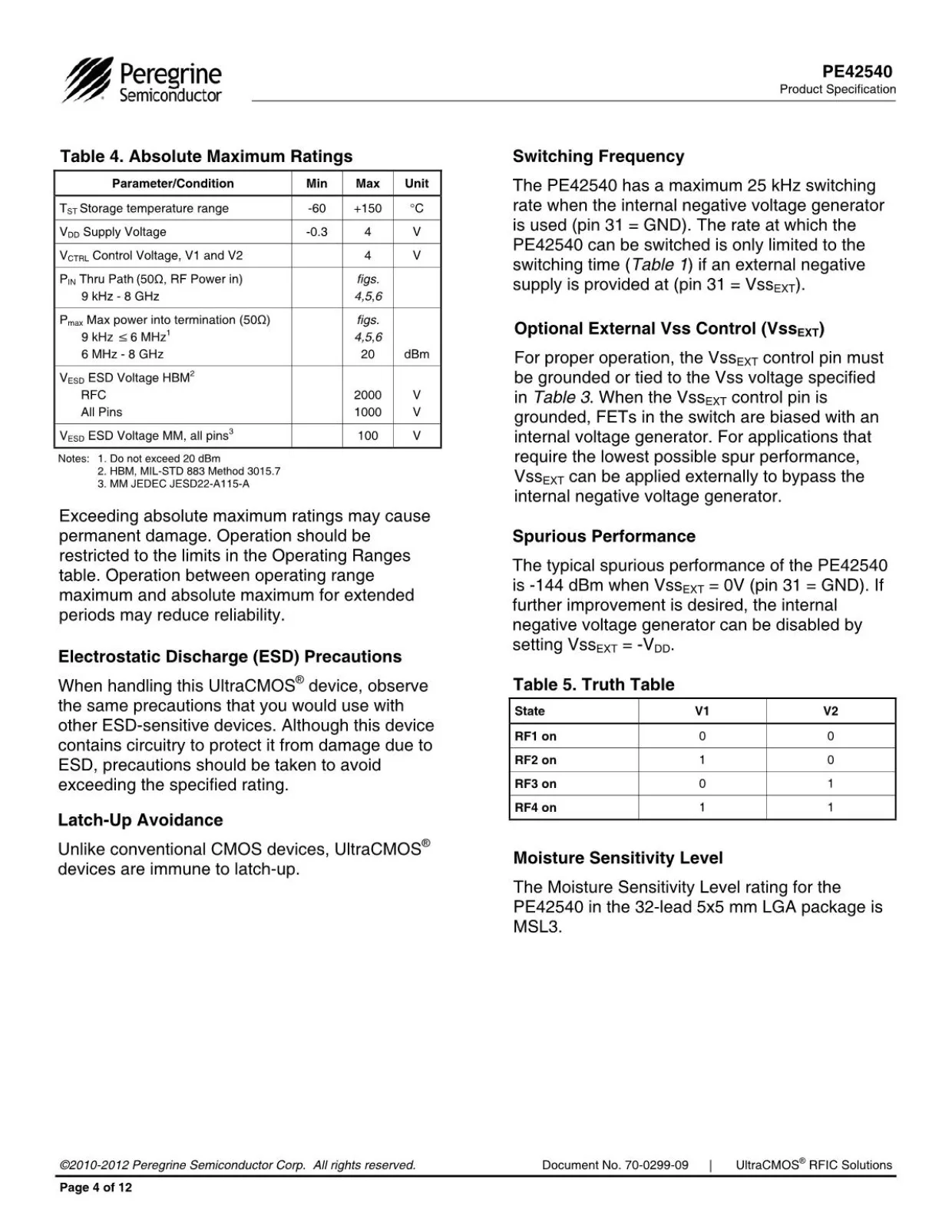

. High ESD tolerance of 2kV HBM on RFCand 1kV HBM on all other pins

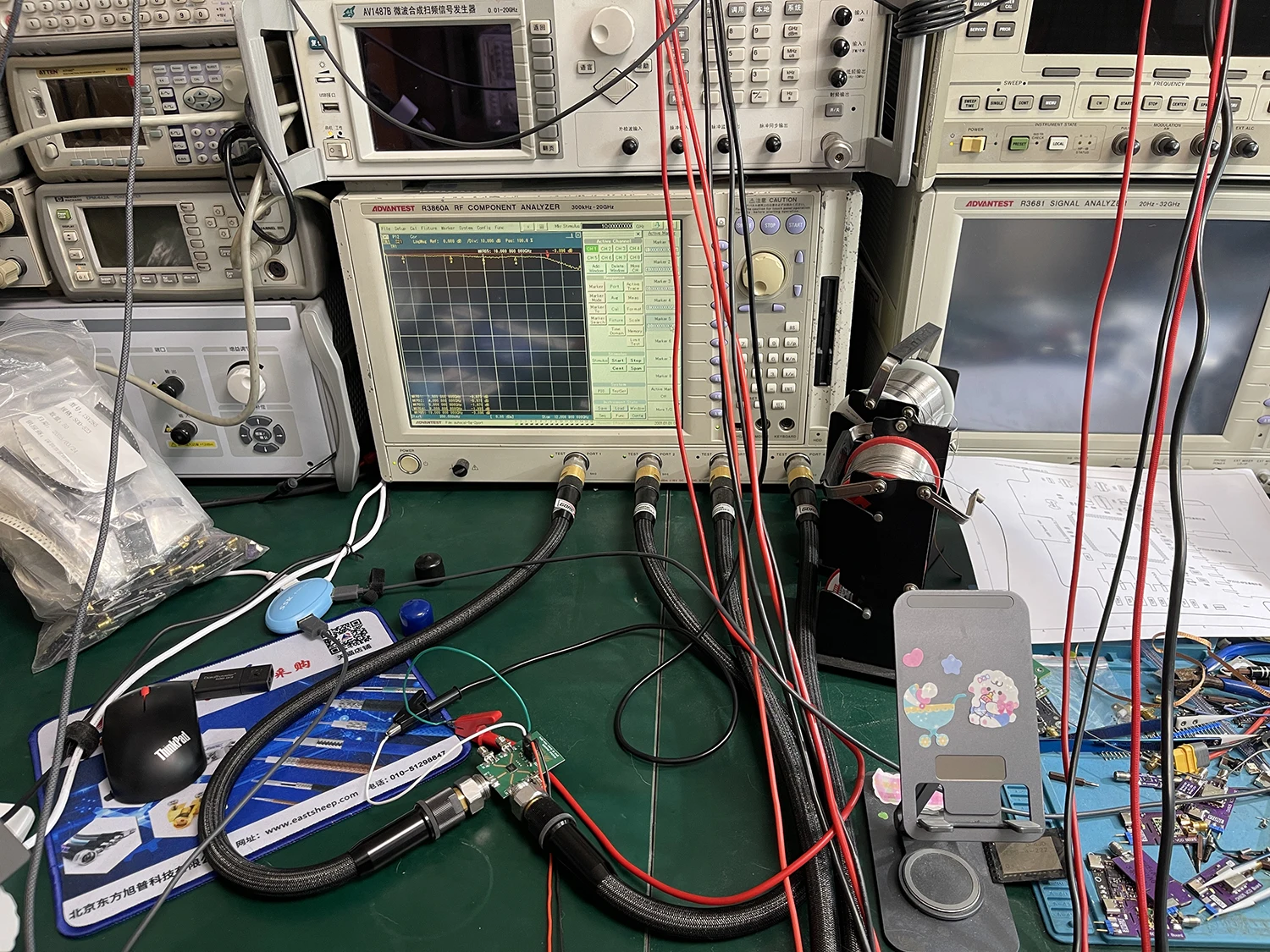

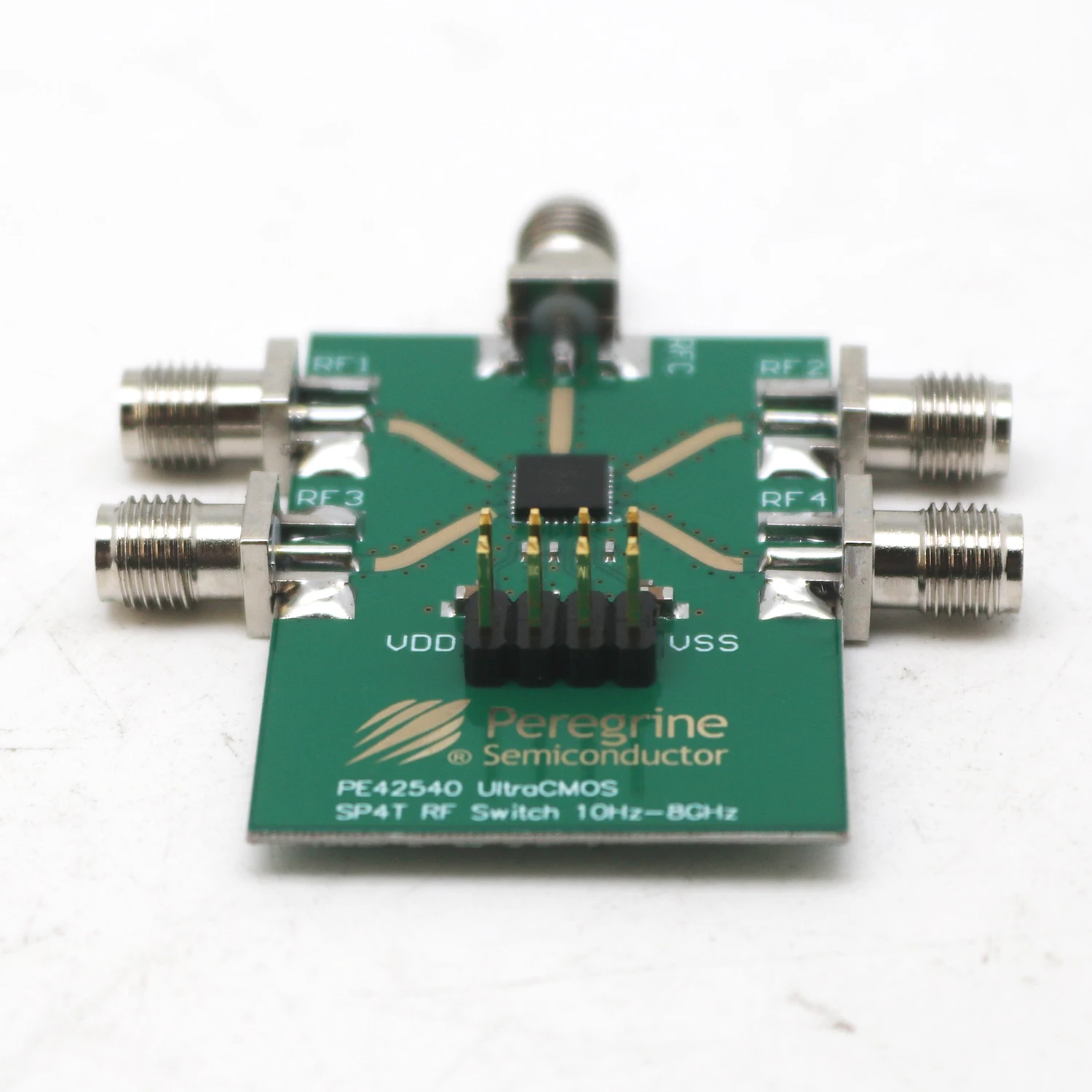

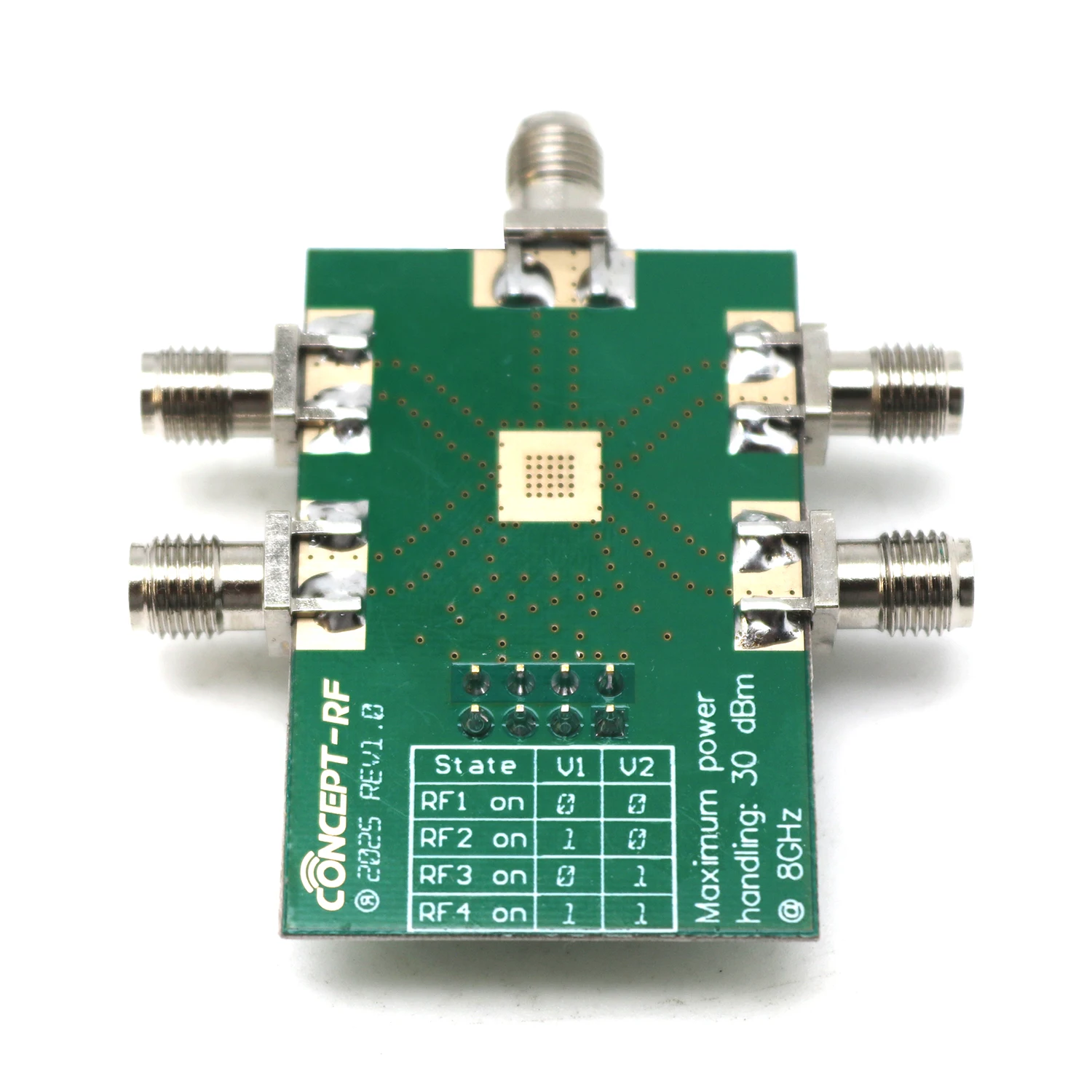

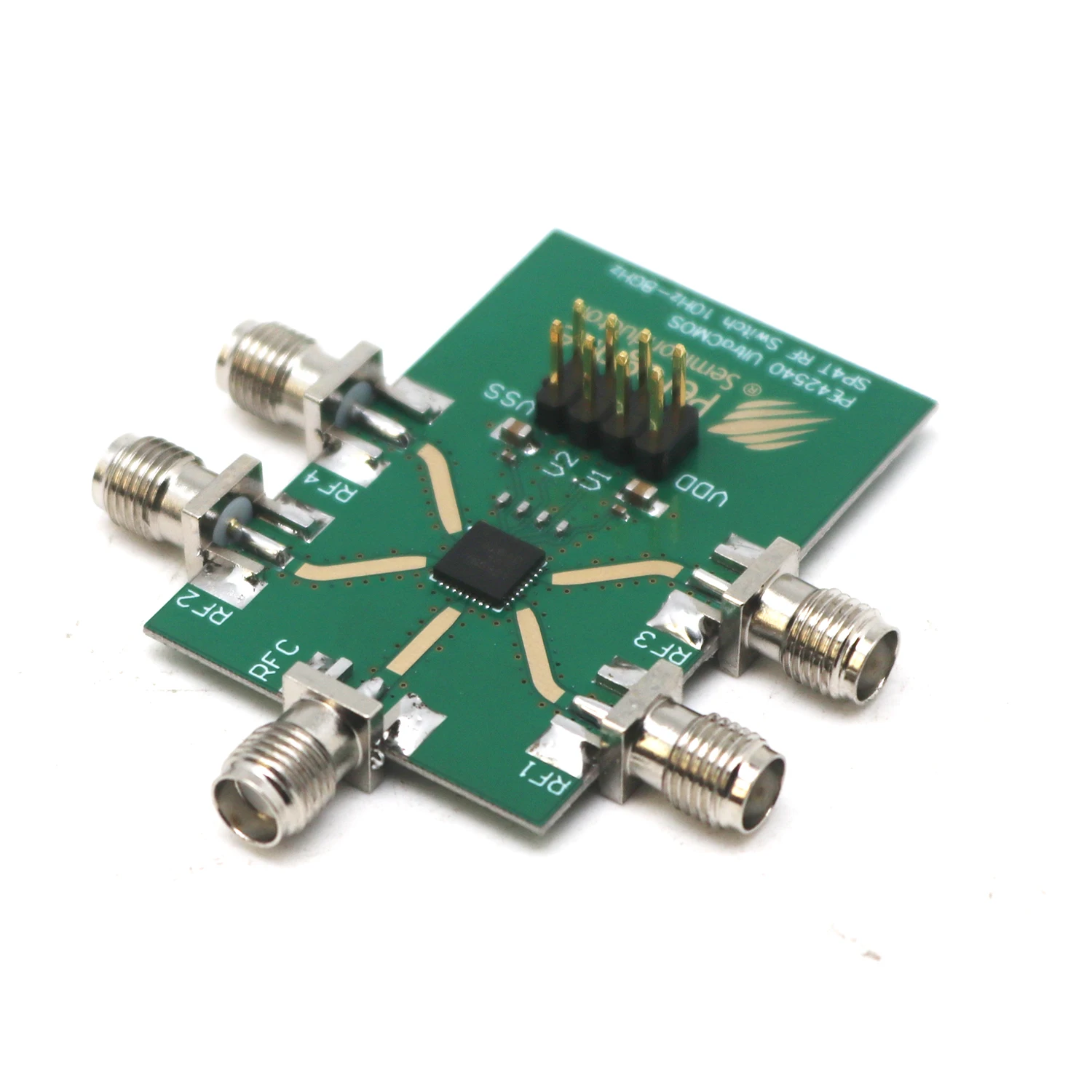

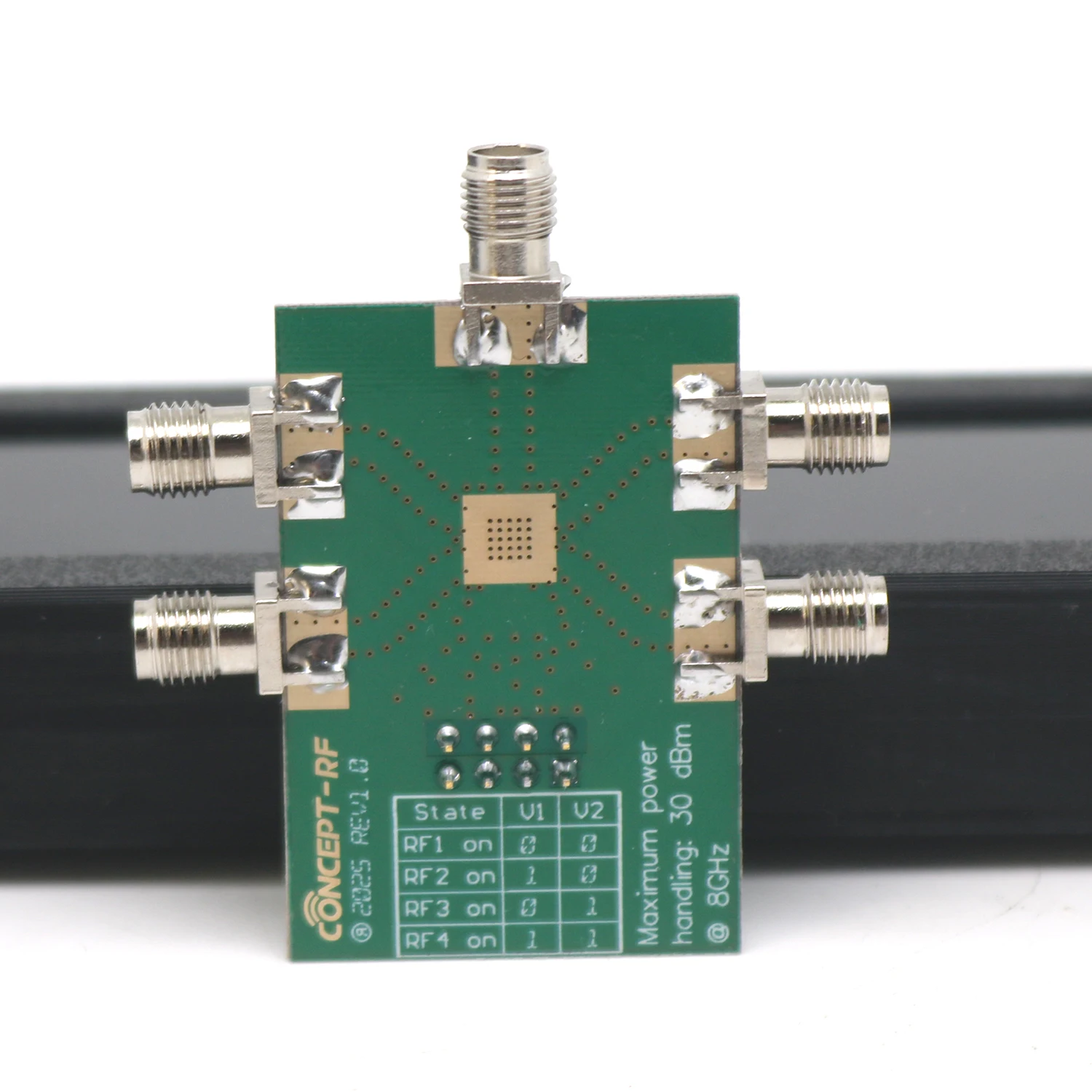

PCB SIZE : 4.5x3cm
