Sonicake Smart Box Guitar Bass Amp Digital Drum Machine Loop Recording Electric Guitar Bass Multi-effects for Live Performance

Smart Box

Digital Comprehensive Effect Device

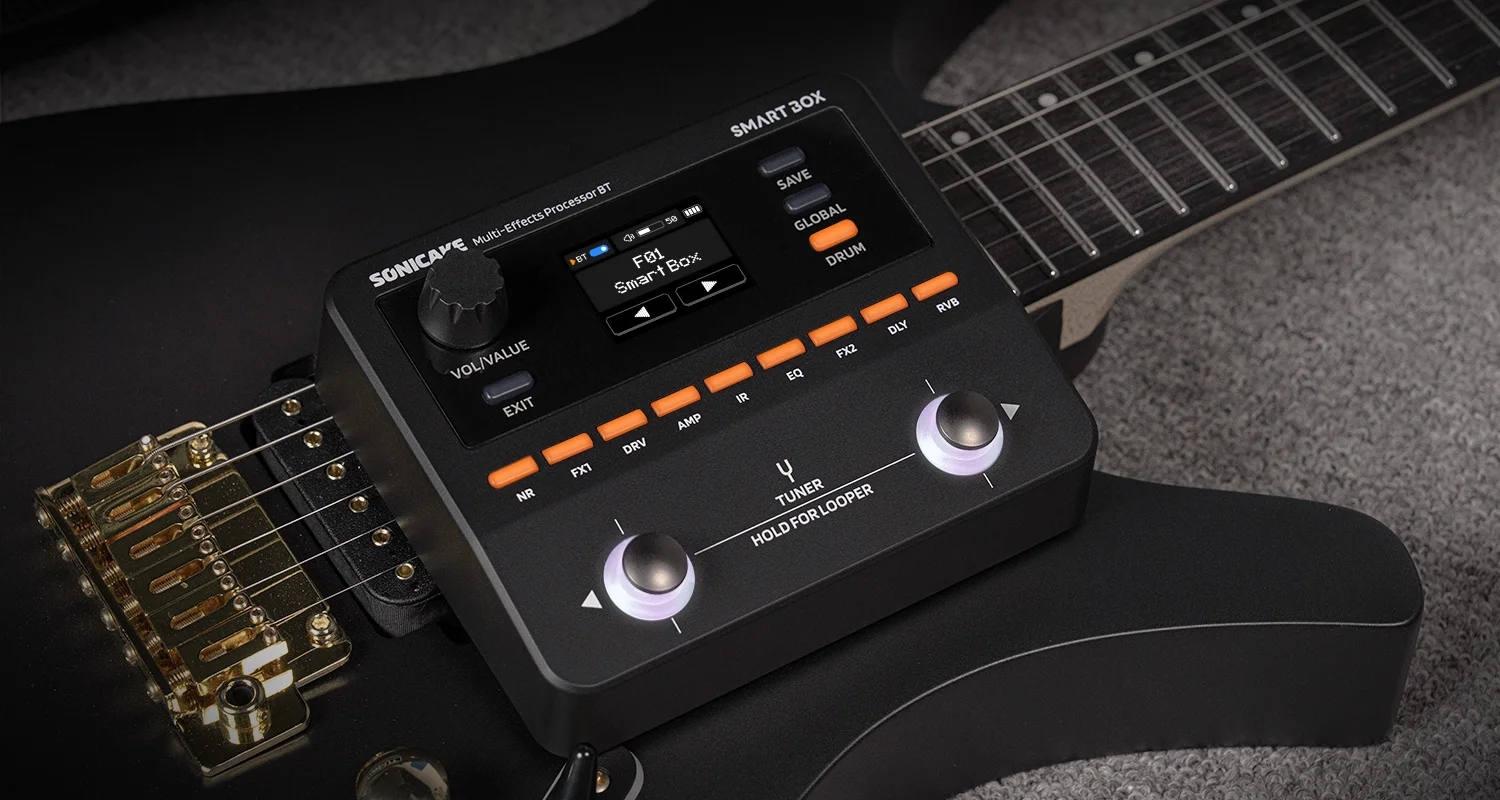

Smart Box is Sonicate's latest digital synthesizer, based on the proud white box digital modeling technology of the R&D team. Smart Box provides over 130 high-quality effects modeled based on classic speakers and effectors, and also supports loading NAM and enclosure IR files to create more possibilities for sound quality.

While maintaining a portable size to the greatest extent possible, Smart Box combines intuitive information display and quick interactive functions that are conducive to live performances. The high-definition color LCD screen displays preset information, and 9 shortcut buttons display the on/off status of the effect module. You can also press the button to enter the corresponding module and quickly adjust the effect parameters. You can also connect the Smart Box to the mobile app for more precise adjustments. Two specially designed stomping pins not only have excellent foot feel, but also can be controlled by module switches and timed with multi-color light rings, making it convenient for stage performances. The Smart Box also comes with a TRS control expansion interface that supports external emoji pedals or spikes. If that's not enough, the Smart Box also supports pairing with wireless MIDI devices to expand more control functions and help you perfectly control every performance.

Product Features:

Adopting high-quality white box digital modeling algorithm effects to ensure clarity and dynamic range of timbre, providing professional grade sound performance

Suitable for various instruments such as guitar, bass, and acoustic guitar, factory presets include presets for electric guitar, acoustic guitar simulation, bass, etc.

Multiple timbre and effect presets, with 9 effect modules, more than 130 different effects, and 100 preset positions

Built in complete timbre chain, including preamplifier, box simulation, delayed reverberation and other modules, can simulate the timbre and performance effect of real instruments

Supporting box IR, NAM and other timbre file loading, providing users with a wider range of timbres Select

Built in 20 second phrase loop function

Built in metronome, available through the app 100 different drum machine rhythms can be obtained

The mixing table is paired with a screen display to provide a fast and accurate tuning experience

OTG recording function, which can directly record the instrument's audio signal to a mobile phone or other mobile device for easy music creation and sharing

2-in-1/2-in-1 USB Audio function, supporting Loopback, Re Amp and other operations

Computer software (Sonic Manager) and mobile app (Soniclink) can easily adjust the tone and set parameters, achieving more flexible and personalized tone control, preset IR and NAM file management

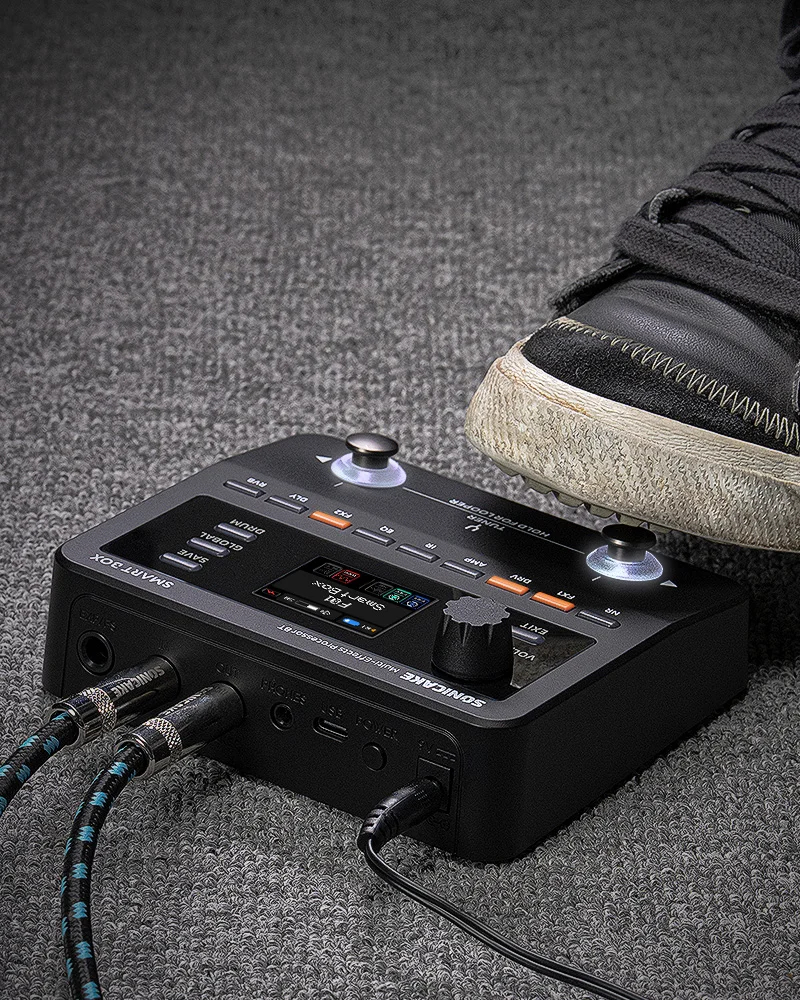

Specially designed metal pedal with light ring, supports single mode control module switch, supports dot speed control

Supports USB MIDI, BT MIDI, can be wired or wirelessly connected to MIDI control devices

Independent control expansion interface, supports external pedals or external pedal pins

Color screen with simple and easy to understand interactive interface

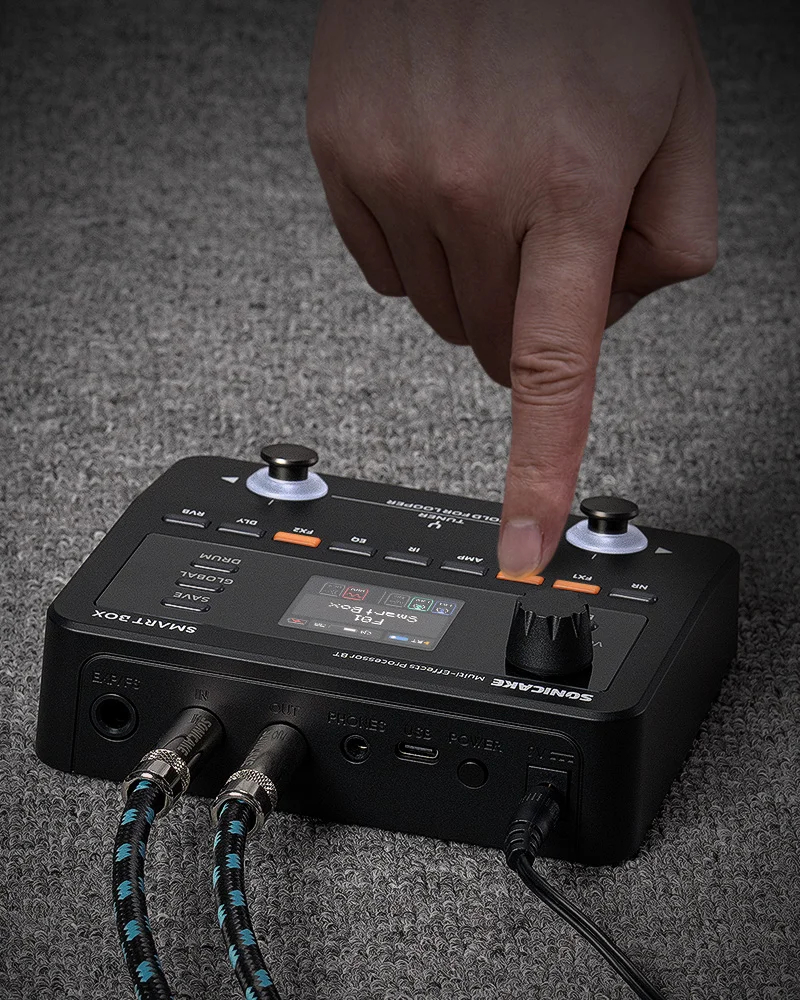

9 module direct buttons, clearly displays effect status, quickly adjusts effect parameters

Stereo output interface, used with built-in true stereo effect

Independent headphone interface, can adapt to most headphones with different impedances

Built in lithium battery

Battery life of over 3.5 hours

Supports 9V DC power supply or USB 5V power supply

Product Specifications:

A/D/A Conversion: 24 bit

Sampling Rate: 44.1kHz

SNR: 103dB

Effect Module: Supports up to 9 Effect Modules

Preset Quantity: 100 Preset Positions, 50 Factory Preset Analog Input Connection

IN Input: 6.35mm (1/4 ") Unbalanced Input (TS) Interface, Impedance 1M Ω

EXP/FS Control Expansion Interface: 6.35mm (1/4") TRS Interface

Analog Output Connection

STEREO OUT Stereo Output: 6.35mm (1/4 ") TRS Interface, Impedance 1k Ω

PHONES Earphone Interface: 3.5mm (1/8") Stereo Earphone Output (TRS) Interface, Impedance 22 Ω

Digital Connection

USB Interface: USB2.0 Type-C Interface

Size and Weight Dimensions: 135mm (length) x 114mm (Width) x 51mm (Height)

Weight: 378g

Power Supply

DC Power Requirements: DC 9V External Positive and Internal Negative 5.5 x 2.1mm Interface,>700mA (Minimum Operating Current: 160mA, Charging Current: 700mA)

USB Power Requirements: Type-C, DC 5V,>1A (Minimum Operating Current: 300mA, Charging current: 1A)

Built in lithium battery: 2000mAh, 3.7V
