Vehicle Fitment:
For 1987-1990 Jeep Wrangler 4.2L
For 1987-1995, 1997-2002 Jeep Wrangler 2.5L
For 1991-1995, 1997-2006 Jeep Wrangler 4.0L
For 2003-2006 Jeep Wrangler 2.4L
For 2006 Jeep TJ 4.0L
For 2006 Jeep TJ 2.4L
(Fits Models with l4/ l6 2.4L/ 2.5L/ 4.0L/ 4.2L OHV/ DOHC Engines ONLY)
ONLY FOR FOR Chevy Mopar V8 Conversion.
Radiator Configuration:
Material: Full Aluminium
High Performance Racing Spec.
3-Row of tubes Core Racing Design
CORE DIMENSIONS: 18 1/2" " WIDE x 20 1/8 " HIGH
OVERALL DIMENSIONS: 23 3/8" HIGH X 25 3/4" WIDE
Tank Size: 2 3/4 x 20 1/2
Inlet Hose Connection: 1 1/2" Driver Side
Outlet Hose Connection: 1 3/4" Passenger Side
Transmission Oil Cooler: ¢26×305×M16*1.5(Z)
Please note:
This radiator Upper Hose locate Driver Side,Bottom Hose locate Passenger Side
Some Jeep Wrangler YJ Upper and lower radiator hoses are on the opposite to.
Description:

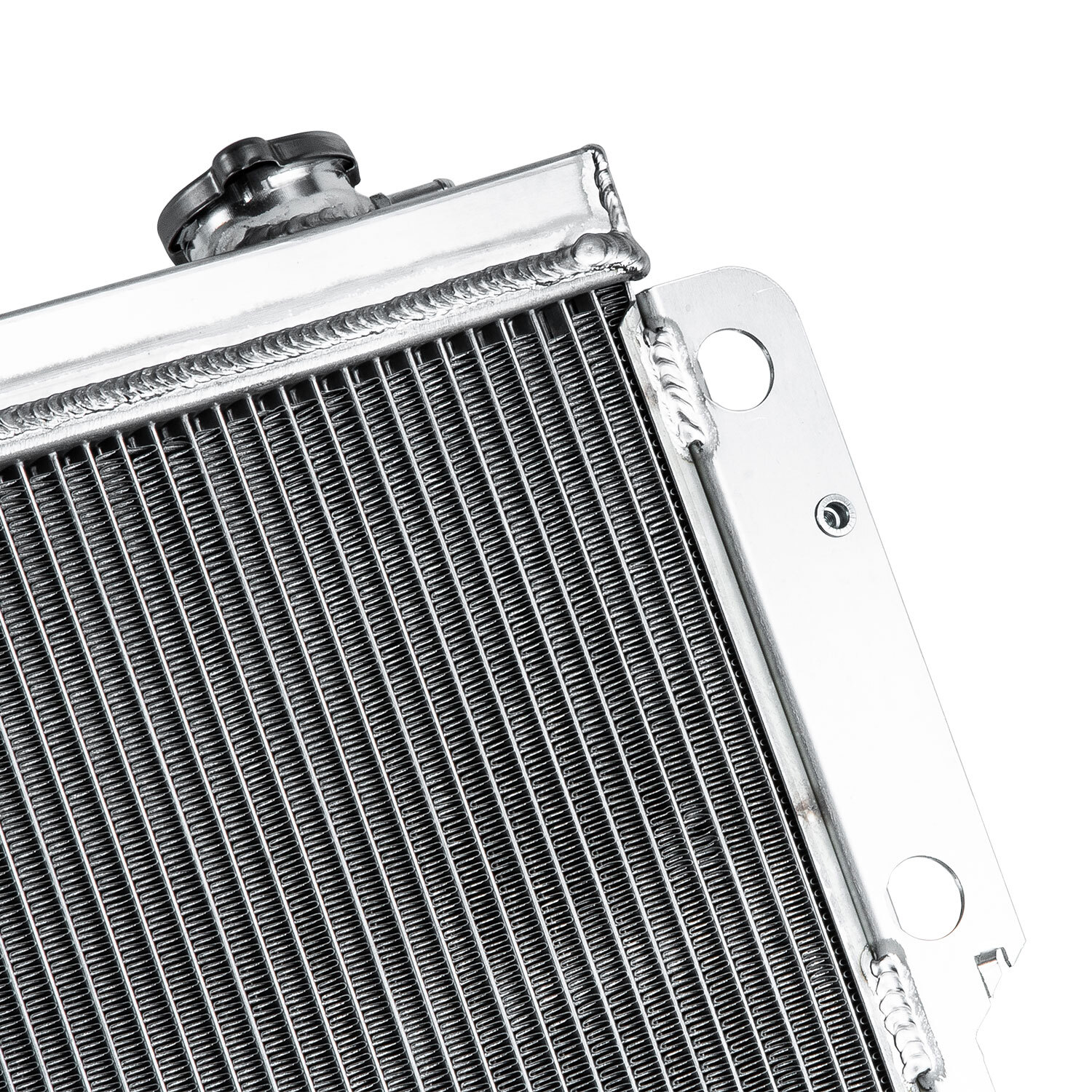

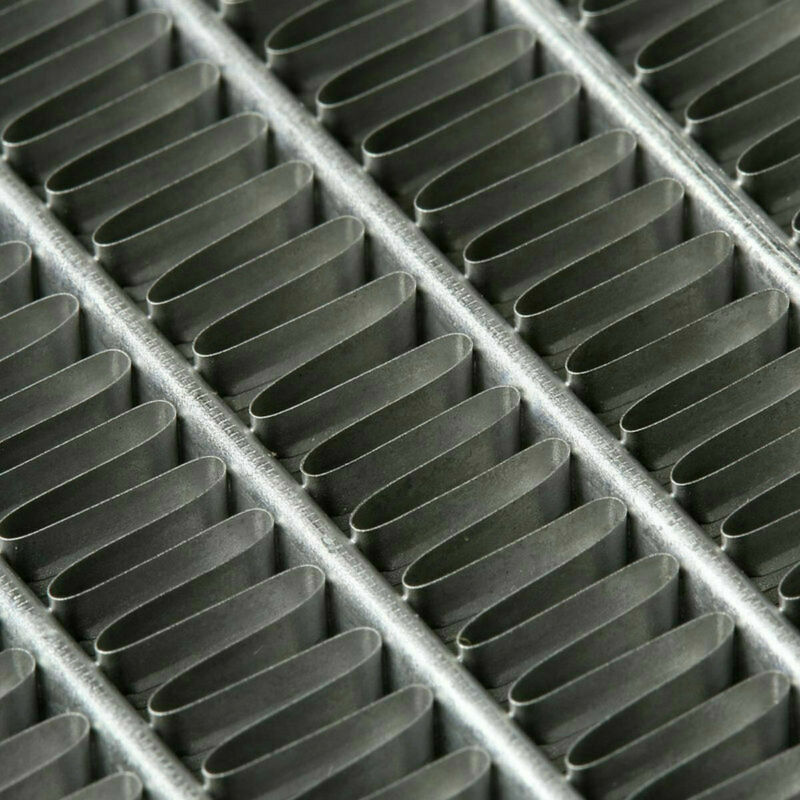

This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
